Weha Vacuum Cups for Stone Slab Lifting and Positioning

Moving stone is the part of fabrication that injures people, and it does so quietly, one awkward lift at a time. A single three-centimeter granite slab weighs roughly 18 to 20 pounds per square foot, so even a modest piece adds up to a load that no one should be wrestling by hand. Vacuum cups are the tool that turns slab handling from a back-straining, edge-chipping ordeal into a controlled operation, giving an operator a secure, ergonomic grip on a smooth stone surface. The Weha vacuum cup line has become a shop standard precisely because it makes this everyday task safer and faster.

This spotlight explains how vacuum cups work, why their capacity ratings matter, how to use them safely, and how to choose the right cup for the lifting and positioning a shop actually does. Vacuum handling is one of those investments that pays back in fewer injuries, less damaged stone, and faster movement through the shop, and understanding the equipment is the first step to using it well. A vacuum cup is a simple-looking tool that rewards being understood properly.

How Vacuum Cups Grip Stone

A vacuum cup holds stone by removing the air between a sealed rubber pad and the slab surface, so that atmospheric pressure presses the cup and the stone together with substantial force. The smoother and flatter the surface, the better the seal and the stronger the hold, which is why vacuum cups work so well on polished and honed slab faces. The grip is created and released on demand, which is what makes vacuum handling so much more controllable than clamps or slings: an operator can attach a cup, lift, position precisely, and release without ever getting fingers between the stone and a hard surface.

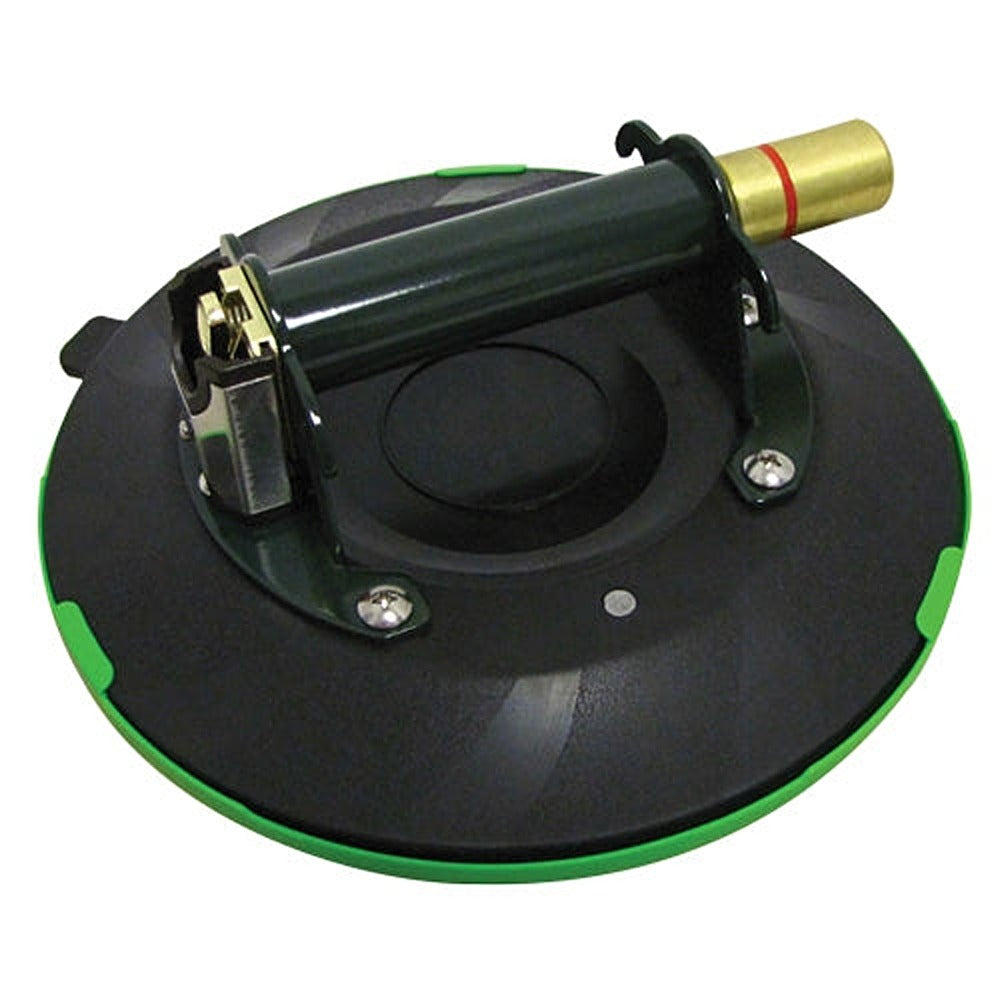

Vacuum can be generated by hand or by power, and the distinction shapes how a cup is used. Manual cups use a hand pump or lever to draw the vacuum and are simple, portable, and ideal for positioning, holding, and lighter handling tasks. Powered vacuum lifters use an electric or pneumatic pump, often with a vacuum reserve and warning system, for heavier and more continuous lifting. A handled vacuum cup like the Weha 10-inch model occupies the practical middle ground: a portable, manually operated cup that gives a single operator a strong, ergonomic grip for moving and positioning slabs around the shop.

Capacity Ratings and Safe Working Practice

Every vacuum cup carries a capacity rating, and respecting it is the foundation of safe use. The Weha 10-inch cup is rated to 331 pounds, but a rating is a maximum under good conditions, not a target to chase. Real-world holding force depends on the quality of the seal, which in turn depends on the surface: a clean, smooth, flat polished face delivers the rated grip, while a rough, textured, dusty, or wet surface can reduce it significantly. Treating the rating as a ceiling and building in a generous margin is how experienced operators avoid the rare but serious failure of a slab releasing mid-lift.

Surface condition is the variable operators control most directly. Before applying a cup, the stone surface and the rubber pad should both be clean and free of dust, grit, and debris that would prevent a full seal. Textured, flamed, and leathered finishes seal poorly because their surface is not flat, so vacuum handling on those finishes requires extra caution or different equipment. On a marginal surface, testing the grip with a small lift before committing to a full handling move lets the operator confirm the seal is sound while the stone is still close to safe.

Safe practice also means never relying on a single point of failure for a load over people. Operators keep hands and feet clear of the path a slab would take if it released, lift smoothly without sudden jerks that shock the seal, and watch for any sign of vacuum loss such as a hissing leak or a warning indicator on powered units. Many shops pair vacuum handling with the broader habits of slab safety, moving slabs upright on carts and A-frames, and using cups for the controlled final positioning where their precision shines most.

Choosing the Right Cup for the Job

Matching the cup to the task keeps work both safe and efficient. Pad size determines sealing area and therefore holding capacity, so larger cups suit larger, heavier pieces while smaller cups are handier for tight positioning and lighter panels. The handle or frame style matters for ergonomics: a single-handle cup like the 10-inch model is excellent for one-operator positioning, while multi-cup frames and spreader bars distribute the grip across a large slab so it does not flex or crack when lifted. The right choice depends on the size and weight of the stone a shop handles most.

The nature of the work points toward manual or powered handling. For positioning slabs on the saw, holding a piece steady during layout, and carrying manageable panels, manual handled cups are fast, simple, and reliable. For repetitive lifting of large, heavy slabs, for loading and unloading, and for overhead handling, powered vacuum lifters with their pumps, reserves, and warning systems provide the capacity and the safety monitoring that continuous heavy lifting demands. Many shops run both, using manual cups for the dozens of small moves a day and powered lifters for the heavy material flow.

Why Vacuum Handling Pays Off

The case for vacuum cups rests on three returns: safety, stone protection, and speed. Manual slab handling is a leading source of fabrication injuries, from crushed fingers to back strain, and vacuum cups remove the need to grip slab edges and put hands in pinch points. The ergonomic handle lets an operator move a heavy slab with a controlled, upright posture instead of the awkward bending and twisting that injures backs over a career. For a shop, fewer handling injuries means lower costs and less lost time, which is reason enough on its own.

Stone protection is the second return and it shows up directly in the bottom line. Edges chipped during manual handling, especially on finished or nearly finished pieces, are expensive to repair or scrap, and they often happen at the worst possible moment, after the costly fabrication work is already done. A vacuum cup grips the flat face rather than the vulnerable edges, so slabs move without the edge contact that causes chips. Protecting the investment already poured into a finished piece is exactly where careful handling earns its keep.

Speed is the third return and it compounds across a day. A single operator with a vacuum cup can do positioning that would otherwise require two people or slow, cautious manual work, freeing labor and keeping material moving. Multiplied across every slab that passes through the shop, faster, safer handling adds up to real throughput. The Weha vacuum cup line, with its range of sizes and the practical 331-pound-rated 10-inch handled model, gives shops a dependable tool to capture all three returns on the handling tasks that fill every fabrication day.

You can view the Weha 10-inch vacuum cup and the broader range of Weha slab-handling equipment at https://dynamicstonetools.com/collections/all, and our related guides on safe slab handling and lifting equipment at https://dynamicstonetools.com/blogs/news cover vacuum lifters, clamps, and carts for moving stone safely through every stage of fabrication.

Integrating Vacuum Handling Into Shop Flow

Vacuum cups deliver the most value when they are woven into the shop's standard movement of stone rather than treated as an occasional tool. The natural places for vacuum handling are the precise, controlled moves: positioning a slab on the saw, holding a piece steady during layout and templating, transferring finished pieces to and from polishing, and the careful final placement where edge protection matters most. Pairing manual cups for these dozens of small daily moves with powered lifters for heavy loading and unloading covers the full range of handling a fabrication shop performs in a day.

Combining vacuum handling with upright slab movement on carts and A-frames builds a safer overall system than either approach alone. Slabs are most stable and least likely to crack when moved on edge, and vacuum cups then provide the controlled grip for the moments when a slab must be lifted flat, rotated, or set precisely. Keeping bodies out of the path a slab would travel if a seal failed, lifting smoothly without shocking the vacuum, and watching for any sign of leak or warning are the habits that make the system reliable in everyday use.

A simple maintenance log keeps vacuum equipment trustworthy over time. Recording seal inspections, noting when a rubber pad is cleaned or replaced, and checking powered units' pumps and warning systems on a schedule turns vacuum reliability from a hope into a managed certainty. The rubber seal is the part that fails, and it fails gradually, so catching a hardening or gouged pad during a routine check, rather than during a lift, is what prevents the dropped slab that a worn seal eventually causes. The log costs minutes and protects both stone and people.

The cumulative payoff of treating handling as a system shows up in the numbers that matter to an owner: fewer handling injuries and the lost time and cost they bring, less finished stone scrapped to edge chips, and faster movement that frees labor for productive work. A range of vacuum cups sized to the shop's typical stone, anchored by a dependable everyday model like the 331-pound-rated 10-inch handled cup, gives a shop the tools to capture those returns on every slab. Handling is one of the few areas where safety, quality, and speed all improve together, and good equipment is what unlocks all three.

Slab handling will always be one of the more dangerous parts of fabrication, but it does not have to be. Vacuum cups change the fundamental ergonomics of moving stone, replacing the edge-gripping, back-straining, finger-pinching reality of manual handling with a controlled grip on the flat face and an upright, comfortable posture. The Weha line gives shops a dependable range of cups to match the stone they handle, and the practical 10-inch handled model rated to 331 pounds anchors the everyday positioning and carrying that fills a fabrication day.

Used with attention to surface condition, capacity margins, and seal maintenance, vacuum handling protects three things a shop cannot afford to lose: its people, its finished stone, and its time. Few investments in a fabrication shop improve safety, quality, and throughput all at once, but better handling does exactly that, because every slab that moves more safely also moves with less risk of damage and less wasted labor. For a shop looking for a high-return upgrade to its daily operations, dependable vacuum handling equipment is one of the clearest places to start.
