Aardwolf Electric Vacuum Lifter (AEVLP8-1000)
Pickup available at Dynamic Stone Tools Warehouse (Manassas Park, VA)
Usually ready in 2 hours
Aardwolf Electric Vacuum Lifter (AEVLP8-1000)
Description
Description

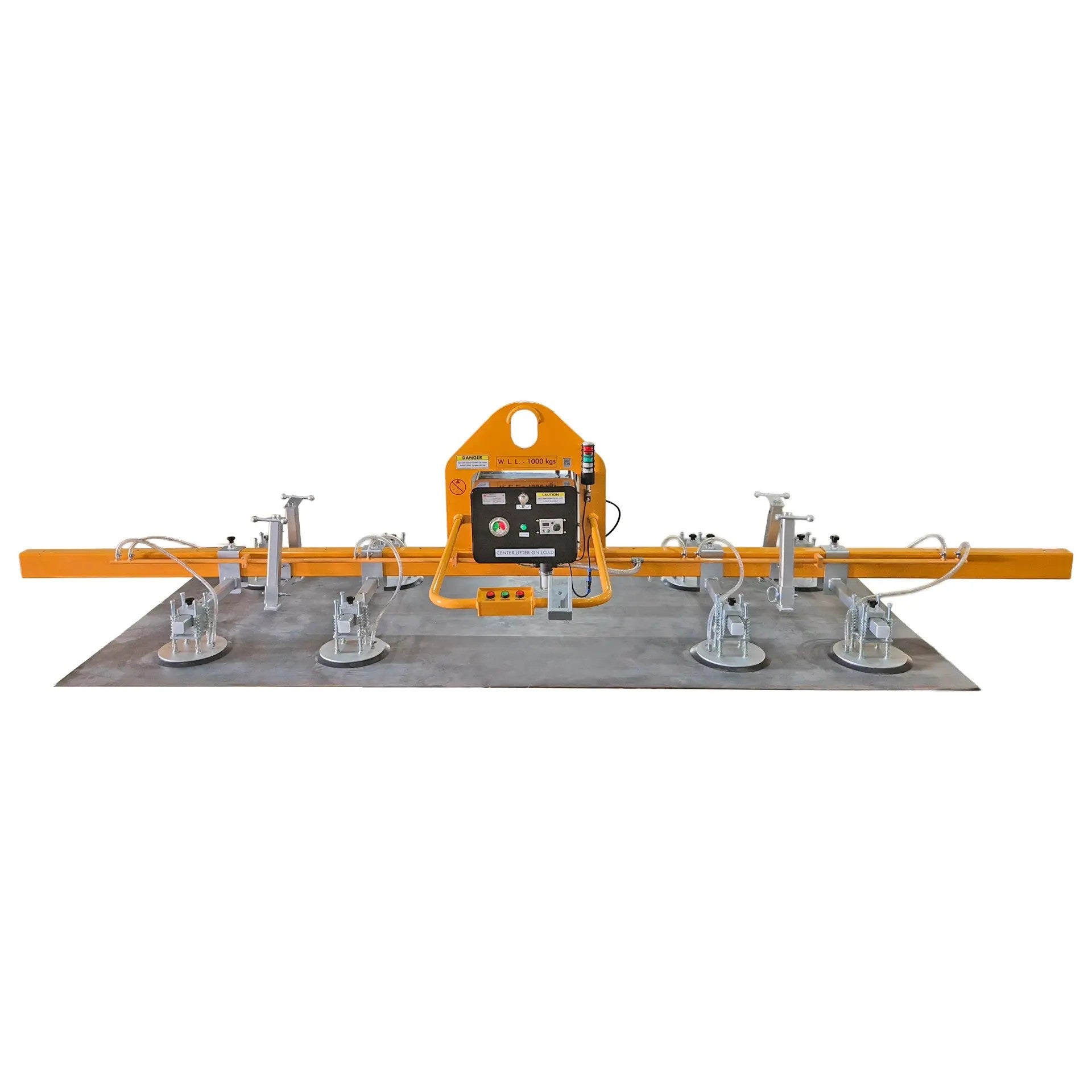

The Vacuum Lifter Pro is a reliable tool for lifting and tilting stone slabs such as granite, marble, and other heavy materials. Powered by compressed air, it allows smooth 0°–90° tilting, making slab handling safer and more efficient.
Pneumatic Tilting – Smooth, precise 0°–90° vertical/horizontal tilting.
Vacuum Tank – Maintains suction during sudden power loss for added safety.
Alarm System – Visual and audio alerts when vacuum pressure is low, powered by a rechargeable 12V battery.
Slide Valve Control – Simple ON/OFF operation for quick attachment and release.
Features
- Working Load Limit: 2,204 lb (1,000 kg)
- Number of Pads: 8
- Pad Diameter: 11.8" (300 mm)
- Power Source: 3-phase AC 380 V, 50/60 Hz
- Backup Battery (alarm): 3.7 V LiPo, 2,000 mAh; 7 h continuous / 720 h standby; 2 h charge
- Max Material Size: 118" × 71" (3,000 × 1,800 mm)
- Construction/Material: Steel frame, rubber vacuum pads
AEVLP8-1000
| Property | Detail |
|---|---|
| Working Load Limit | 2,204 lb (1,000 kg) |
| Number of Pads | 8 |
| Pad Diameter | 11.8" (300 mm) |
| Max Material Size | 118" × 71" (3,000 × 1,800 mm) |
| Power Source | 3-phase AC 380 V, 50/60 Hz |
| Vacuum Flow Rate | 5.1 CFM (8.7 m³/h) |
| Backup Battery (alarm) | 3.7 V LiPo, 2,000 mAh; 7 h continuous / 720 h standby; 2 h charge |
| Construction/Material | Steel frame, rubber vacuum pads |
| Compatible Materials | Stone slabs, metal sheets, glass, engineered stone |
| Operation type | Electric vacuum (pressure-switch auto-restart) |
| Operator Count | 1 (crane operator) |
| Standards | Audio-visual safety alarm (designed in line with AS 4991-2004 family; not explicitly cited on page) |
| Country of Origin | Vietnam |
| Notes | Adjustable beam and pad spacing. Pressure switch auto-activates pump when vacuum drops. |
- Refer to the Specifications table above for the Compatible Materials field of each variant.
- For mixed loads or unusual surface conditions, contact Aardwolf or your DST representative before lifting.
Manufactured by Aardwolf Industries LLC in Binh Duong Province, Vietnam. Aardwolf is an Australian-owned manufacturer specializing in stone-handling and lifting equipment.
