Vacuum Paving Lifter

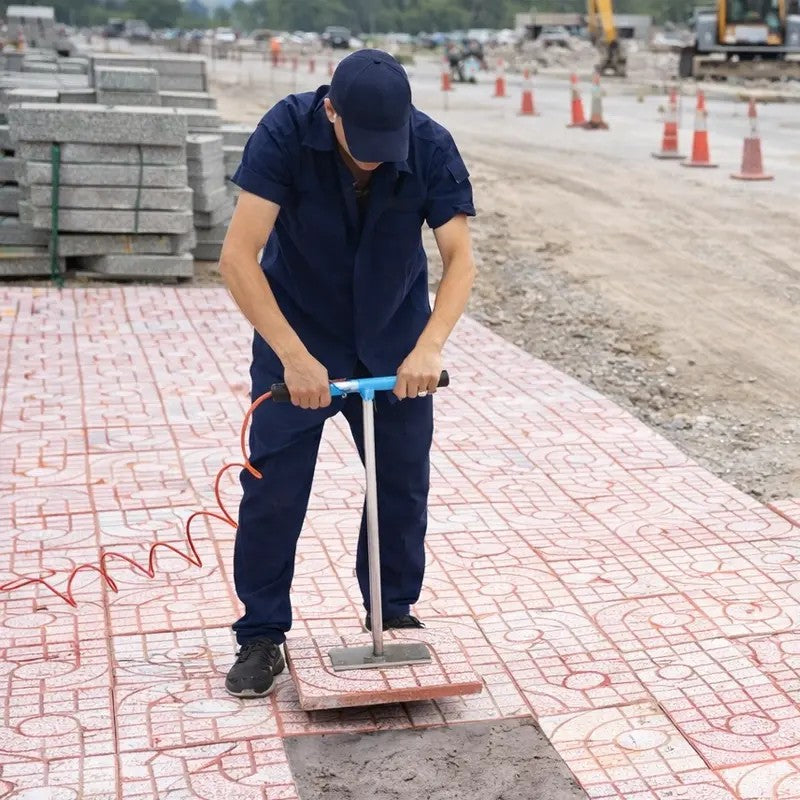

The Aardwolf Vacuum Paver Lifter uses a standard air compressor (minimum 5.2 cfm @ 125 psi) to create a vacuum in a line attached to a handle or grip. The user sets the pad on the tiles or stone, creating a tight suction seal, then lifts and sets the stone in place. A Venturi trigger on the handle provides a quick release.
Features
- Handling tiles or stone up to 88 lb (40 kg).
- Quality construction.
- Includes two handles for one man.
- Operates using standard compressors.
- Simple operation: pressing the lever down to pick up a tile, then releasing the lever once the tile is in place.
- Industrial male quick connect.
- Option: Aardwolf provides an option vacuum cup with a diameter of 6" (150 mm) = 88 lb (40 kg) upon request.
AVPL40
| Property | Detail |
|---|---|
| Max Lifting Capacity | 88 lb (40 kg) |
| Pump Type | Pneumatic — Venturi vacuum (requires external air compressor) |
| Air Compressor Requirement | Minimum 5.2 CFM @ 125 PSI; industrial male quick-connect |
| Primary Suction Pad | 4 3/4" x 8 5/8" (120 x 220 mm) — rated 88 lb (40 kg) |
| Secondary Suction Pad | 3 1/8" x 4 3/4" (80 x 120 mm) — rated 26 lb (12 kg) |
| Optional Round Pad | 5 7/8" (150 mm) dia — rated 88 lb (40 kg) |
| Operation | Press lever to engage vacuum; Venturi trigger on handle for quick release |
| Package Dimensions | 26 3/8" x 6 3/4" x 3 1/8" (670 x 171 x 79 mm) |
| Construction | Aluminum body; rubber suction pads |
| Compatible Materials | Smooth-surface tiles, pavers, stone slabs, polished concrete |
| Country of Origin | Vietnam |
- Inspect the vacuum pad seal for cuts, grit, or compression set before each shift.
- Charge or connect the pump power supply and confirm it primes.
- Seat the pad flat on clean, sound, non-porous material with no chips or seams under the seal.
- Draw vacuum and wait for the gauge to reach the safe zone before taking any load.
- Lift slowly and keep the load low; never stand or pass under a suspended load. Never exceed the rated 88 lb (40 kg).
- Set the material down fully, then release vacuum and vent the pad.
