Aardwolf Mono Mechanical Vacuum Lifter
Pickup available at Dynamic Stone Tools Warehouse (Manassas Park, VA)
Usually ready in 2 hours
Aardwolf Mono Mechanical Vacuum Lifter
Description
Description

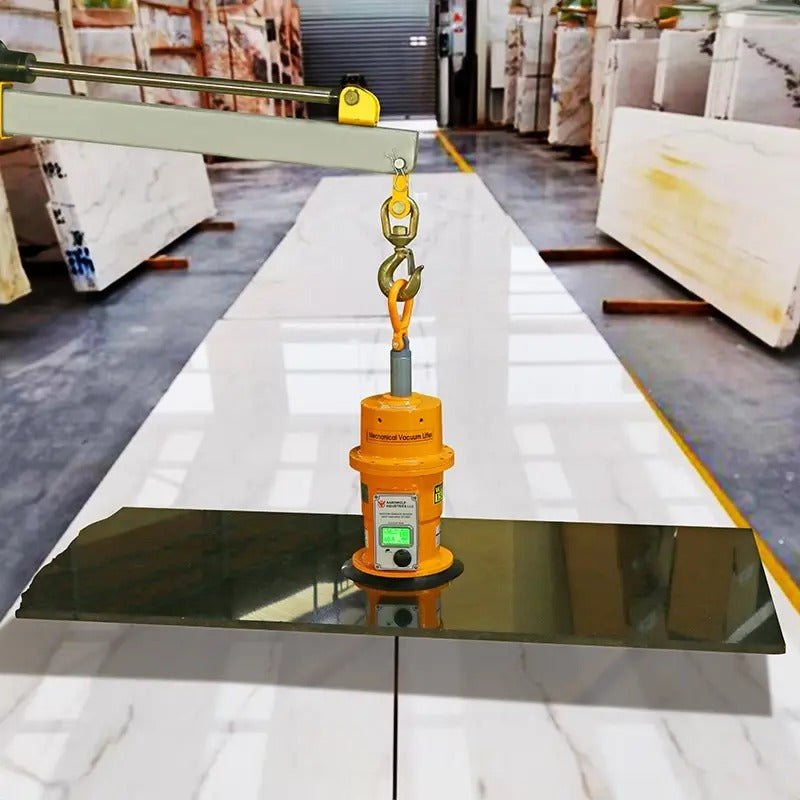

No power source is required. It is ideal for the horizontal handling of non-porous sheet and plate materials such as diamond-sawn or polished granite, engineered stone, all types of metals, plastics and fiberglass. An automatic self-cycling valve at the piston's bottom controls the vacuum grip and release cycle.
A non-rechargeable 9V battery powers the audio alarm system.
Note: For materials with a rough surface texture, such as exfoliated granite, concrete and textured metals, refer to our electric or air-powered vacuum lifters with foam rubber pads.
Mono Mechanical Vacuum Lifter AMMVL145H (With Handle)
Watch our comprehensive product demonstration video showing how to use Mono Mechanical Vacuum Lifters . Learn about key features, benefits, and setup instructions.
Features
- Working Load Limit: 331 lb (150 kg)
- Net Weight: 24 lb (11 kg)
- Pad Count: 1 pad (suction cup)
- Pad Diameter: 9.8" (250 mm) OD (seal-to-seal 200 mm)
- Power Requirements: None (self-powered mechanical)
- Compatible Materials: Non-porous sheet/plate: diamond-sawn or polished granite, engineered stone, metals, plastics, fiberglass
- Construction: Aluminum
AMMVL150
| Property | Detail |
|---|---|
| Working Load Limit | 331 lb (150 kg) |
| Pad Count | 1 pad (suction cup) |
| Pad Diameter | 9.8" (250 mm) OD (seal-to-seal 200 mm) |
| Pump Type | Mechanical, self-cycling valve (piston-based) — no external power |
| Power Requirements | None (self-powered mechanical) |
| Construction | Aluminum |
| Compatible Materials | Non-porous sheet/plate: diamond-sawn or polished granite, engineered stone, metals, plastics, fiberglass |
| Operation | Horizontal handling; automatic vacuum grip/release cycle |
| Country of Origin | Vietnam |
| Net Weight | 24 lb (11 kg) |

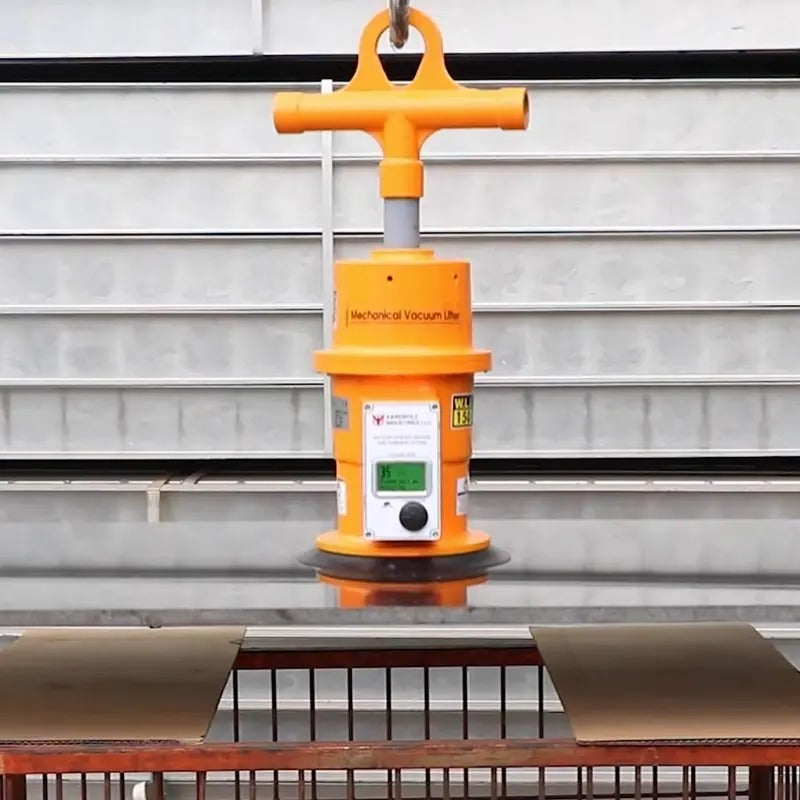

AMMVL150H
| Property | Detail |
|---|---|
| Working Load Limit | 331 lb (150 kg) |
| Pad Count | 1 pad |
| Pad Diameter | 9.8" (250 mm) OD (seal-to-seal 200 mm) |
| Pump Type | Mechanical, self-cycling valve (piston-based) — no external power |
| Power Requirements | None |
| Construction | Aluminum |
| Compatible Materials | Non-porous sheet/plate: diamond-sawn or polished granite, engineered stone, metals, plastics, fiberglass |
| Operation | Same; manual handle aids ground positioning |
| Country of Origin | Vietnam |
| Notes | "H" = Handle-Hook variant for portable use |
AMMVL270
| Property | Detail |
|---|---|
| Working Load Limit | 595 lb (270 kg) |
| Pad Count | 1 pad |
| Pad Diameter | 14.4" (365 mm) OD (seal-to-seal 300 mm) |
| Pump Type | Mechanical, self-cycling valve (piston-based) — no external power |
| Power Requirements | None |
| Construction | Aluminum |
| Compatible Materials | Non-porous sheet/plate: diamond-sawn or polished granite, engineered stone, metals, plastics, fiberglass |
| Operation | Horizontal handling; automatic vacuum grip/release cycle |
| Country of Origin | Vietnam |
| Net Weight | 49 lb (22 kg) |

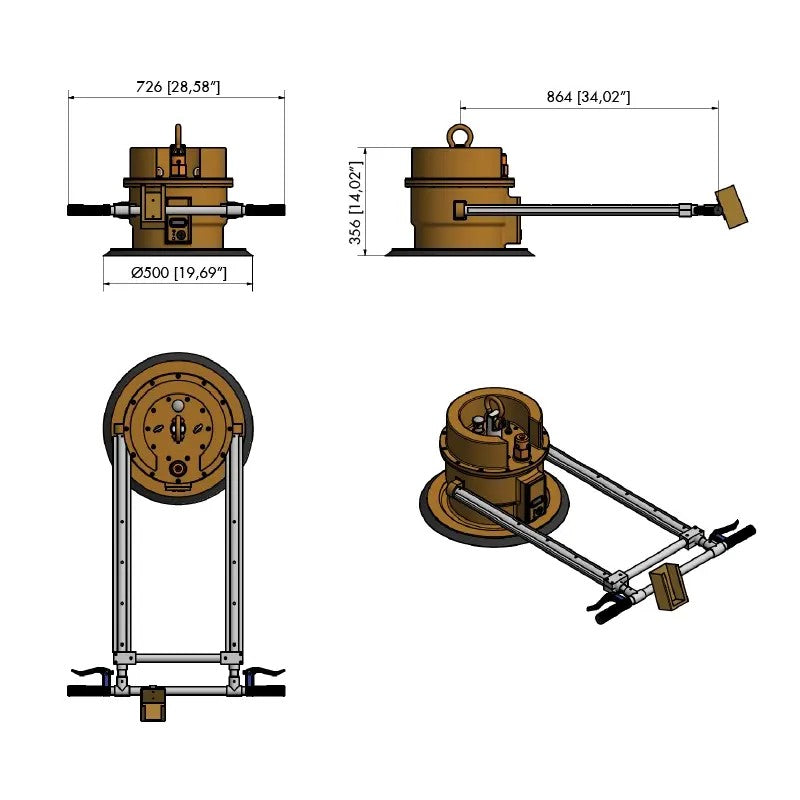

AMMVL650
| Property | Detail |
|---|---|
| Working Load Limit | 1,433 lb (650 kg) |
| Pad Count | 1 pad |
| Pad Diameter | 19.7" (500 mm) OD (seal-to-seal 450 mm) |
| Pump Type | Same; with audio alarm + vacuum gauge |
| Power Requirements | 9 V battery (alarm only, non-rechargeable) |
| Net Weight | 79 lb (36 kg) |
| Gross Weight | 141 lb (64 kg) |
| Packaging Dimensions | 40" × 22" × 35.4" (L1,020 x W560 x H900 mm) |
| Construction | Aluminum, telescopic front handle |
| Compatible Materials | Non-porous sheet/plate: diamond-sawn or polished granite, engineered stone, metals, plastics, fiberglass |
| Operation | Horizontal handling; automatic vacuum grip/release cycle |
| Country of Origin | Vietnam |
| Notes | Audio low-vacuum alarm + visual gauge |
- Refer to the Specifications table above for the Compatible Materials field of each variant.
- For mixed loads or unusual surface conditions, contact Aardwolf or your DST representative before lifting.
Manufactured by Aardwolf Industries LLC in Binh Duong Province, Vietnam. Aardwolf is an Australian-owned manufacturer specializing in stone-handling and lifting equipment.
