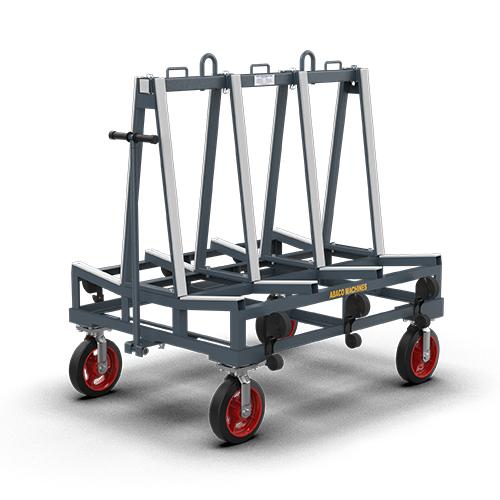

Abaco ADF4932 Demountable Frame: Stone Slab Transport Guide

Moving polished stone slabs from fabrication shop to jobsite is one of the most damage-prone steps in the stone supply chain, and the equipment used for that transport determines whether finished material arrives in perfect condition or with the edge chips, surface abrasion, and contact marks that force costly rework or lost sales. The Abaco ADF4932 Demountable Frame is a purpose-designed stone transport solution rated for 4,400 lbs, with rubber-lined contact surfaces, four-wheel mobility, and a demountable two-piece construction that allows compact storage between deliveries. This guide covers the complete ADF4932 series — all four SKUs with specifications and pricing — and the operational considerations that make it the right choice for stone fabrication and delivery operations of all sizes.

About Abaco Machines and the Demountable Frame Product Line

Abaco Machines is a globally distributed manufacturer of stone handling and transportation equipment with decades of engineering experience building products specifically for the natural stone industry. The company's product range spans the full stone supply chain workflow: slab receiving and storage equipment for import facilities and stone yards, transport frames for vehicle-based slab delivery, vacuum lifting systems for shop and jobsite positioning, and installation aids for the final placement process at the renovation or construction site. Abaco's products are in daily use at stone operations across North America, Europe, and the Asia-Pacific region, earning sustained credibility through consistent performance in demanding fabrication shop conditions over equipment service lives measured in decades rather than years.

The ADF4932 occupies Abaco's "Truck A-Frame" product category, which defines its primary intended use: supporting stone slabs in a stable, upright, protected orientation inside or on a delivery vehicle during transport from the fabrication shop to the installation site. Truck A-frames are a recognized category of stone handling equipment because the delivery transport step is where a disproportionate share of stone damage incidents occur — slabs that survived handling, cutting, polishing, and multiple repositioning steps in the fabrication shop arrive at the jobsite with transit damage from inadequate transport support. The ADF4932 was designed with rubber-lined contact surfaces, calculated lean-angle geometry, and a rated load capacity specifically sized for the real slab loads that fabrication operations deliver on a daily basis across North American residential and commercial stone projects.

The "demountable" characteristic is a distinct design decision that differentiates the ADF4932 from fixed or semi-permanent A-frame transport systems. Stone delivery vehicles make multiple runs per day in active fabrication operations, carrying material to jobsites and returning empty to the shop for the next load. A permanently installed A-frame occupies a fixed portion of vehicle cargo space on every return trip, reducing the vehicle's effective capacity for carrying other materials, tools, or smaller stone pieces on the return route. A demountable frame that disassembles quickly into two stackable components and stores flat in minimal space recovers that cargo capacity completely, eliminating the daily operational cost of keeping a fixed structure in a vehicle that only needs it in one direction of each delivery cycle.

Two-Component Construction: Base Frame and A-Frame

The ADF4932 design separates the frame into two distinct components that connect for use and separate for storage: the base frame and the A-frame. The base frame is the lower structure that contacts the ground or vehicle floor, provides the wide stability footprint, and carries the wheeled mobility system. Its geometry creates a low center of gravity for the loaded assembly and a wide stance relative to the load height, which is the structural basis for the frame's resistance to tipping under off-center loads and during maneuvering. The base also houses the four-wheel rolling system and pull handle that allow repositioning of the loaded frame without unloading the stone, eliminating a handling step that represents both labor cost and material risk in daily delivery operations.

The A-frame component is the upper structure against which slabs rest during transport. Its angled geometry is calibrated to the lean angle at which stone slabs are self-stabilizing under gravity: slabs placed against the A-frame back support lean into the contact surface rather than away from it, maintaining continuous contact throughout transport and maneuvering without requiring strapping or additional bracing to hold the lean position. This self-stabilizing geometry is a fundamental requirement for transport frames used in vehicle applications where road vibration, cornering forces, and braking deceleration continuously challenge the stability of the slab load. The 4,400 lb (2,000 kg) workload limit applies to the fully assembled frame carrying slabs in this supported orientation, and covers the full range of typical residential and commercial stone delivery load weights with appropriate safety margin above the weight of standard countertop set deliveries.

Rubber Strip Contact Protection

The rubber strips applied to both the base frame and the A-frame back support are the most important stone-protection feature in the ADF4932 design. Polished granite and marble surfaces are susceptible to two types of contact damage during frame transport: abrasion from relative micro-motion between the stone face and a hard metal support surface during road vibration, and pressure-concentration marking at contact points where the stone weight loads a small area against a non-compliant surface. Both mechanisms are present in every transport event on any road surface with vibration content, and both produce visible marks on polished stone faces that require repair or result in material downgrade when the piece reaches the customer or jobsite.

Rubber strips address both damage mechanisms with a single material solution. The compressibility of the rubber distributes contact pressure across the full strip area rather than concentrating it at the highest-contact micro-points on the surface, eliminating the pressure-concentration marks that hard metal contact causes on polished stone. The high friction coefficient of the rubber material prevents the relative back-and-forth micro-motion that generates abrasion marks during sustained road vibration, effectively bonding the stone surface to the support contact zone throughout the transport event rather than allowing the micro-sliding that produces visible surface scratching over the course of a delivery route. Rubber strips are a consumable maintenance item — they wear over time in high-throughput delivery operations — and should be inspected and replaced as needed to maintain their full protective function throughout the service life of the frame.

Wheeled Mobility and Shop Maneuvering

The four-wheel base with pulling handle allows the loaded ADF4932 to move across shop floor surfaces without unloading the stone. In a fabrication operation where finished countertop pieces need to travel from the fabrication bench to the quality inspection area, then to the delivery staging zone, and finally into the delivery vehicle, each transfer step that requires removing and replacing the slab load represents both labor time and material handling risk. Wheeled mobility eliminates these intermediate unload-reload cycles, allowing the slab set to stay on the frame from the point where it is first loaded until it arrives at the jobsite — the entire delivery cycle covered in a single loading and unloading event rather than multiple intermediate handling steps along the way.

The design intent of supporting movement in any direction — not just forward and back along a single axis — reflects the reality of stone shop and delivery site layouts, where available maneuvering space rarely allows clean straight-line movement from point to point. Shop floor areas between equipment stations, vehicle loading bays, and delivery site access zones all present maneuvering constraints that require lateral adjustment, diagonal movement, and tight-radius turning to navigate with a loaded frame. The ADF4932's caster configuration supports these multi-directional movements, allowing a single operator to position the loaded frame precisely alongside a vehicle for loading, align it in a specific position in a staging area, or maneuver it through constrained jobsite access areas without the assistance of a second worker to guide or stabilize the frame during movement.

Standard ADF4932 vs. Galvanized ADF4932-G: Selecting the Right Finish

The ADF4932 series provides two finish specifications that address different operational environments. The standard ADF4932 uses electrostatic powder coat in Black or White, providing corrosion resistance appropriate for covered indoor environments: fabrication shops with climate control, enclosed staging areas, and delivery vehicles with enclosed cargo areas where the frame is protected from precipitation and road salt exposure. Electrostatic powder coat achieves uniform coverage on welded steel structures, including the recessed joint areas where corrosion initiates first, and maintains its protective function reliably across multiple years of indoor use under normal cleaning and maintenance conditions. The standard model is the appropriate choice when the frame's operational environment is controlled and consistently sheltered from outdoor weather exposure.

The ADF4932-G is the galvanized variant, specified for frames that regularly experience outdoor exposure, salt-air environments, open-vehicle transport, or outdoor storage between deliveries. Hot-dip galvanizing immerses the finished steel frame in molten zinc, creating a zinc-steel alloy layer at the surface that is metallurgically bonded to the substrate rather than applied as a coating over it. This bonding means the galvanized layer cannot peel, chip, or delaminate when struck or abraded during daily loading operations — it behaves as part of the steel surface under mechanical stress. In corrosive outdoor environments, galvanized steel maintains both structural integrity and acceptable cosmetic appearance for fifteen to twenty years compared to five to seven years for powder-coated steel, making the galvanized specification the financially superior choice for any delivery operation with sustained outdoor frame exposure.

The cost difference between the standard and galvanized variants is minimal relative to the service life extension the galvanized finish provides. ADF4932-G-B is priced at $1,660.50 versus $1,593.00 for ADF4932-B — a $67.50 premium per frame. For any outdoor application, this small increment prevents the full replacement cost ($1,593 or more) that a corroded standard frame would require within five to seven years. Framed as an annualized cost per year of service life, the galvanized frame costs under $90 per year in a twenty-year outdoor deployment versus approximately $230 per year for a standard frame on a seven-year outdoor service cycle — a two-and-a-half-to-one cost advantage before factoring in the labor and downtime cost of frame replacement.

Loading, Securing, and Safe Operating Practices

Safe and damage-free transport with the ADF4932 begins with correct loading technique. Slabs should be placed with the polished face against the rubber back support, with the bottom edge resting fully on the base frame rubber strips across the entire slab width rather than bridging or contacting bare metal at any point. When loading multiple pieces on a single delivery, distribute the total weight symmetrically across the frame width — placing all heavy pieces on one side creates a lateral bias that reduces tipping resistance during cornering and braking maneuvers in transit. For mixed-size deliveries containing pieces of significantly different weights, alternate piece placement across the frame to maintain balance throughout the load stack rather than grouping similar pieces together at one end of the support surface.

Securing the load to the frame and the frame to the vehicle is a required step that prevents shift events during transit. Well-loaded and properly balanced slabs on a correctly assembled ADF4932 are stable under normal transport conditions, but sudden braking or evasive steering maneuvers generate lateral and longitudinal forces that can initiate load shift beyond what the frame geometry alone can arrest. Appropriate load-rated tie-down straps through the frame structure and anchored to vehicle cargo floor tie-down points prevent frame movement during hard braking. Edge protectors or padding at all locations where tie-down straps contact stone surfaces prevent the strap-pressure marks that occur when tensioned straps press directly against polished stone faces, which is a common source of surface damage in operations that use strapping without adequate contact-point protection.

Personal protective equipment is required during all ADF4932 loading, transport, and unloading operations. Steel-toed or composite-toed safety footwear is essential — stone pieces shifted or dropped during loading can cause severe foot injuries at weights well below the frame's 4,400 lb rated capacity, and the individual countertop pieces and slab segments handled in a typical fabrication delivery are heavy enough to cause injury at delivery height without protective footwear. Cut-resistant gloves protect hands during slab positioning and frame adjustment. When maneuvering the wheeled loaded frame, confirm the path is clear of personnel and floor obstructions before moving — a loaded stone frame in motion carries significant momentum that makes rapid stopping difficult, and unexpected obstacles in the maneuver path present both equipment damage and worker injury risks.
