Moving polished marble, granite, or glass slabs without scratching, chipping, or dropping them requires the right lifting tool for the job. The Aardwolf AVLHP240/480 Hand Vacuum Cup gives fabricators and installation crews a reliable, non-marring lifting solution powered by a hand pump or venturi pump, suitable for both shop and jobsite use. This guide covers how the AVLHP240/480 works, where it excels, how to select between the two available models, and the operating practices that keep stone material and workers safe throughout the lifting process.
About Aardwolf Industries
Aardwolf Industries is a specialist manufacturer of stone handling and installation equipment, recognized throughout the natural stone industry for developing tools that address the practical, everyday challenges of moving and positioning heavy, fragile slab material. The company's product range covers vacuum lifters, slab dollies, transport frames, and handling accessories — a focused portfolio built around the specific requirements of stone fabricators, importers, and tile installation crews. Aardwolf products are used in stone operations across North America, Australia, Europe, and Southeast Asia, earning sustained credibility through equipment that performs consistently in demanding fabrication shop and jobsite conditions over multi-year service lives without the maintenance overhead that more complex lifting systems require.
The Aardwolf Hand Vacuum Cup represents the brand's approach to portable, task-scale stone handling: a mechanically simple device that provides secure, non-contact grip on smooth, non-porous surfaces without requiring compressed air infrastructure, electrical power, or generator access. For stone operations that need a versatile, easy-to-deploy lifting tool for horizontal slab movement in the shop or at the installation site, the Hand Vacuum Cup fills the gap between bare-hands handling — which risks both worker injury and stone surface damage — and full mechanical lifting equipment, which requires overhead structure and power systems that are not always available at the point of need.

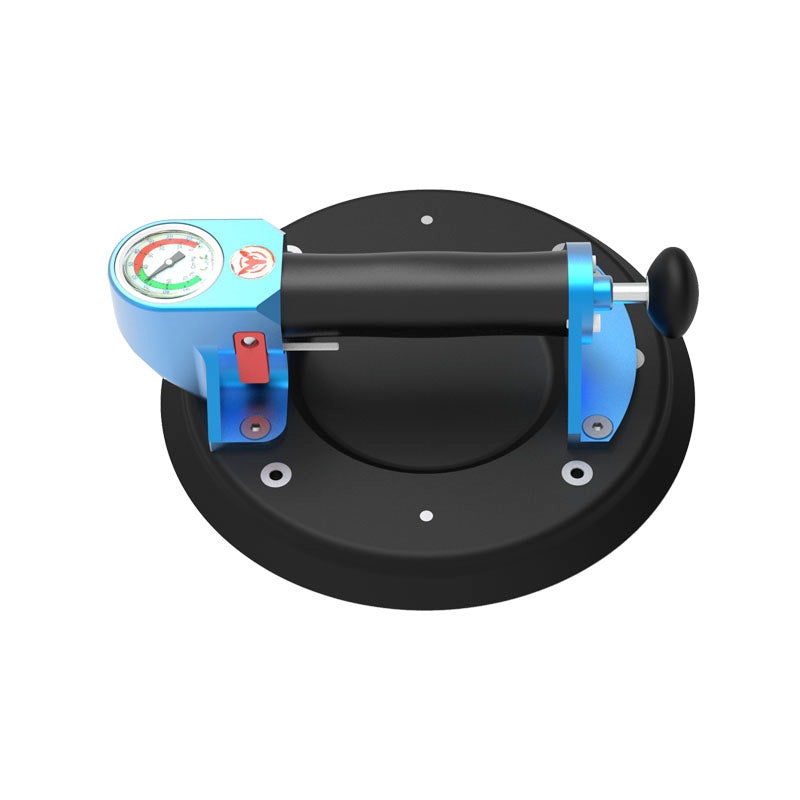

How the Aardwolf AVLHP240/480 Hand Vacuum Cup Works
The AVLHP240/480 operates on the foundational principle of vacuum adhesion: a sealed elastomeric cup placed against a smooth, non-porous surface creates a closed chamber. Removing air from that chamber via pumping generates a pressure differential between the ambient atmosphere above the cup and the low-pressure zone inside it. Atmospheric pressure pressing down on the cup exterior provides the clamping force that holds the cup to the surface, and this force scales with the area of the cup seal and the depth of the vacuum achieved. The result is a firm, non-mechanical grip that holds the workpiece without clamping, bolting, or any physical intrusion into the material — a critical property for polished stone surfaces that cannot tolerate contact-point marking or pressure concentration from mechanical fasteners.
The AVLHP240/480 designation reflects its two operating modes: the 240 designation references hand pump operation, where a manual hand pump integrated into the lifting handle draws air from the cup chamber to create the working vacuum, and the 480 designation references venturi pump operation, where a compressed air venturi creates continuous vacuum maintenance by drawing air through the cup circuit. In hand pump mode, the operator pumps several strokes to achieve working vacuum before lifting — the tool is self-contained and requires no external power or air supply, making it fully portable for jobsite use. In venturi mode, continuous vacuum maintenance compensates for any minor seepage at the cup seal, sustaining grip over longer-duration positioning tasks in the fabrication shop.
The grip pad design plays a direct role in lifting performance. The AVLHP240 cup size is suited to a contact area optimized for the standard slab handling tasks encountered in a fabrication shop or tile installation context. A larger contact area distributes the vacuum-generated clamping force over a wider zone on the workpiece surface, reducing the pressure per unit area and thereby reducing the risk of surface marking from localized stress concentration. The elastomeric cup material must be matched to the surface finish of the material being handled: polished granite and marble surfaces provide the ideal seal substrate for vacuum cup operation, while honed, sandblasted, or textured surfaces reduce seal efficiency and lower the achievable lifting force proportionally.
Applications in Stone Fabrication and Installation
The Aardwolf Hand Vacuum Cup is designed for horizontal transportation of non-porous sheet materials, which maps directly onto the most common material movement tasks in a stone fabrication shop: repositioning cut or polished slabs on the fabrication bench, transferring finished countertop pieces to the delivery staging area, and handling individual tiles or cut pieces during layout and quality inspection. In horizontal use, the vacuum cup eliminates the hand contact with polished stone faces that produces fingerprints, oils, and micro-abrasion marks on finished surfaces — an important quality consideration for premium marble and granite pieces destined for high-visibility residential or commercial installations where surface clarity is part of the delivered value. The tool also reduces operator fatigue in repetitive repositioning tasks by transferring lifting load to the arm and shoulder rather than the fingertips and wrist joints.
Beyond stone, the AVLHP240/480 is specified for glass panels, aluminum plate, and steel plate — material categories that share the non-porous, smooth-surfaced properties required for reliable vacuum cup adhesion. For stone operations that also handle glass shower panels, mirror slabs, or metal composite cladding as part of their installation service offering, the Hand Vacuum Cup serves across all of these material categories without separate tooling. Glass handling benefits particularly from vacuum cup technology: glass panels cannot be gripped at edges without specialized fixtures, and bare-hand contact with tempered glass surfaces during transport creates the thermal differentials and impact risks that most frequently cause panel breakage during jobsite handling. A vacuum cup eliminates both risks simultaneously.
Hand Pump vs. Venturi Pump: Choosing Your Operating Mode
The choice between hand pump and venturi pump operation depends primarily on the duration of the holding requirement and the availability of compressed air at the point of use. Hand pump mode is the correct choice for short-duration lifts — picking up a piece, moving it across a workbench, setting it down — where the operator pumps to working vacuum, completes the move, and releases. The entire cycle completes in under a minute in most fabrication tasks, and the hand-pumped vacuum holds reliably for these durations on polished stone surfaces. No compressed air infrastructure is required, making hand pump mode the standard choice for jobsite installation work where the Hand Vacuum Cup is used away from shop air supply connections.
Venturi pump mode provides continuous vacuum maintenance throughout the lift and hold cycle, making it better suited for tasks requiring extended hold times: positioning a countertop piece during template fitting, holding a panel while adhesive cures, or maintaining grip during the multi-step placement and leveling process for large installation pieces. The venturi operates from a standard compressed air supply — the same airline that powers pneumatic grinders, polishers, and other shop equipment — drawing a continuous flow of air through the venturi circuit to sustain working vacuum regardless of minor seal seepage. For fabrication shops with established shop air infrastructure, venturi mode offers the most relaxed operational experience because the operator does not need to monitor vacuum levels during the work process.
Selecting Between HVC and HVC01 Models
Aardwolf offers two Hand Vacuum Cup configurations through Dynamic Stone Tools. The HVC (priced at $166.63) is the full-specification model, providing the complete AVLHP240/480 dual-mode capability with both hand pump and venturi connection, making it the appropriate choice for operations that need maximum flexibility across both jobsite and shop applications. The HVC01 ($130.19) is the entry-level configuration, suited to operations with simpler or more defined use cases. Both models operate on the same core vacuum cup principle and are appropriate for the same non-porous material categories — the selection decision comes down to whether the additional operational flexibility of the full HVC configuration justifies the $36.44 price differential for the intended application volume and variety.
For fabrication operations handling a consistent daily volume of countertop pieces and slab segments, the HVC is the better long-term investment. The venturi capability provides operational efficiency for longer positioning tasks that would otherwise require repeated hand pumping to maintain working vacuum, and the incremental cost is modest relative to the daily time saved across weeks and months of regular use. For occasional-use jobsite applications where the tool is deployed intermittently for installation positioning work without shop air access, the HVC01 provides adequate capability at lower entry cost. Either model is available through Dynamic Stone Tools with the same manufacturer quality and warranty backing as all Aardwolf equipment in the catalog.
Vacuum cups achieve rated lifting performance only on smooth, non-porous surfaces. Honed, leathered, brushed, or flamed granite finishes reduce seal contact area and lower achievable vacuum depth, reducing effective lifting capacity below the rated specification. Quartzite and some quarried limestone varieties can have micro-porosity that allows slow air ingress even under apparently smooth conditions. Always perform a test lift at low height before committing to any lift on unfamiliar material or finish type. When surface conditions are uncertain, supplemental mechanical grip or a larger-cup vacuum lifter may provide more reliable security.
Safe Operating Practices for Stone Vacuum Lifters
Safe vacuum cup operation begins with surface preparation. The workpiece surface must be clean and free of dust, stone chips, water, and oils before the cup is placed. Any contamination on the contact surface reduces seal quality, lowers achievable vacuum depth, and reduces the effective holding force of the device. A clean, dry cloth wipe of the contact zone immediately before cup placement takes five seconds and eliminates the most common source of partial-seal conditions. The cup seal gasket itself must also be inspected regularly for cuts, hardening from chemical exposure, or compression set — a damaged or degraded seal gasket cannot achieve full seal contact even on a perfect surface, and gasket replacement is a simple maintenance task that restores full rated performance.
Vacuum cups are rated for horizontal handling of non-porous materials and should not be used for vertical lifting or overhead positioning of stone without explicit manufacturer rating for vertical-axis loads. Gravity acts in the same direction as the vacuum adhesion force for horizontal lifts — pressing the workpiece down onto the cup — which is the designed loading condition. Vertical lifts place the full workpiece weight in a shear direction relative to the cup contact surface, which the vacuum seal resists less effectively and which can cause cup release under loads well below the horizontal rating. For vertical lifting of stone panels or slabs, Aardwolf manufactures separate vertically-rated vacuum lifters designed specifically for that load orientation.
Personal protective equipment is mandatory during vacuum cup stone handling operations. Safety footwear with steel or composite toe protection is required for all slab handling — a granite piece released from a vacuum cup at bench height reaches floor velocity with enough energy to cause serious foot injury even at the small-slab end of the size range. Cut-resistant gloves protect hands during cup placement and release operations. Eye protection is appropriate in fabrication environments where stone dust and chip fragments are present. Vacuum cup handling should never be performed over other workers, and the lift path from source to destination should be clear of personnel and fragile equipment before the lift begins.
Maintenance and Service Life
The Aardwolf Hand Vacuum Cup requires minimal maintenance to sustain reliable performance over its service life. The primary maintenance item is periodic inspection and replacement of the cup seal gasket as described above. The pump mechanism should be tested periodically by pumping to full vacuum against the palm of the hand and checking that vacuum holds for a minimum of thirty seconds without significant decay — a rapid vacuum loss indicates either a damaged cup gasket or a pump seal requiring attention. The exterior of the device should be cleaned after use to remove stone dust and grit that can abrade sealing surfaces and degrade vacuum performance over repeated cycles if allowed to accumulate.
Storage environment affects service life in vacuum cup tools more significantly than in mechanical equipment. Elastomeric seal gaskets are susceptible to degradation from UV exposure, ozone, and chemical contact — common conditions in outdoor storage areas and near spray chemical stations in fabrication shops. Storing the Hand Vacuum Cup in a protected location away from direct sunlight and chemical exposure extends gasket service life and maintains consistent vacuum performance across the tool's operational years. The investment in a dedicated storage location for precision handling tools like vacuum cups — separate from general shop equipment storage where impact damage and chemical exposure are harder to control — pays back through sustained reliability and reduced consumable replacement frequency over time.
