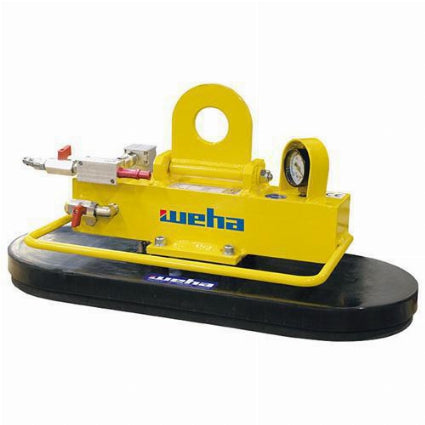

T600 Unipad Pneumatic Vacuum Lifter
Weha T600 Pneumatic Vacuum Lifter Unipad Design. Air Only. Single Pad Vacuum Lifter for Stone, Landscape, Metal
The Weha T600 Pneumatic Vacuum Lifter comes with the Air connection only.
Runs off of a small compressor with a min 2 CFM and 60psi.
At A Glance
- Load Capacity Horizontal: 1323 Lbs
- Load Capacity Vertical: 661 Lbs
- Suction Plate: 24" X 10"
- Weight: 40 Lbs
About T600
This can be connected to an air compressor that operates via a venturi system.
Comes with a multi-filter and water trap that prevents the penetration of dust and moisture.
Protects the pneumatic structural parts against premature wear very visible pressure gauge.
Comes with a built in safety-vacuum tank made of aluminum material (non-corrosive!)
Design and Uses
The Weha T600 Pneumatic Vacuum Lifter bottom is designed with the Weha New Generation UNIPAD Vacuum Suction Pad: Simple, extremely fast changing of the vacuum-rubber seals
Universally applicable for polished and for rough upper surfaces!
Maybe be used on granite, marble, all natural stones, engineered stone, glass, metal, etc.
Benefits of the T600
Lower servicing costs and maintenance charges since the rubber seals are easily replaceable.Increased safety over other lifters because the UNIPADS create a stronger, tighter vacuum seal.
All parts are easily replaced for years of use.
Comes with a 6 month warranty
Vacuum Lifter in Vertical application
T600 vacuum lifter lifting concrete, stone, tile, steel
