Description
Description

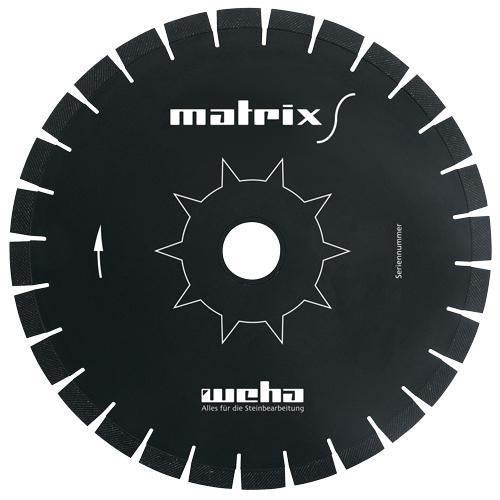

The Weha Matrix S 16" Diagonal Diamond Bridge Saw Blade is a premium-grade silent-core blade engineered for precision cutting of granite, marble, quartz, and engineered stone. The unique diagonal layered diamond construction ensures 100% continuous cutting at all times, delivering faster feed rates, chip-free miter cuts, and exceptional blade longevity. Despite its 20mm segment height, the Matrix S outlasts many 25mm blades on the market. Designed for CNC sawjets and bridge saw machines in professional stone fabrication environments.
Features

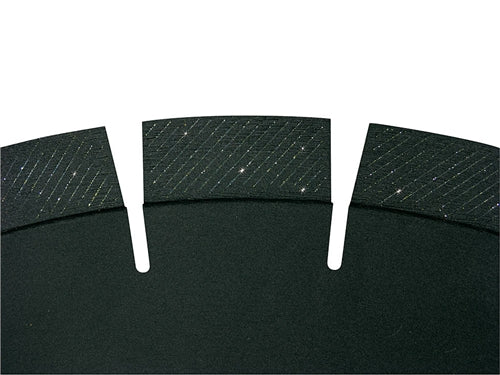

- Diagonal layered diamond segments for 100% continuous cutting
- Silent core for vibration-free operation
- Chip-free miter cuts without blade walking
- Up to 10 feet per minute feed rate
- Outlasts 25mm height blades
- Premium performance at competitive price
Specifications
| Spec | Value |
|---|---|
| Diameter | 16" |
| Arbor | 60/50mm |
| Segment Height | 20mm |
| Segment Type | Diagonal layered diamond |
| Max RPM | 1,200–1,400 |
| Feed Rate | Up to 10 ft/min (120 in/min) |
| Cutting Method | Wet |
| Compatible Materials | Granite, Marble, Quartz, Engineered Stone, occasional Quartzite |
