Royal USA Workstation Sink Combo

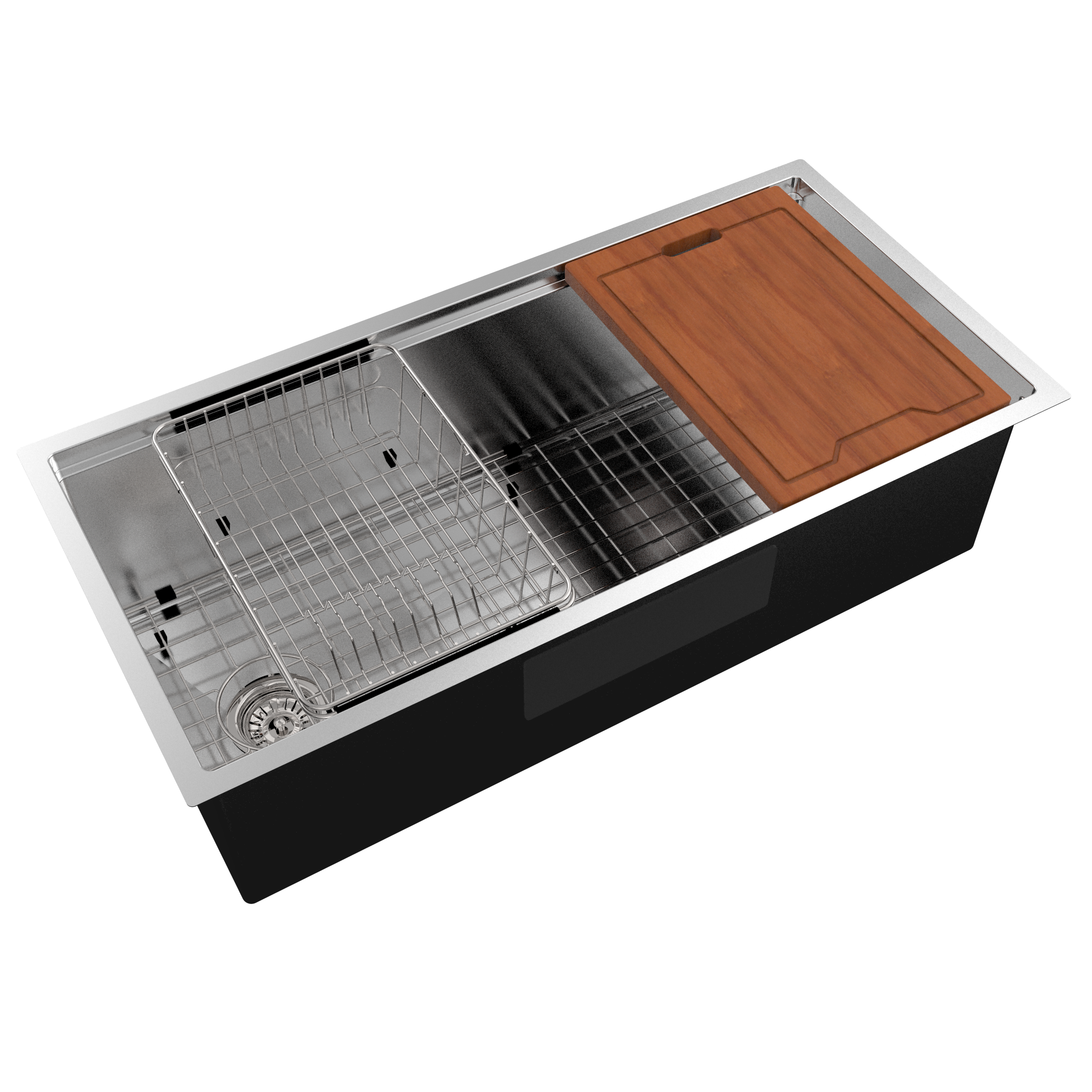

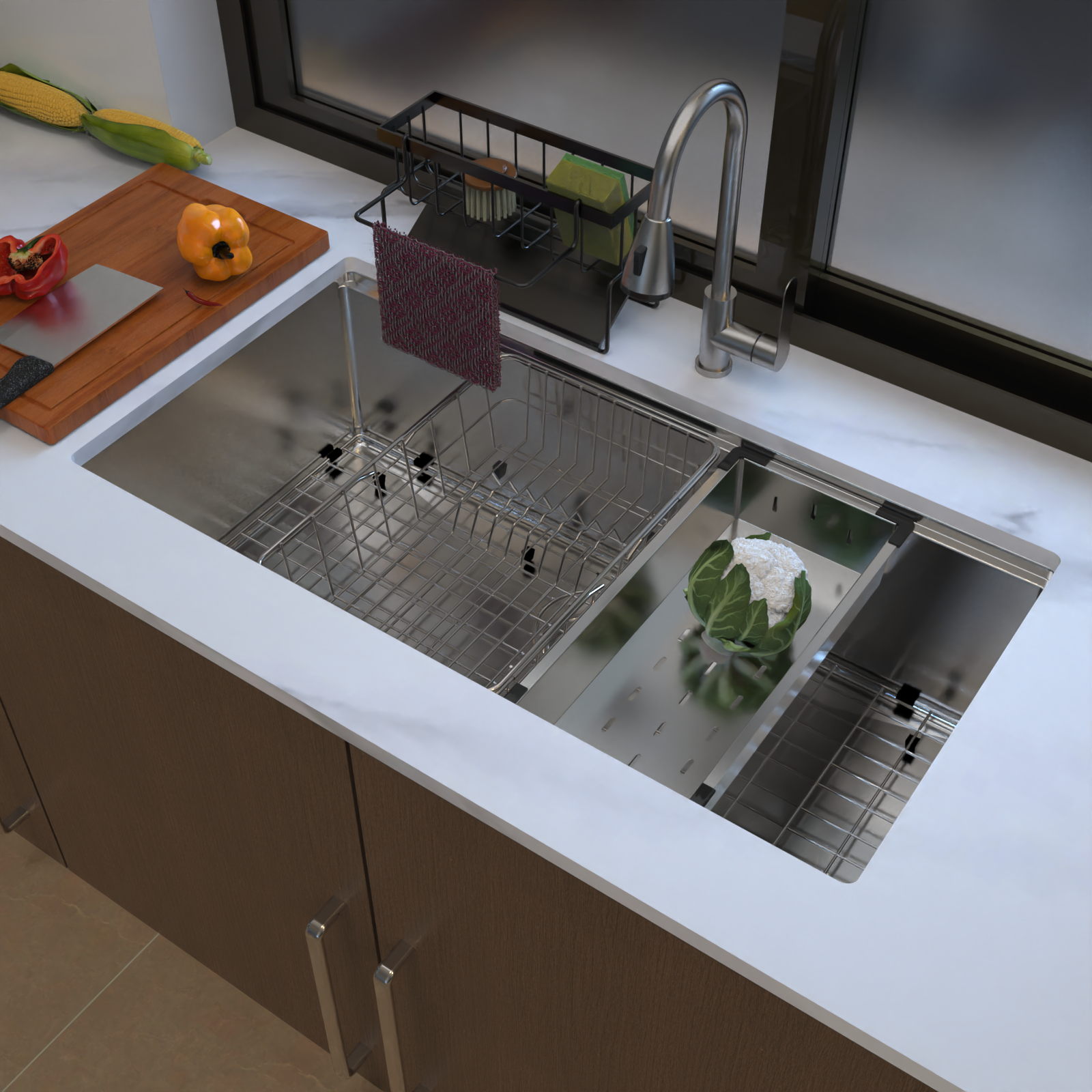

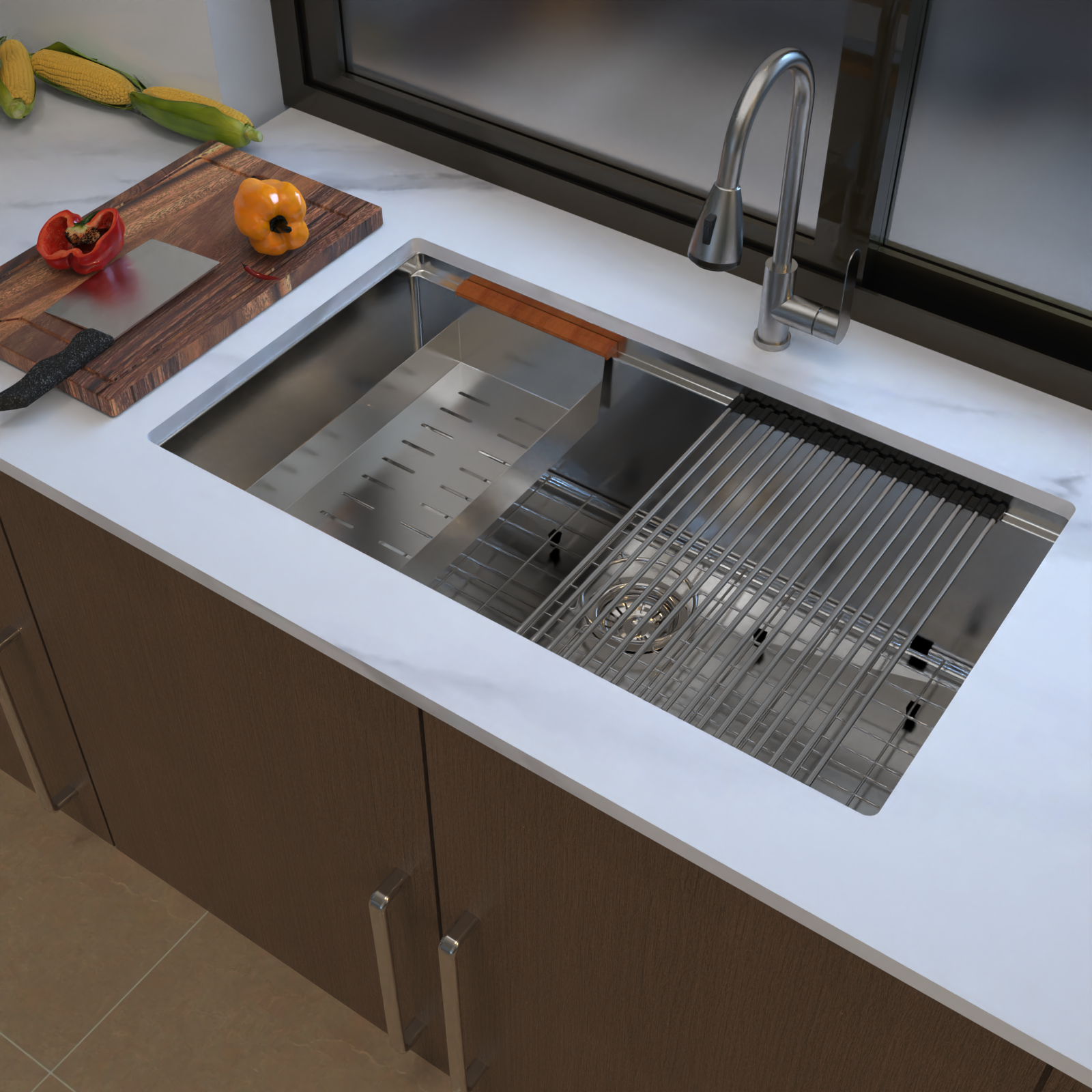

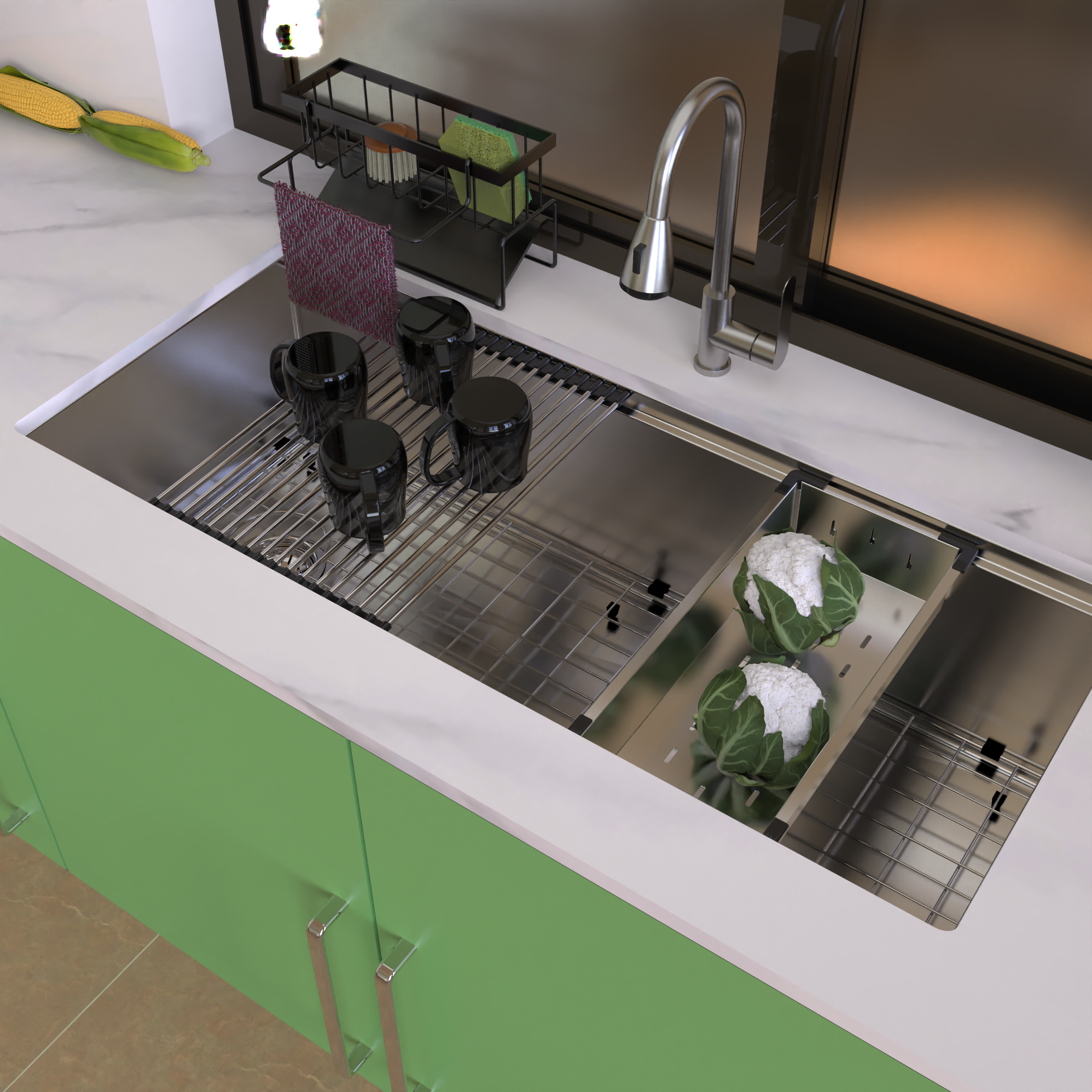

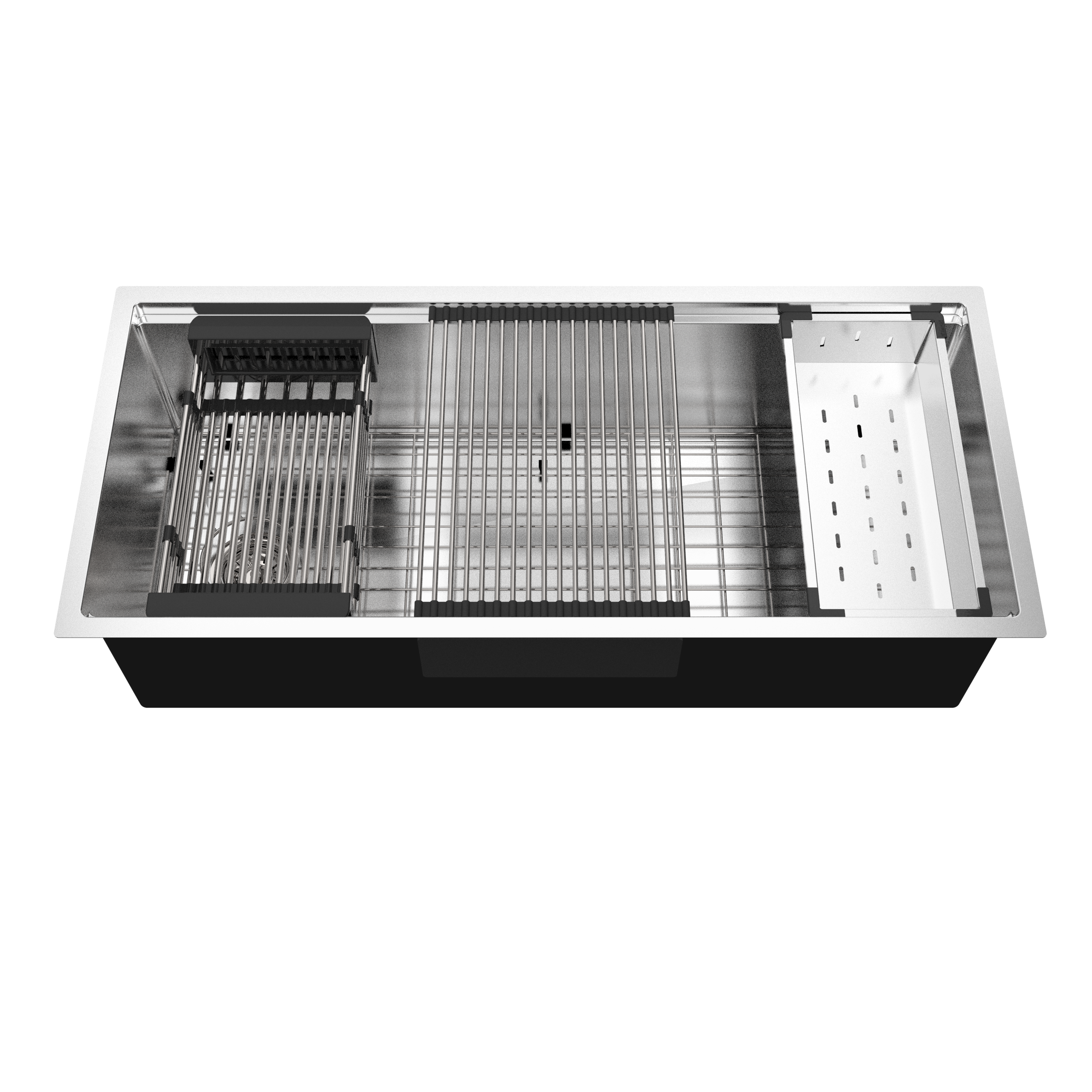

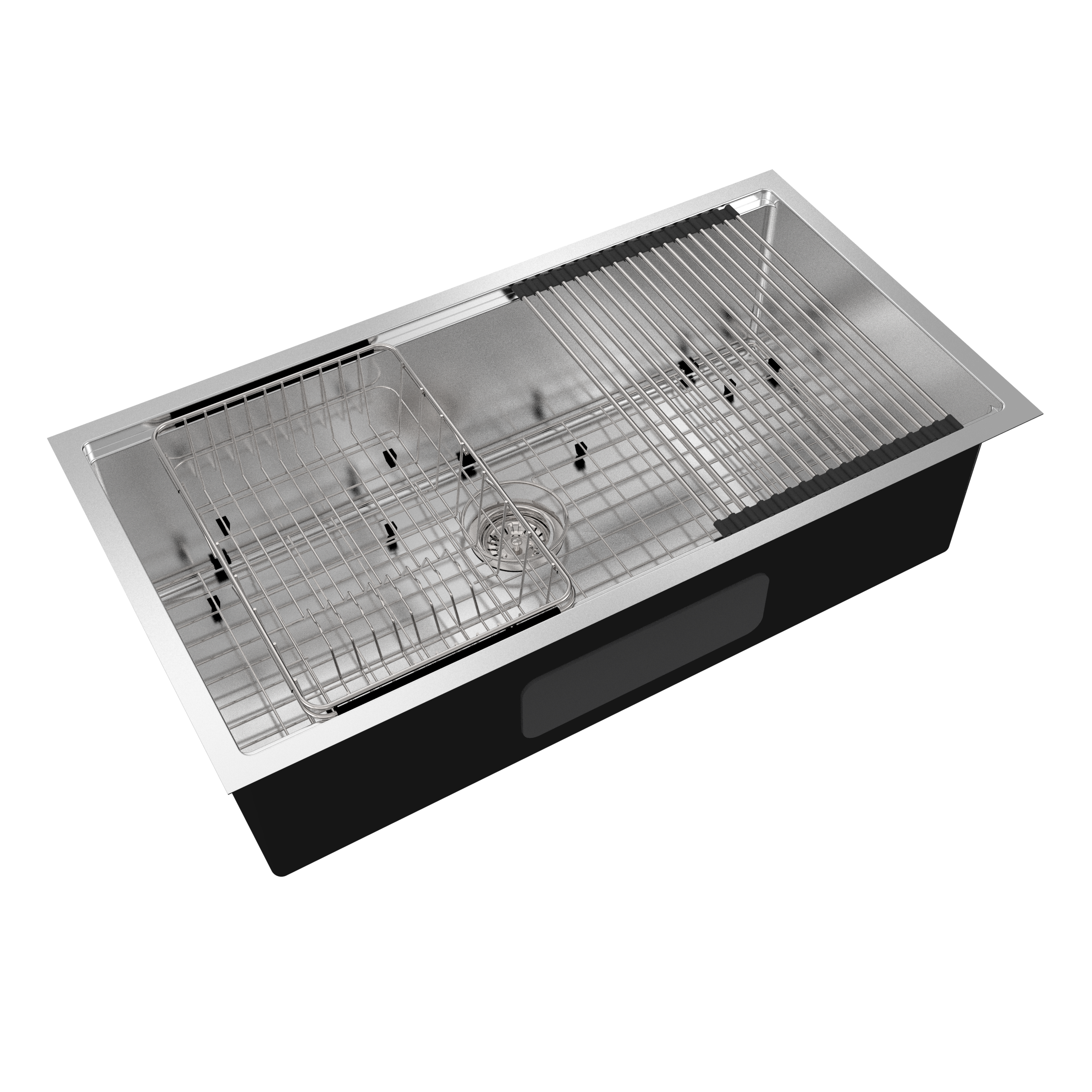

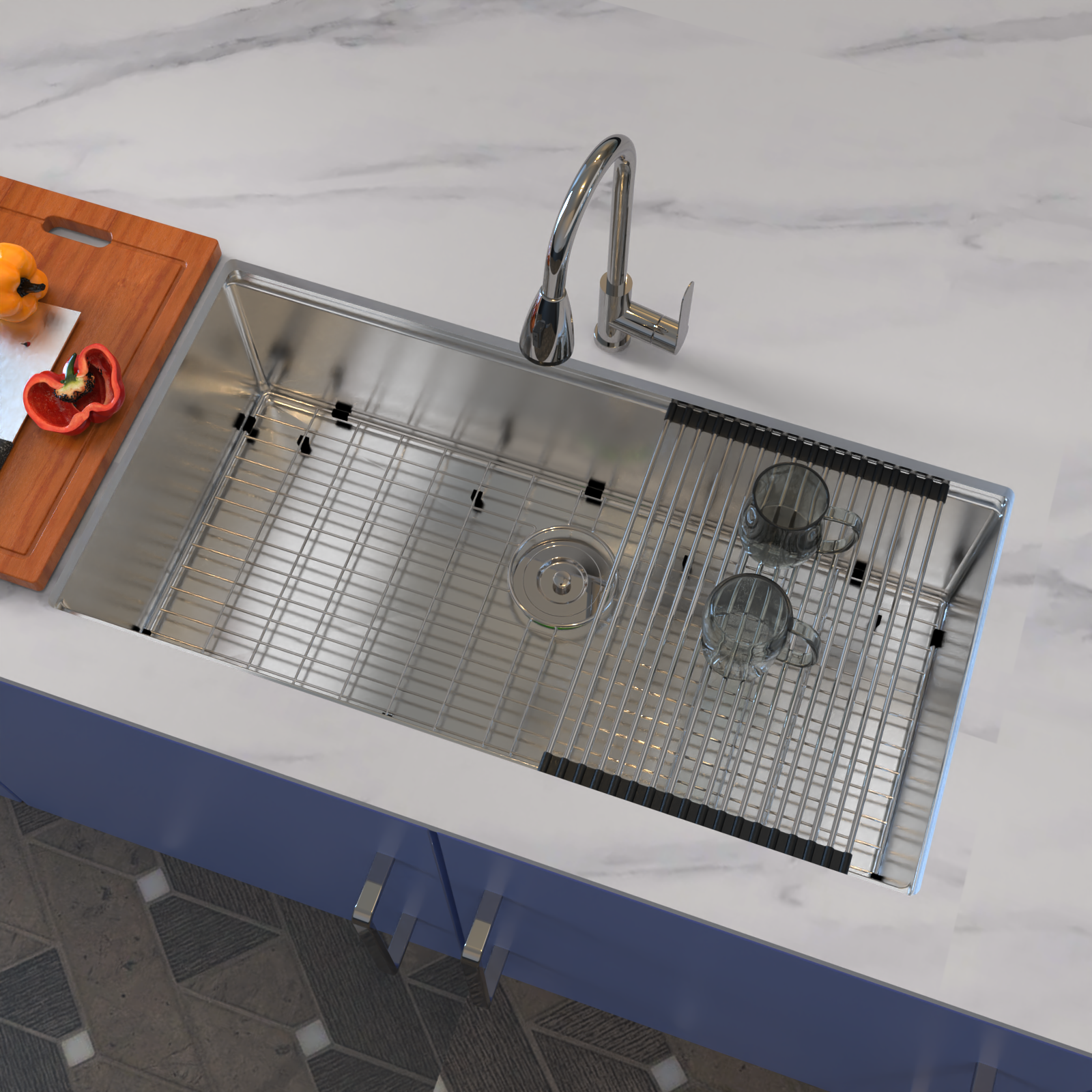

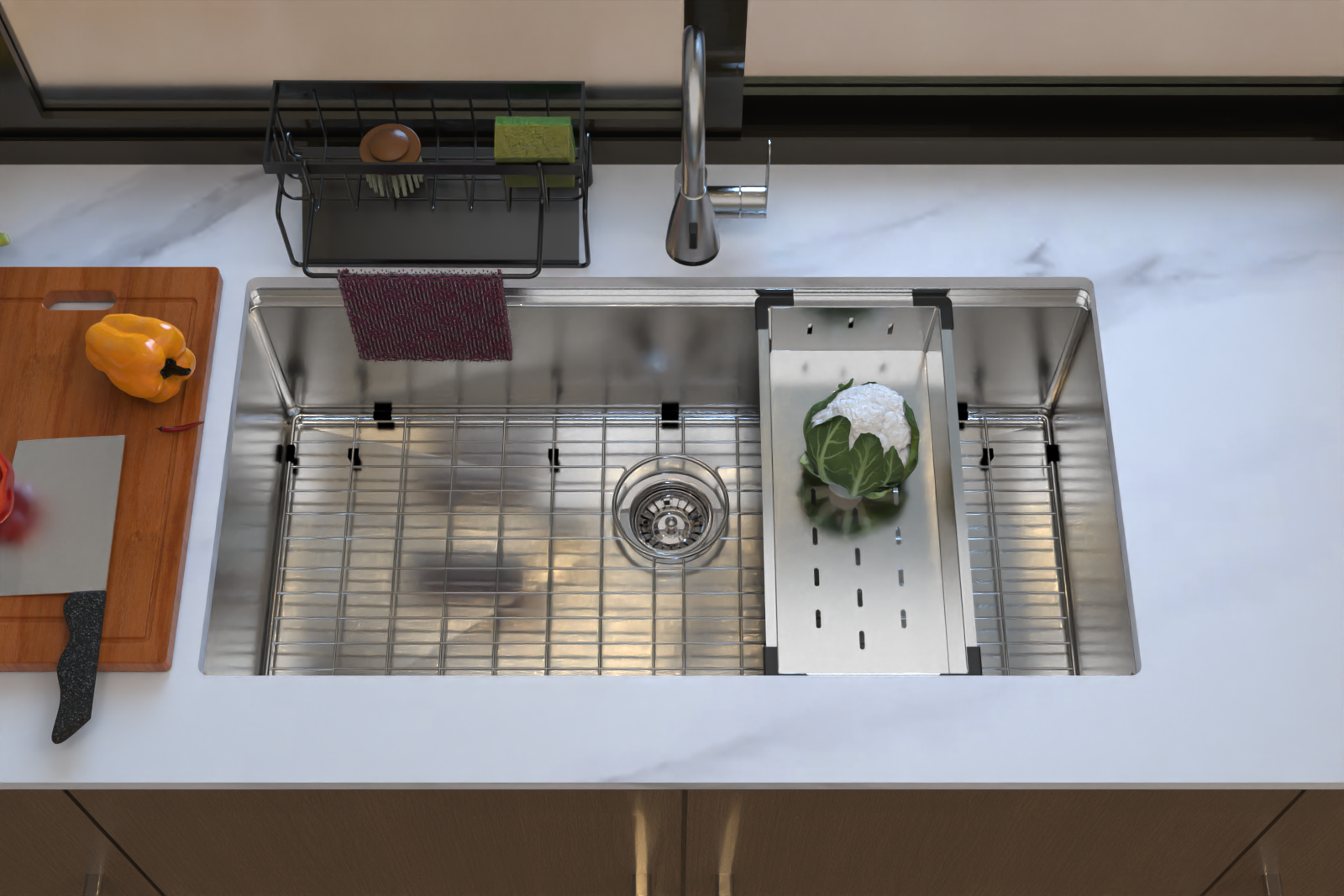

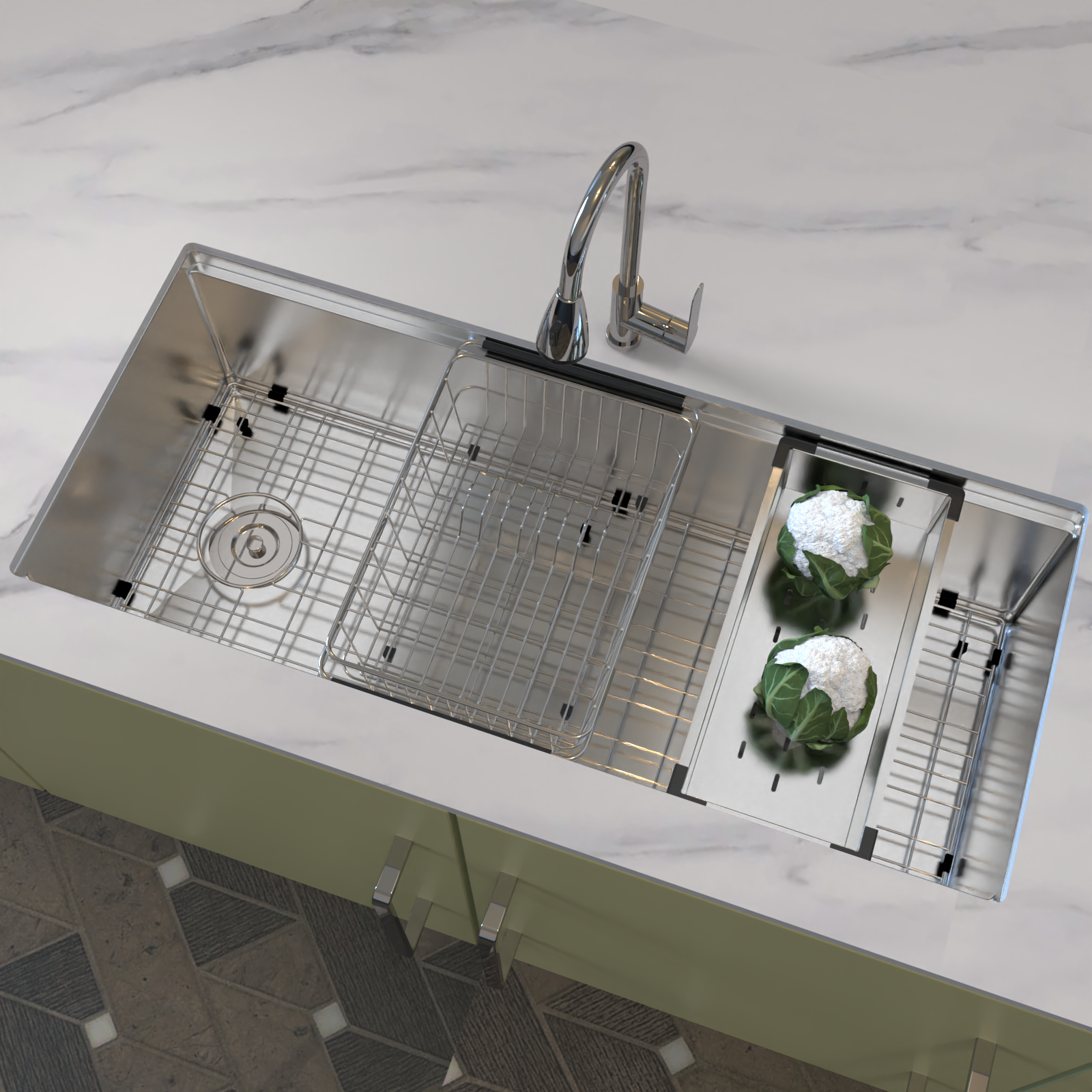

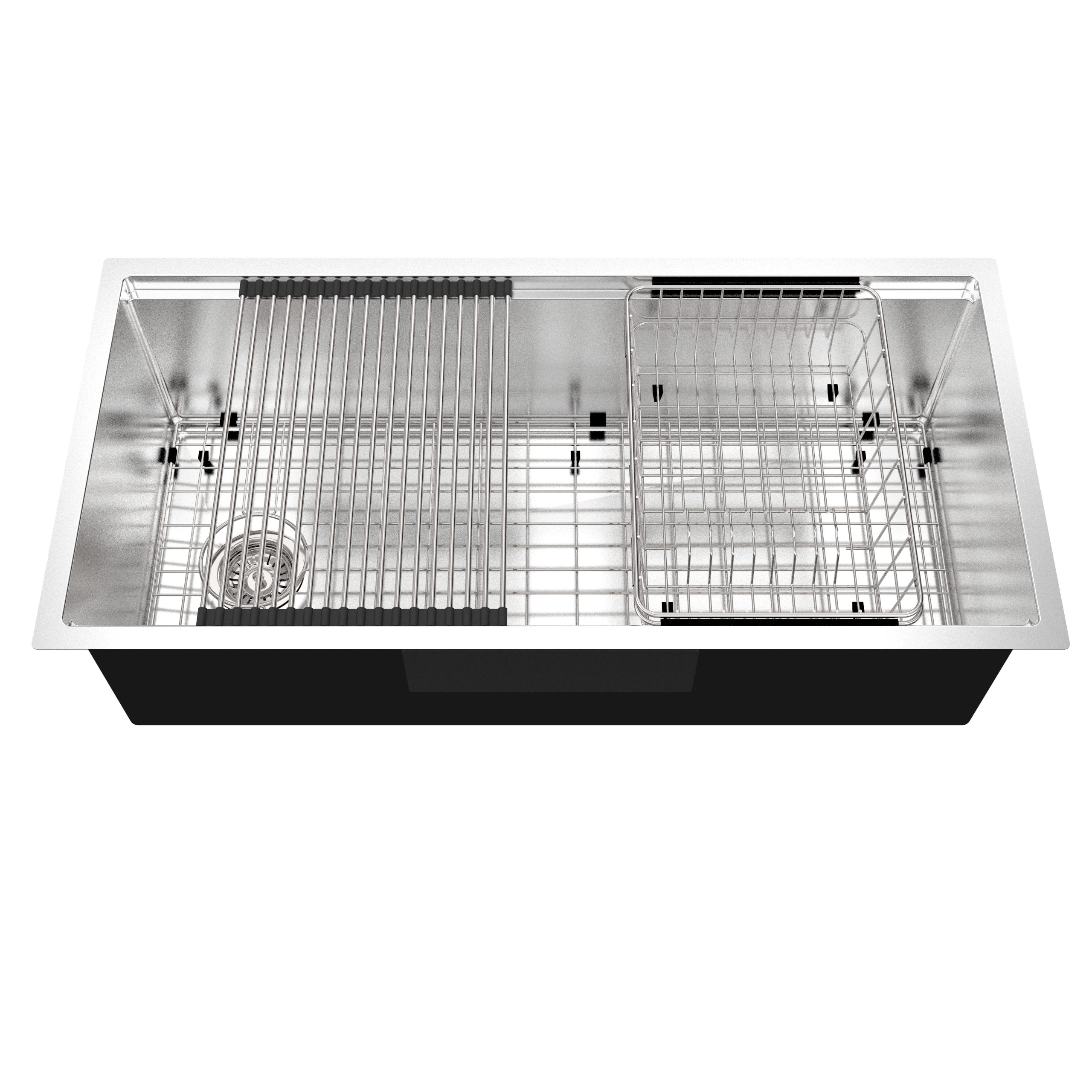

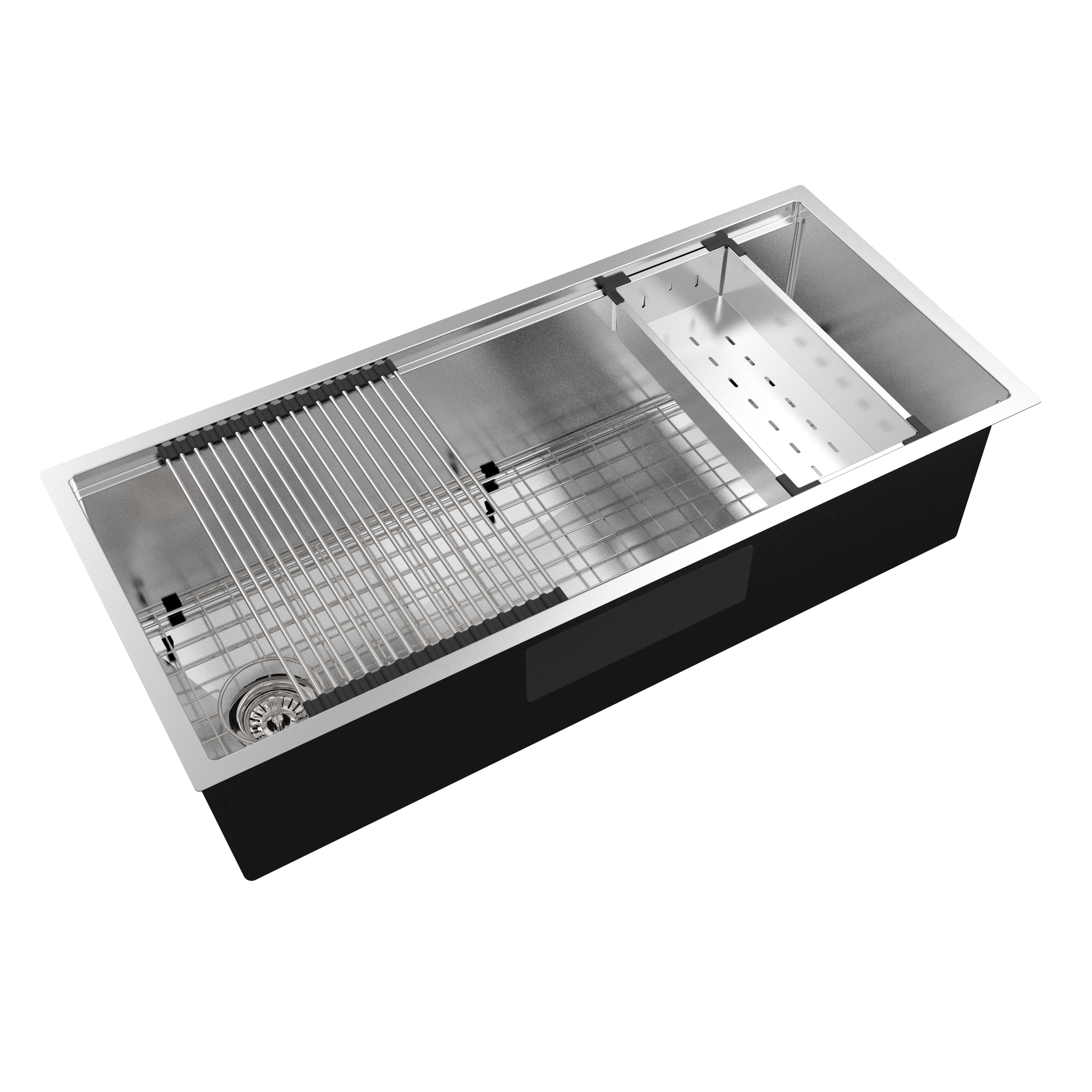

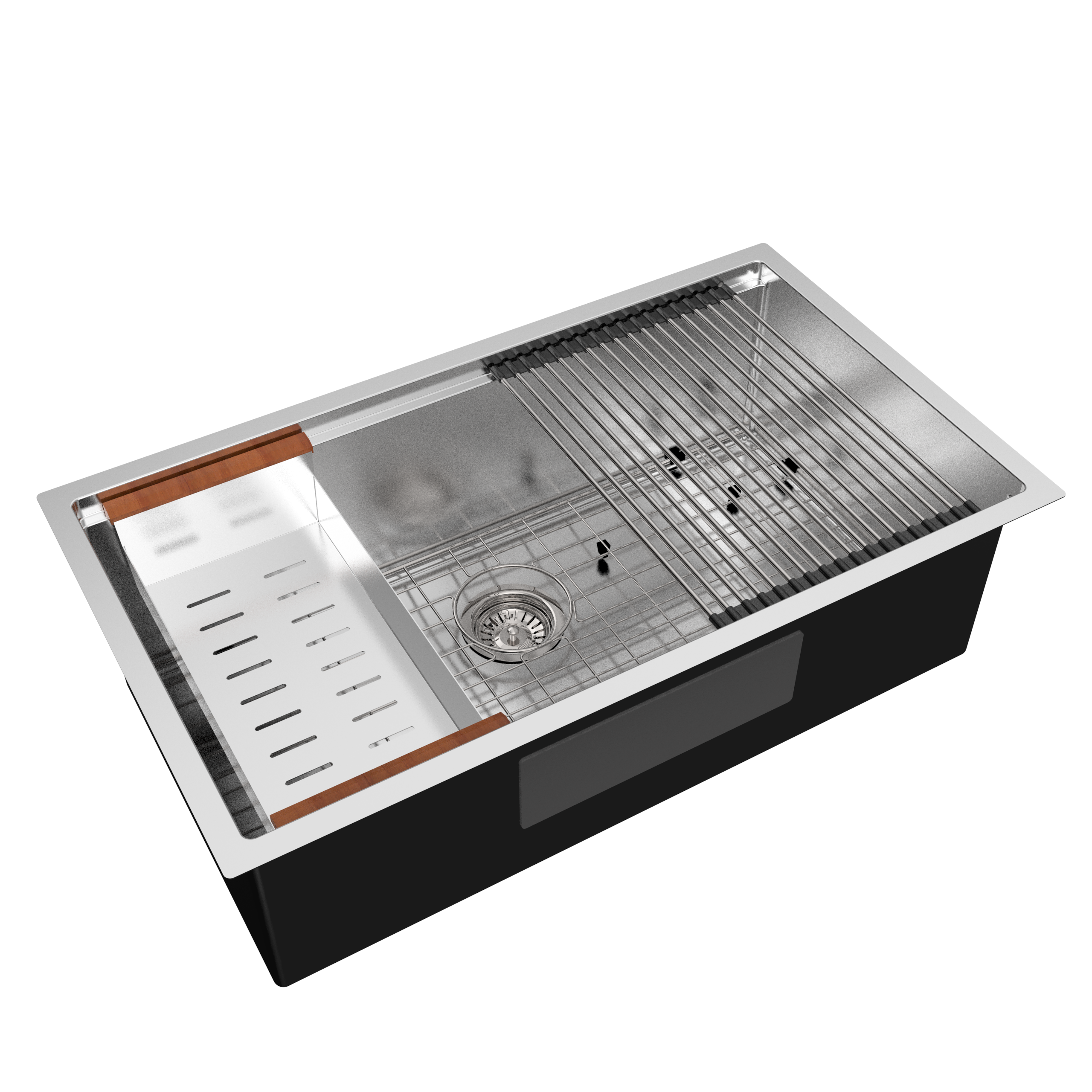

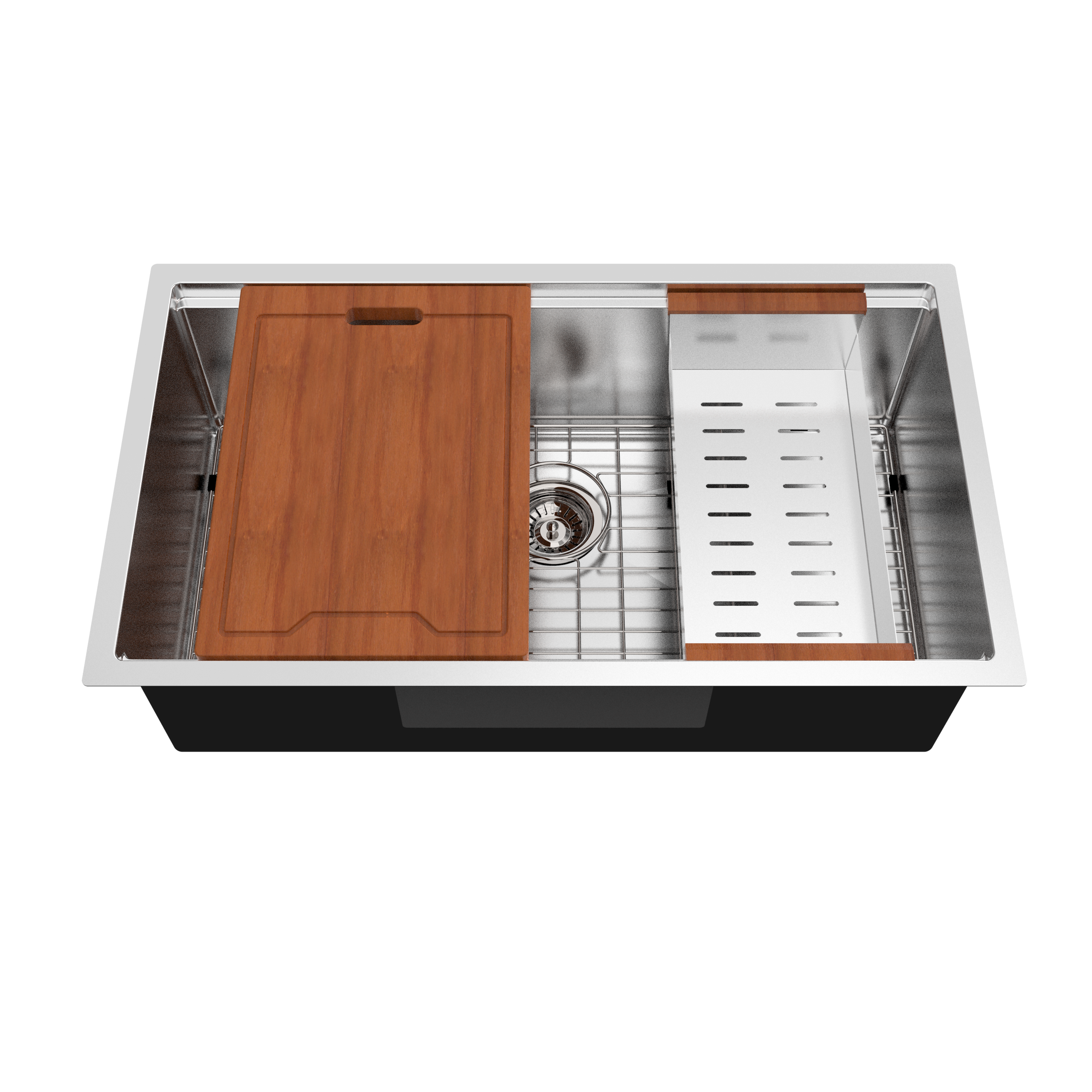

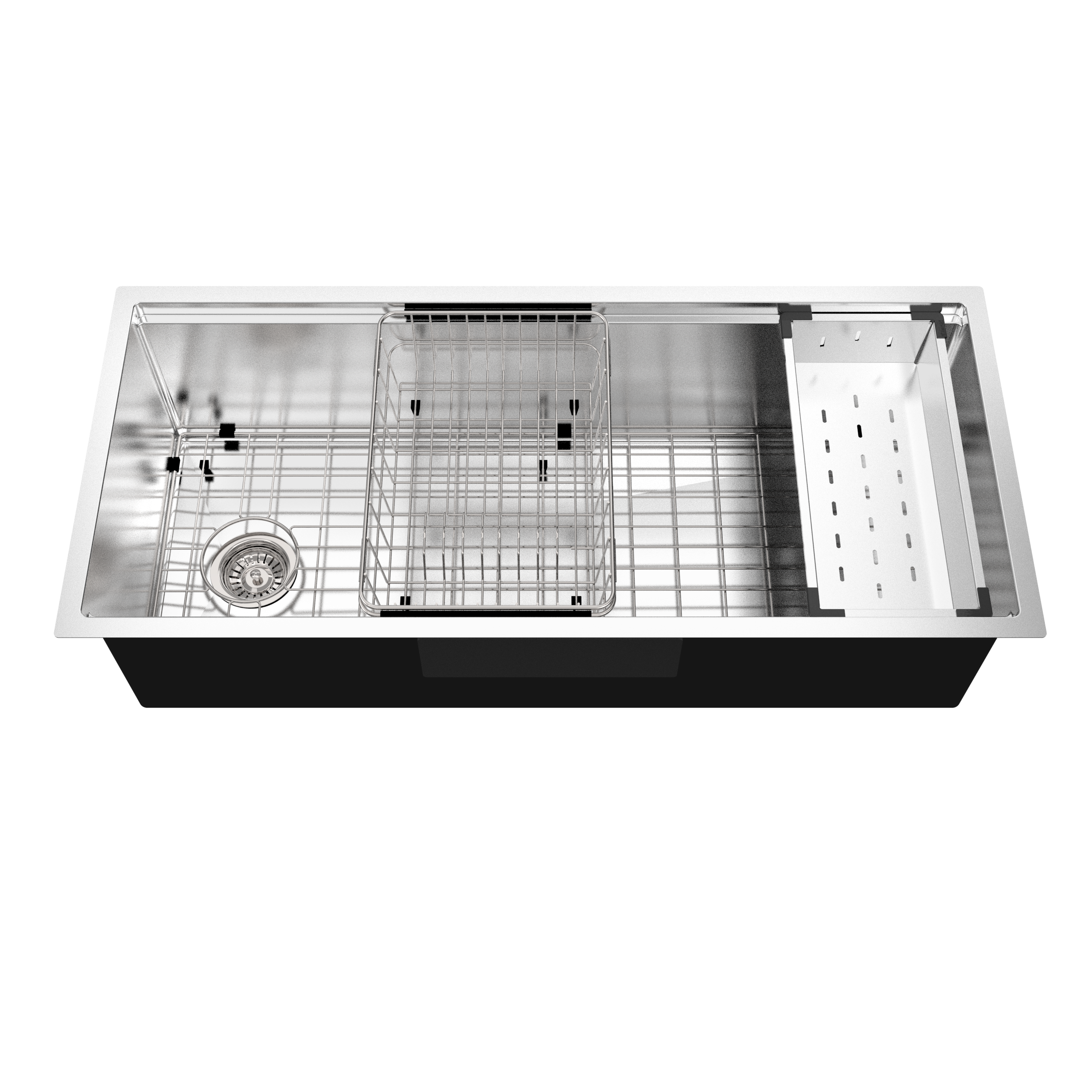

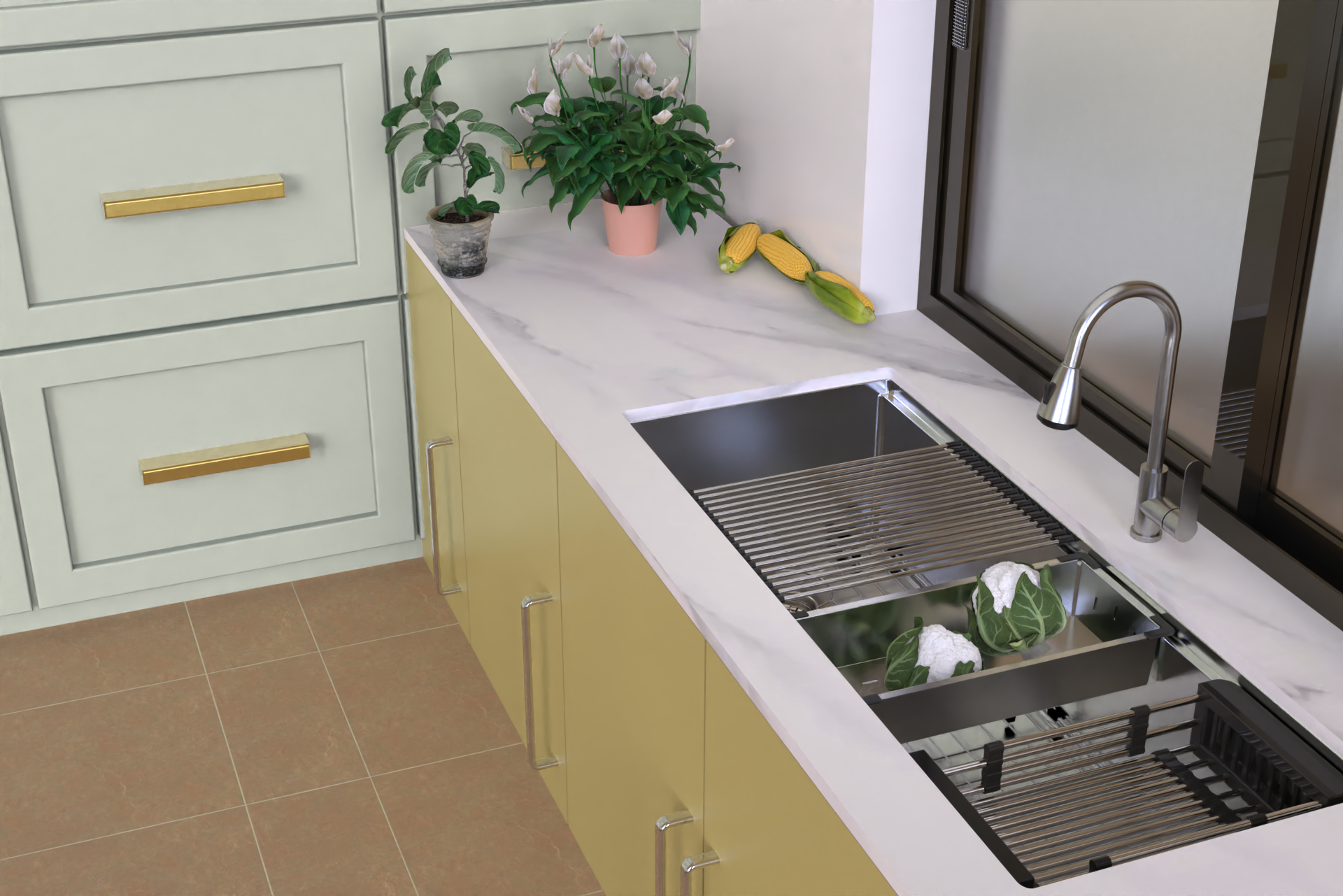

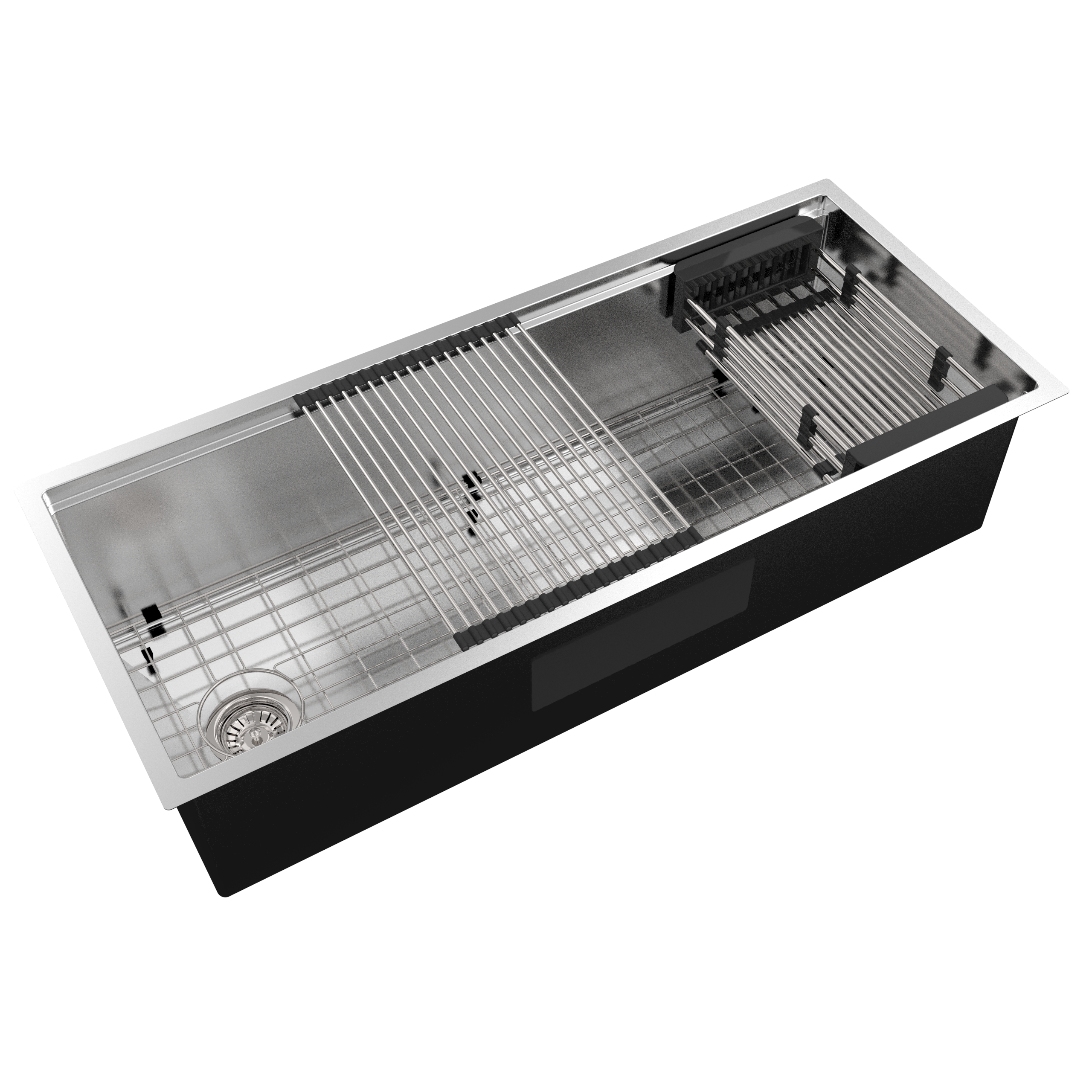

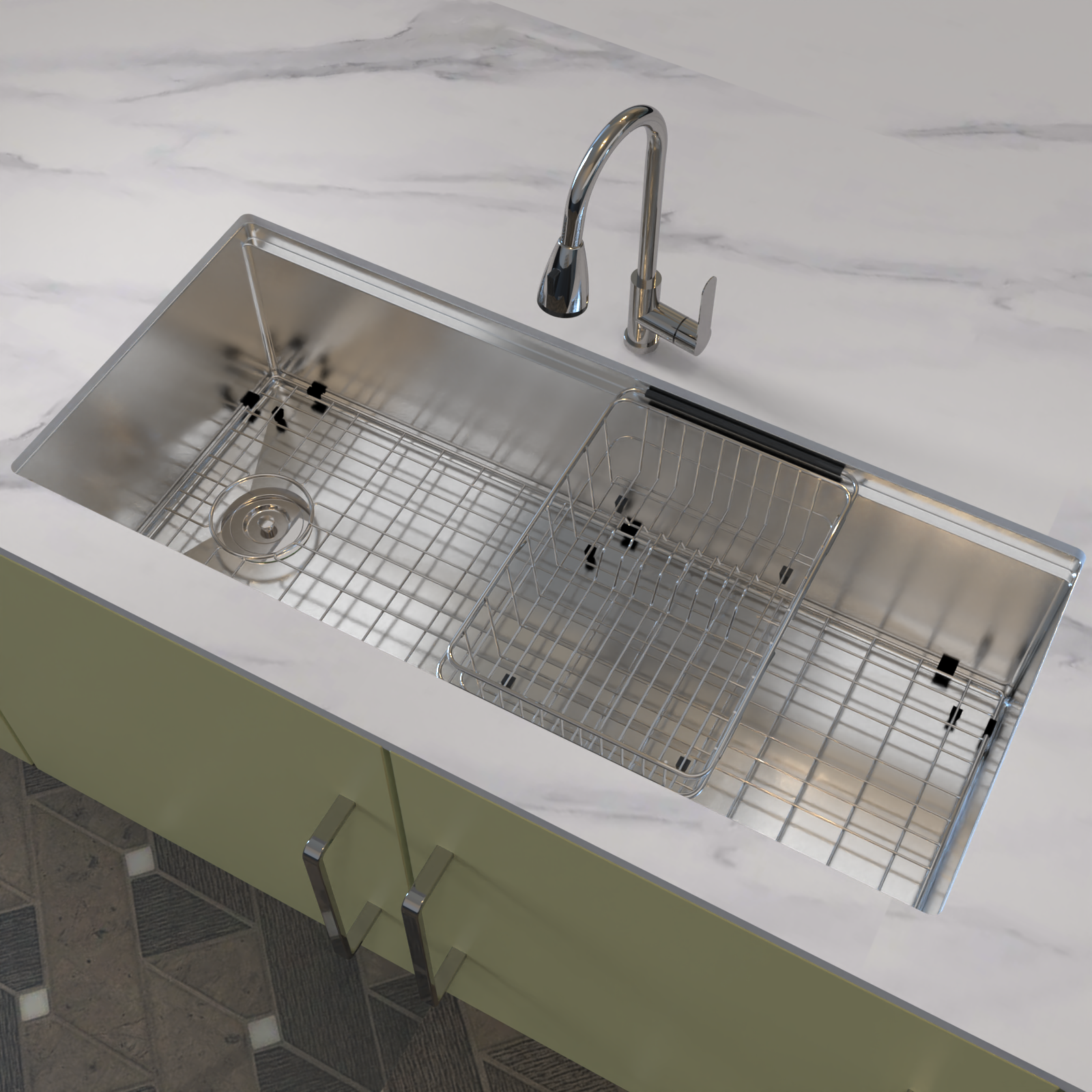

A single bowl undermount kitchen sink in 18 gauge stainless steel 304 with a brushed finish and an integrated ledge that carries the included workstation accessories.
Seven overall widths from 27 in (686 mm) to 45 in (1143 mm); every size is 19 in (483 mm) front to back and 10 in (252 mm) high, with a 90 mm (3.54 in) center drain.

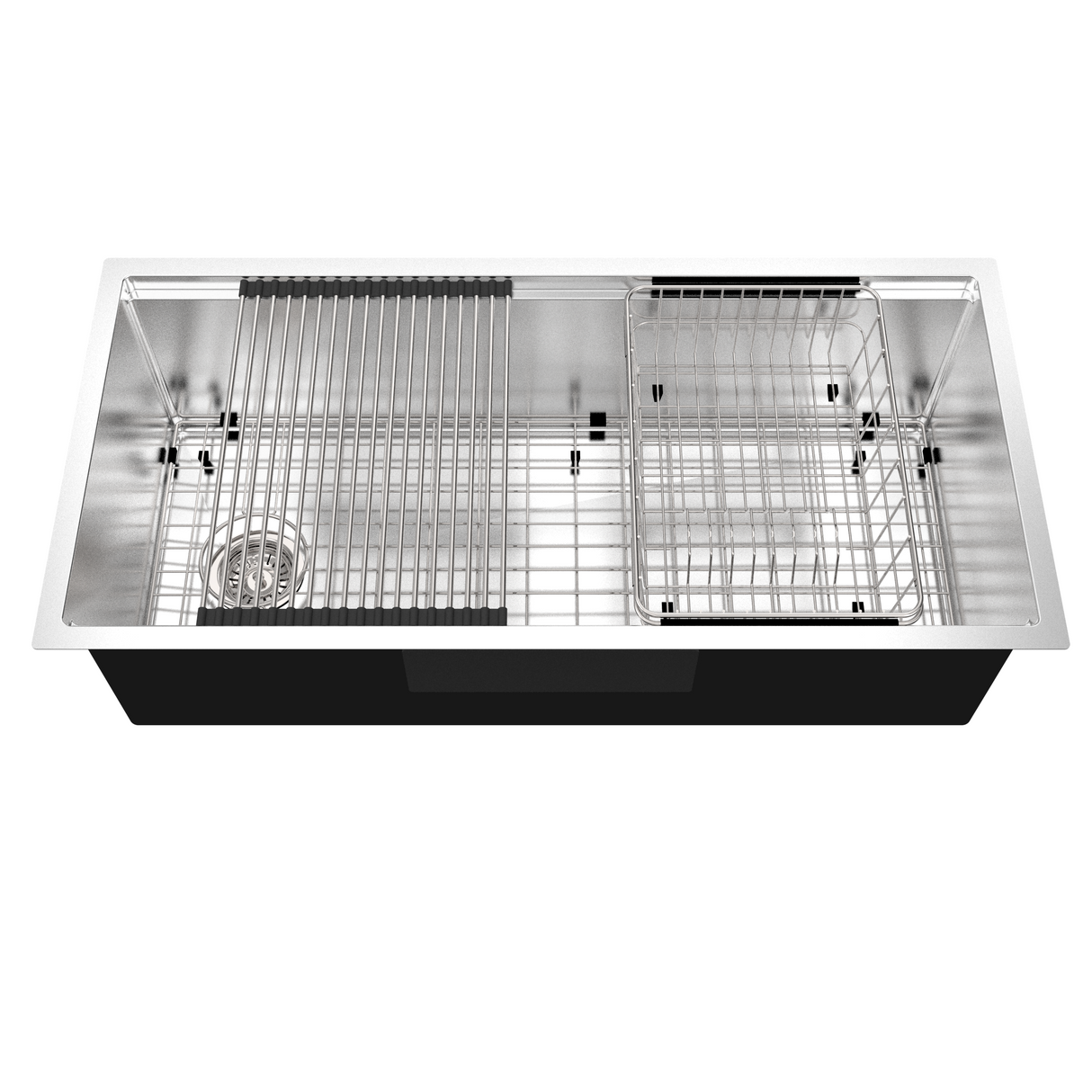

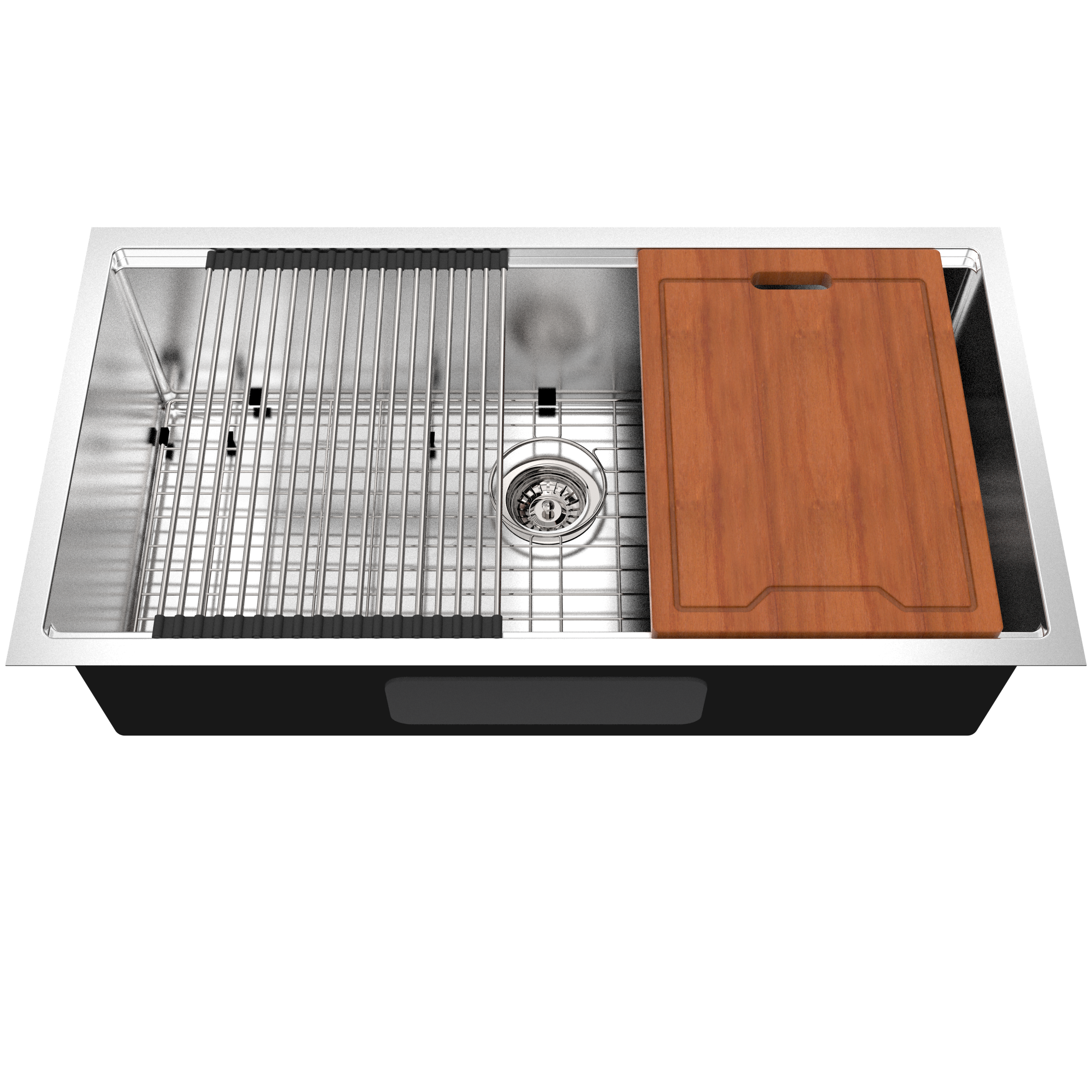

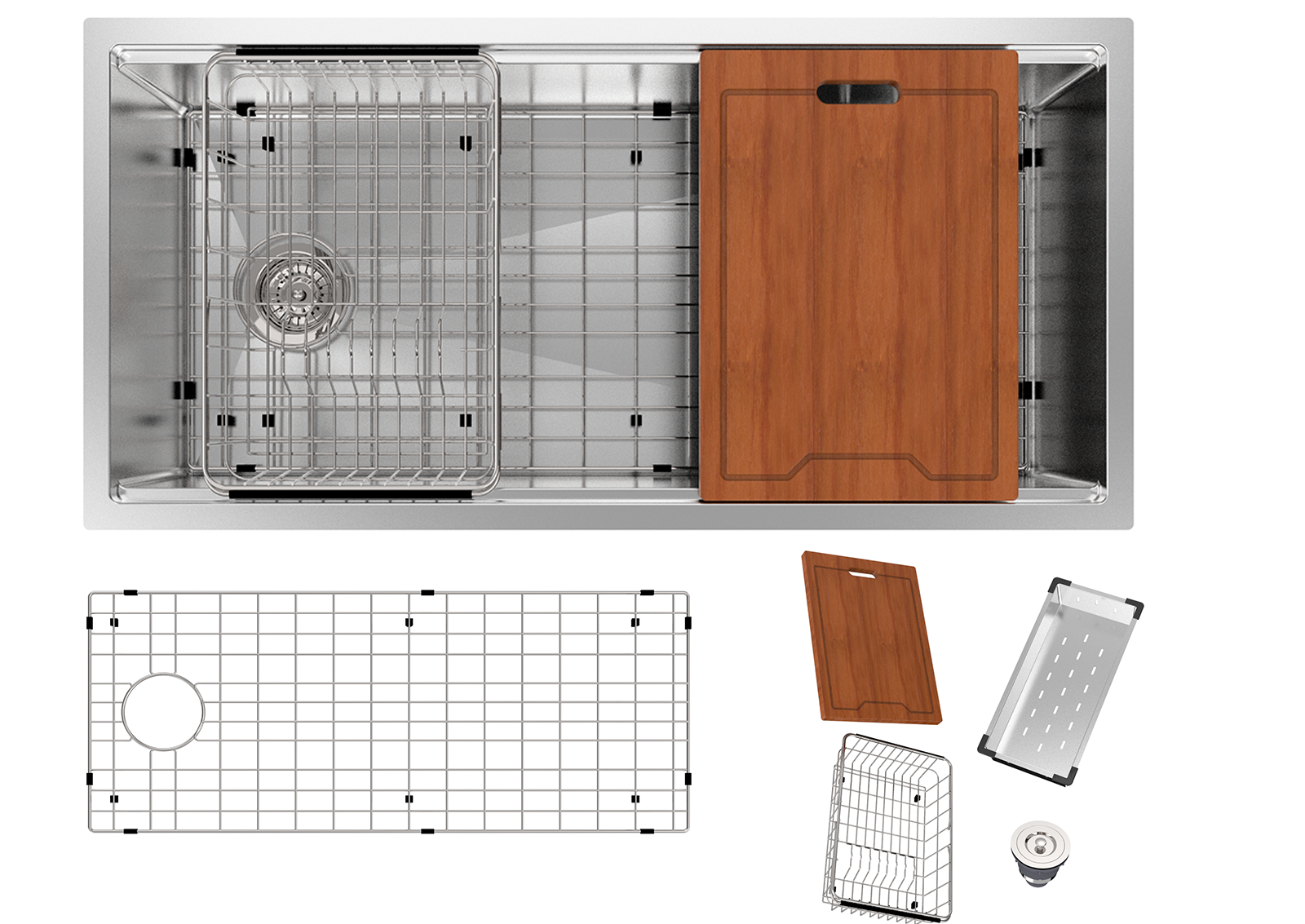

Each combo ships with a cutting board, a stainless steel colander, a roll-up drying rack, a bottom grid and a basket strainer, and the DXF cutout template is in the Downloads panel.
Features
- Single bowl undermount workstation design with a 1 in (25.4 mm) ledge for sliding accessories
- 18 gauge stainless steel 304 construction with a brushed finish
- 10 in (252 mm) overall height with a tight R10 (10 mm) floor radius and R6 (6 mm) rim corners on every size
- Center drain with a 90 mm (3.54 in) opening and a 4-1/2 in (114 mm) flange; basket strainer included
- Four side sound pads and one bottom sound pad, 2 mm thick, fitted at the factory

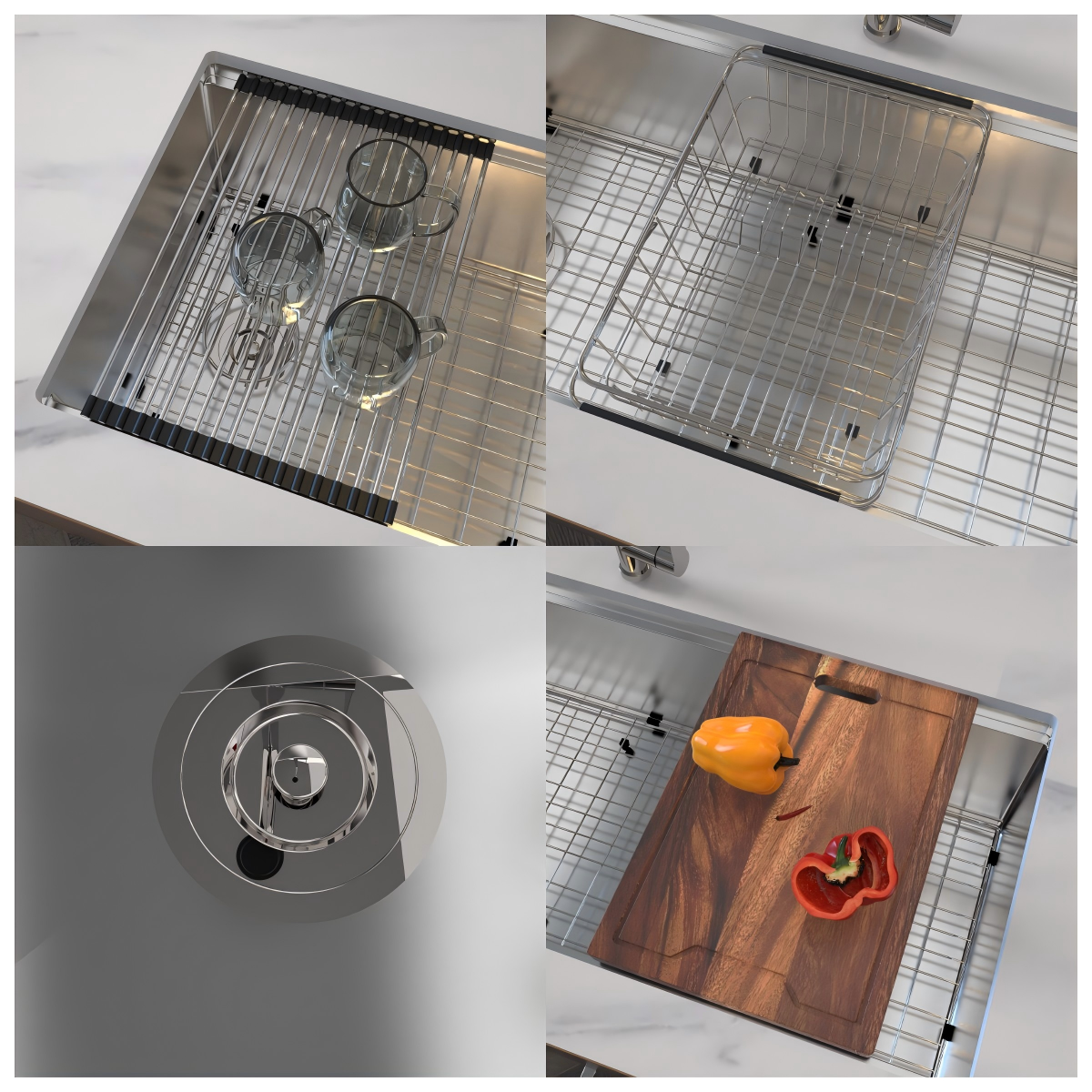

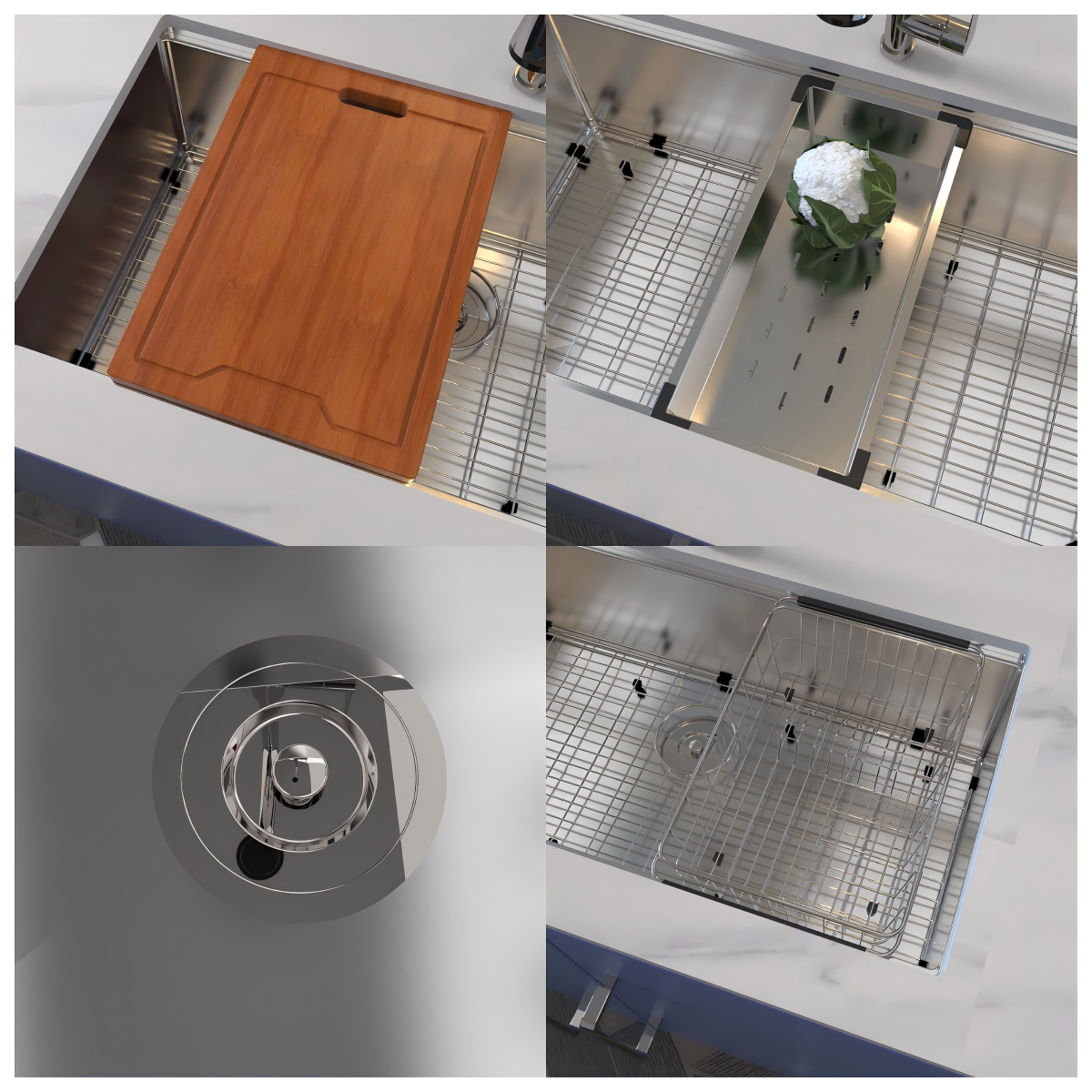

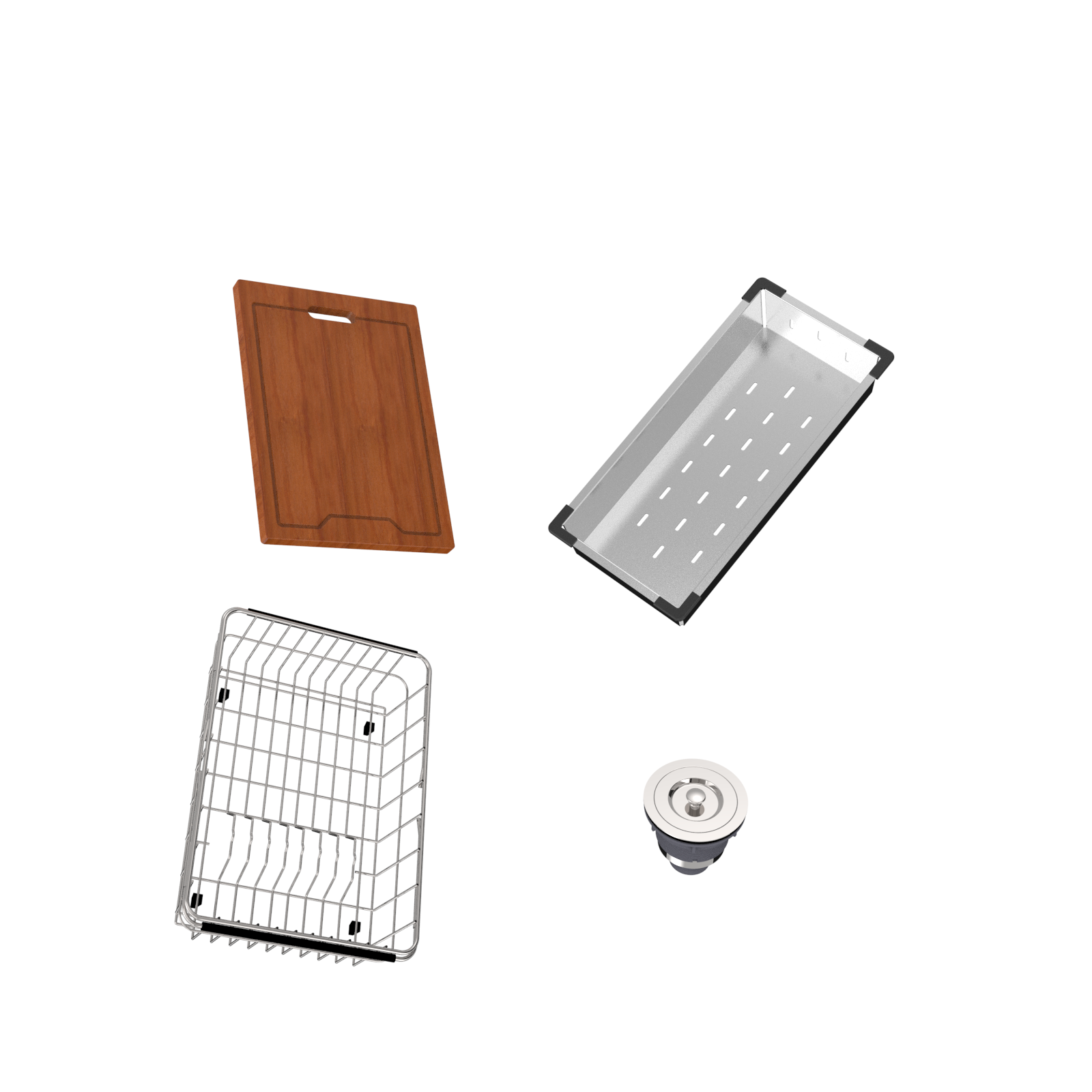

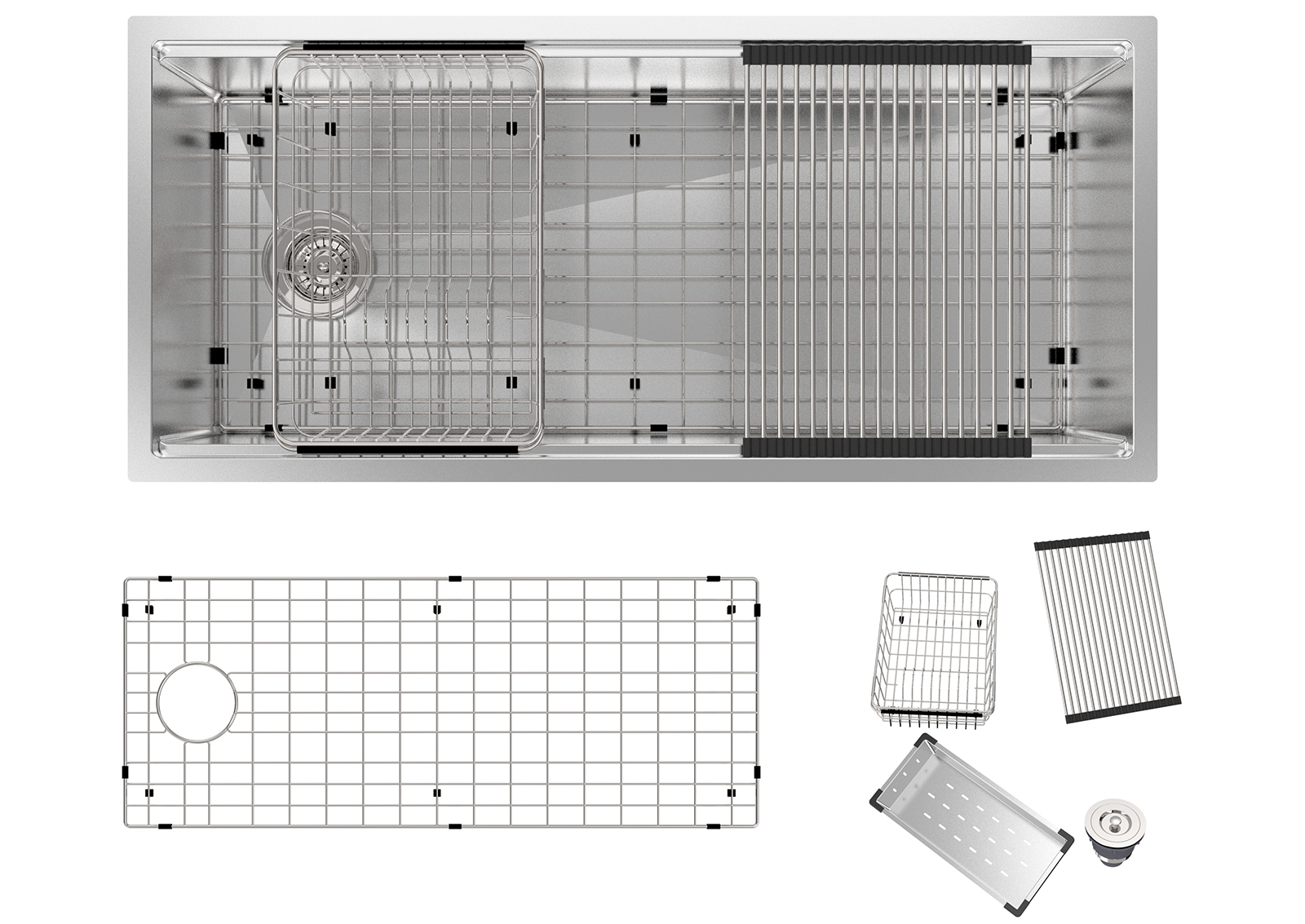

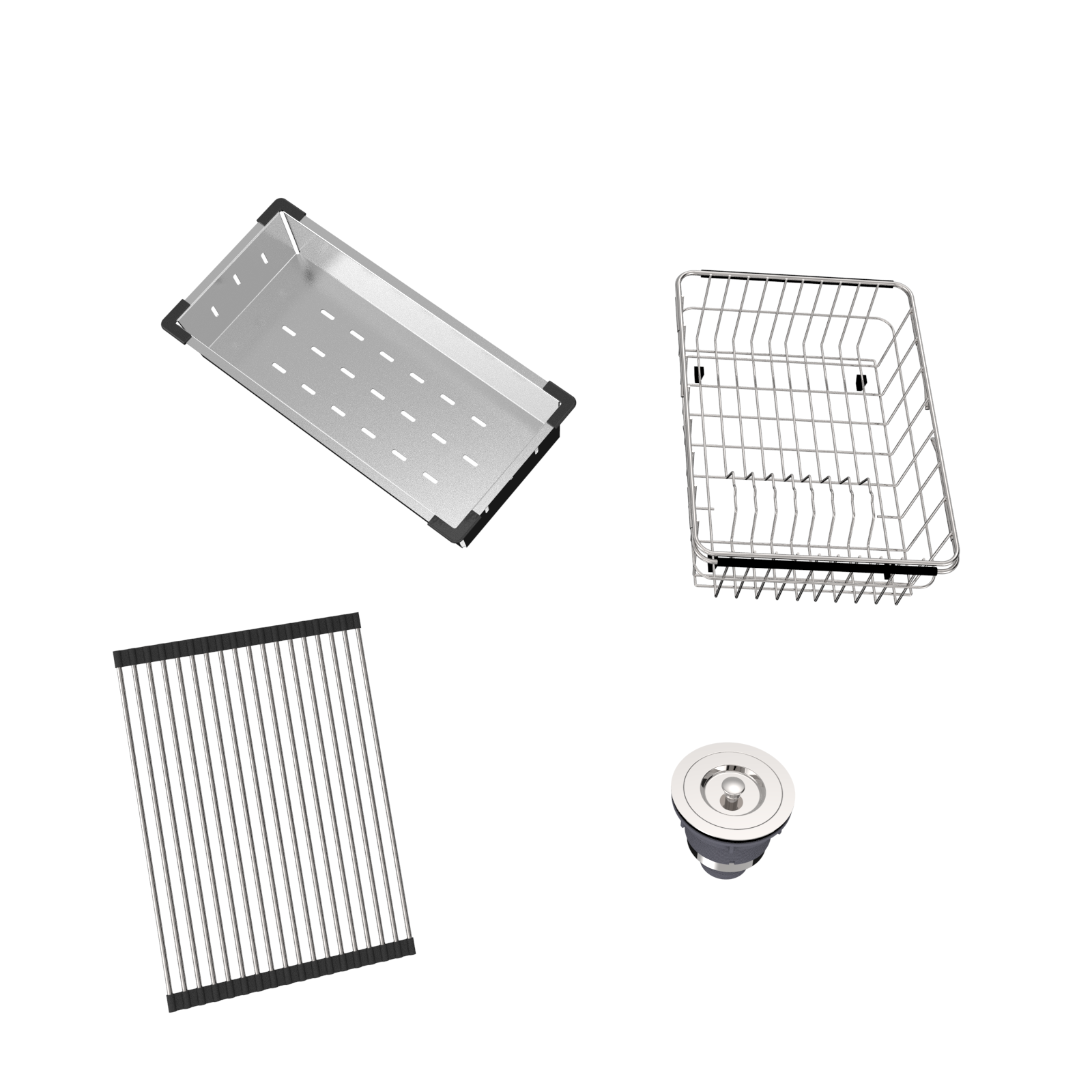

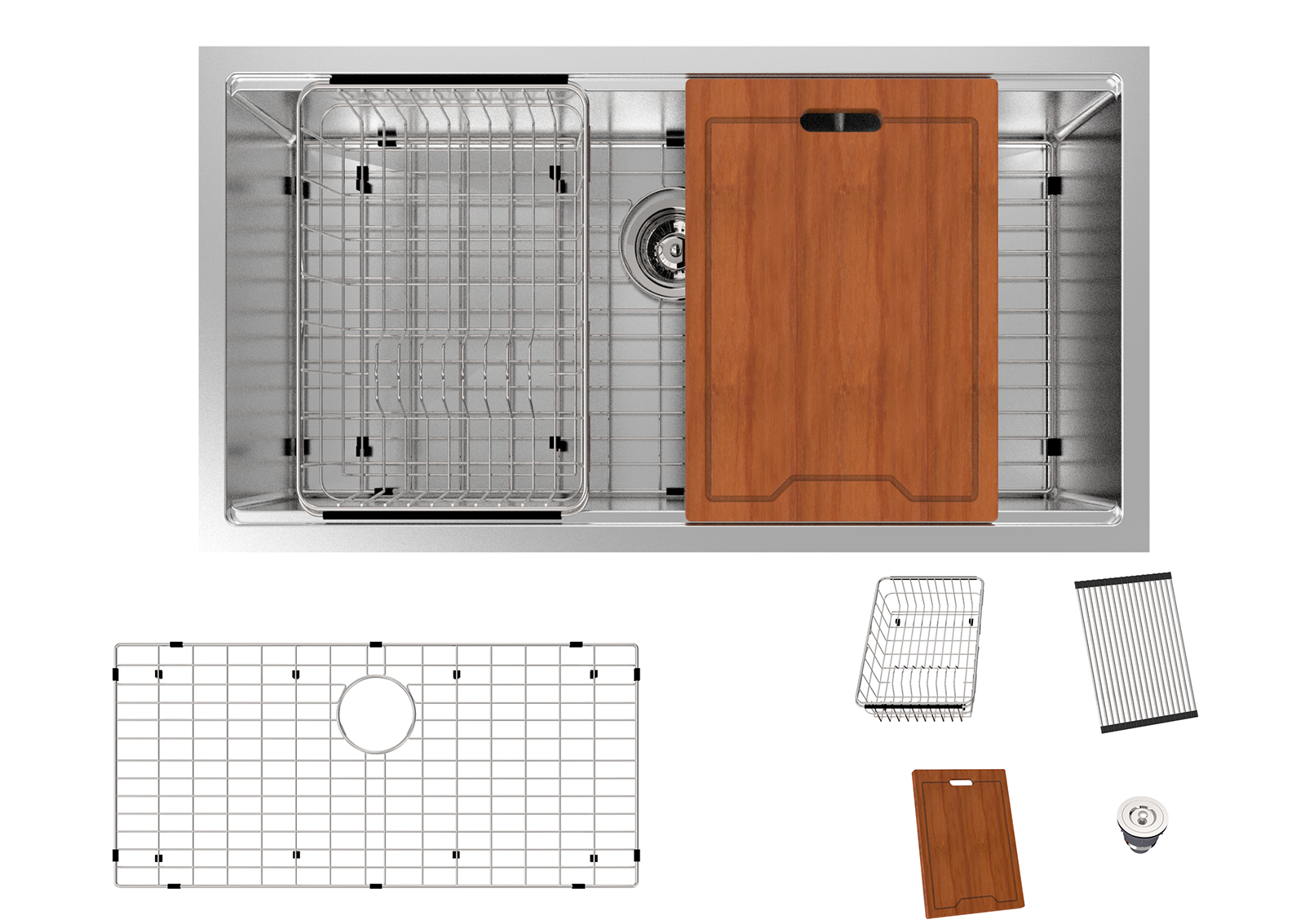

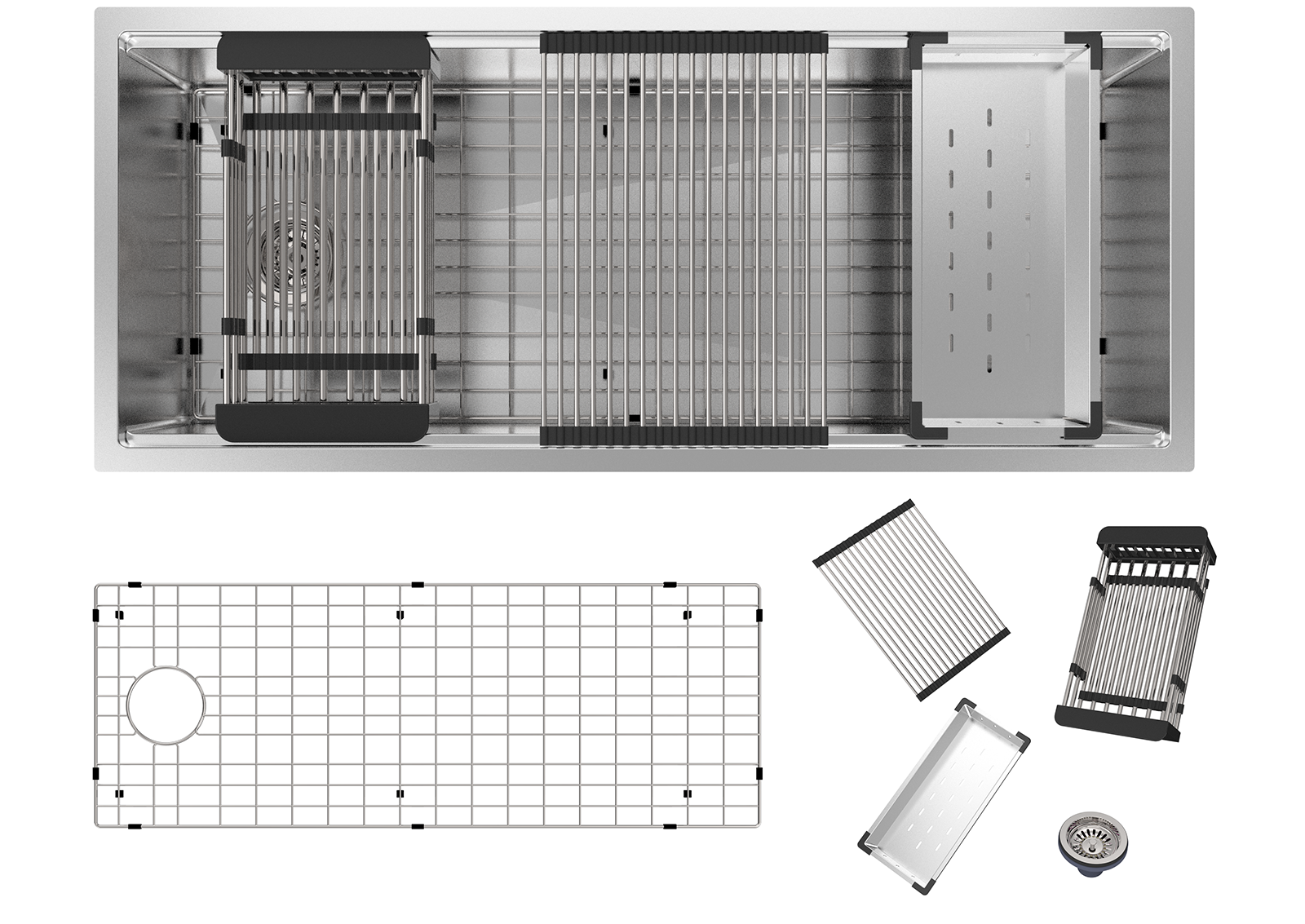

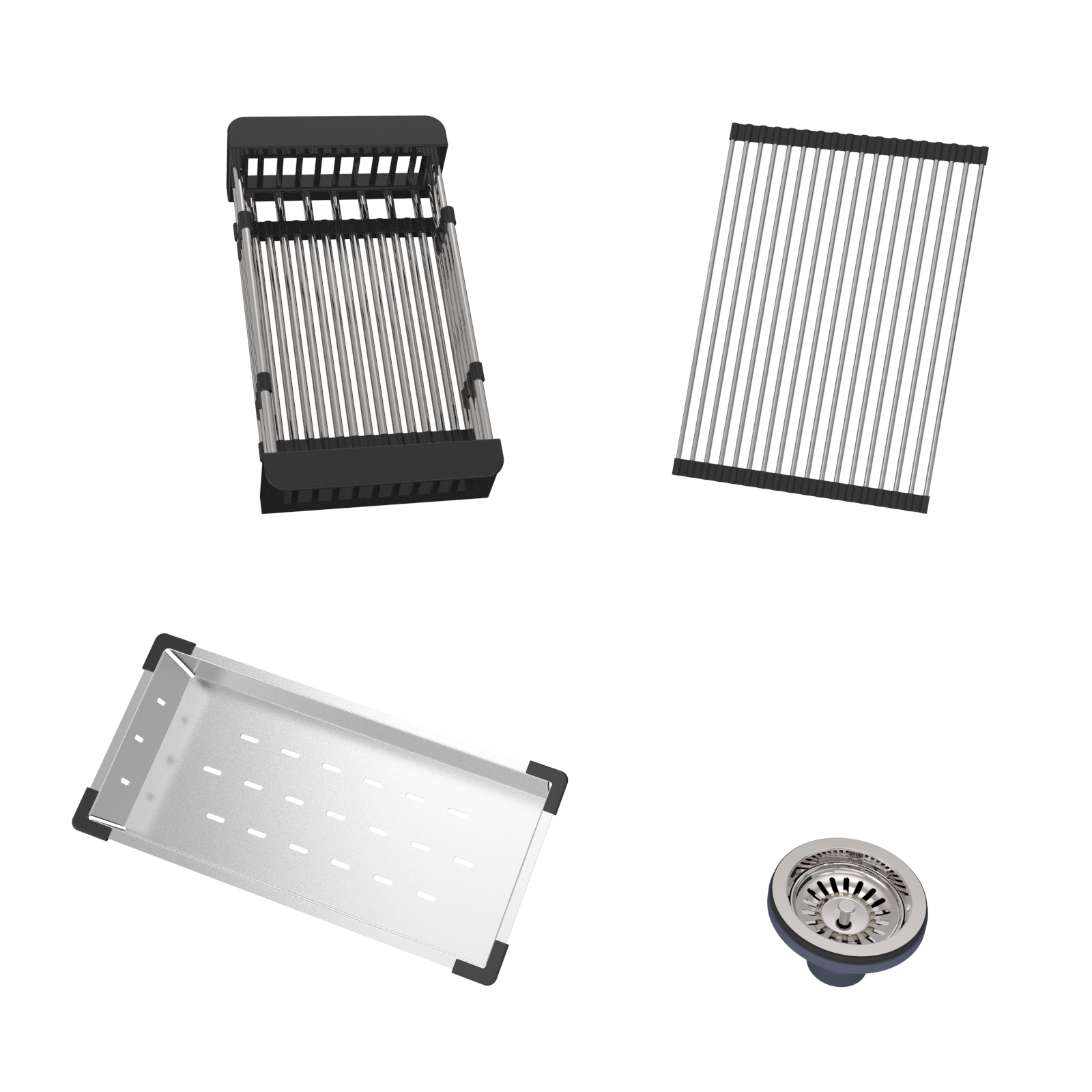

- Included: cutting board, stainless steel colander, roll-up drying rack, bottom grid, basket strainer
- Factory drawing for every size and DXF cutout template for WS-30 to WS-45 in the Downloads panel
- Open the DXF cutout template for the size you ordered from the Downloads panel and check it against the physical sink before cutting the countertop.

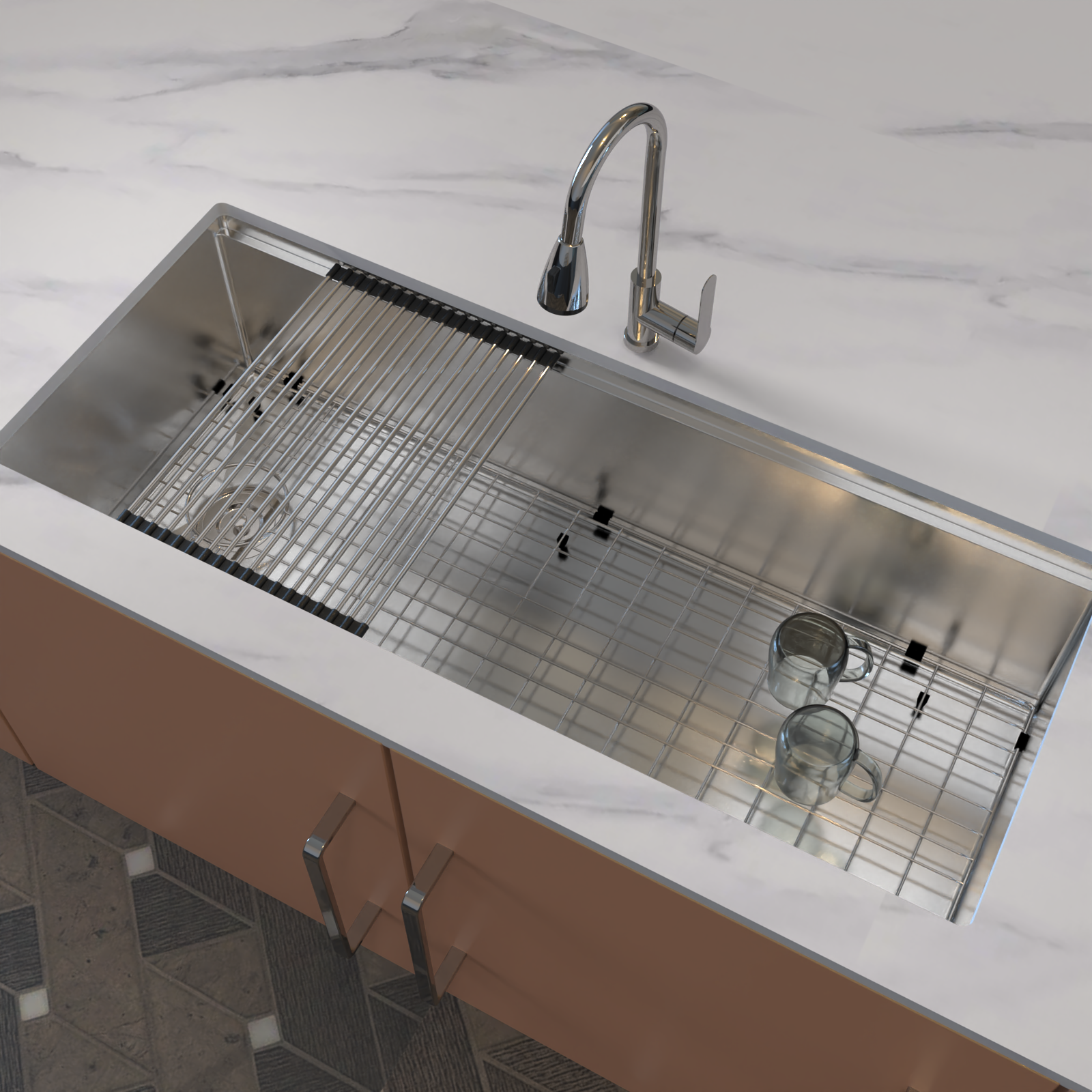

- Cut the countertop for an undermount installation; the bowl is 16 in (406 mm) front to back and the sink is 10 in (252 mm) high on every size.
- Mount the sink under the countertop with the drain centered and fit the included basket strainer to the 90 mm (3.54 in) drain opening.

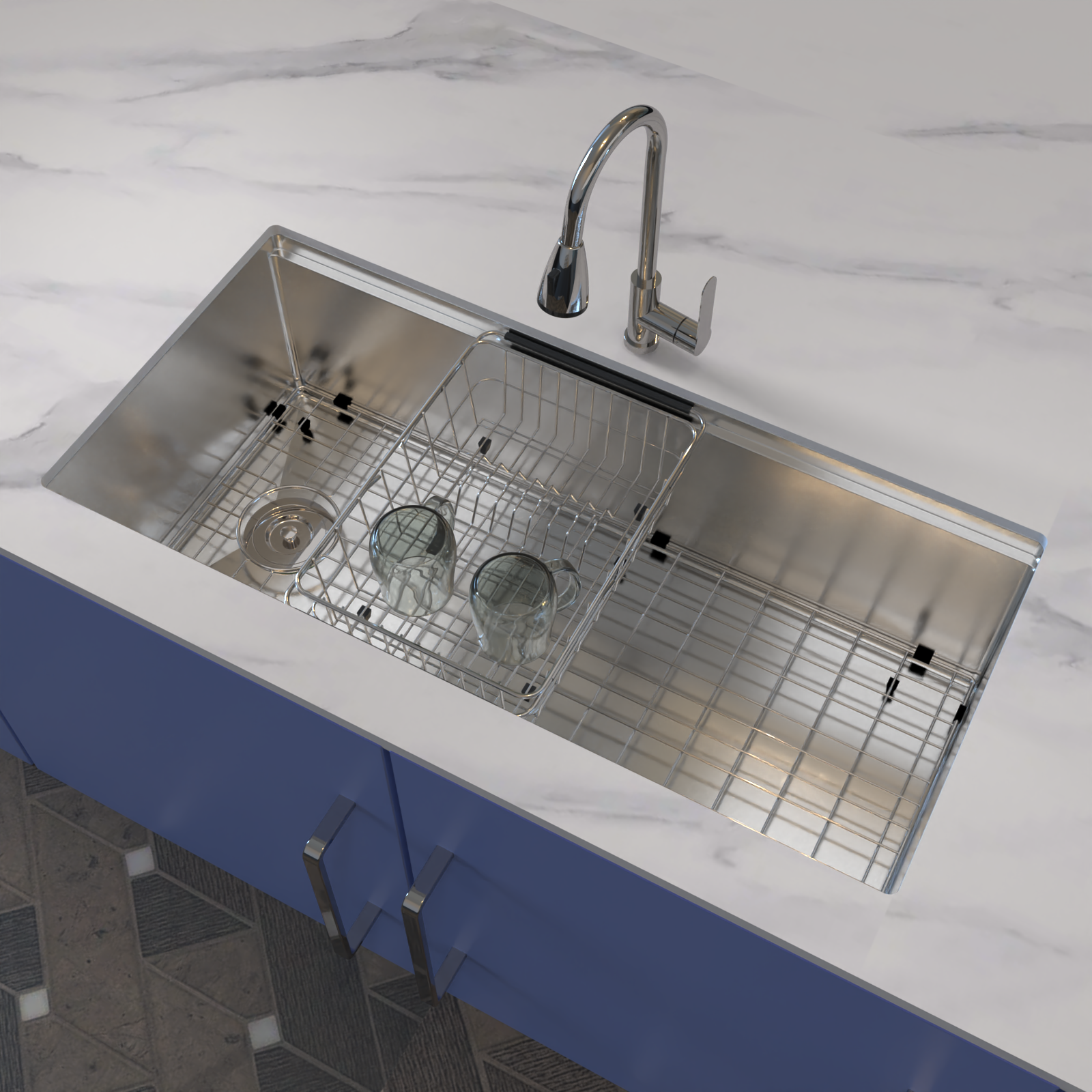

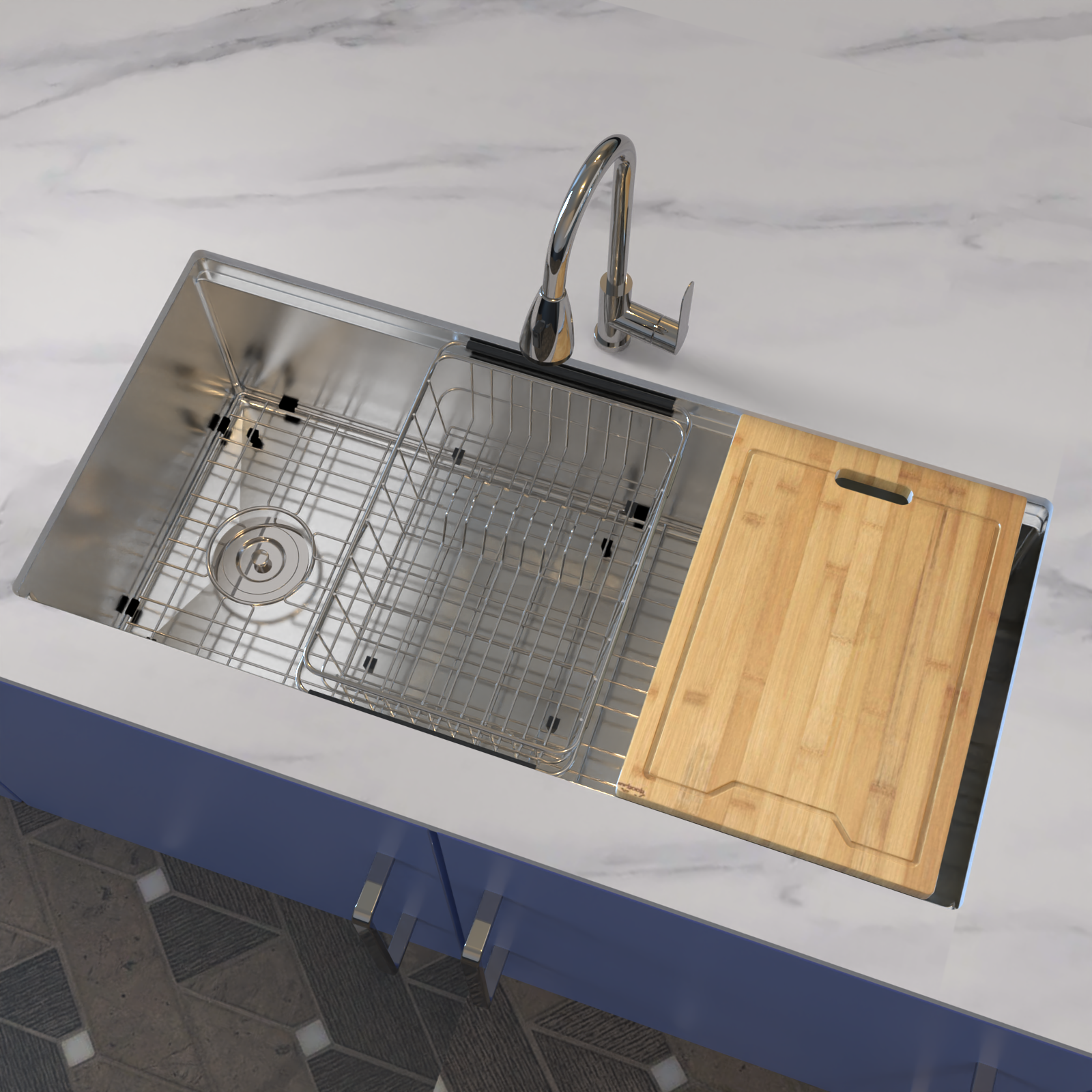

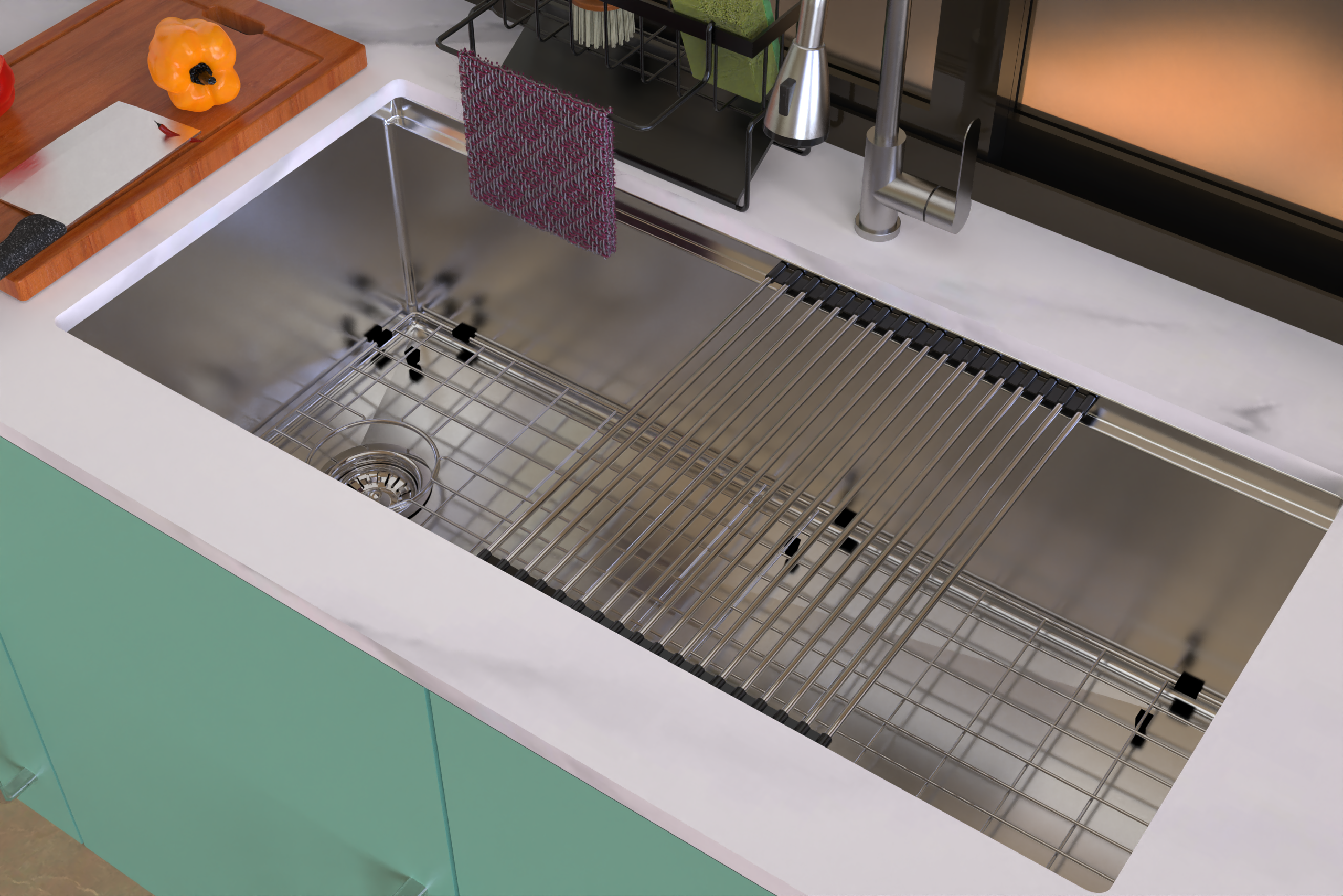

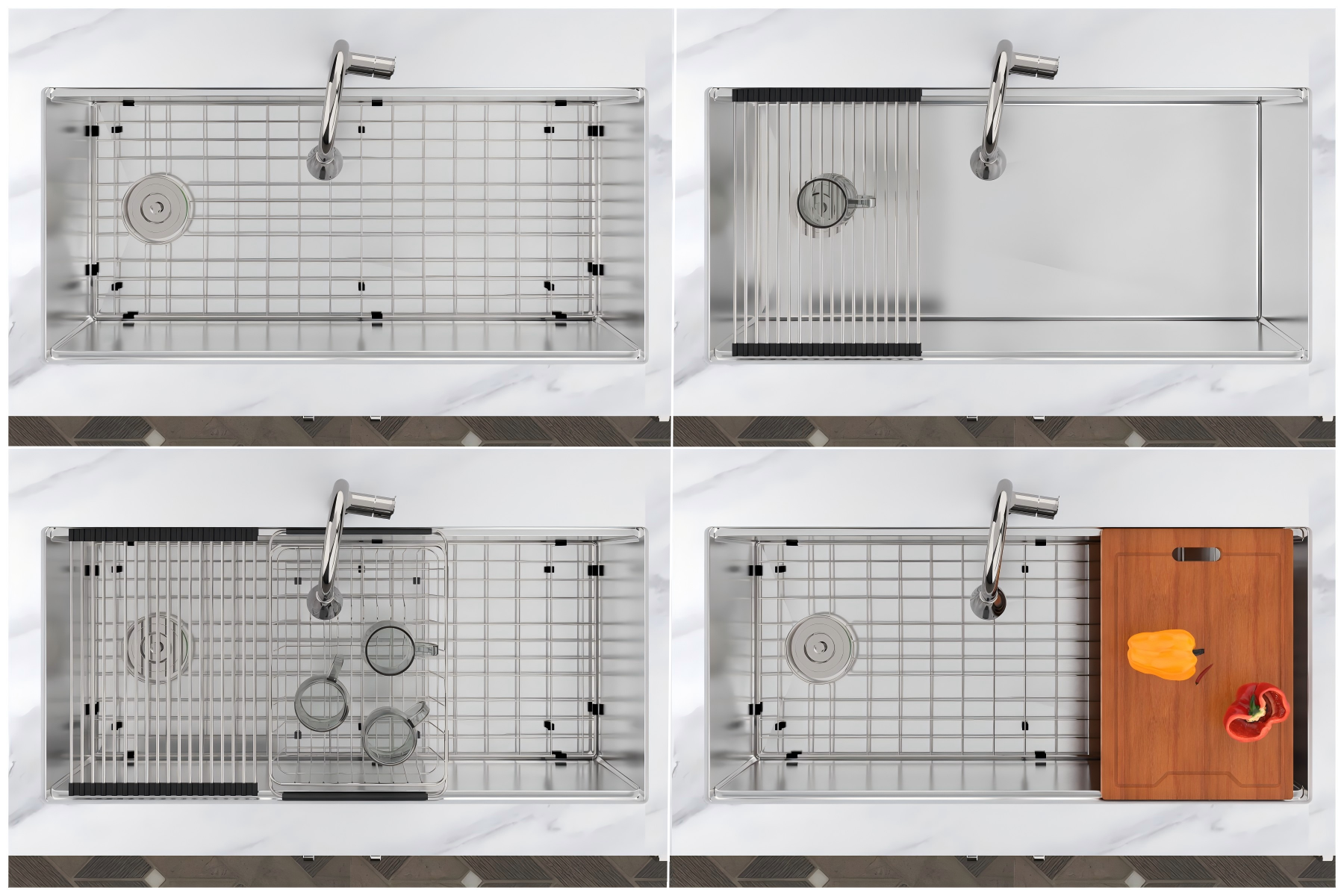

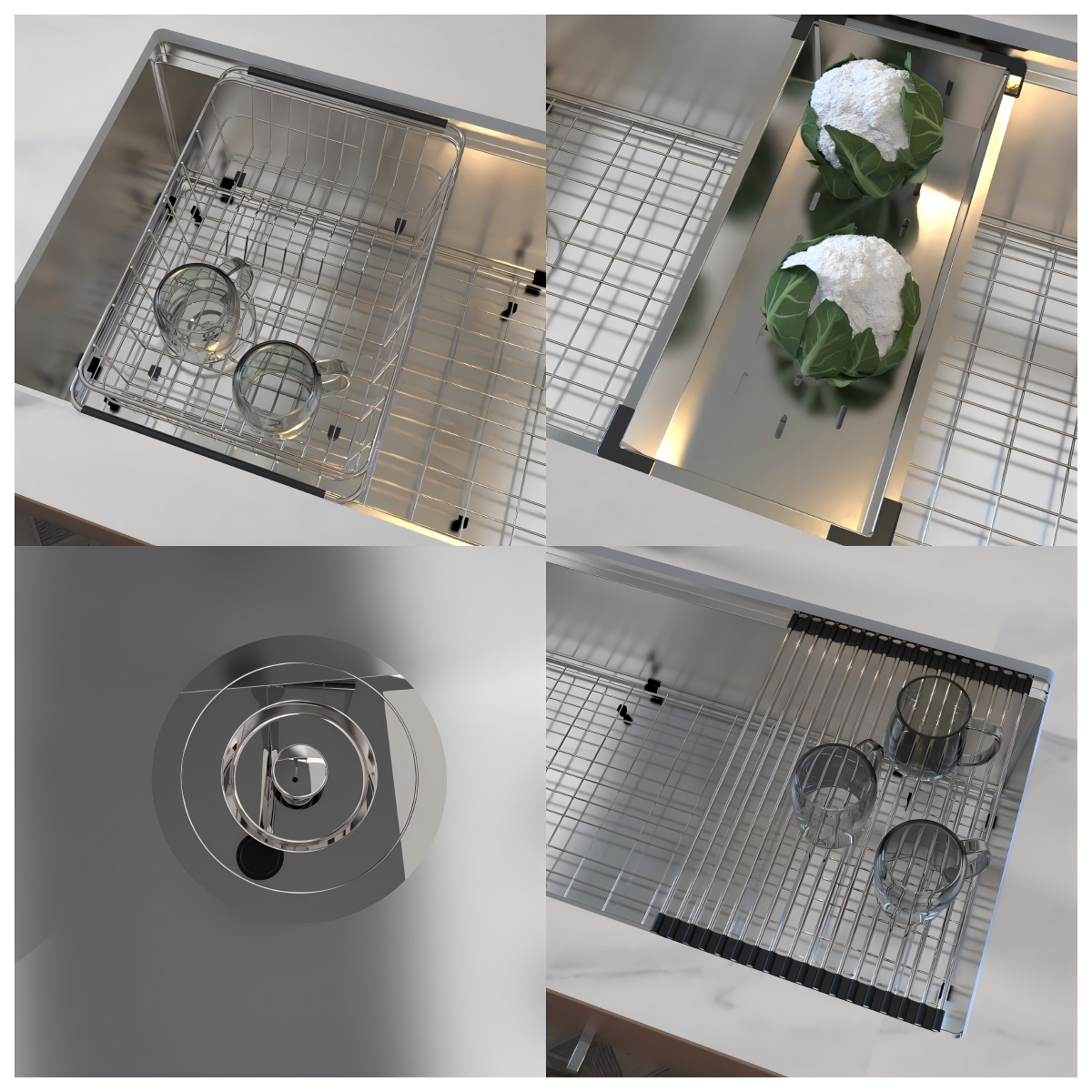

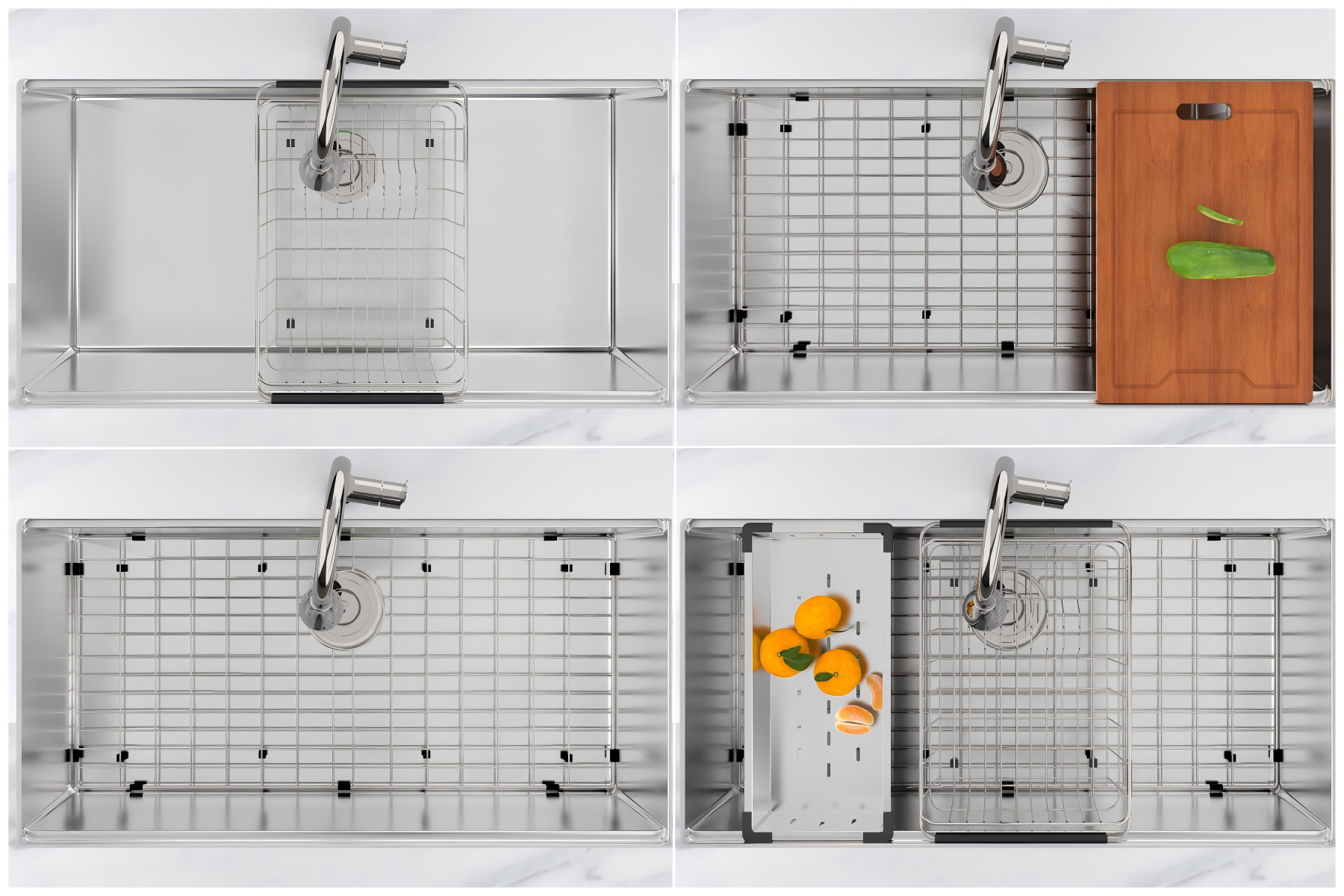

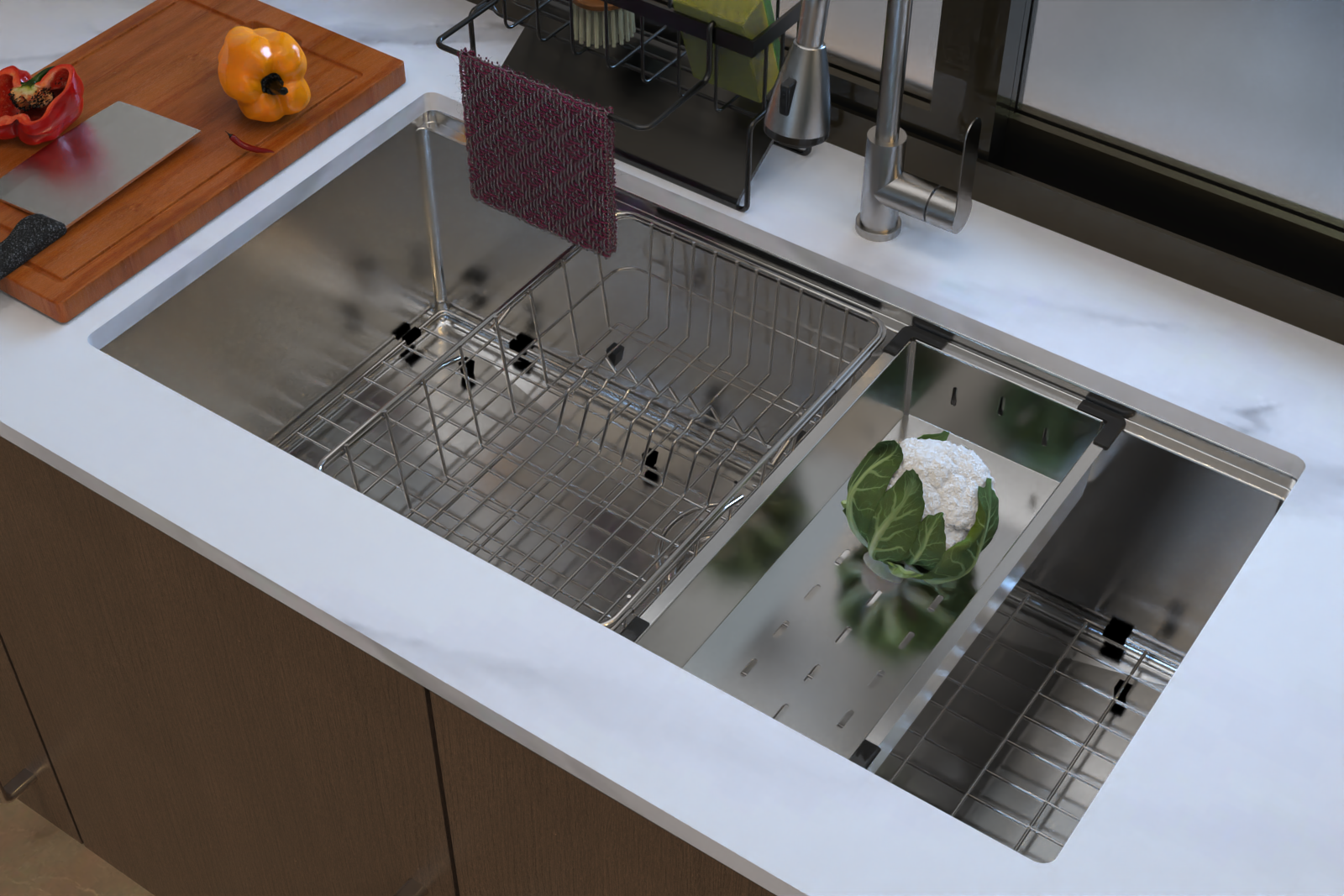

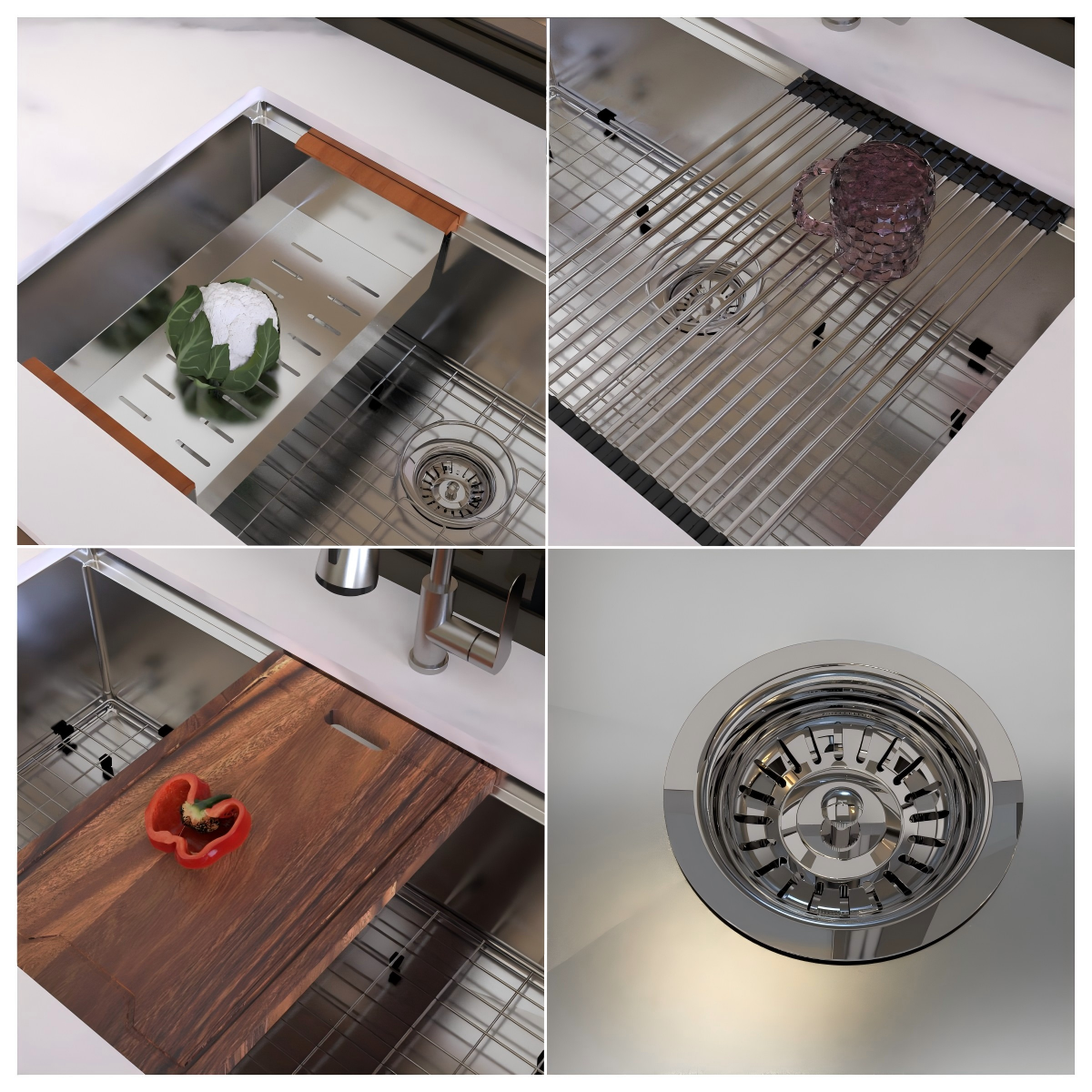

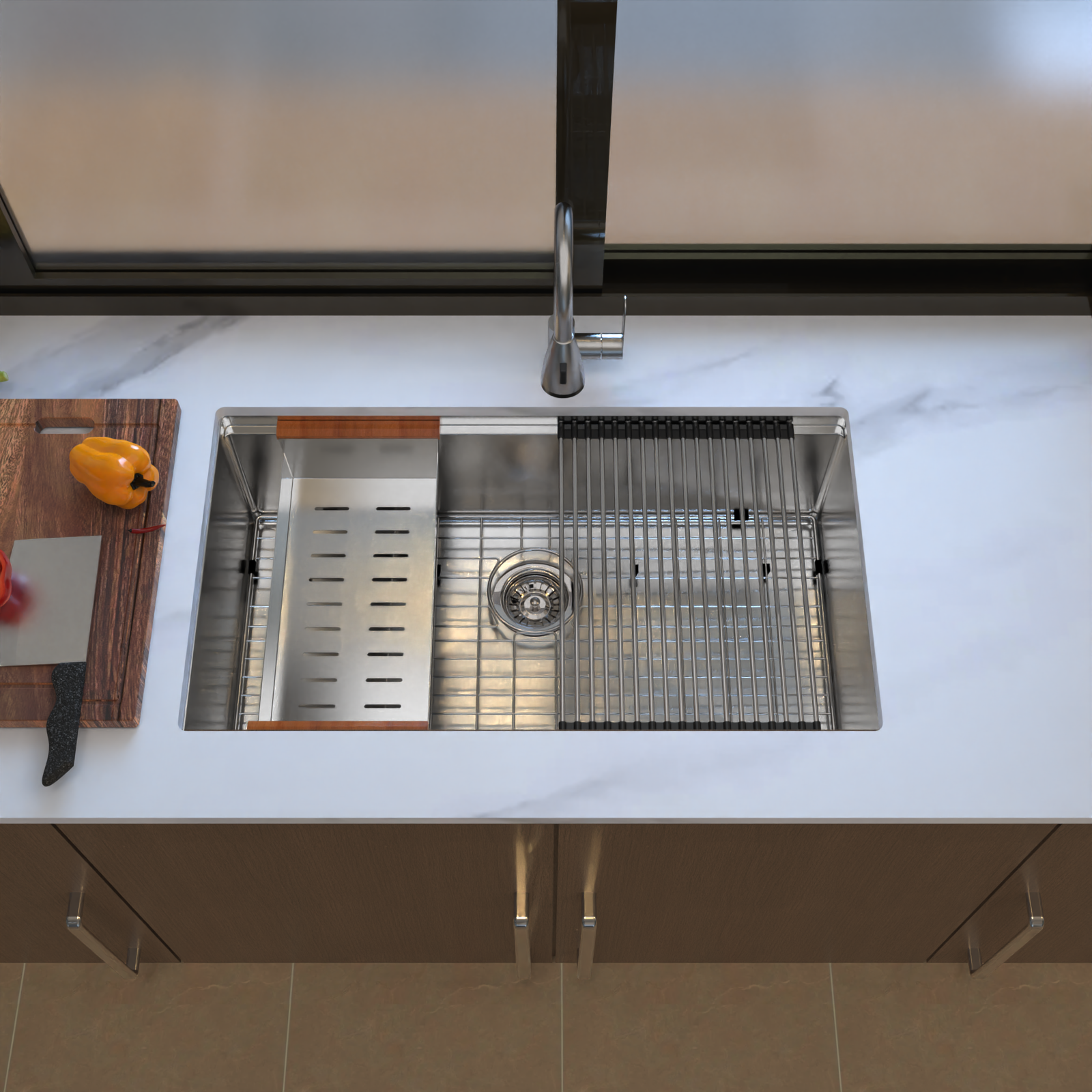

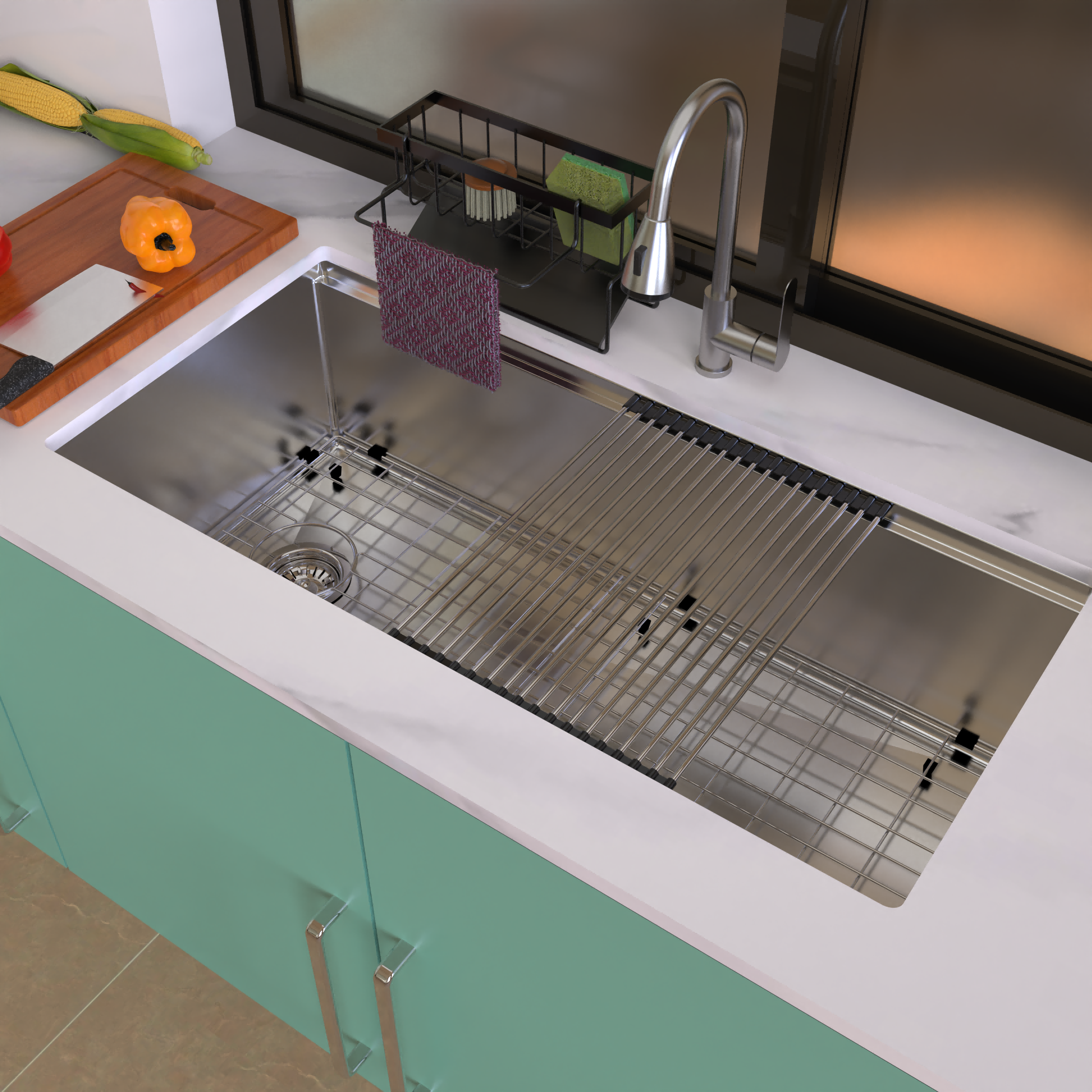

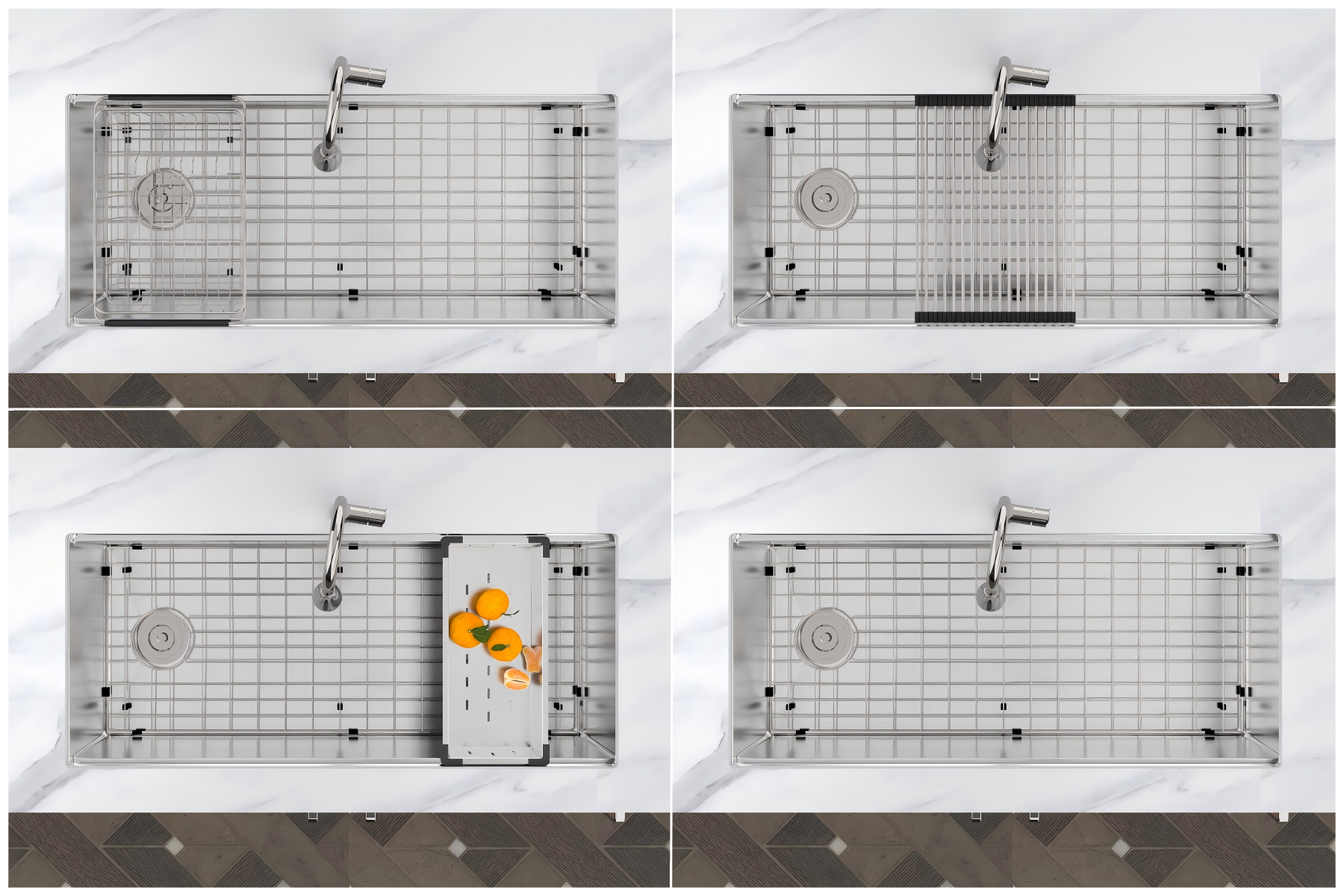

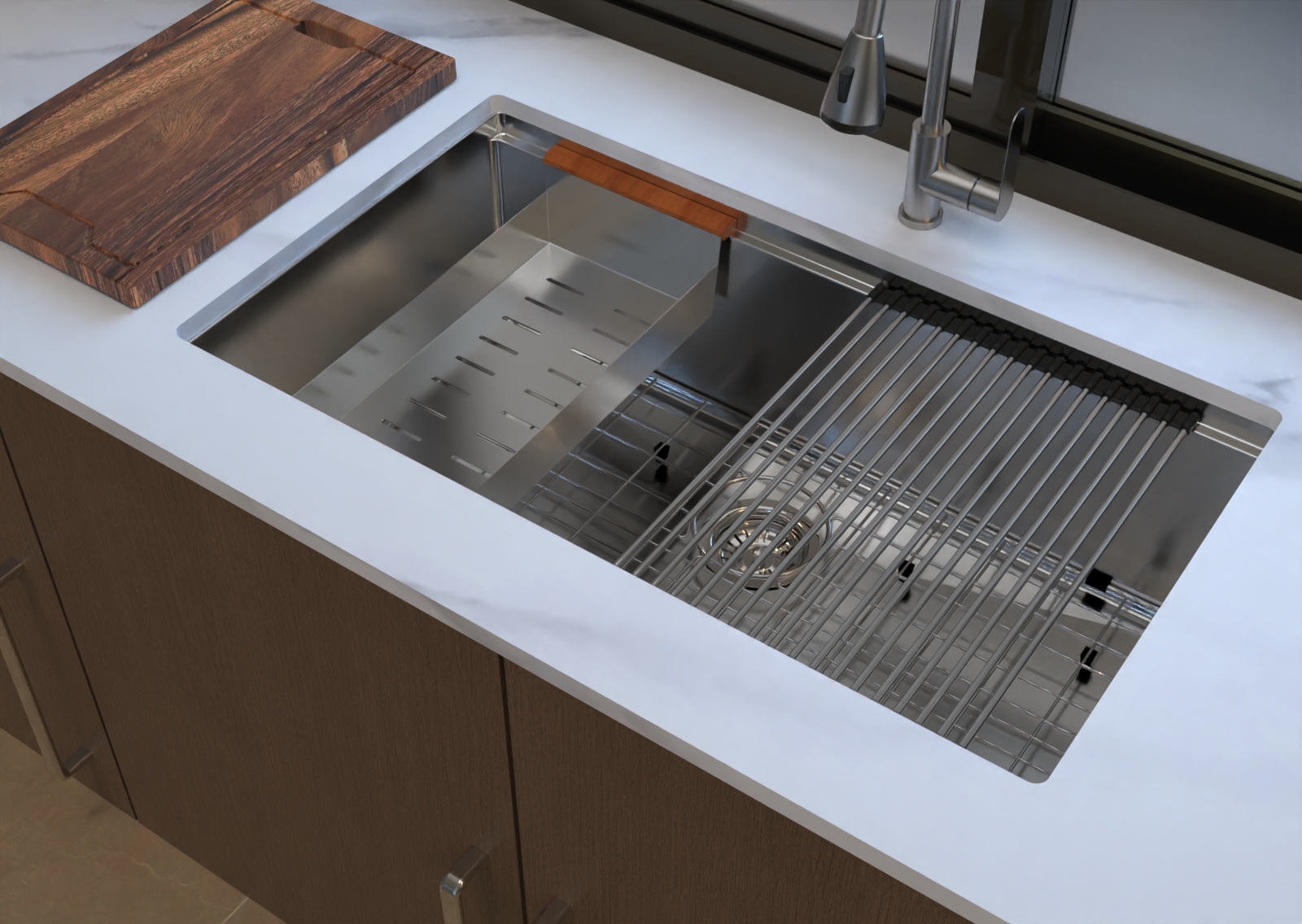

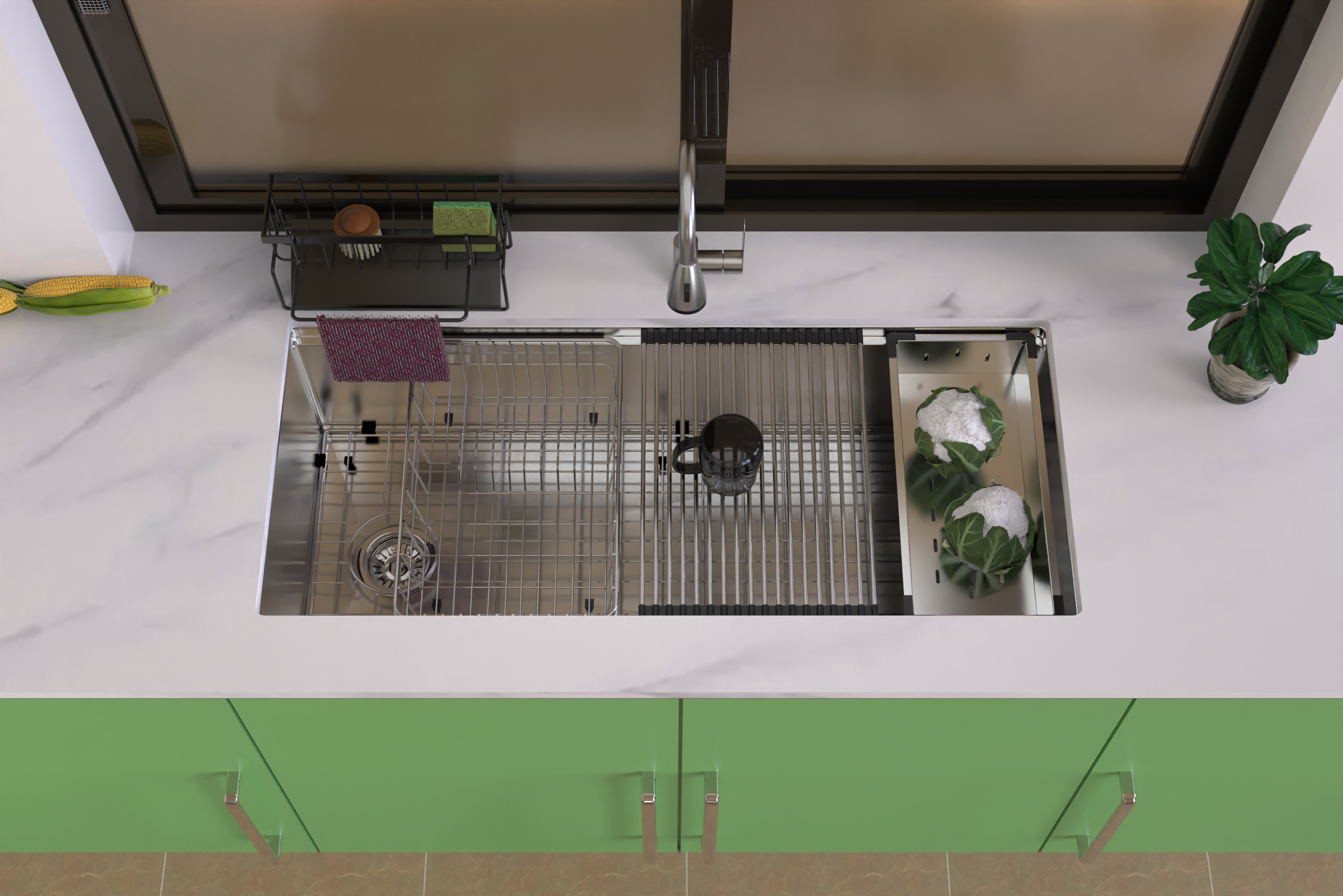

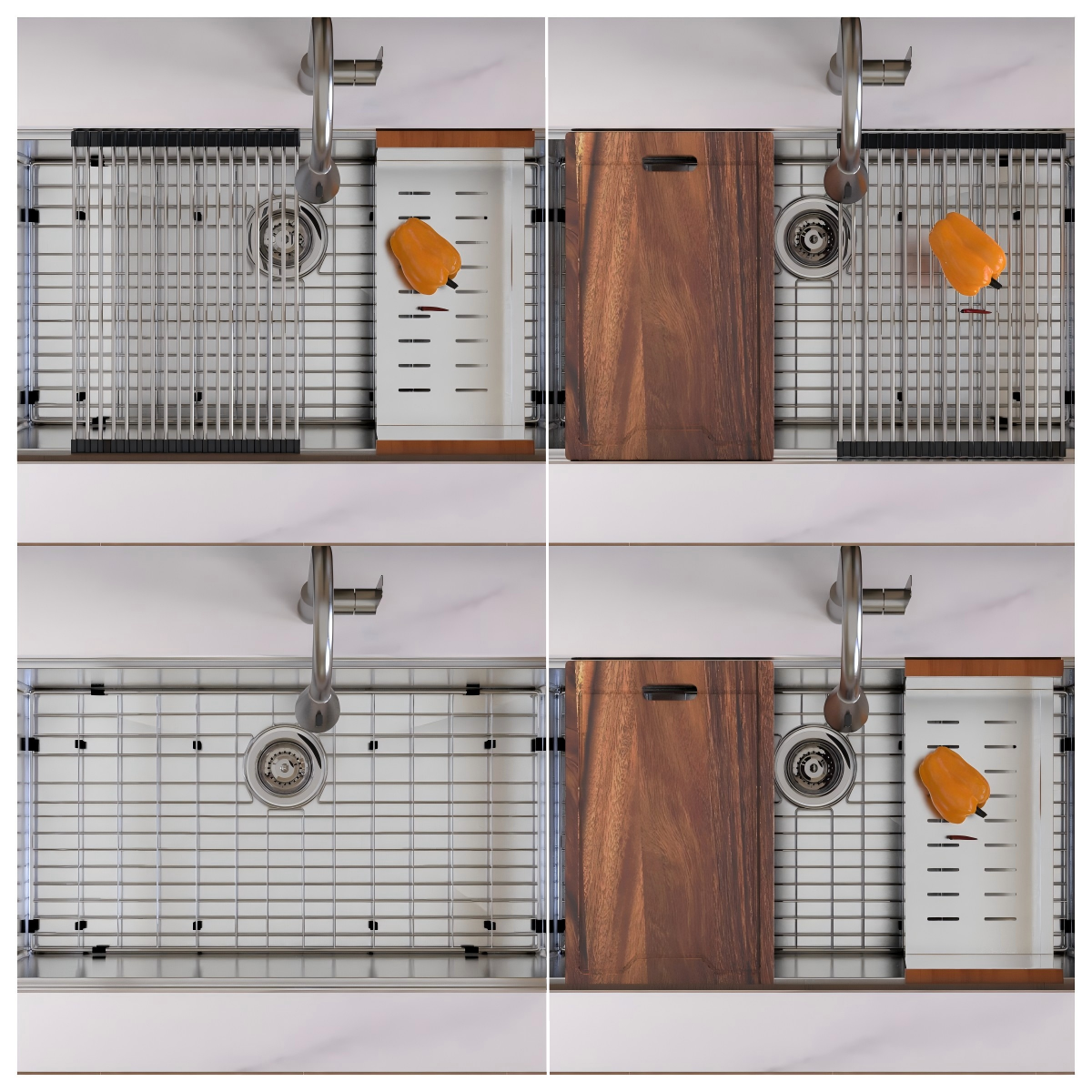

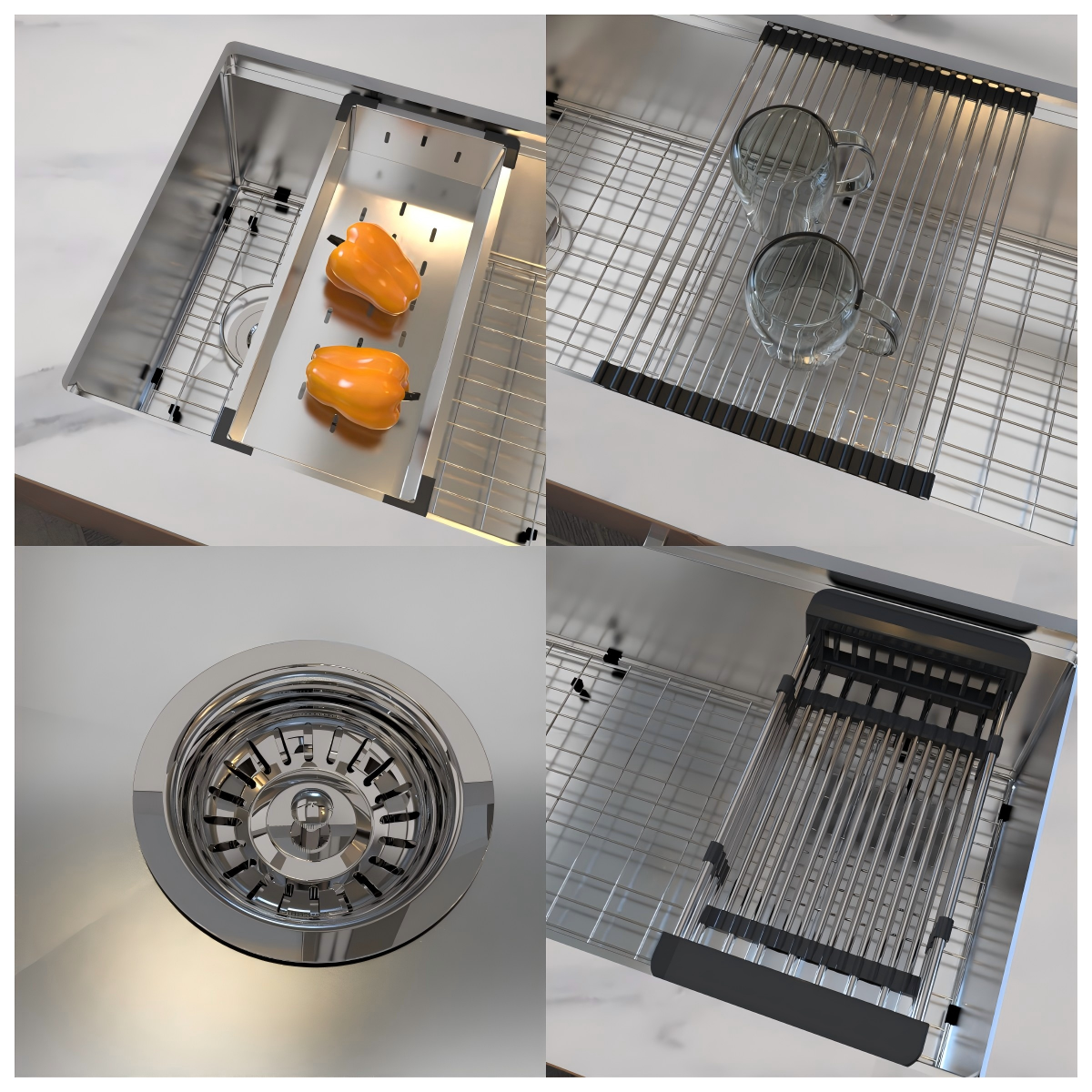

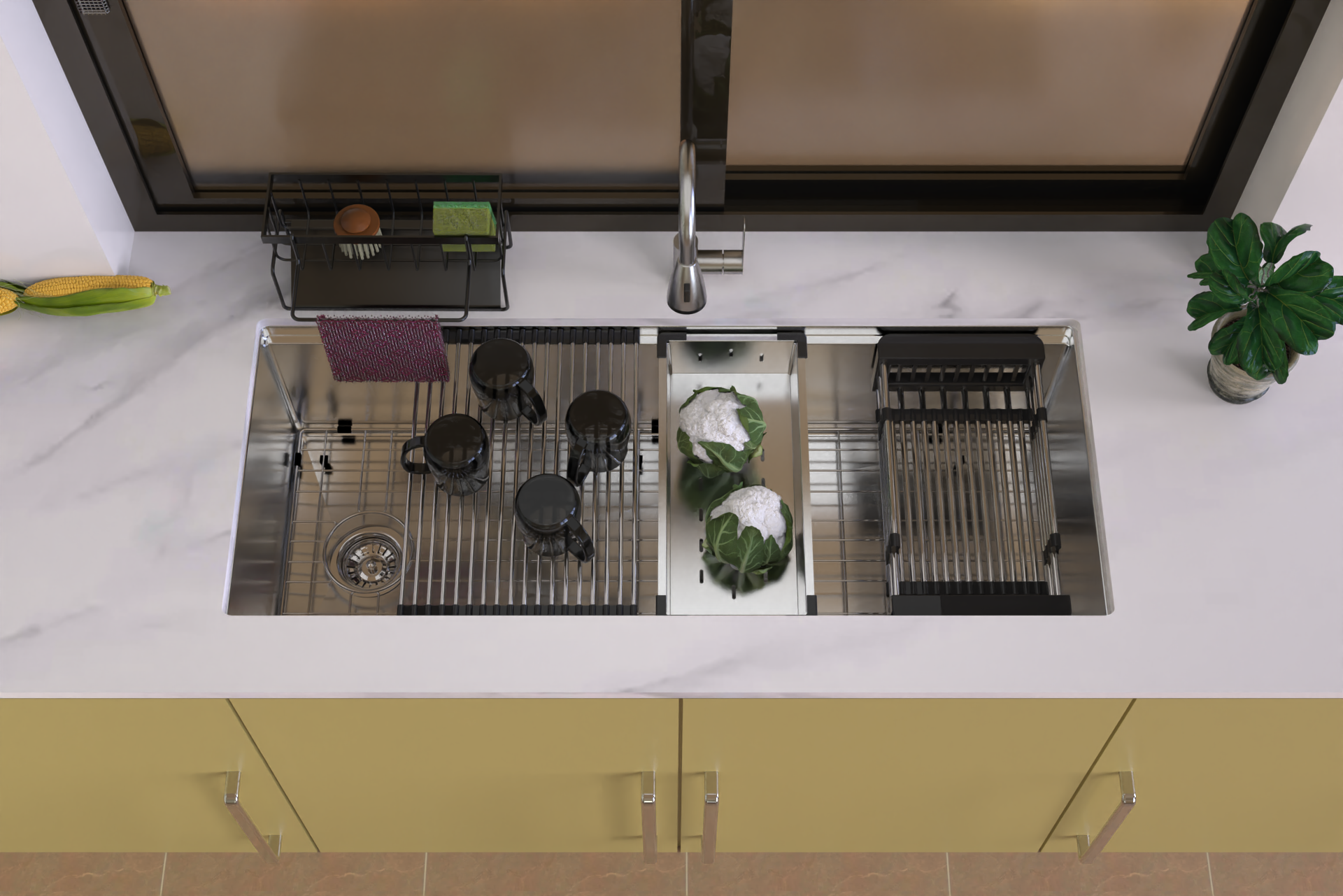

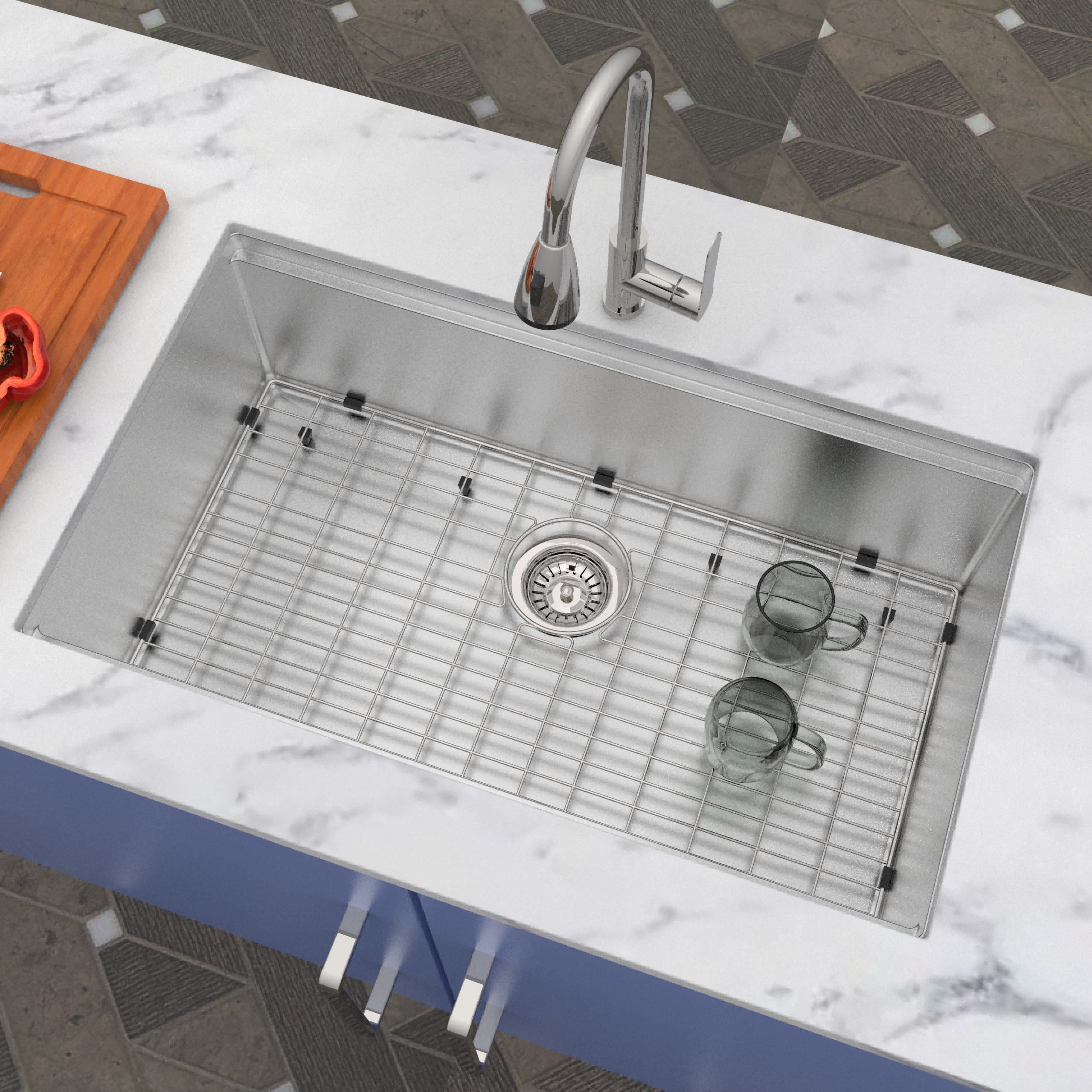

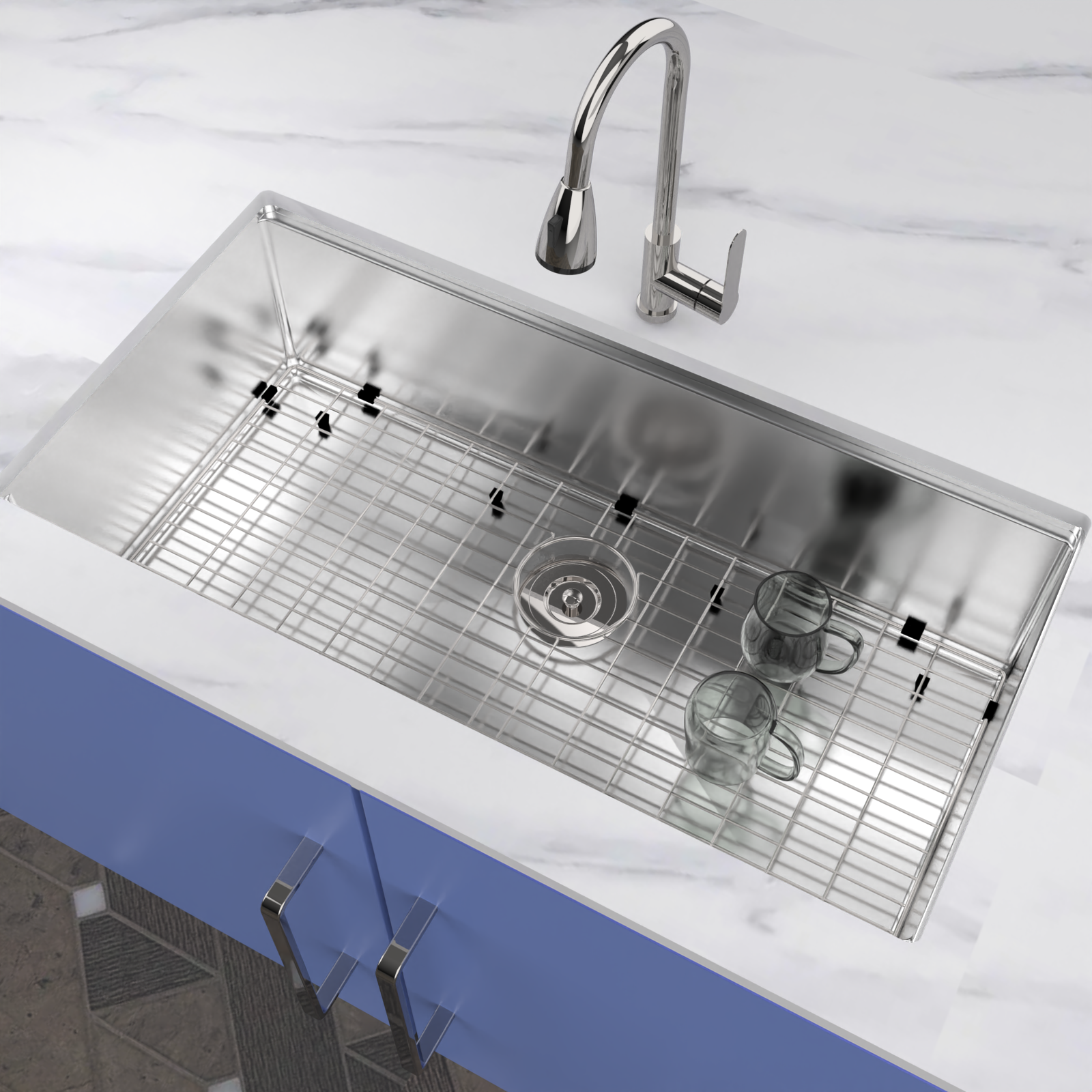

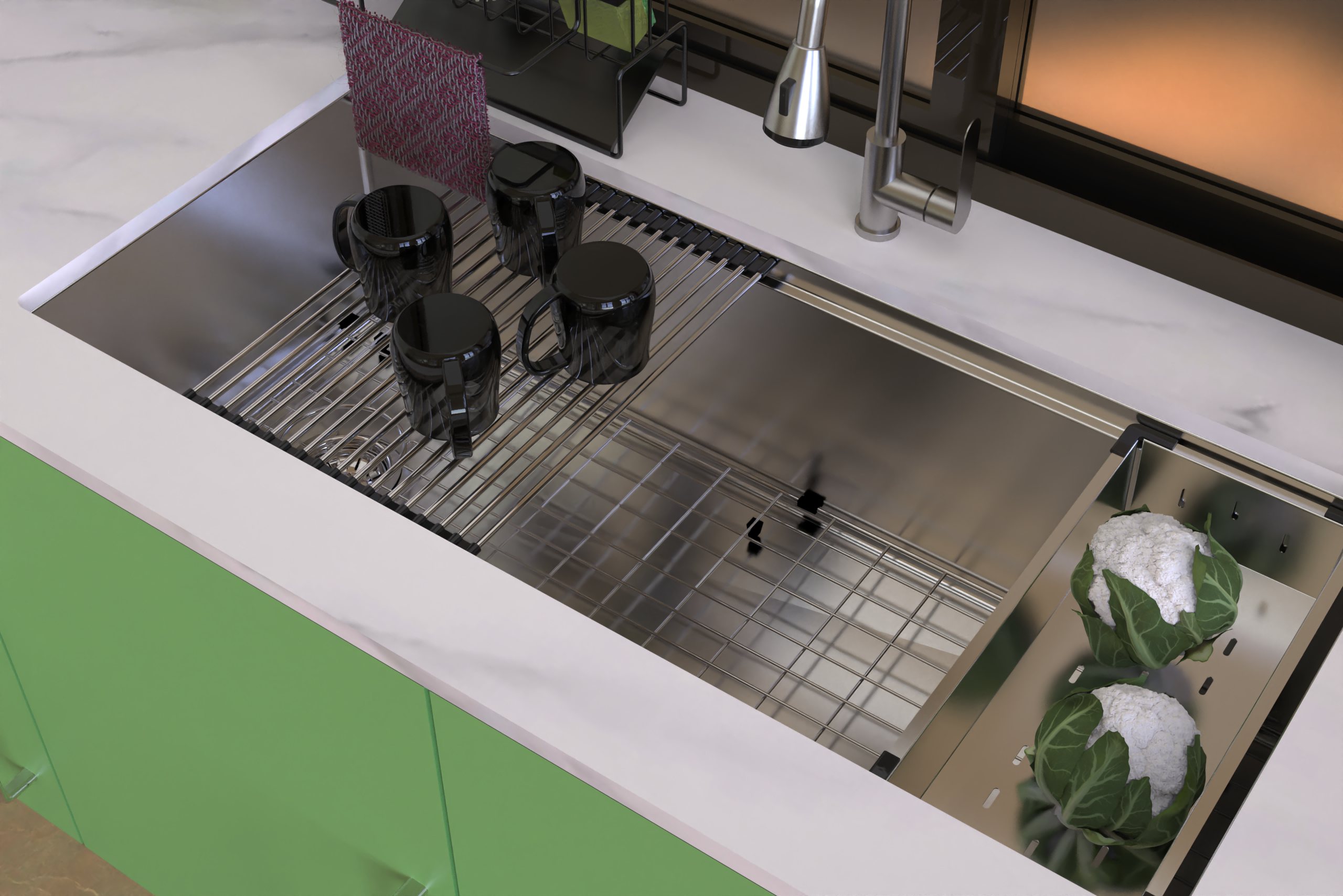

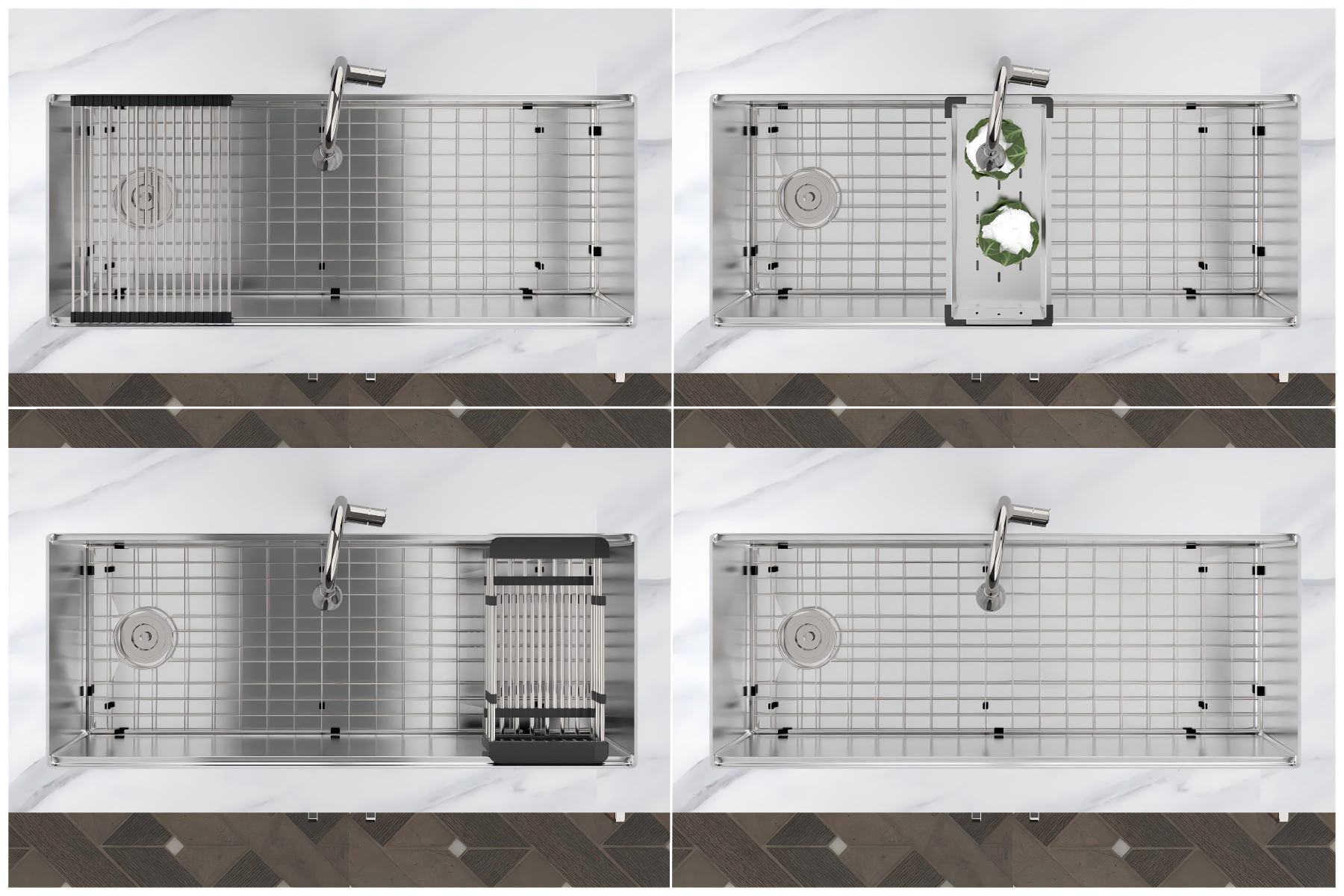

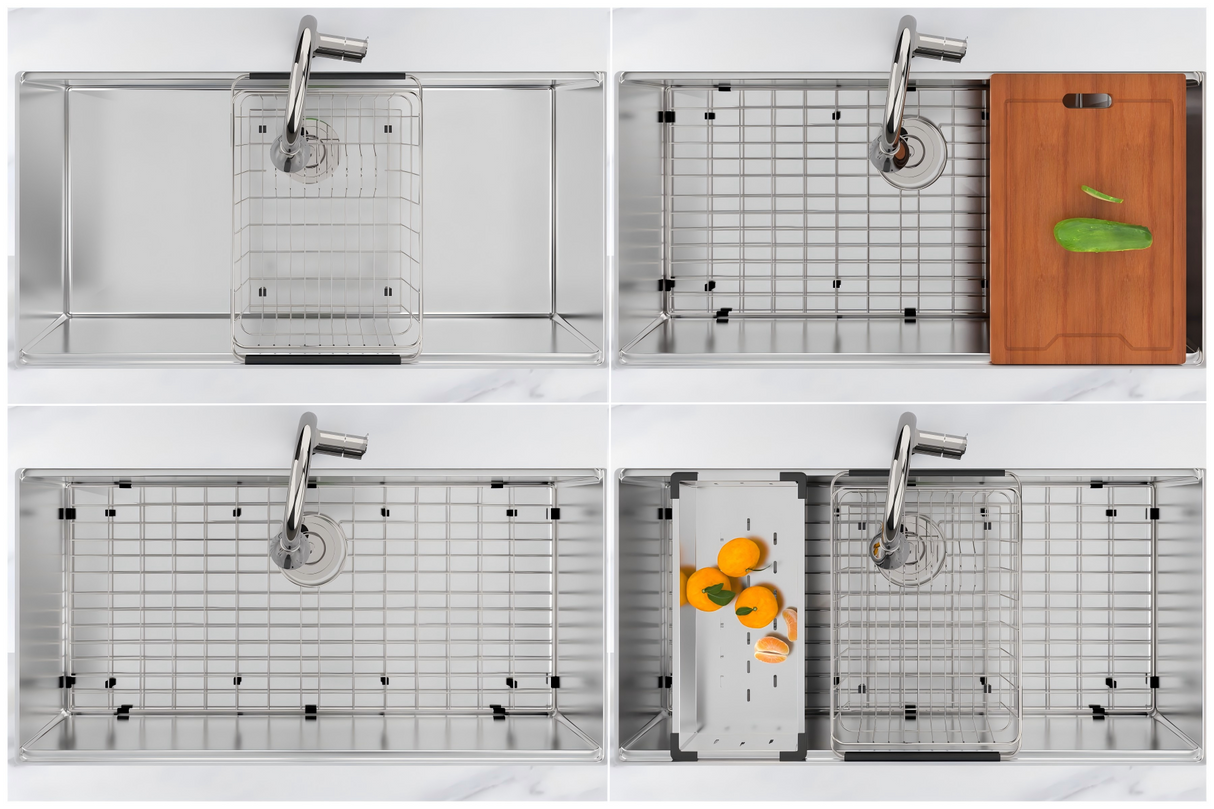

- Set the bottom grid in the bowl, then slide the cutting board, colander and roll-up rack along the 1 in (25.4 mm) ledge as you prep, rinse and dry.

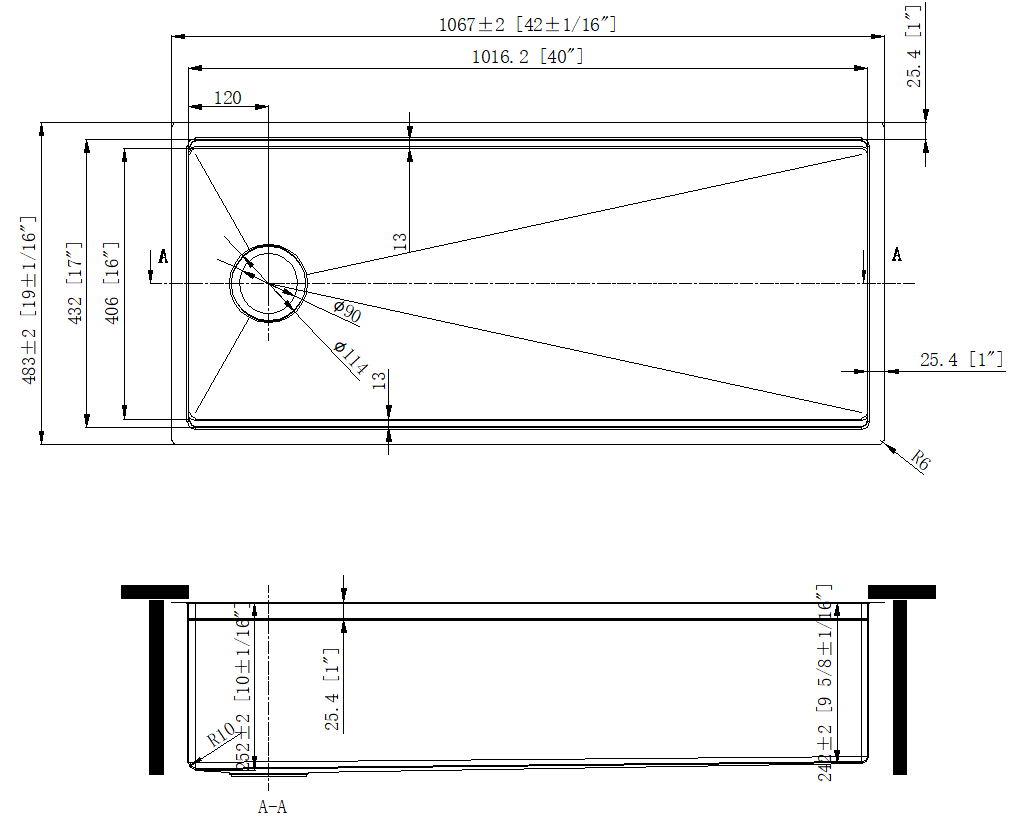

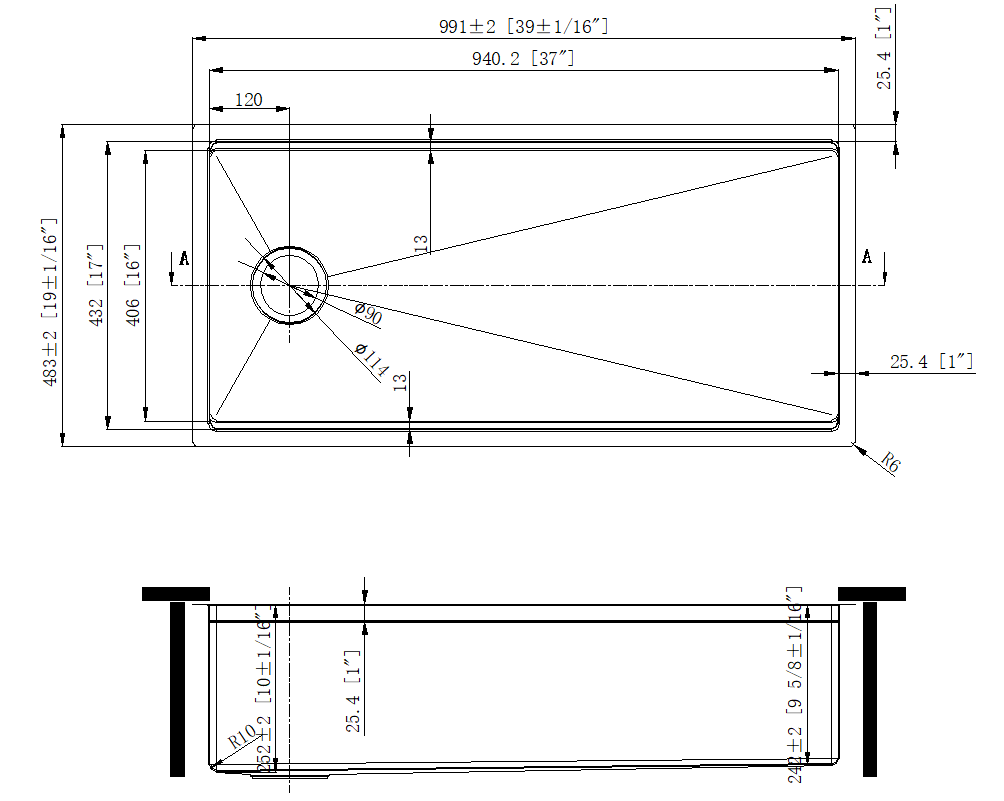

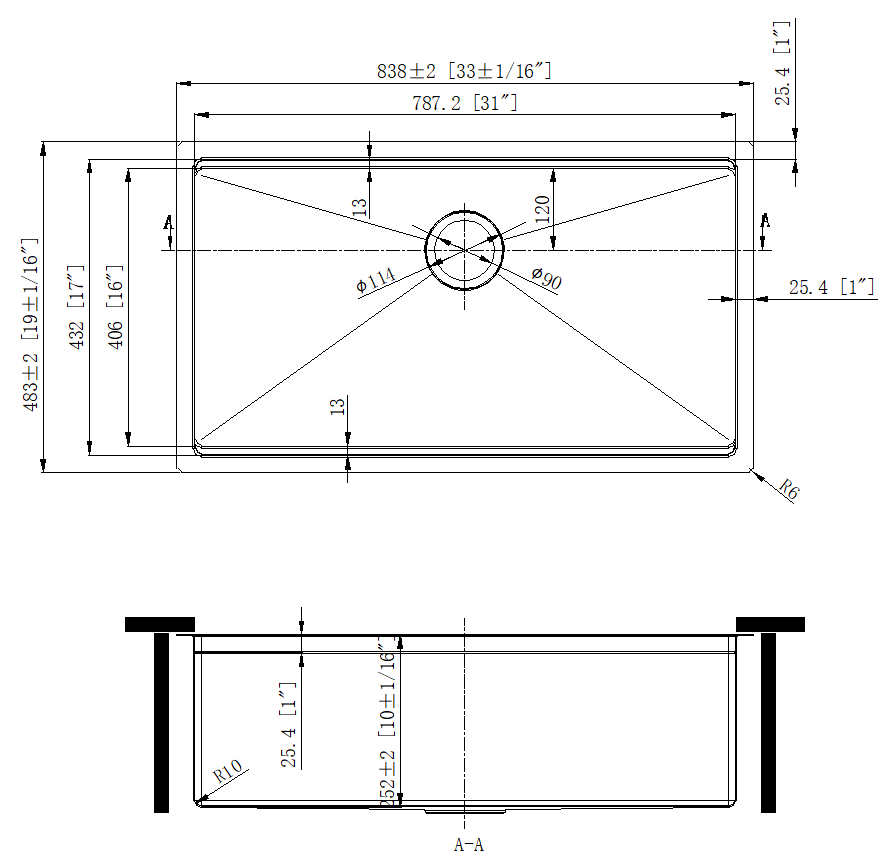

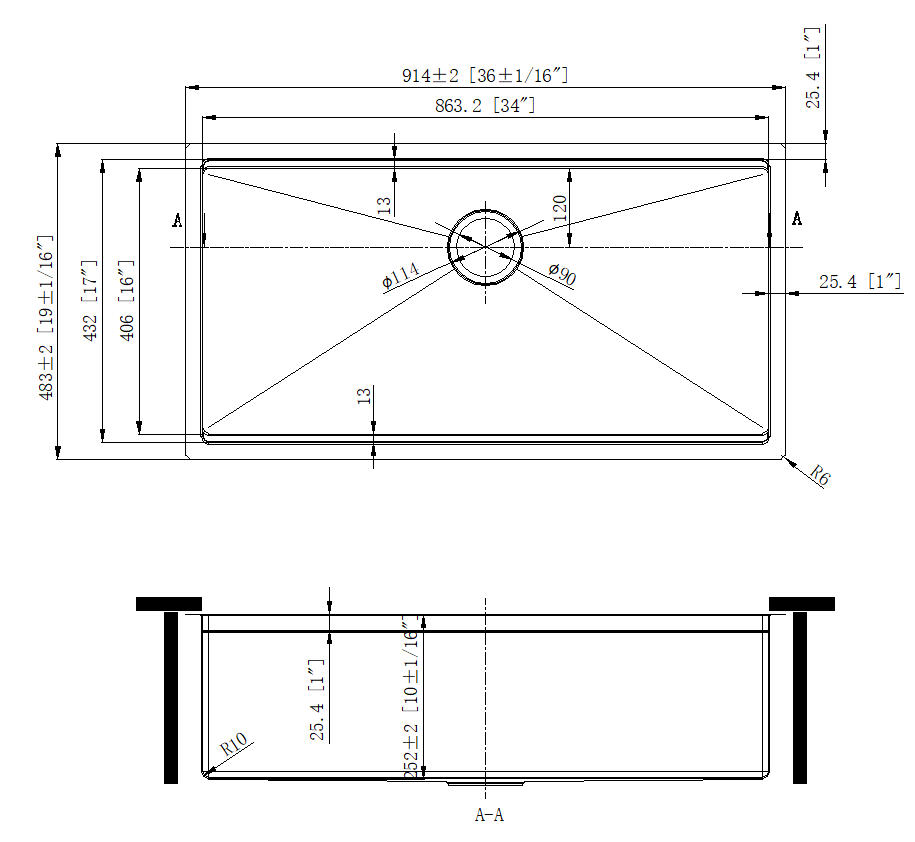

- Keep the factory drawing from the Downloads panel with the job file; it carries the mm and inch dimensions and the sound-pad layout for your size.
| Model | Dimensions |
|---|---|
| WS-27 (27 in) | Outside 27 × 19 × 10 in (686 × 483 × 252 mm); bowl 25 × 16 in (635 × 406 mm) |
| WS-30 (30 in) | Outside 30 × 19 × 10 in (762 × 483 × 252 mm); bowl 28 × 16 in (711 × 406 mm) |
| WS-33 (33 in) | Outside 33 × 19 × 10 in (838 × 483 × 252 mm); bowl 31 × 16 in (787 × 406 mm) |
| WS-36 (36 in) | Outside 36 × 19 × 10 in (914 × 483 × 252 mm); bowl 34 × 16 in (863 × 406 mm) |
| WS-39 (39 in) | Outside 39 × 19 × 10 in (991 × 483 × 252 mm); bowl 37 × 16 in (940 × 406 mm) |
| WS-42 (42 in) | Outside 42 × 19 × 10 in (1067 × 483 × 252 mm); bowl 40 × 16 in (1016 × 406 mm) |
| WS-45 (45 in) | Outside 45 × 19 × 10 in (1143 × 483 × 252 mm); bowl 43 × 16 in (1092 × 406 mm) |
| Property | Detail |
|---|---|
| Brand | Royal USA |
| Model | WS-27, WS-30, WS-33, WS-36, WS-39, WS-42, WS-45 |
| Style | Single bowl undermount workstation kitchen sink with integrated ledge |
| Material | Stainless steel 304 |
| Gauge | 18 gauge |
| Finish | Brushed |
| Front to Back (all sizes) | 19 in (483 mm) |
| Overall Height (all sizes) | 10 in (252 mm) |
| Bowl Width (all sizes) | 16 in (406 mm) |
| Ledge Offset | 1 in (25.4 mm) from the rim |
| Bowl Radii | R10 (10 mm) where the bowl walls meet the floor; R6 (6 mm) rim corners |
| Drain Location | Center |
| Drain Opening | 90 mm (3.54 in); 4-1/2 in (114 mm) strainer flange; basket strainer included |
| Sound Dampening | Four side sound pads and one bottom sound pad, 2 mm thick, fitted at the factory |
| Included Accessories | Cutting board, stainless steel colander, roll-up drying rack, bottom grid, basket strainer |
| Downloads | Factory drawing (all sizes) and DXF cutout template (WS-30 to WS-45) in the Downloads panel |
Which sizes are available?
Seven overall widths: 27, 30, 33, 36, 39, 42 and 45 in. Every size is 19 in (483 mm) front to back and 10 in (252 mm) high; the bowl is 2 in narrower than the overall width.
What comes in the box?

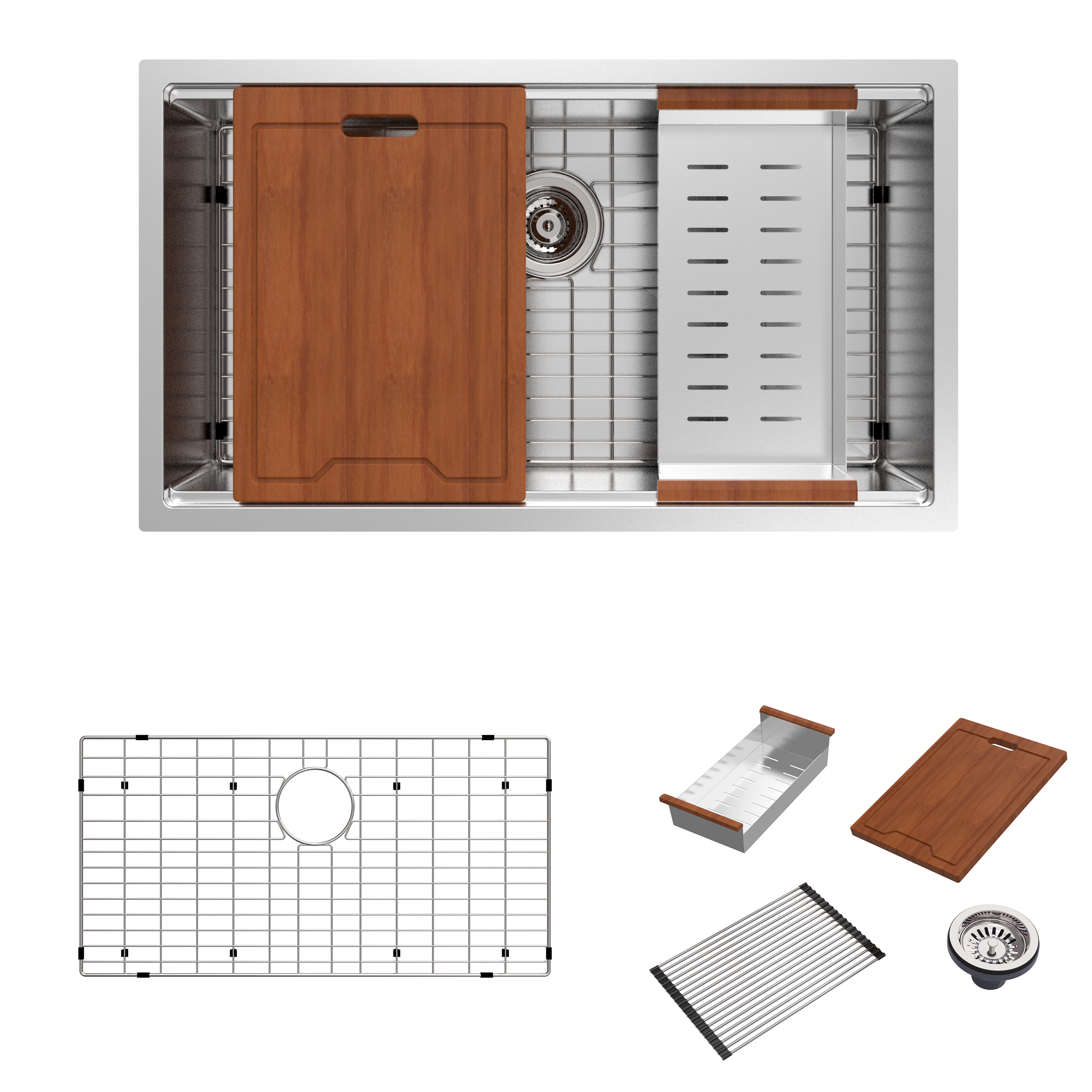

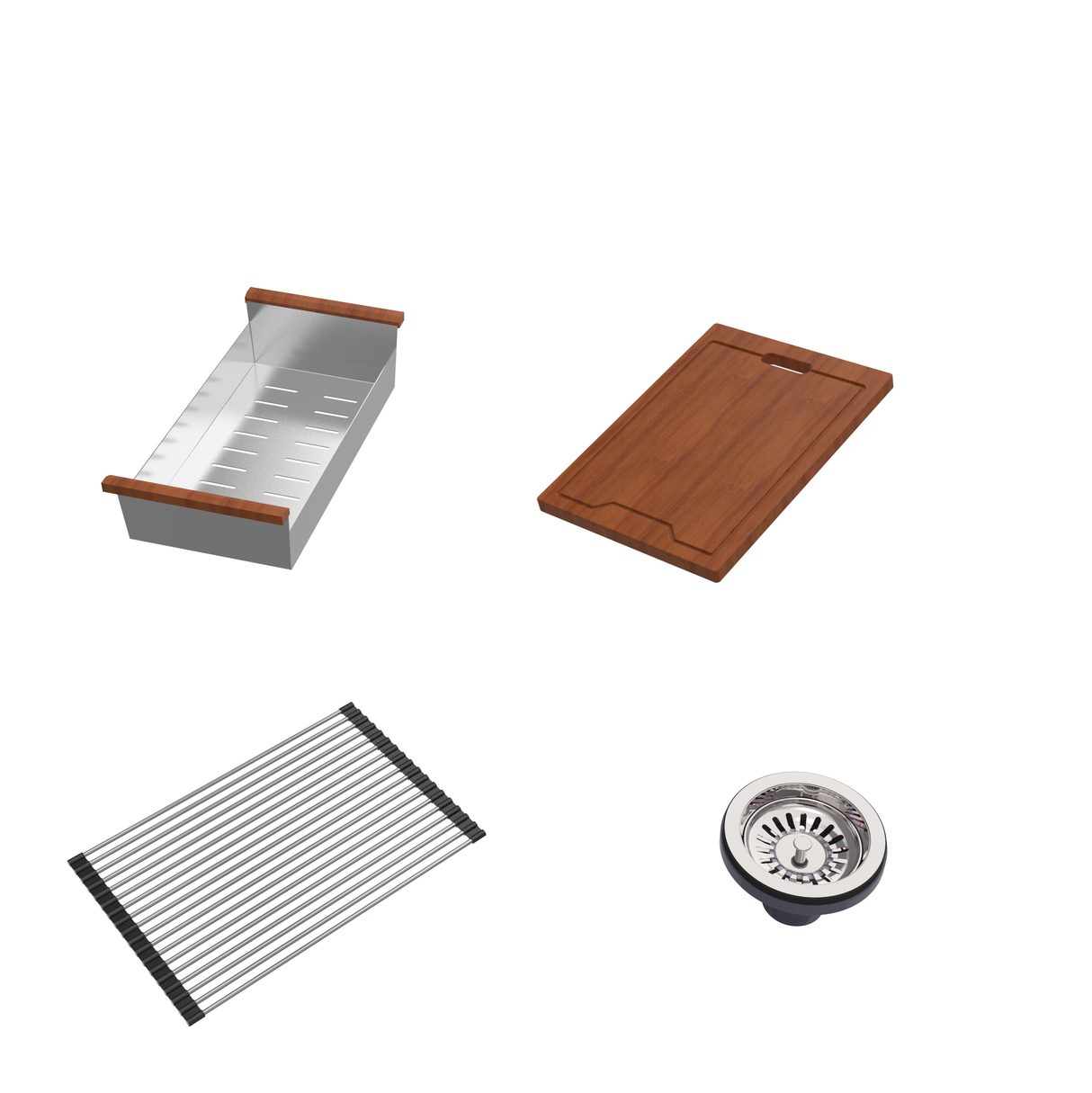

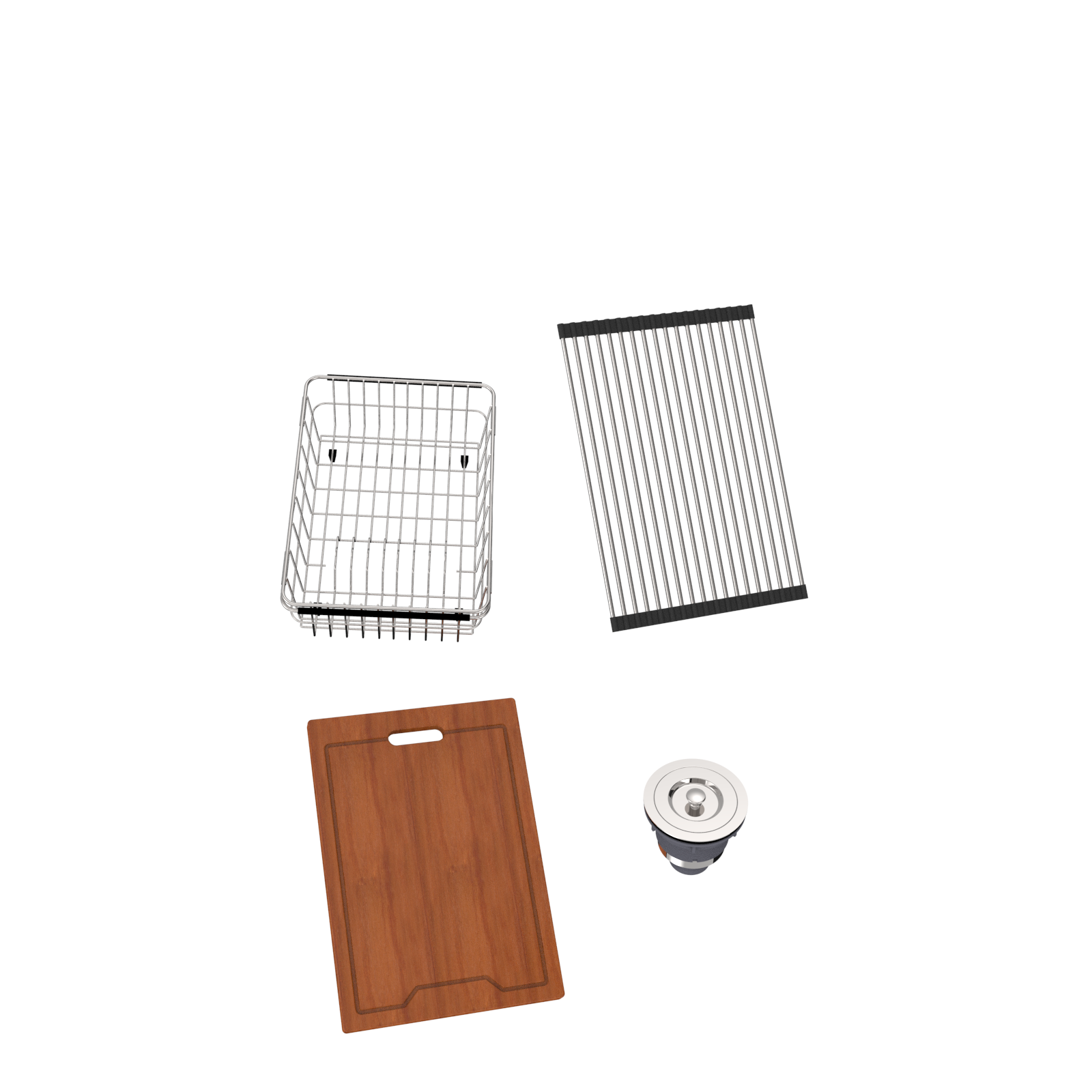

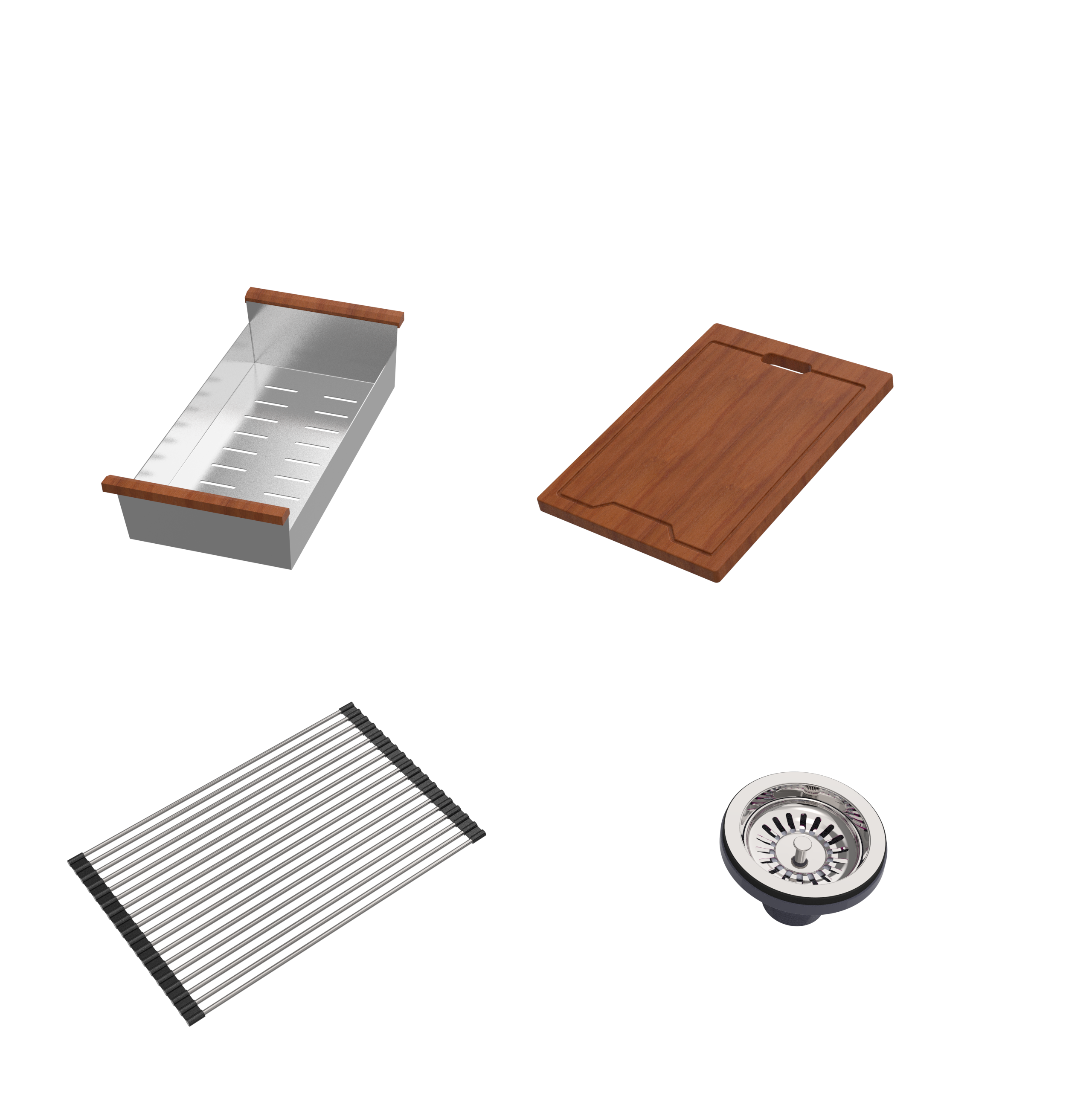

The sink plus five accessories: a cutting board, a stainless steel colander, a roll-up drying rack, a bottom grid and a basket strainer.
Is there a cutout template?
Yes. A DXF cutout template is in the Downloads panel for WS-30 through WS-45, and a factory drawing is available for every size including WS-27.
Where is the drain?
Centered in the bowl, with a 90 mm (3.54 in) opening and a 4-1/2 in (114 mm) strainer flange; the basket strainer is included.
