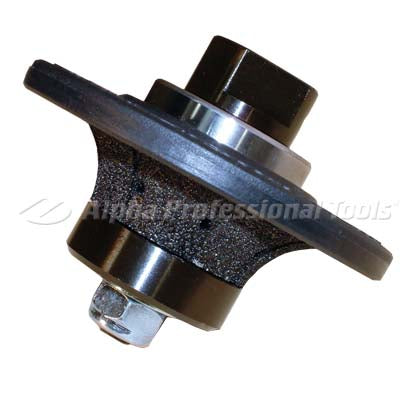

Alpha® Profiler B-Series — Demi-Bullnose / Roundover Edge Tools

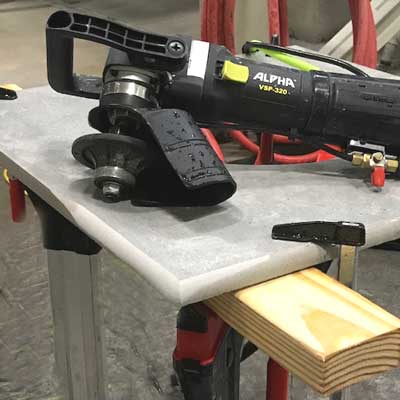

The Alpha® Profiler B-Series creates a perfect demi-bullnose / roundover edge treatment on slabs and tiles. Built with vacuum-brazed technology and diamonds suited to harder materials, every Profiler B is equipped with a 5/8"-11 female thread and internal water-passage holes — fitting the AIR-680, AWP-158, VSP-320 and other center-water-feed polishers. Suitable for granite, engineered stone, porcelain, marble and limestone. Wet application only.
Features
- Vacuum-brazed diamond construction for hard materials

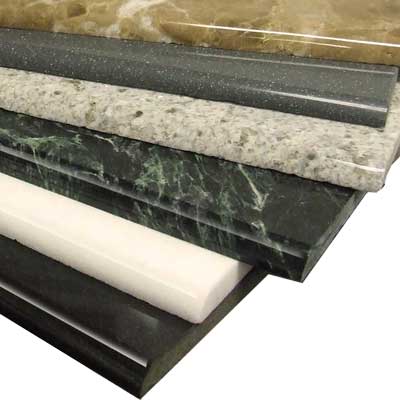

- Produces 3/16", 3/8", 1/2" or 3/4" demi-bullnose / roundover edges
- 5/8"-11 female thread with internal water passage
- Built-in rotary ball-bearing touchier controls depth for straight profiled edges
- Replaceable nylon guide prevents dipping and follows the substrate edge
- Maximum 3,500 RPM — designed for low-speed wet polishers
- Compatible with Park Industries Wizard / Deluxe (5/8"-11, 3,500 RPM max)
| Part No. | Size | Shape | Threads | Max RPM | UPC |
|---|---|---|---|---|---|
| PFB051 | 3/16" (0.5 cm) | Demi-Bullnose | 5/8"-11 | 3,500 | 749173470554 |
| PFB101 | 3/8" (1.0 cm) | Demi-Bullnose | 5/8"-11 | 3,500 | 749173470561 |
| PFB131 | 1/2" (1.3 cm) | Demi-Bullnose | 5/8"-11 | 3,500 | 749173471704 |
| PFB201 | 3/4" (2.0 cm) | Demi-Bullnose | 5/8"-11 | 3,500 | 749173470578 |
- Thread the Profiler onto a 5/8"-11 wet polisher (AIR-680, AWP-158, VSP-320 or similar).
- Attach the matching nylon guide (PFBNG02B) and ensure it sits flush against the slab edge.
- Open water feed before starting; never run dry.
- Set polisher speed to no more than 3,500 RPM.

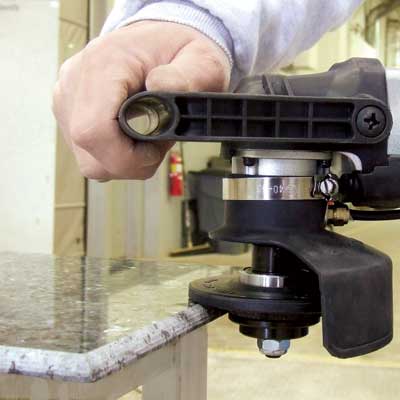

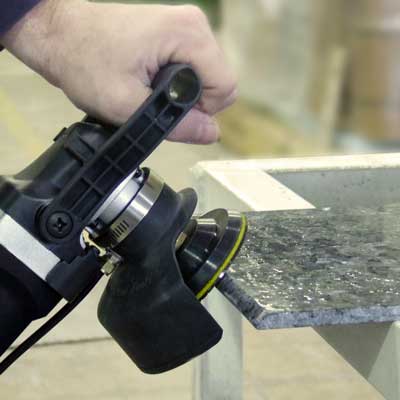

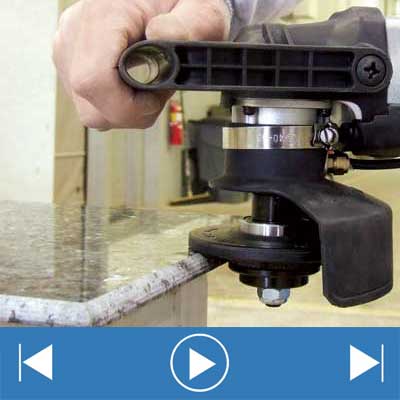

- Hold the polisher level — press firmly so the nylon guide tracks the edge.
- Move smoothly back and forth; let the rotary touchier set the depth.
3/16" (0.5 cm) — Demi-Bullnose — PFB051
| Part No. | PFB051 |
| UPC | 749173470554 |
| Size | 3/16" (0.5 cm) |
| Type | Demi-Bullnose |
| Thread | 5/8"-11 |
| Max RPM | 3,500 |
| Recommended For | Granite, Quartz/Engineered Stone, Concrete, Porcelain |
| Packaged Weight | 1.30 lbs |
| Package Dimensions | 4.25" x 4.25" x 5" |
| Commodity Code | 6804.21.0000 |
| Country of Origin | China |
3/8" (1.0 cm) — Demi-Bullnose — PFB101
| Part No. | PFB101 |
| UPC | 749173470561 |
| Size | 3/8" (1.0 cm) |
| Type | Demi-Bullnose |
| Thread | 5/8"-11 |
| Max RPM | 3,500 |
| Recommended For | Granite, Quartz/Engineered Stone, Concrete, Porcelain |
| Packaged Weight | 1.30 lbs |
| Package Dimensions | 4.25" x 4.25" x 5" |
| Commodity Code | 6804.21.0000 |
| Country of Origin | China |
1/2" (1.3 cm) — Demi-Bullnose — PFB131
| Part No. | PFB131 |
| UPC | 749173471704 |
| Size | 1/2" (1.3 cm) |
| Type | Demi-Bullnose |
| Thread | 5/8"-11 |
| Max RPM | 3,500 |
| Recommended For | Granite, Quartz/Engineered Stone, Concrete, Porcelain |
| Packaged Weight | 1.40 lbs |
| Package Dimensions | 4.25" x 4.25" x 5" |
| Commodity Code | 6804.21.0000 |
| Country of Origin | China |
3/4" (2.0 cm) — Demi-Bullnose — PFB201
| Part No. | PFB201 |
| UPC | 749173470578 |
| Size | 3/4" (2.0 cm) |
| Type | Demi-Bullnose |
| Thread | 5/8"-11 |
| Max RPM | 3,500 |
| Recommended For | Granite, Quartz/Engineered Stone, Concrete, Porcelain |
| Packaged Weight | 1.40 lbs |
| Package Dimensions | 4.25" x 4.25" x 5" |
| Commodity Code | 6804.21.0000 |
| Country of Origin | China |
| Property | Detail |
|---|---|
| Construction | Vacuum-brazed diamond |
| Thread | 5/8"-11 female with internal water feed |
| Max RPM | 3,500 |
| Application | Wet only |
| Materials | Granite, Engineered Stone, Porcelain, Marble, Limestone |
| Polishers | AIR-680, AWP-158, VSP-320, Park Wizard / Deluxe |
What materials work with Alpha Profilers?
Granite, engineered stone, porcelain, marble and limestone.
Wet or dry application?
All Alpha Profilers are to be used for wet applications only.
Can I use a high-speed grinder?
No. Maximum speed is 3,500 RPM. Use low-speed wet polishers such as the AIR-680 or VSP-320.
How should I pick a size?
PFB051 (3/16") eases edges on 3/8" tiles and 2–3 cm slabs; PFB101 (3/8") creates a full roundover on the same; PFB131 (1/2") is suited to large floor tiles; PFB201 (3/4") produces a full demi-bullnose on 2–3 cm slabs.
How does it create straight lines?
The ball-bearing / rotary touchier inside the Profiler controls the depth, ensuring a straight, even profiled edge.
Does the nylon guide stop dipping?
Yes — the nylon guide keeps the Profiler from dipping during the pass when pressed firmly and kept level.
Is a replacement guide available?
Yes, part number PFBNG01 / PFBNG02B is available through authorized distributors.
How long does a Profiler last?
Life depends on granite hardness. Vacuum-brazed technology gives long life and aggressive grinding without losing profile shape.
Can I use it on concrete?
Yes, but wheel life will be extremely short due to concrete’s abrasive nature.
Does it fit Park Industries Wizard / Deluxe?
Yes — any 5/8"-11 spindle, up to 3,500 RPM.

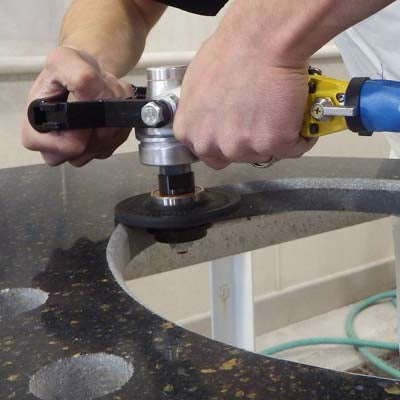

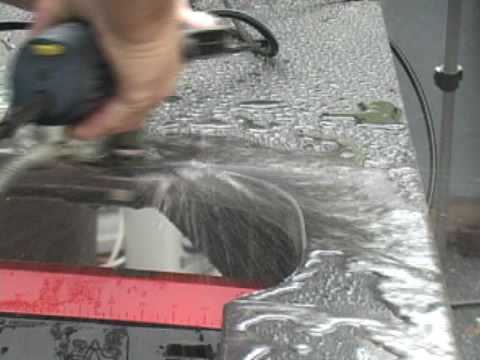

VSP-120 with Profiler B on Sink Rim

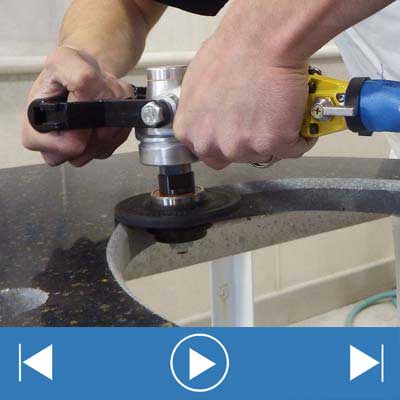

VSP-120 with Profiler B on Sink Rim — alternate view

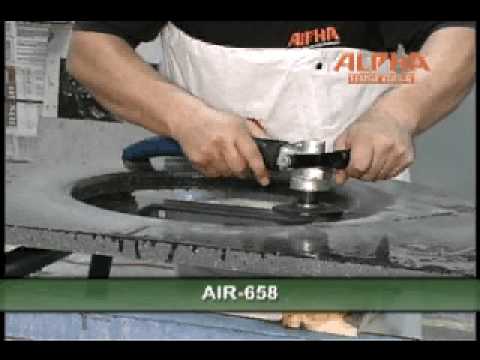

AIR-658 with Profiler B
