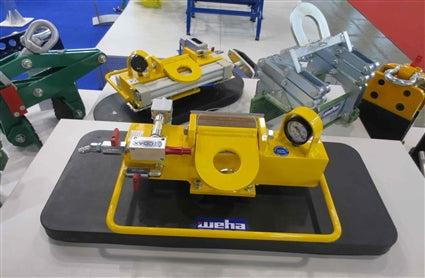

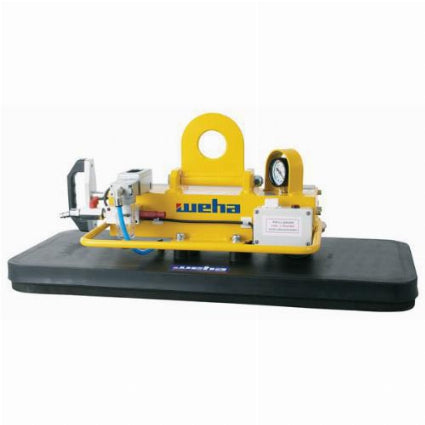

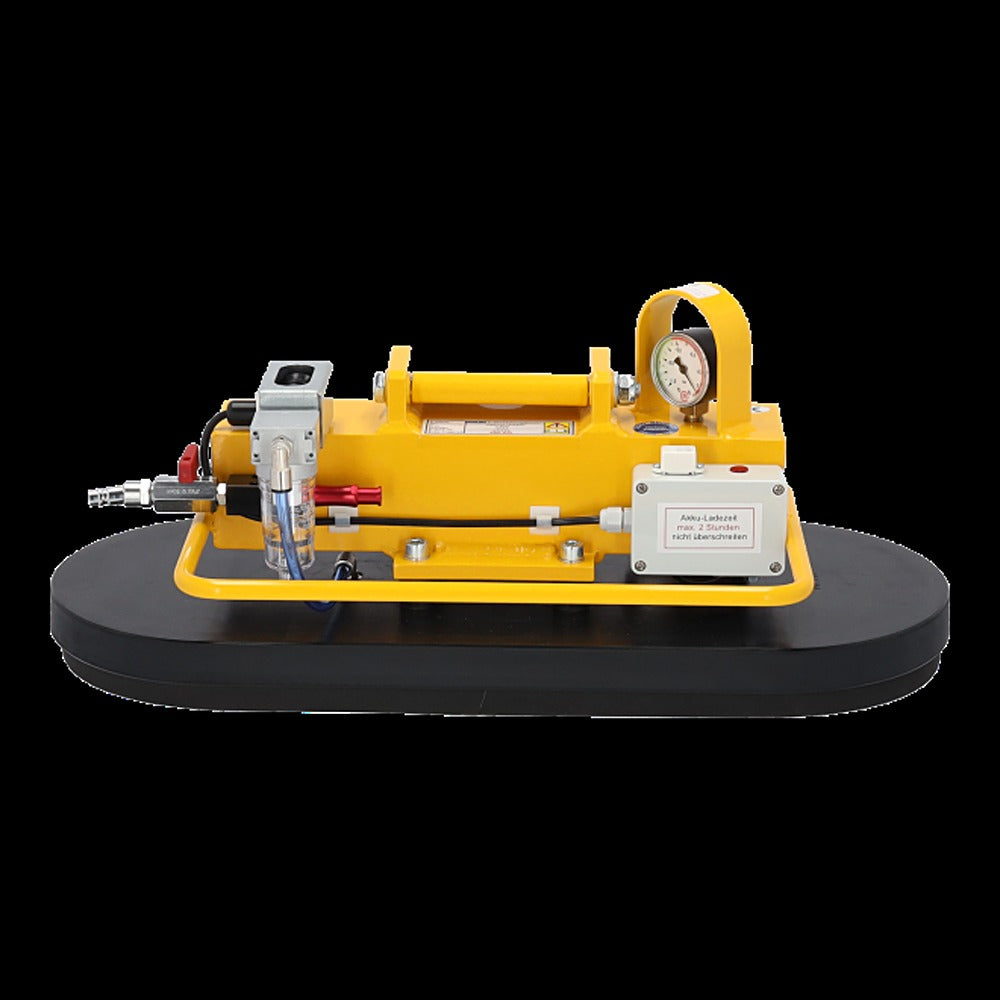

Weha EP800 Unipad Single Pad Pneumatic Venturi Vacuum Lifter

EP800 Unipad Single Pad Pneumatic Venturi Vacuum Lifter

EP800 Unipad Single Pad Pneumatic Single Pad Venturi Vacuum lifter Hand pump and Air Connection for Granite, Marble, Engineered Stone, Blue Stone, Landscape Material

EP 800 Venturi Vacuum Lifter Specifications

• Runs off of a small compressor with a min 4 CFM and 90psi.
• No compressor required when using the hand pump
• Load Capacity Horizontal: 1764 lbs
• Load Capacity Vertical: 882 lbs
• Suction Plate: 28" x 12"
• Weight: 73 lbs

Strength

The Weha EP 800 Single Pad Venturi Vacuum Lifter is a dual connect vacuum lifter. 1) It has the Hand Pump option. 2) It has an air connection to connect to an air compressor that operates at a min 4 cfm @ 60 PSI.

Stone Compatibility

Maybe be used on granite, marble, all natural stones, engineered stone, glass, metal, etc

The EP 800 Single Pad Venturi vacuum lifter has been used with tremendous success on granite, marble, travertine, limestone, blue stone, pavers, sandstone, landscape materials, sheet metal, as well as other sheet goods.

Universally applicable for polished and for rough upper surfaces!

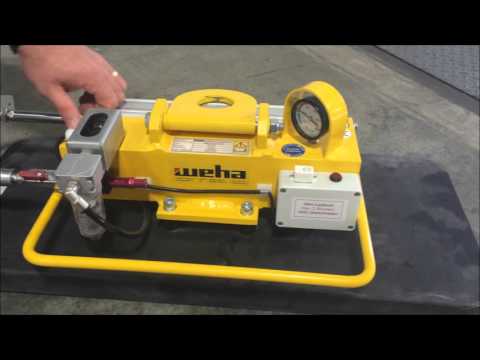

Operating the EP 800

The Weha EP 800 Hand pump and Air connection Venturi Vacuum Lifter is a stand along single pad vacuum lifter that builds air into its reservoir.

Double action hand pump for especially quick applications! It only requires about 10-15 pumps to build pressure into the tank.

Engage the vacuum to start building suction.

Another 10 or so pumps and a full vacuum is acheived.

EP 800 Performance

On polished granite, The EP 800 Venturi Vacuum Lifter will hold a vacuum for approximately 1 hour before reaching the safety line, without jeopardizing the vacuum integrity.

Then with just a couple of pumps the vacuum is fully loaded for another hour of vacuum.

Only the Weha EP series of Vacuum Lifters offer this feature!

This means that it will build and maintain pressure without air or external power.

Features EP 800

The EP 800 comes with an air connection. This can be connected to an air compressor that operates via a venturi system.

Runs off of a small compressor with a min 4 CFM and 60psi.

Comes with a multi-filter and water trap prevents the penetration of dust and moisture.

Protects the pneumatic structural parts against premature wear

Acoustic warning Buzzer(standard with series EP)

Very visible pressure gauge.

Comes with a built in safety-vacuum tank made of aluminum material (non-corrosive!)

EP 800 Benefits

The Weha EP 800 Unipad single pad vacuum lifter bottom is designed with the Weha New Generation UNIPAD Vacuum Suction Pad:Simple, extremely fast changing of the vacuum-rubber seals

Lower servicing costs and maintenance charges since the rubber seals are easily replaceable.

Increased safety over other lifters because the UNIPADS create a stronger, tighter vacuum seal.

All parts are easily replaced for years of use.

Comes with a 1 year warranty
