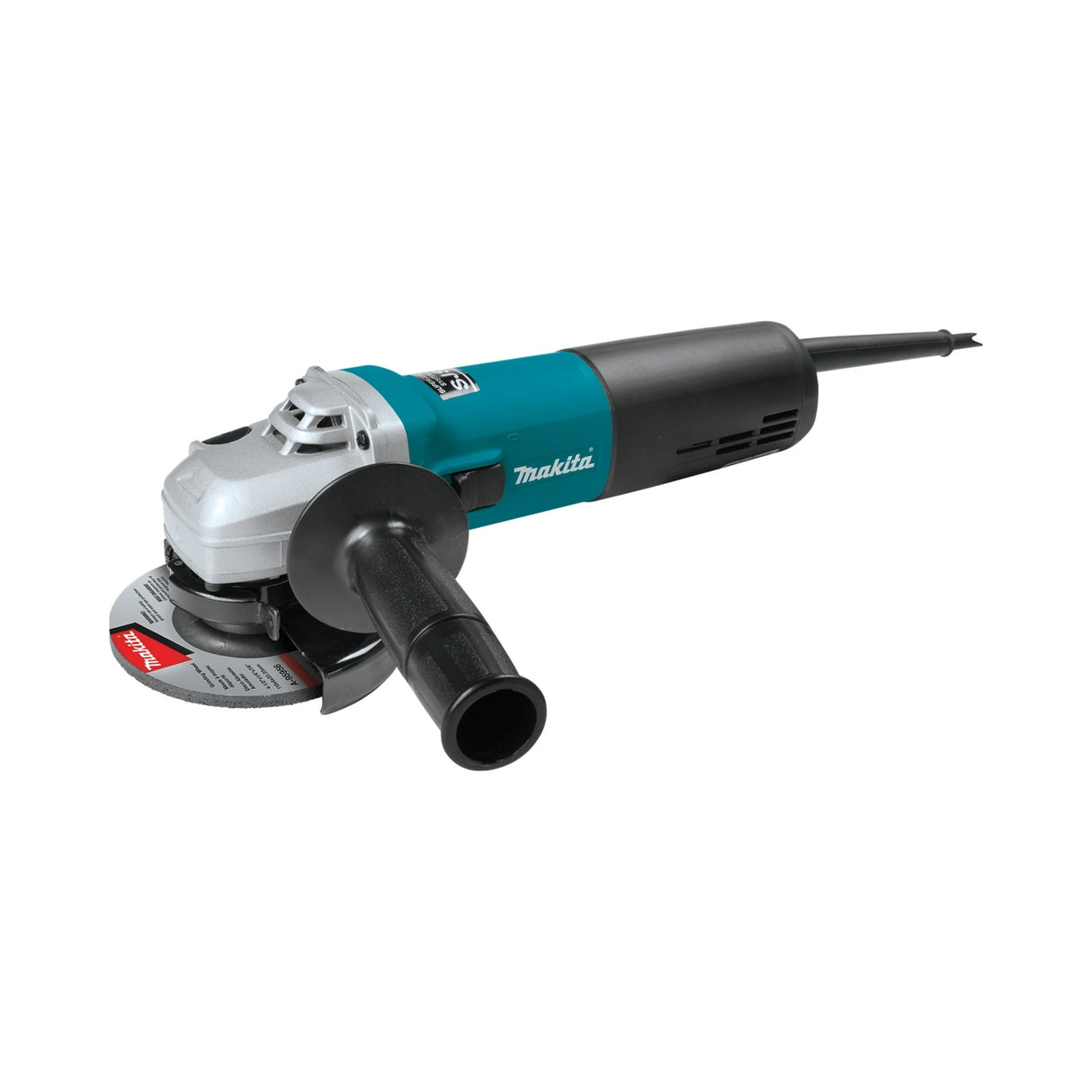

MAKITA 9564CV 4-1/2\" SJS™ High-Power Angle Grinder
The Makita 9564CV is a corded 4-1/2\" angle grinder built around Makita's SJS™ (Super Joint System) mechanical clutch, which disengages the gear train if the wheel binds or the tool kicks, protecting the motor and gears from shock damage. A 13 AMP motor drives the wheel from 2,800 to 10,500 RPM through a variable speed dial, so the tool can be slowed down for polishing passes or opened up for grinding and stock removal. This template also carries the 9565CV, the same grinder built around a 5\" wheel. Both share the same motor, clutch, speed range and control layout -- only wheel diameter and weight differ.
Features
- SJS™ mechanical clutch disengages the gear train on binding or kickback to protect the motor and gears
- 13 AMP motor, variable speed dial from 2,800 to 10,500 RPM
- Soft start suppresses start-up reaction for a smoother, more controlled startup
- Electronic current limiter helps protect the motor from overload under load
- Lock-on switch for sustained-use operation (no lock-off position)
- 5/8\"-11 UNC spindle thread, the standard mount for 4-1/2\" and 5\" grinding and cutting wheels
- Side handle can be mounted on either side of the housing
| Model | Wheel Diameter | Net Weight | UPC |
|---|---|---|---|
| 9564CV | 4-1/2\" | 5.3 lbs. | 088381037242 |
| 9565CV | 5\" | 5.2 lbs. | — |
| Property | Detail |
|---|---|
| Brand | Makita |
| Tool Type | Corded Electric Angle Grinder |
| Current Draw | 13 AMP |
| Speed | 2,800 - 10,500 RPM, variable speed dial |
| Spindle Thread | 5/8\"-11 UNC |
| Overall Length | 11-3/4\" |
| Clutch System | SJS™ mechanical clutch (jam/kickback protection) |
| Switch | Lock-on; no lock-off position |
| Motor Protection | Soft start + electronic current limiter |
| Included | Grinding wheel, wheel guard, side handle, inner flange, lock-nut, wrench |
Wear appropriate PPE (eye, ear and respiratory protection) and follow the manufacturer's instruction manual and all applicable safety regulations when operating this grinder.
