Works with: Ceramic, Porcelain Gres
Edge Quality ☆☆☆☆ Speed ☆☆☆☆☆ Lifetime ☆☆☆☆
45° is easy!

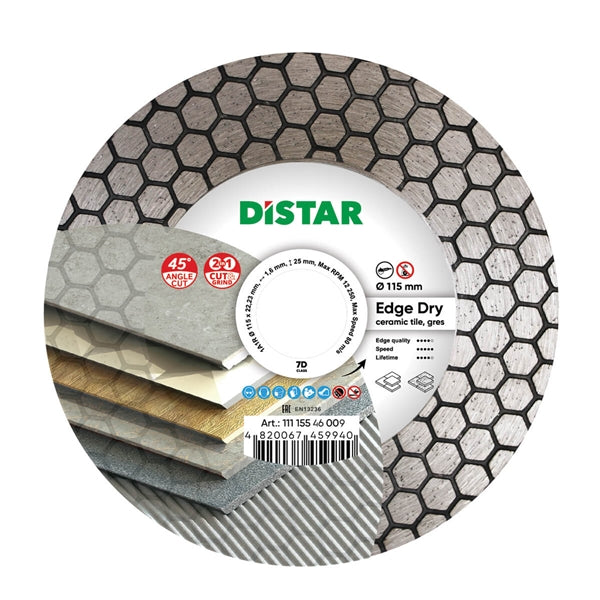

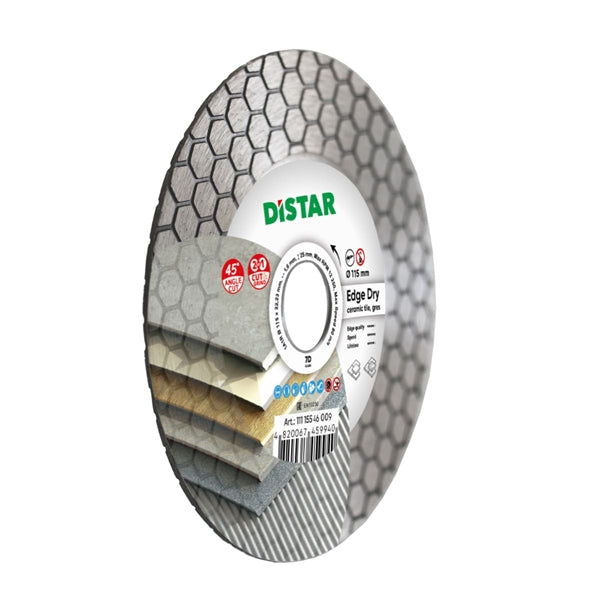

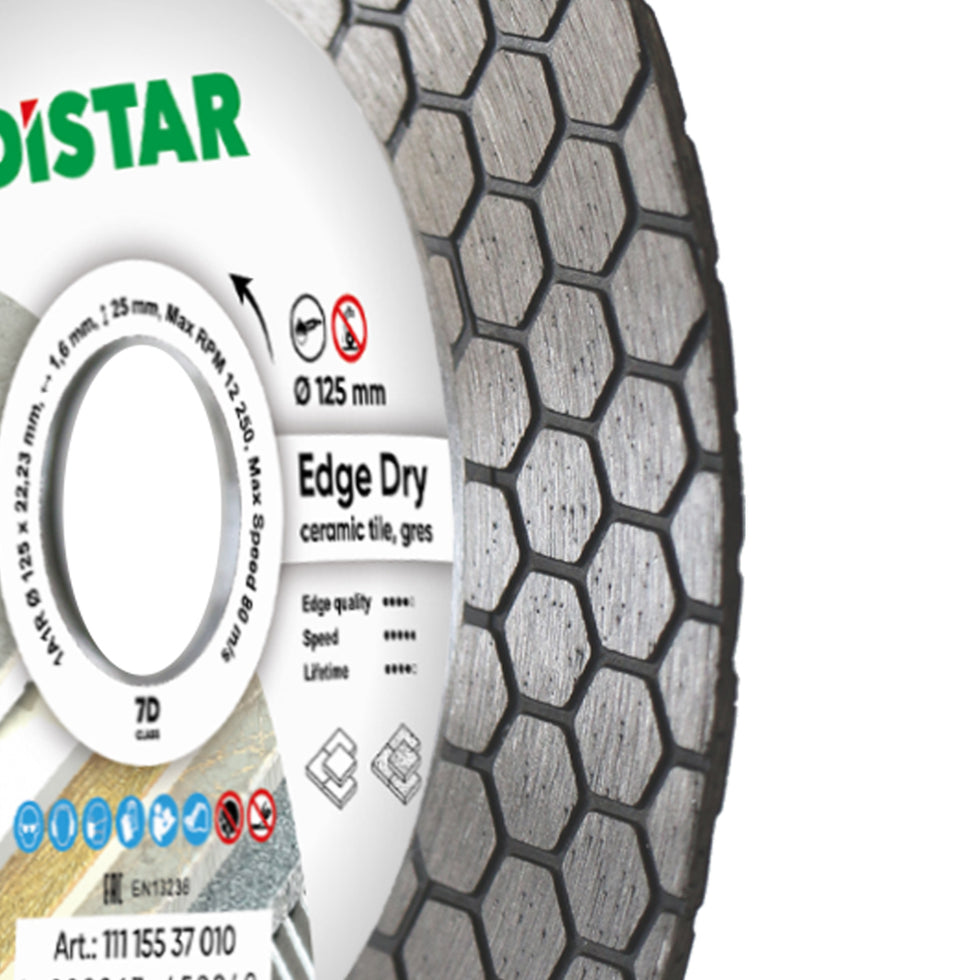

The DISTAR Edge Dry Diamond Blade is engineered for professional 45° miter cutting of ceramic and porcelain gres tiles—without the need for water cooling. Built with a wide 1" (25 mm) double-sided diamond layer, this blade reinforces rigidity while delivering smooth, chip-free cutting. The honeycomb diamond bond provides both high cutting productivity and soft, precise operation. With its large plane design, the Edge Dry offers a natural fulcrum effect, guiding the blade in a straight line for accurate cuts. It also doubles as a grinder, allowing craftsmen to refine tile edges with the same blade. Available in 4.5" and 5" sizes with a 0.87" (22.23 mm) bore, it’s the ultimate solution for dry bevel cutting and edge finishing.
| Specification | Detail |
|---|---|
| Diameter Options | 4.5 in. / 5 in. |
| Thickness | 0.063 in. (1.6 mm) |
| Cooling | Dry cutting (no water required) |
| Bore Diameter | 0.87 in. (22.23 mm) |
| Miter Cutting | Optimized for 45° bevel cuts |
| Diamond Layer | 1 in. (25 mm) wide, double-sided |
| Design Features | Honeycomb diamond bond, rigid body, edge grinding capability |
| Application | Ceramic tile, porcelain gres |
| Edge Quality | ☆☆☆☆ |
| Speed | ☆☆☆☆☆ |
| Lifetime | ☆☆☆☆ |
| Brand | DISTAR |
Customer Testimonial
⭐⭐⭐⭐⭐
“This blade made my 45° cuts fast, clean, and easy. No water needed, edges came out smooth, and I even polished them with the same blade. Amazing tool!” – Rafael D.
Usage Tips

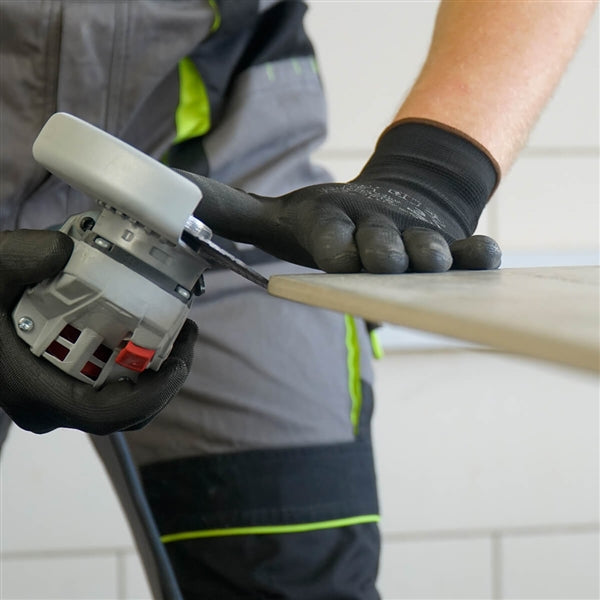

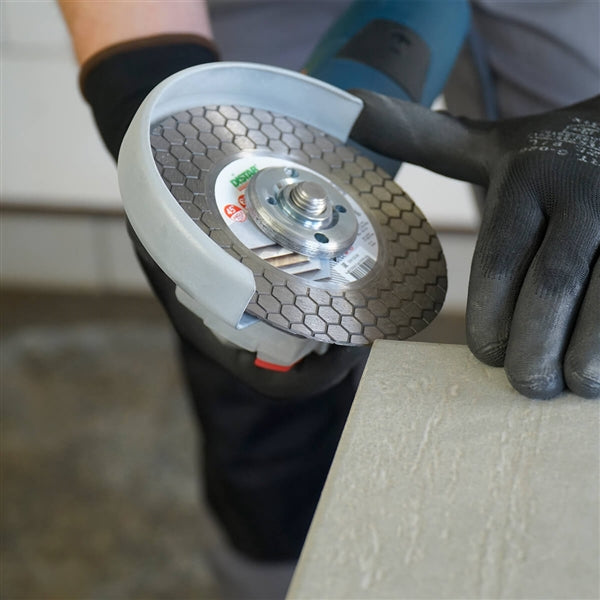

• Use on 4.5"–5" angle grinders with a 22.23 mm bore
• Designed for 45° miter cutting of ceramic and porcelain gres tiles
• Operates dry—no coolant required for precision results
• Take advantage of the wide diamond layer to guide straight cuts
• Use blade edges to refine and grind tile edges after cutting
FAQ
Q: Is the Edge Dry blade suitable for 45° cuts?
A: Yes, it’s designed specifically for dry 45° miter cuts on ceramic and porcelain tiles.
Q: Do I need water cooling with this blade?
A: No, it’s built for dry cutting without the use of coolant.
Q: Can I use it for grinding as well as cutting?
A: Yes, the blade also allows edge grinding for smooth tile finishing.
Q: What sizes are available?
A: The Edge Dry comes in 4.5" and 5" diameters with a 22.23 mm bore.
