Description
Description
Features

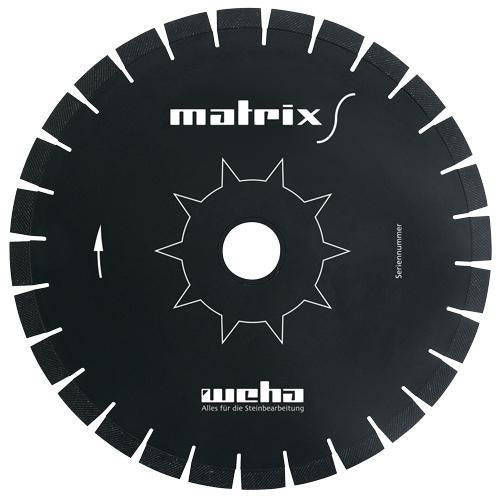

- Weha Matrix S Diagonal Diamond Bridge Saw Blade — premium silent core blade with diagonal layered diamond segments

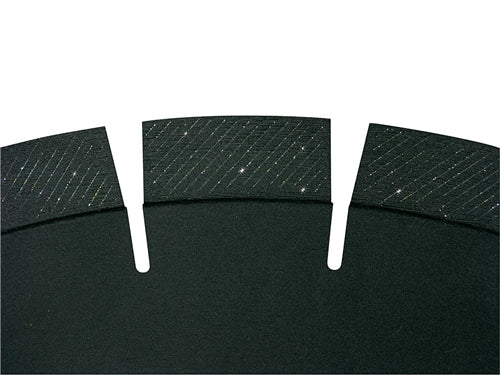

- Diagonal diamond layering creates 100% continuous cutting throughout the entire blade life
- 20mm segment height rivals 25mm blades in longevity thanks to the diagonal layer technology
- Silent core design for quiet, smooth operation — reduces vibration and noise in the shop
- Clean cuts without chips or blade walking — excellent for miter cuts
- Optimized for granite, marble, quartz, and engineered stone
- Occasional quartzite cutting is fine in mixed daily shop work (for continuous quartzite, use White Lion blade)
- RPM range: 1600-1800 | Feed rate: up to 120 inches per minute
- Available in 12", 14", 16", and 18" diameters
Product Specifications
| Part No. | Diameter | Arbor | Segment Height |
|---|---|---|---|
| VZ051412 | 12" | 60/50mm | 20mm |
| VZ051413 | 14" | 60/50mm | 20mm |
| 5401115 | 16" | 60/50mm | 20mm |
| MATRIXSJ18-26 | 18" | 60/50mm | 26mm |
Technical Specifications
| Blade Type | Matrix S — Diagonal Layered Diamond, Silent Core |
| RPM Range | 1,600 - 1,800 |
| Max Feed Rate | 120 inches per minute |
| Application | Wet — Bridge Saw, SawJet |
| Compatible Materials | Granite, Marble, Quartz, Engineered Stone, Quartzite (occasional) |
| Country of Origin | Italy |
| HS Code | 8202.39.0000 |
Variant Details
▸ 12" Blade — Part #VZ051412
12-inch diameter for smaller bridge saws and table saws. Arbor: 60/50mm. Max RPM: 1,800.
▸ 14" Blade — Part #VZ051413
14-inch diameter — the most popular size for standard bridge saws. Handles 3cm countertops with ease.
▸ 16" Blade — Part #5401115
16-inch diameter for larger bridge saws. Greater cutting depth for thick materials and full slab cuts.
▸ 18" SawJet Blade — Part #MATRIXSJ18-26
18-inch SawJet version with 26mm segment height for maximum blade life. Optimized for high-production SawJet machines running at high feed rates (10+ feet per minute).
