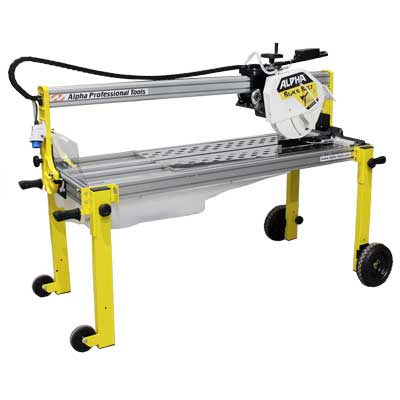

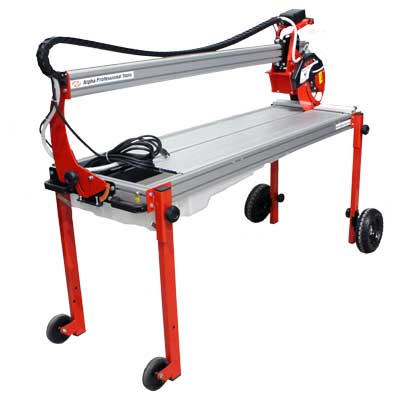

Black Belt Blade 12" - Port Rail Saw

Black Belt Blade 12" - Port Rail Saw

Wet Rail Saw For Large Format Tiles. Professional Quality Rail Saw, Ideal For Cutting Ceramics, Porcelain, Glass Panel And Other Materials. Rugged Aluminum Table Chassis For Stable Operation With A Long Life.

Features

• Professional Quality Rail Saw, Ideal For Cutting Ceramics, Porcelain, Glass Panel And Other Materials
• Rugged Aluminum Table Chassis For Stable Operation With A Long Life
• Equipped With A 115V-60HZ, 9.6AMP, 2HP (1.5KW), 3,500 RPM Motor With Direct Drive Shaft
• Supports 10” & 12” Blades With 1” And 60mm Arbors
• It Can Cut Up To 2-1/4” Deep In A Single Pass, 3-3/8” With Step Cut
• The Cutting Head’s Mechanical Vertical Tilting System Allows For Cutting Depth Adjustment
• Stainless Steel Head Rails And Adjustable Armored Ball Bearings For Smooth And Precision Movement
• Cutting System’s Side Tilt Capability Eases Up To 45 Degree Cut (Ideal For Miter Cuts)
• Extremely Reliable, Maintenance Free Magnetic-Induction Water Pump Delivers Ample Water To Both Sides Of Blade
• Retractable Legs Include A Fall-Protection Device
• Table Handles And Heavy-Duty Wheels Make For Easy Transportation
• Front, Back And Bilateral Blade Guards Minimize Exposure Of Blade For Safety And Reduces Water Splash

Specifications

📁 Documentation & Resources

• 📘 Manual — BBS 012 v0624 manual (PDF)
• 📘 Manual — BBS 012 v1025 manual (PDF)
• 📋 Flyer — NewFromAlpha2026 Hardscape (PDF)
• 📋 Flyer — BBS 012 flyer (PDF)
