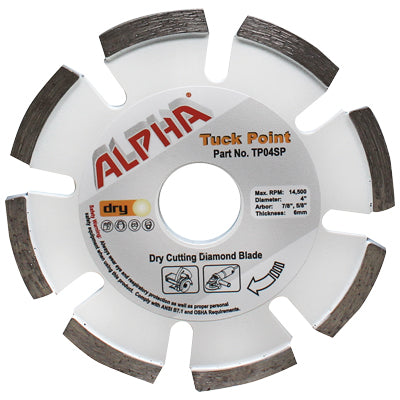

Alpha® Tuck Point Wheel — 4"
The Alpha® Tuck Point Wheel is purpose-built for brick re-pointing and flash installation, removing deteriorating mortar from masonry joints quickly and cleanly. The segmented diamond rim uses a hard bond engineered to resist the highly abrasive mortar found in brick laying, delivering aggressive cutting with extended blade life. The 4" diameter with 7/8" / 20mm / 5/8" multi-arbor fits 4", 4-1/2" and 7" angle grinders, and is also compatible with the Alpha® AWS-125 wet stone cutter.
Features
- Removes deteriorating mortar from masonry joints
- Hard bond resists abrasive mortar — long blade life
- Aggressive cutting action for brick re-pointing & flash installation
- Segmented rim with 1/4" segment thickness
- Multi-arbor (7/8" / 20mm / 5/8") fits 4", 4-1/2" and 7" grinders
- Wet or dry operation — wet cutting extends life and suppresses silica dust
- Virtually dust-free with the Alpha® Ecoguard™ Type W5 dust shroud and vacuum
| Part No. | Diameter | Thickness | Arbor(s) | Max RPM | UPC |
|---|---|---|---|---|---|
| TP0478 | 4" | 6.0mm | 7/8", 20mm, 5/8" | 14,500 | 749173462122 |
- Mount the wheel on a 4", 4-1/2" or 7" angle grinder using the appropriate arbor adapter (7/8", 20mm or 5/8").
- For dust suppression, attach an Alpha® Ecoguard™ W5 dust shroud connected to a HEPA vacuum.
- Hold the grinder square to the joint and plunge gently — let the diamonds do the cutting.
- Track the joint at a steady feed rate; avoid twisting or side-loading the wheel.
- Wet cutting is recommended whenever practical — it extends segment life and keeps silica out of the air.
- Do not exceed the 14,500 RPM max rated speed. Inspect frequently and replace when segments wear flush.
4" — Arbor: 7/8", 20mm, 5/8" — Segmented Tuck Point Wheel — TP0478
| Part No. | TP0478 |
| UPC | 749173462122 |
| Size | 4" |
| Type | Segmented Tuck Point Wheel |
| Attachment | Arbor: 7/8", 20mm, 5/8" |
| Max RPM | 14,500 |
| Recommended For | Mortar Joint Removal, Brick Re-Pointing, Flash Installation |
| Packaged Weight | 0.70 lbs |
| Package Dimensions | 8" x 5.5" x 0.5" |
| Commodity Code | 8202.91.0000 |
| Country of Origin | Japan |
| Property | Detail |
|---|---|
| Bond | Hard, Segmented Diamond |
| Segment Thickness | 1/4" |
| Application | Wet or Dry — Mortar / Masonry |
| Recommended Use | Brick Re-Pointing, Flash Installation |
| Dust Control | Compatible with Ecoguard™ W5 Shroud |
| Country of Origin | Japan |
| HTS / Commodity | 8202.91.0000 |
Can this dry blade be used wet?
Yes. Wet cutting generally increases blade life and helps keep harmful silica dust out of the air.
Is this blade compatible with the Alpha AWS-125 wet stone cutter?
Yes — the 4" wheel has a 7/8"-to-5/8" arbor compatibility that fits the AWS-125.
What is the segment thickness?
1/4".
Can I cut granite reinforcement channels with this blade?
Not recommended. The bond is optimized for soft, abrasive materials like mortar. For granite, use the Alpha Hot-Rod blade.
What sizes are available?
Currently only the 4" diameter.
What is the primary purpose?
To remove deteriorating mortar from the joints of masonry walls as part of routine brick maintenance and re-pointing.
No product-specific videos are currently available from the manufacturer or DST.
