Aardwolf APAM Pneumatic Anchor Machine for T-Slot Cutting
Description
Description

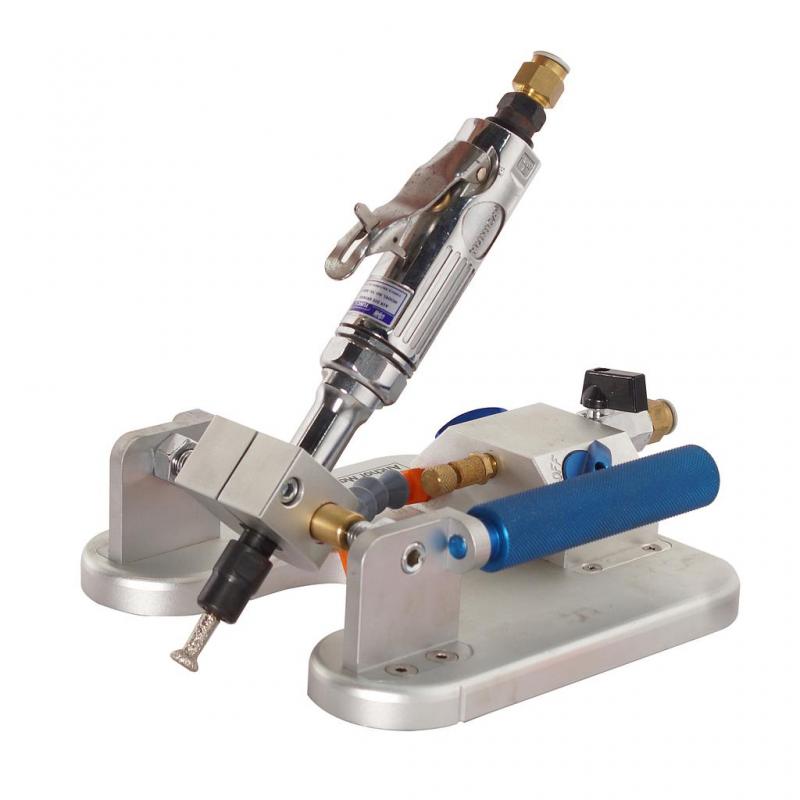

Aardwolf APAM Pneumatic Anchor Machine — T-Slot Cutter for Stone
The Aardwolf APAM is a compact, air-powered anchor machine that cuts precision T-slots in stone slabs for anchor-bolt installation. It is built for fabricators installing countertops, vanity tops, wall cladding, and architectural stone panels — anywhere a clean 1/4" T-type groove is required to seat structural anchors. Because it is pneumatic, it is well suited to job sites and shop stations where electrical access is limited.
Features
- Cuts 1/4" T-type slots for stone anchor bolts
- Pneumatic motor — no electrical hookup required at the cut station
- Dual-zone vacuum base for secure grip near slab edges
- Compact handheld form factor for shop or jobsite use
- Designed for granite, marble, engineered stone, and similar materials
- Works with standard Aardwolf 1/4" T-type diamond bits (sold separately)
| Property | Detail |
|---|---|
| Brand | Aardwolf |
| Model / Part Number | APAM |
| Type | Pneumatic (air-powered) anchor / T-slot machine |
| Slot Profile | 1/4" T-type |
| Base | Dual-zone vacuum |
| Compatible Materials | Granite, marble, engineered stone, limestone |
| Unit Weight | 44 lb (20 kg) |
- Inspect the machine and verify the 1/4" T-type bit is secured before connecting air.
- Connect a clean, dry compressed-air supply with a regulator and lubricator inline.
- Position the unit on the slab so both vacuum zones engage on solid stone — confirm vacuum is holding before cutting.
- Mark the slot location, start the motor, and let the bit feed into the stone at a steady, light pressure.
- Flush debris from the slot, inspect the cut, and verify anchor fit before disconnecting the vacuum base.
- Disconnect air pressure and clean the unit before storage.
- Wear ANSI Z87 eye protection, hearing protection, and a dust-rated respirator at all times.
- Confirm vacuum seal before each cut — a slipped base on a running cutter can damage the slab and the operator.
- Do not exceed the air-pressure rating stamped on the tool body.
- Keep hands clear of the bit; release the trigger before repositioning.
Manufacturer Features & Specifications
General
What It’s Used For
Anchor machines are mainly used in the stone and construction industries to prepare stone slabs for safe installation. For example, when installing countertops, vanity tops, or wall panels, anchor bolts need to be inserted into the stone. The anchor machine creates the precise grooves needed to fit those bolts securely. This ensures that the stone is firmly attached to the structure behind it.
Why Use It
Using an anchor machine helps workers make clean, consistent cuts quickly and safely. It improves the accuracy of the installation, reduces the risk of cracks or mistakes, and speeds up the work process. Whether powered by electricity or air (pneumatic), anchor machines are a reliable tool for professionals who need secure, long-lasting stone installations.
The Aardwolf Anchor Machines are compact, high-precision tools designed to cut T-slots for anchor bolts in stone surfaces, such as vanity tops or architectural panels. Both models feature a dual vacuum zone base for secure grip near slab edges and support 1/4” T-type diamond bits.
The EAM (Electric Anchor Machine) is equipped with a 750W electric motor, offering consistent performance with minimal setup.
The APAM (Pneumatic Anchor Machine) uses compressed air, making it ideal for job sites without electrical access.
Both machines deliver clean, repeatable cuts and feature detachable water hoses, integrated indicators, and robust aluminum construction.
Features
Dual vacuum zones for secure edge grip
Accepts 1/4” T-type diamond bits
Supports both push and pull cutting directions
Integrated water hose for cooling and dust control
Quick-connect couplers for fast air and water setup
Built-in alignment indicators for precise cutting
Machined, anodized aluminum body for durability
Molded vacuum seal ensures reliable surface hold
Portable water tank available upon request
General
What It’s Used For
Anchor machines are mainly used in the stone and construction industries to prepare stone slabs for safe installation. For example, when installing countertops, vanity tops, or wall panels, anchor bolts need to be inserted into the stone. The anchor machine creates the precise grooves needed to fit those bolts securely. This ensures that the stone is firmly attached to the structure behind it.
Why Use It
Using an anchor machine helps workers make clean, consistent cuts quickly and safely. It improves the accuracy of the installation, reduces the risk of cracks or mistakes, and speeds up the work process. Whether powered by electricity or air (pneumatic), anchor machines are a reliable tool for professionals who need secure, long-lasting stone installations.
The Aardwolf Anchor Machines are compact, high-precision tools designed to cut T-slots for anchor bolts in stone surfaces, such as vanity tops or architectural panels. Both models feature a dual vacuum zone base for secure grip near slab edges and support 1/4” T-type diamond bits.
The EAM (Electric Anchor Machine) is equipped with a 750W electric motor, offering consistent performance with minimal setup.
The APAM (Pneumatic Anchor Machine) uses compressed air, making it ideal for job sites without electrical access.
Both machines deliver clean, repeatable cuts and feature detachable water hoses, integrated indicators, and robust aluminum construction.
Features
Dual vacuum zones for secure edge grip
Accepts 1/4” T-type diamond bits
Supports both push and pull cutting directions
Integrated water hose for cooling and dust control
Quick-connect couplers for fast air and water setup
Built-in alignment indicators for precise cutting
Machined, anodized aluminum body for durability
Molded vacuum seal ensures reliable surface hold
Portable water tank available upon request
