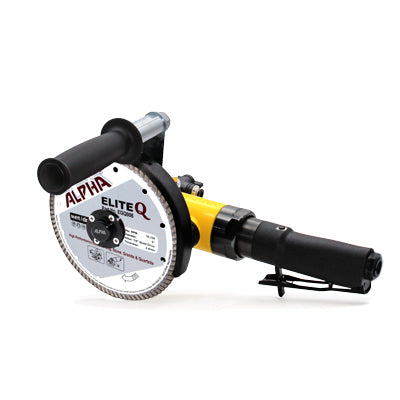

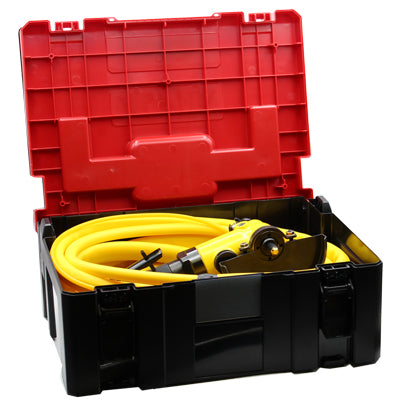

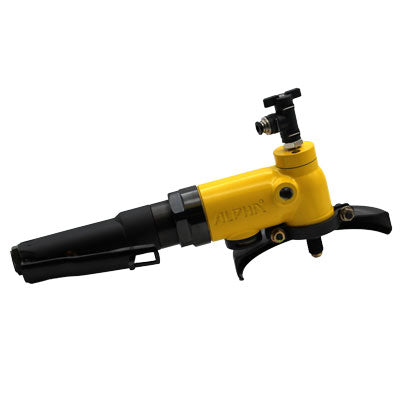

PWC-658 Pneumatic Wet Cutter 6" 5/8 The Ultimate Work Horse for Stone Fabricators
Regular price
$569.00 USD
Unit price
Shipping calculated at checkout.
Pickup available at Dynamic Stone Tools Warehouse (Manassas Park, VA)
Usually ready in 2 hours
Alpha Professional Tools | SKU:
PWC-658
Regular price
$569.00 USD
Unit price
Shipping calculated at checkout.
Description
Description
The new PWC-658 is the ultimate work horse for stone fabricators. It has a quad adapter center water-feed system provides direct water flow to front and back side of the blade and a reversible safety guard for left or right blade position. The L-bracket & side handle setup makes the pull-to-cut method easy. Great for flat grinding as well!
- High-Speed, High-Performance Pneumatic Angle Cutter/Grinder
- Reversible Safety Guard For Left Or Right Blade Position

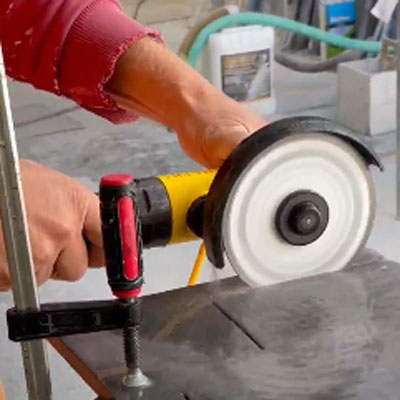

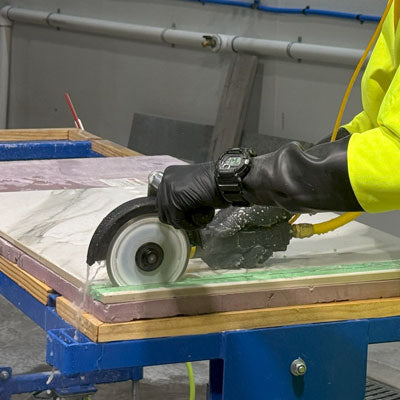

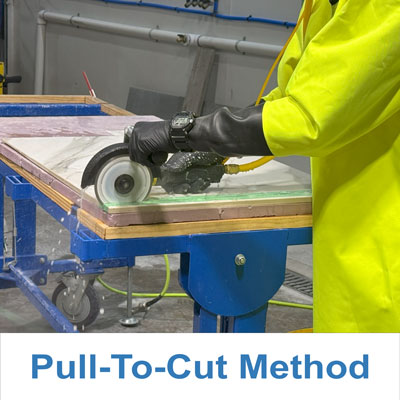

- L-Bracket & Side Handle Setup For Pull-To-Cut Method

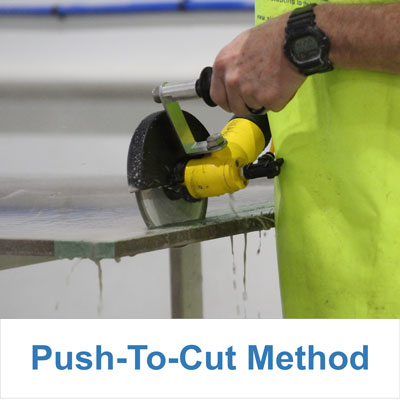

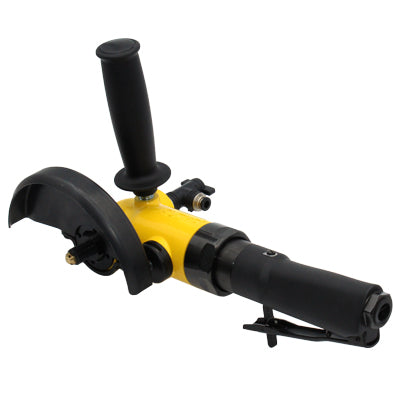

- Side Handle Attachment For Push-To-Cut Method
- Spring-Return Throttle Avoids Accidental Start
- Easy Access Oil Port for Daily Maintenance
- Quad Adapter Center Water-Feed System Provides Direct Water Flow to Front and Back Side Of The Blade

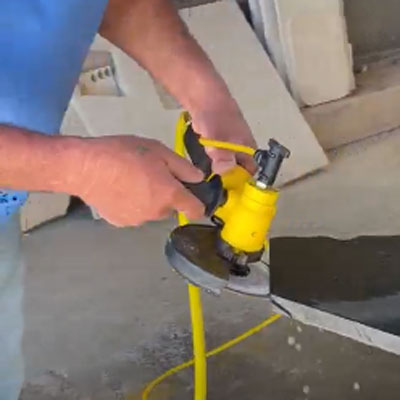

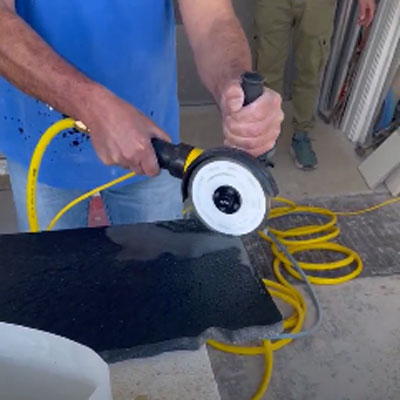

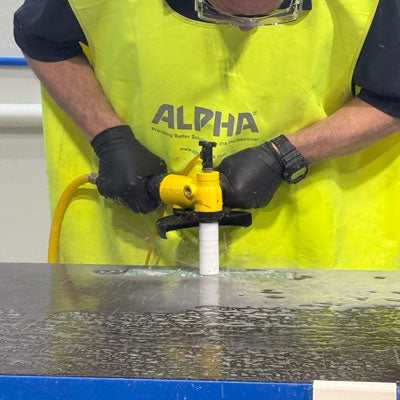

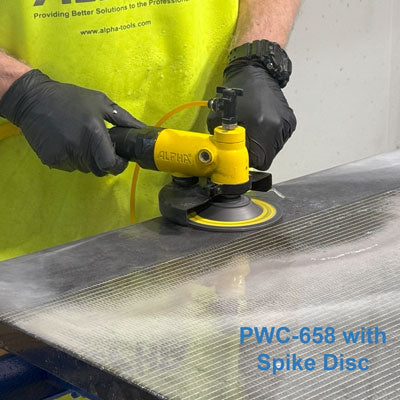

- Center Water Feed-System Is Perfect For Flat Grinding
- One Year Tool Warranty*
Features
- High-Speed, High-Performance Pneumatic Angle Cutter/Grinder
- Reversible Safety Guard For Left Or Right Blade Position
- L-Bracket & Side Handle Setup For Pull-To-Cut Method
- Side Handle Attachment For Push-To-Cut Method
- Spring-Return Throttle Avoids Accidental Start
- Easy Access Oil Port for Daily Maintenance
- Quad Adapter Center Water-Feed System Provides Direct Water Flow to Front and Back Side Of The Blade
- Center Water Feed-System Is Perfect For Flat Grinding
- One Year Tool Warranty*
Specifications
| Specification | Data |
|---|---|
| Model | PWC-658 / PWC-514 / PWC-614 |
| Air Pressure | 90 PSI (6.2 Bar) |
| Air Consumption Max | 33 CFM (934L/min) |
| No Load Speed | 10,000 RPM / 12,000 RPM / 10,000 RPM |
| Weight | 4.6 lbs (2.1 kgs) |
| Length | 11-3/4” (298mm) |
| Air Inlet | 3/8” NPSM |
| Water Inlet | 1/8" BSPT |
| Spindle | 5/8”-11 / M14-2 / M14-2 |
| Maximum Disc Capacity | 6" (150mm) / 5” (125mm) |
| Max. HP | 1.4 HP |
📁 Documentation & Resources
- 📘 Manual — PWC 658 514 v0125 manual (PDF)
- 🔧 Parts Schematic — PWC 658 614 v1025 Parts Schematic (PDF)
- 🔧 Parts Schematic — PWC 514 v1025 Parts Schematic (PDF)
- 📋 Flyer — NewFromAlpha2026T&S (PDF)
- 📋 Flyer — PWC 658 flyer (PDF)
- 📋 Flyer — PWC 514 flyer (PDF)
📦 Packaging & Shipping
| Part No. | Ship Weight (lbs) | UPS/UPC Code | Package Dimensions | HS/Commodity Code | Country of Origin |
|---|---|---|---|---|---|
| PWC-658 | 15.7 | 749173430336 | 16in x 12in x 7in | 8467.11.5090 | Taiwan |
| PWC-514 | 15.5 | 749173430343 | 16in x 12in x 7in | 8467.11.5090 | Taiwan |
| PWC-614 | 15.7 | 749173430381 | 16in x 12in x 7in | 8467.11.5090 | Taiwan |

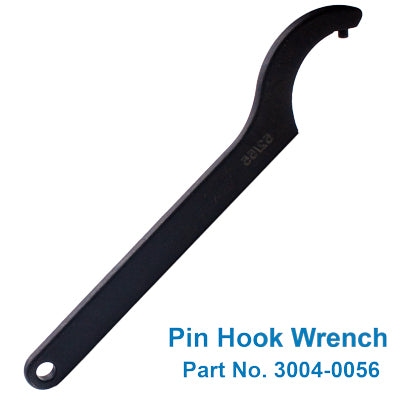

| 3004-0056 | 0.35 | 749173647307 | 6in x 9in x 0.25in | 8204.11.0060 | China |
