Turboshine Grinding & Shaping System Grinding and Shaping System for All Surfaces
Pickup currently unavailable at Dynamic Stone Tools Warehouse (Manassas Park, VA)
Description
Description

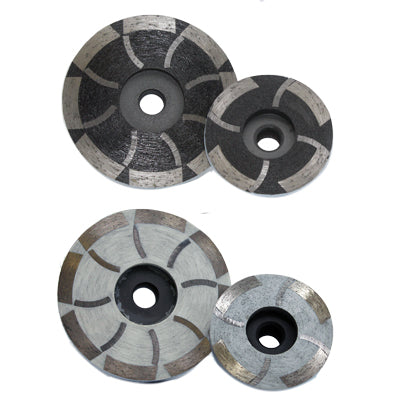

Turboshine Grinding & Shaping Wheels
Vacuum-brazed diamond grinding & shaping wheels engineered for the Alpha Turboshine Dual Adapter System. Rough-grind, contour, and shape natural and engineered stone edges before stepping through the Turboshine resin polishing sequence on the same backer pad without changing drive systems.
Features
- Vacuum-brazed diamond matrix bites aggressively without loading
- Compatible with Alpha Turboshine Dual Adapter (DAS35/8PD, DAS3M14PD)
- Pairs with Turboshine resin discs (TSR-series) for seamless grind-to-polish workflow
- Color-coded by grit for fast identification on the bench (Gray 60, White 120)
- 14,500 max RPM - designed for variable-speed wet polishers
- Works wet on granite, quartz, quartzite, marble, and engineered stone
| Part No. | Size | Grit | Max RPM | Color | UPC |
|---|---|---|---|---|---|
| TRM40060M | 4" | 60 | 14,500 | - | 749173473418 |
| TRM40120M | 4" | 120 | 14,500 | - | 749173473425 |
| TRM30060M | 3" | 60 | 14,500 | Gray | 749173473395 |
| TRM30120M | 3" | 120 | 14,500 | White | 749173473401 |
- Mount the appropriate Turboshine Dual Adapter (5/8"-11 or M14) on a variable-speed polisher.

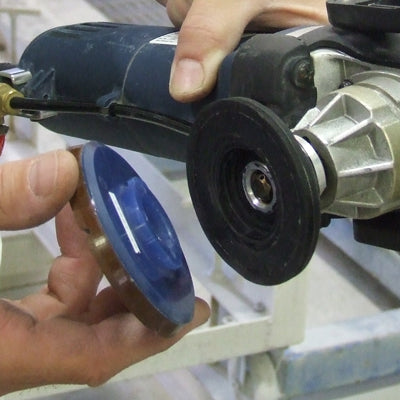

- Snap the grinding wheel onto the adapter - no tools required.

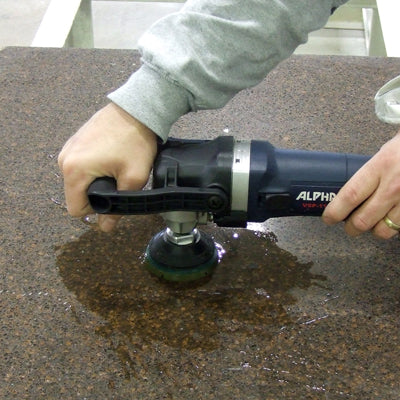

- Run wet at 3,500-5,000 RPM for grinding; never exceed 14,500 RPM.
- Start with 60 grit to remove material, follow with 120 grit to refine before transitioning to Turboshine resin discs.
- Keep water flowing on the work surface to flush swarf and protect the diamond matrix.
TRM30060M
| Part No. | TRM30060M |
TRM30120M
| Part No. | TRM30120M |
TRM40060M
| Part No. | TRM40060M |
TRM40120M
| Part No. | TRM40120M |
| Property | Detail |
|---|---|
| Tool Type | Grinding & Shaping Wheel |
| Bond | Vacuum-Brazed Diamond |

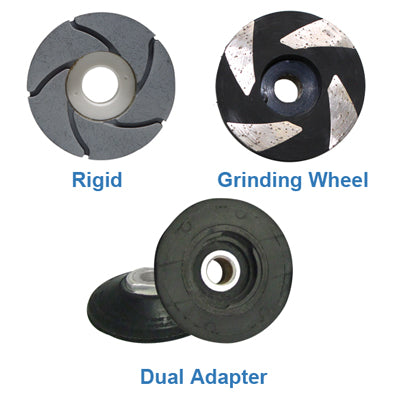

| Adapter | Turboshine Dual Adapter (DAS35/8PD or DAS3M14PD) |
| Wet/Dry | Wet Use Recommended |
| Max RPM | 14,500 |
| Country of Origin | Vietnam |
Do I need both the 60 and 120 grit?
Yes - 60 grit removes material aggressively, then 120 refines the surface so the Turboshine 100-grit resin disc has a clean substrate to polish from.
Will these fit my existing Turboshine adapter?
Yes. Both 3" and 4" wheels snap onto the Turboshine Dual Adapter (DAS35/8PD for 5/8"-11 spindles, DAS3M14PD for M14).
Can I run these dry?
Wet use is strongly recommended. Dry use will shorten matrix life and risks heat-cracking the wheel.
Turboshine Overview
⚠ WARNING: Cancer and Reproductive Harm — www.P65Warnings.ca.gov. Always wear appropriate PPE.
⚠ WARNING: Cutting, grinding, and polishing stone can produce respirable crystalline silica dust known to the State of California to cause cancer, lung disease, and reproductive harm. Always wear appropriate PPE.
