Aardwolf AGL32 Glass Lifter — 1,653 lb Automatic Self-Adjusting
Regular price
$1,565.81 USD
Unit price
Shipping calculated at checkout.
Pickup available at Dynamic Stone Tools Warehouse (Manassas Park, VA)
Usually ready in 2 hours
Aardwolf AGL32 Glass Lifter — 1,653 lb Automatic Self-Adjusting
Regular price
$1,565.81 USD
Unit price
Aardwolf Industries | SKU:
AGL32
Regular price
$1,565.81 USD
Unit price
Shipping calculated at checkout.
Description
Description

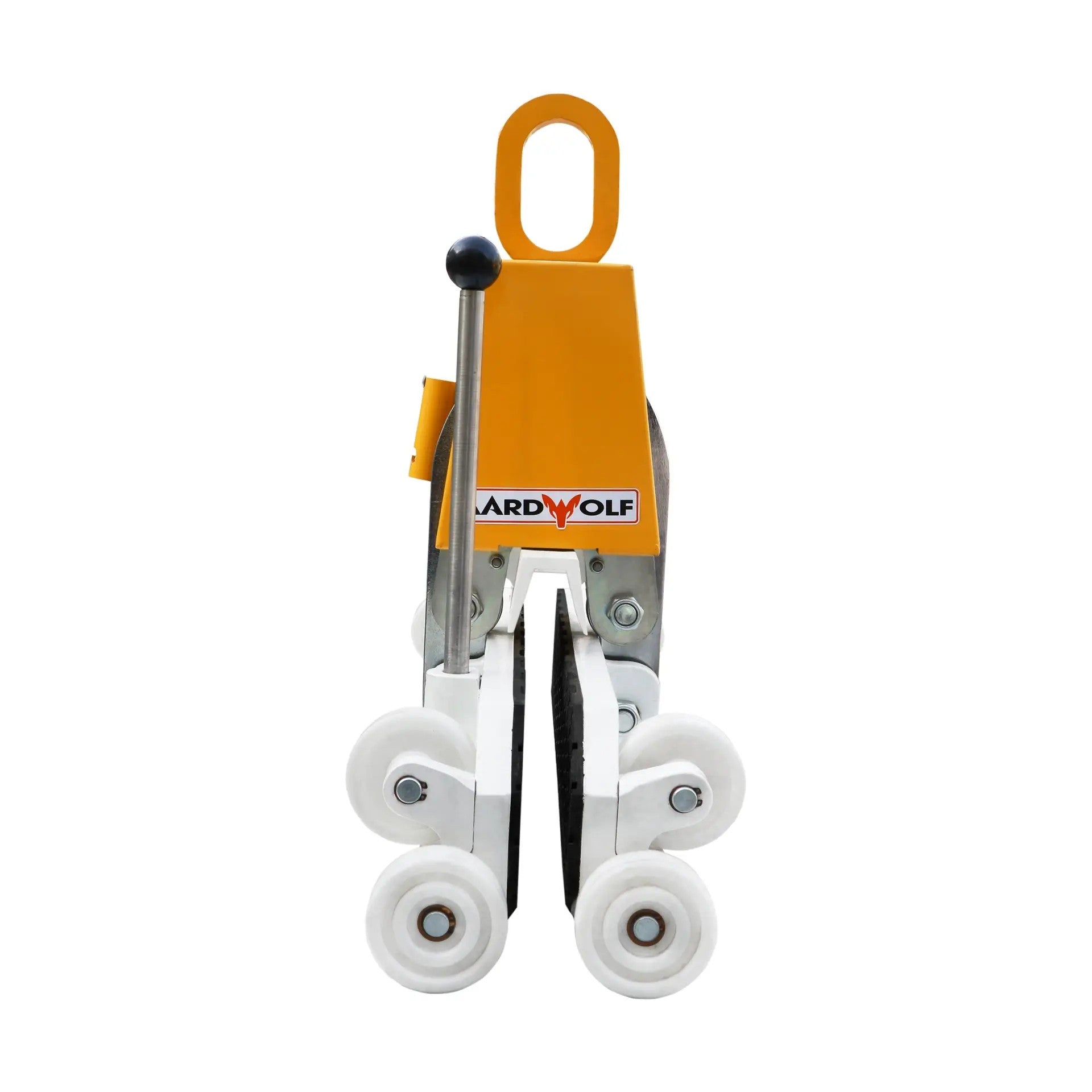

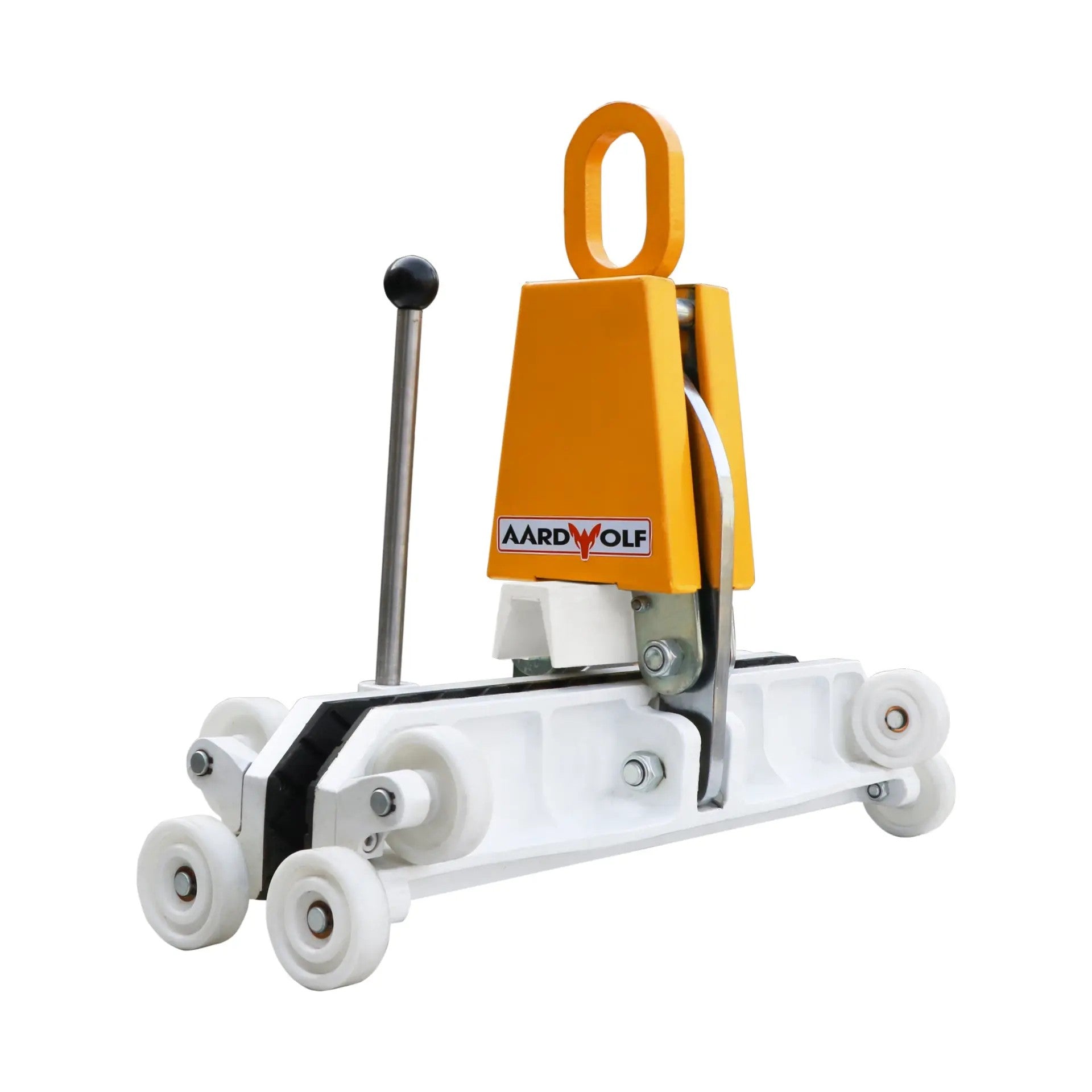

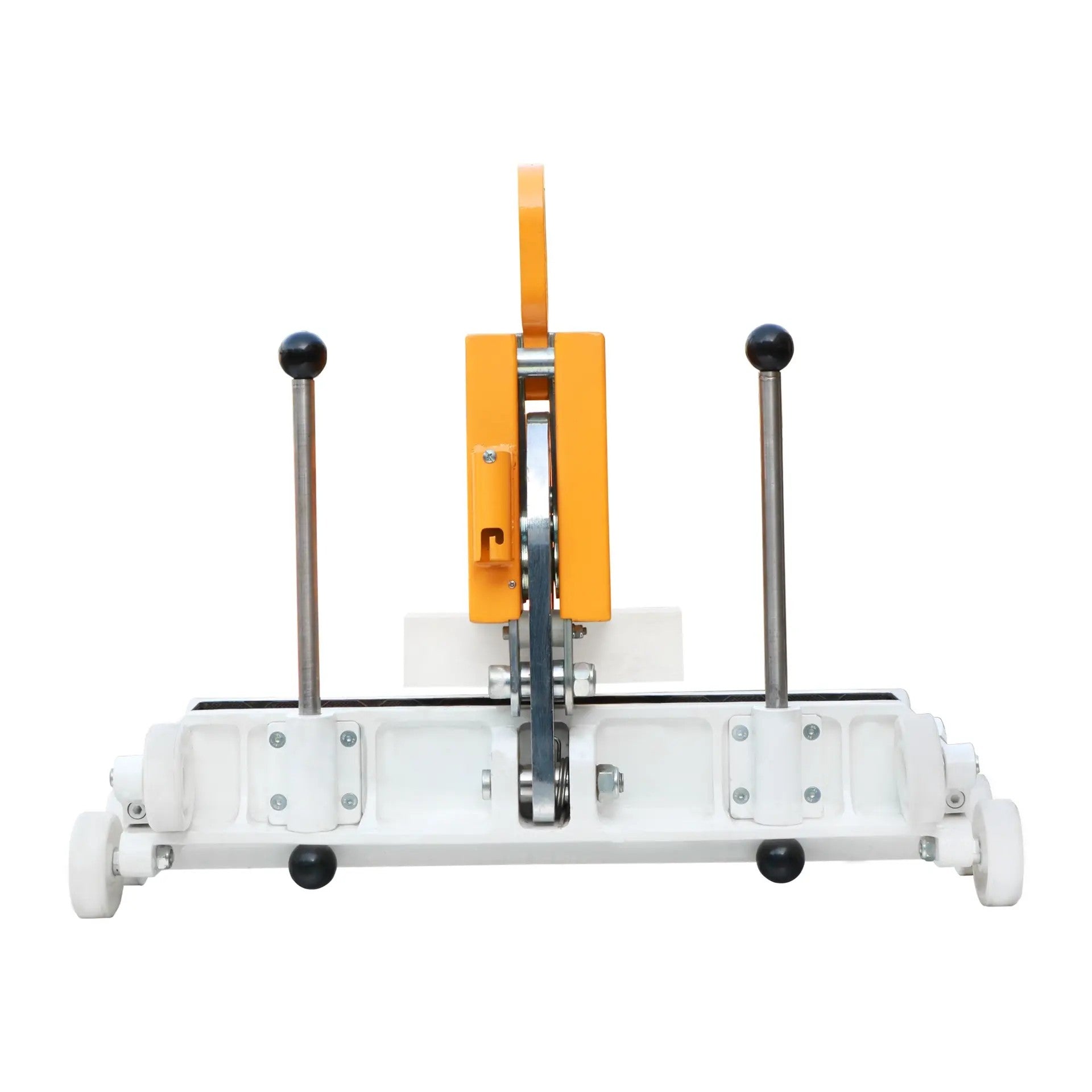

AGL32- Glass Lifter

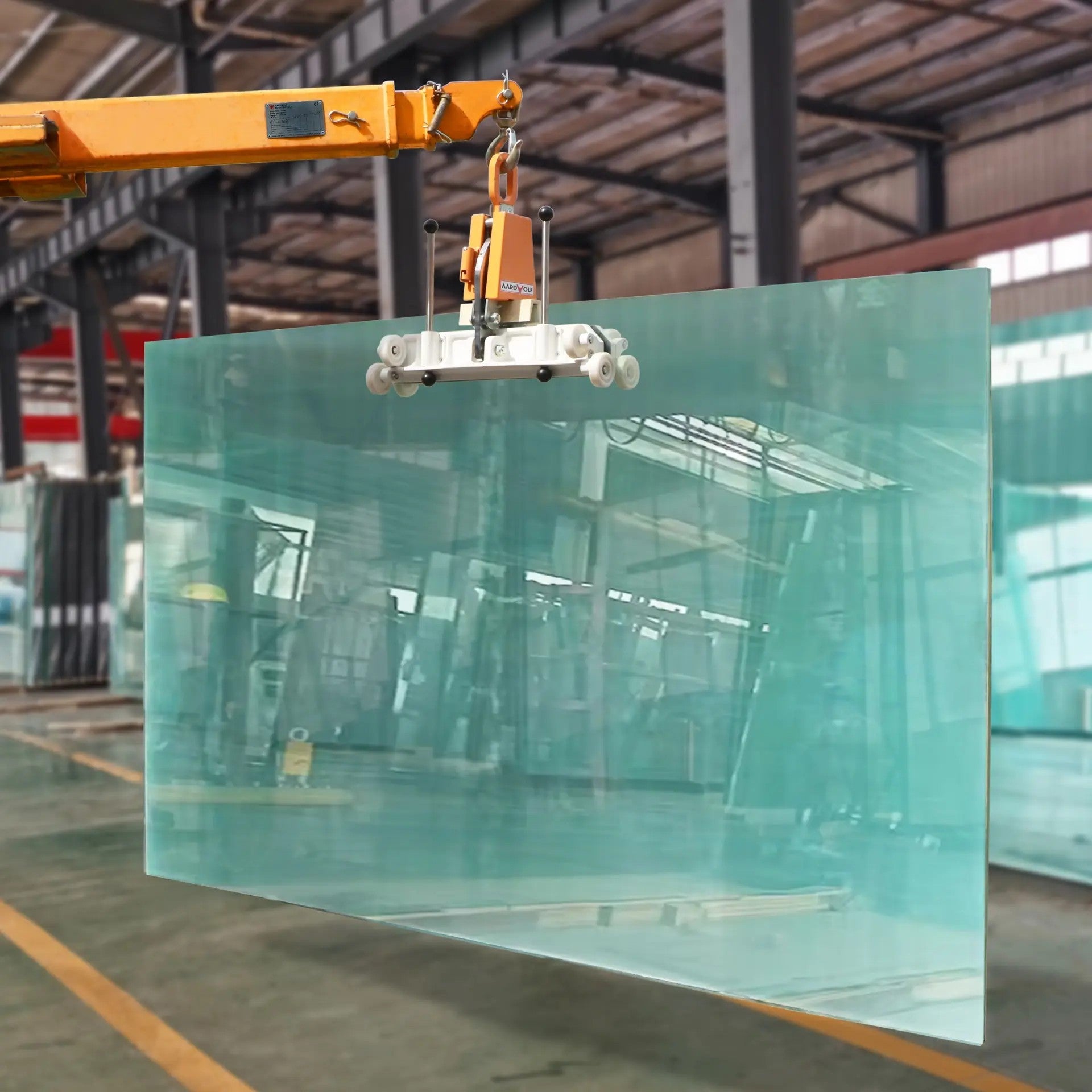

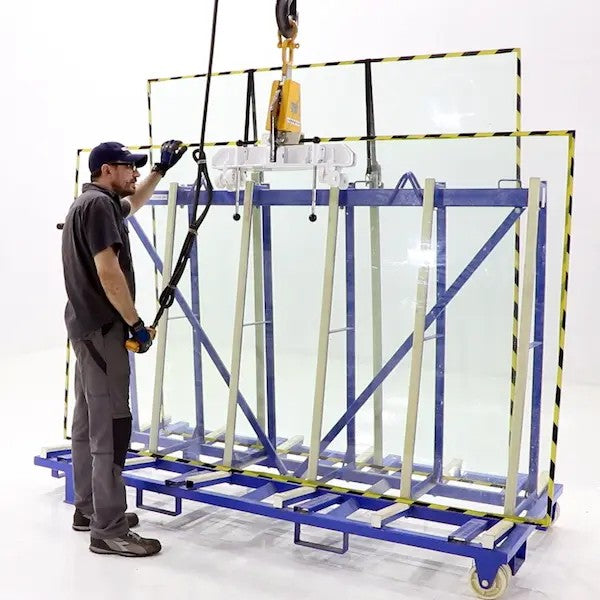

The Aardwolf Glass Lifter AGL32 is a vacuum lifter for handling smooth, non-porous material. It is rated at 1,653 lb (750 kg), a grip range of 0.08" - 1.25" (2 - 32 mm). Unit weight 54 lb (24.5 kg).
Features
- 1,653 lb (750 kg) working load limit
- Grips 0.08" - 1.25" (2 - 32 mm)
- Weighs 54 lb (24.5 kg)
| Property | Detail |
|---|---|
| Brand | Aardwolf |
| Working Load Limit | 1,653 lb (750 kg) |
| Grip Range | 0.08" - 1.25" (2 - 32 mm) |
| Net Weight | 54 lb (24.5 kg) |
| Gross Weight | 58 lb (26.4 kg) |
| Packaging Dimensions | 30.7" x 9.5" x 28" (780 x 240 x 710 mm) |
| Operation | Automatic self-adjustment, no electric or pneumatic power required |
| Country of Origin | Vietnam |
- Inspect the vacuum pad seal for cuts, grit, or compression set before each shift.
- Charge or connect the pump power supply and confirm it primes.
- Seat the pad flat on clean, sound, non-porous material with no chips or seams under the seal.
- Draw vacuum and wait for the gauge to reach the safe zone before taking any load.
- Lift slowly and keep the load low; never stand or pass under a suspended load. Never exceed the rated 1,653 lb (750 kg).
- Set the material down fully, then release vacuum and vent the pad.
