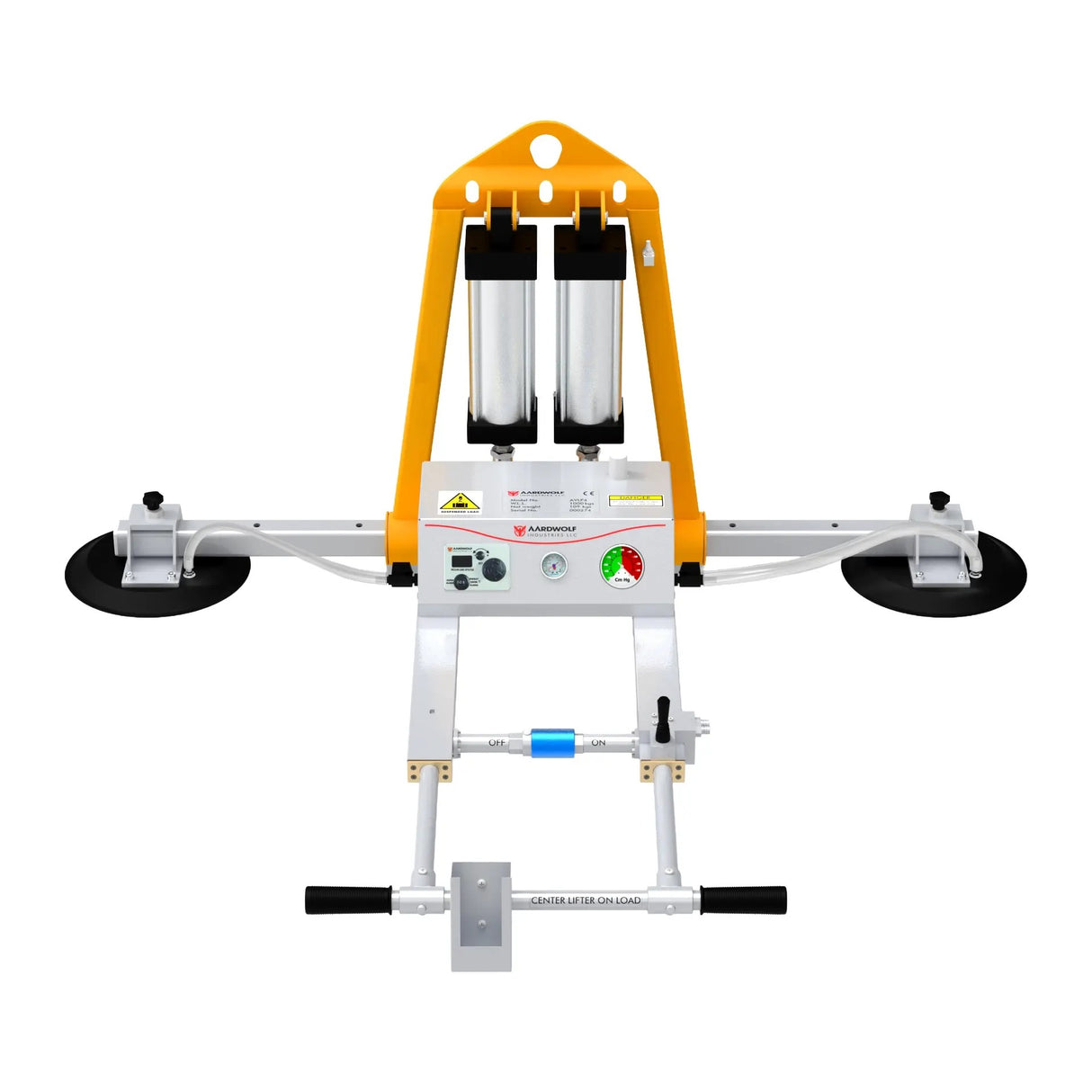

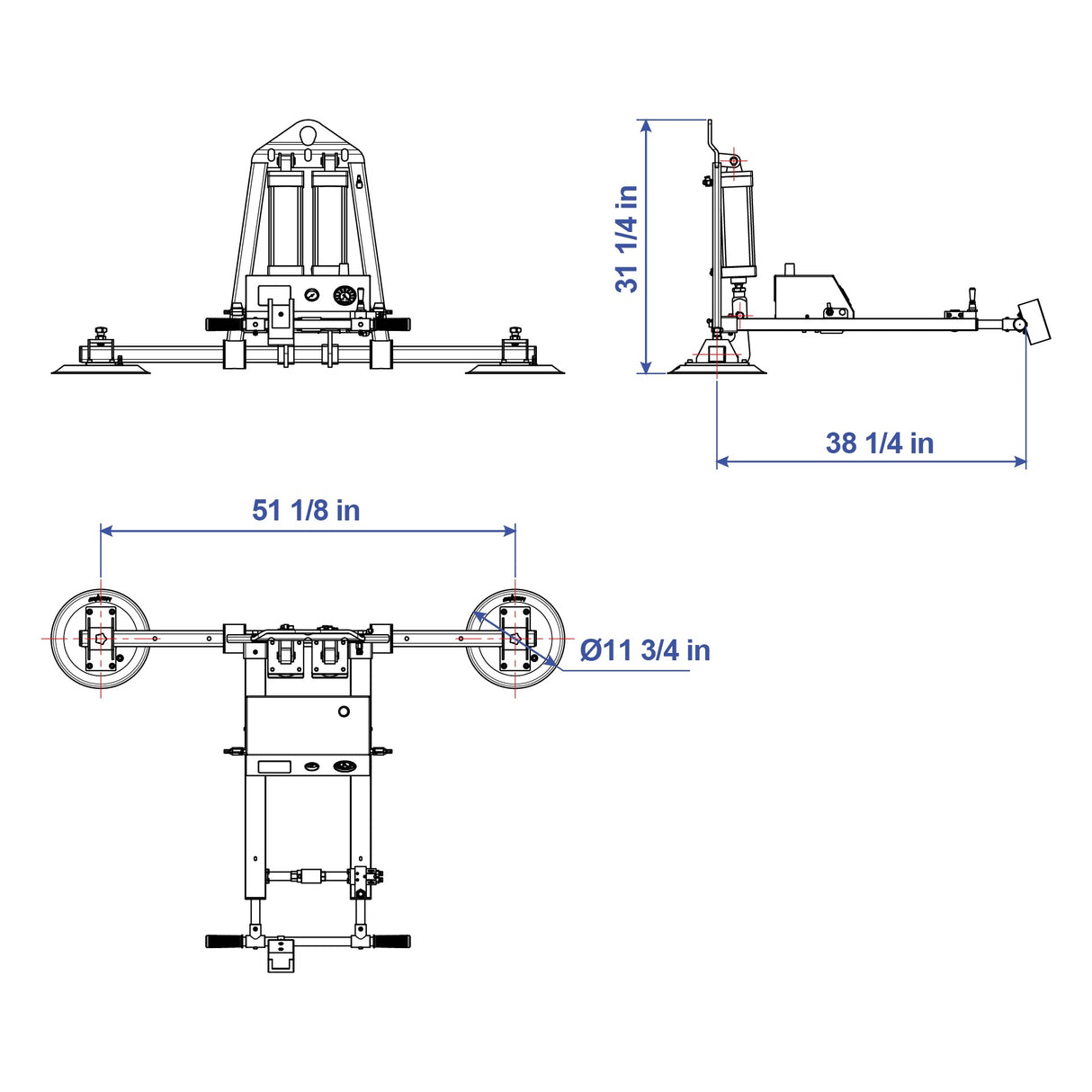

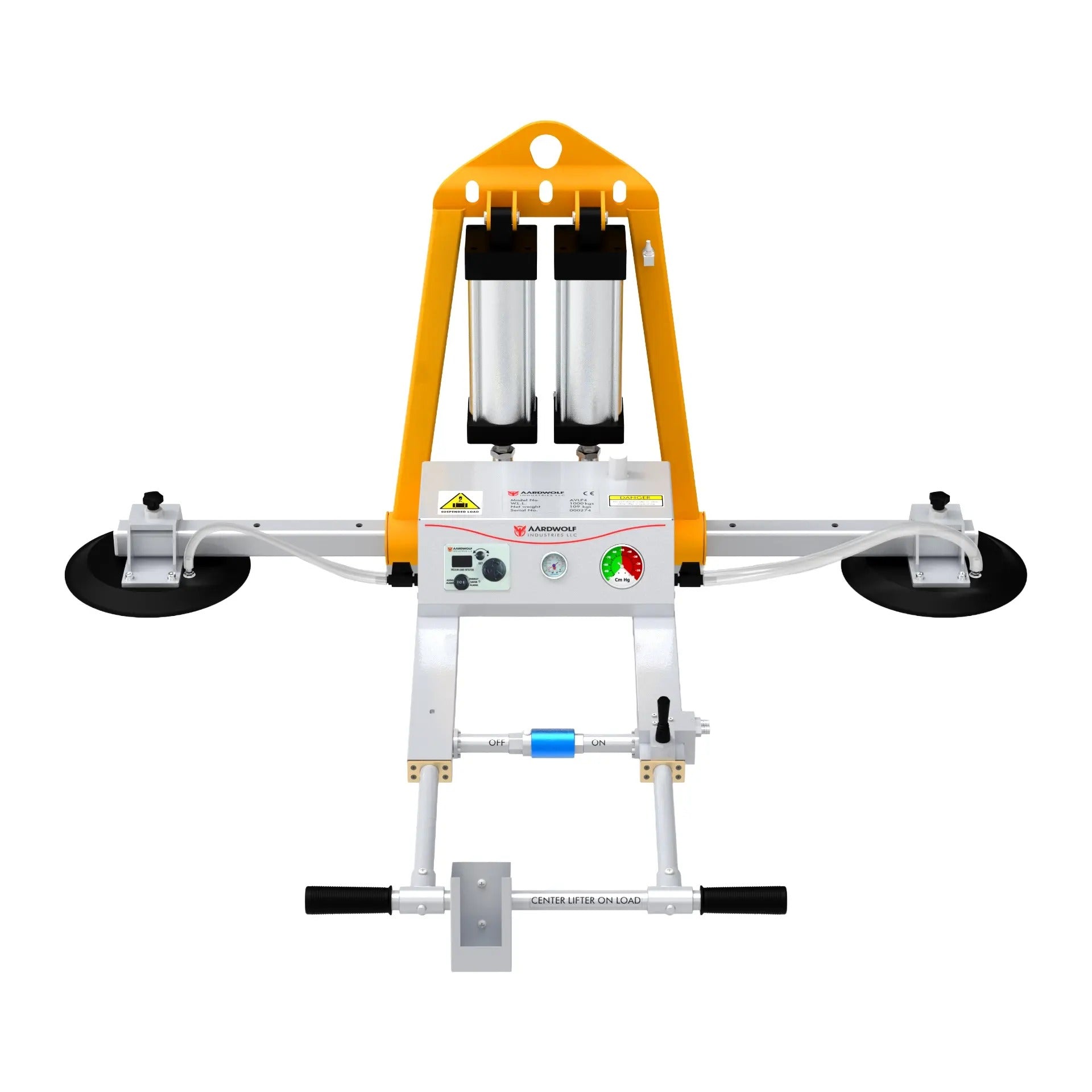

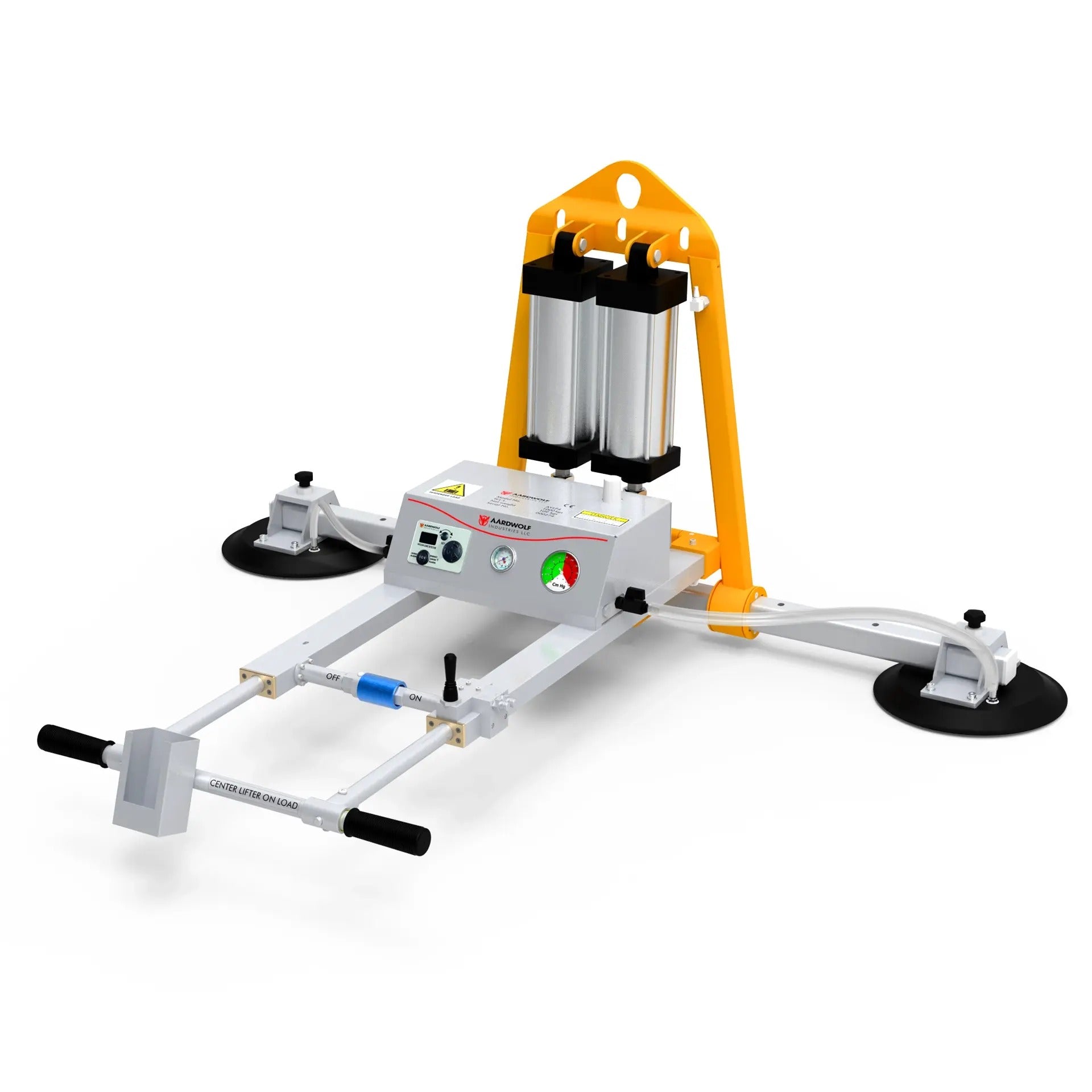

Aardwolf Vacuum Lifter (AVGLP)

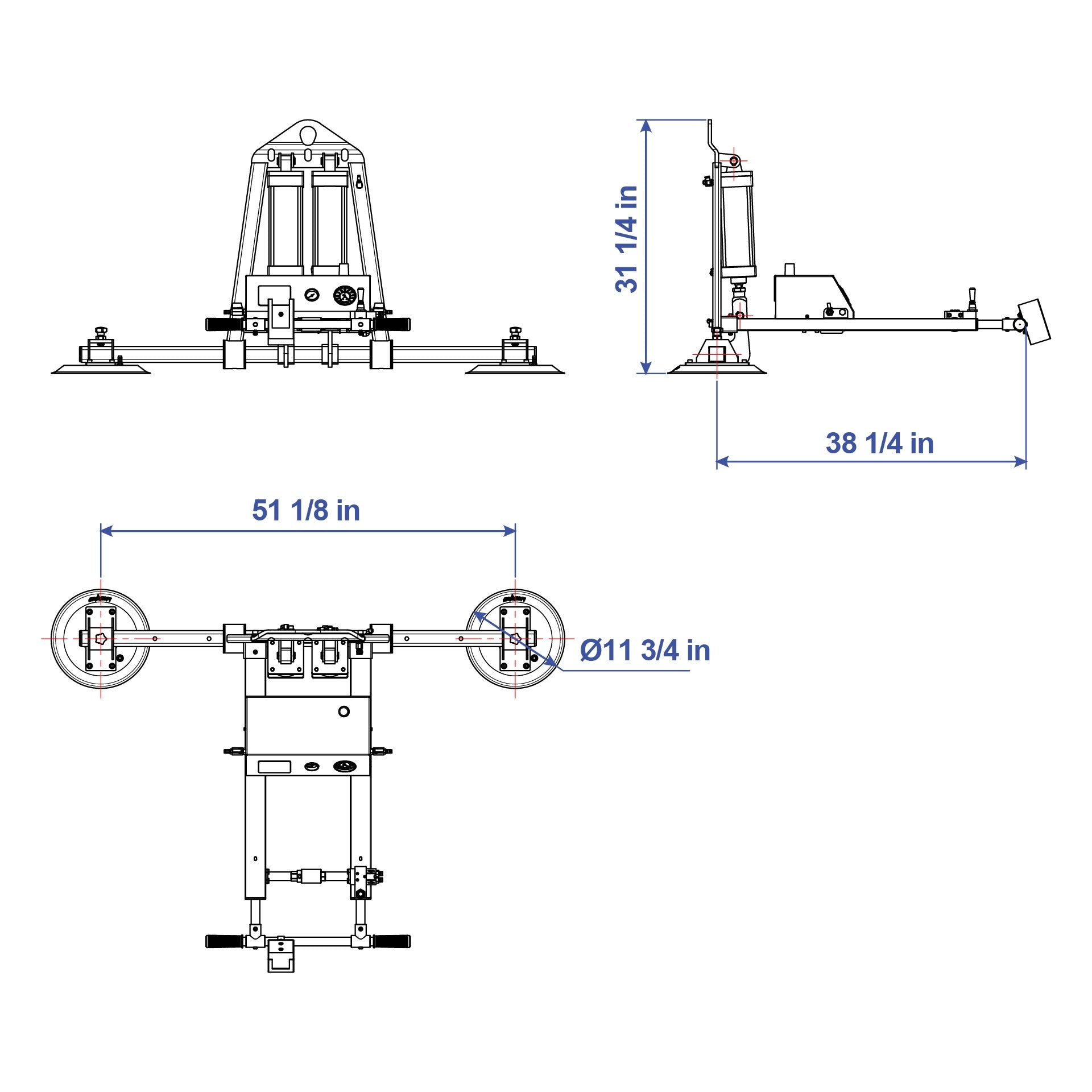

The Aardwolf AVGLP2-200 Vacuum Glass Lifter is a vacuum lifter for handling smooth, non-porous material. It is rated at 441 lb (200 kg), a 2 x 12" (300 mm) circular pad. Power/actuation: 72 PSI (5 bar). Unit weight 141 lb (64 kg).
Features
- 441 lb (200 kg) lifting capacity
- 2 x 12" (300 mm) circular
- Runs on 72 PSI (5 bar)
- 6.4 CFM (180 L/min) air consumption
- Pneumatic 0-90 deg tilt
- Stainless steel vacuum tank, audio/visual alarm
- Weighs 141 lb (64 kg)
| Property | Detail |
|---|---|
| Brand | Aardwolf |
| Lifting Capacity | 441 lb (200 kg) |
| Vacuum Pads | 2 x 12" (300 mm) circular |
| Weight | 141 lb (64 kg) |
| Air Pressure | 72 PSI (5 bar) |
| Air Consumption | 6.4 CFM (180 L/min) |
| Tilting | Pneumatic 0-90 deg |
| Safety | Stainless steel vacuum tank, audio/visual alarm |
| Country of Origin | Vietnam |
- Inspect the vacuum pad seal for cuts, grit, or compression set before each shift.
- Connect the air/battery supply — 72 PSI (5 bar).
- Seat the pad flat on clean, sound, non-porous material with no chips or seams under the seal.
- Draw vacuum and wait for the gauge to reach the safe zone before taking any load.
- Lift slowly and keep the load low; never stand or pass under a suspended load. Never exceed the rated 441 lb (200 kg).
- Set the material down fully, then release vacuum and vent the pad.
