Aardwolf Industries | SKU:
AVBL1000
Aardwolf Vacuum Block Lifter
Regular price
$6,469.48 USD
Unit price
Shipping calculated at checkout.
Pickup available at Dynamic Stone Tools Warehouse (Manassas Park, VA)
Usually ready in 2 hours
Aardwolf Vacuum Block Lifter
Regular priceFrom
$4,374.00 USD
Unit price
Aardwolf Industries | SKU:
AVBL1000
Regular price
$6,469.48 USD
Unit price
Shipping calculated at checkout.
Description
Description

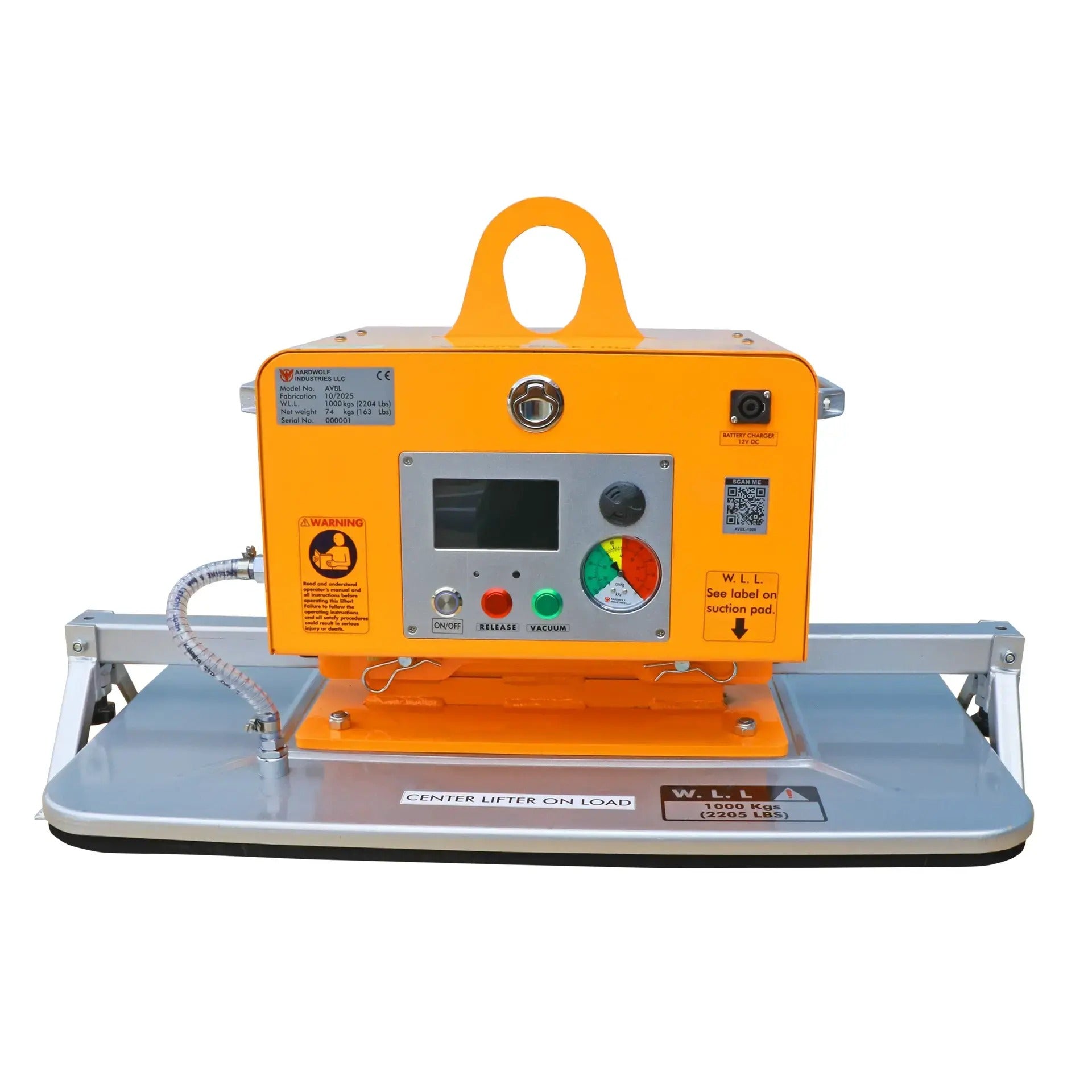

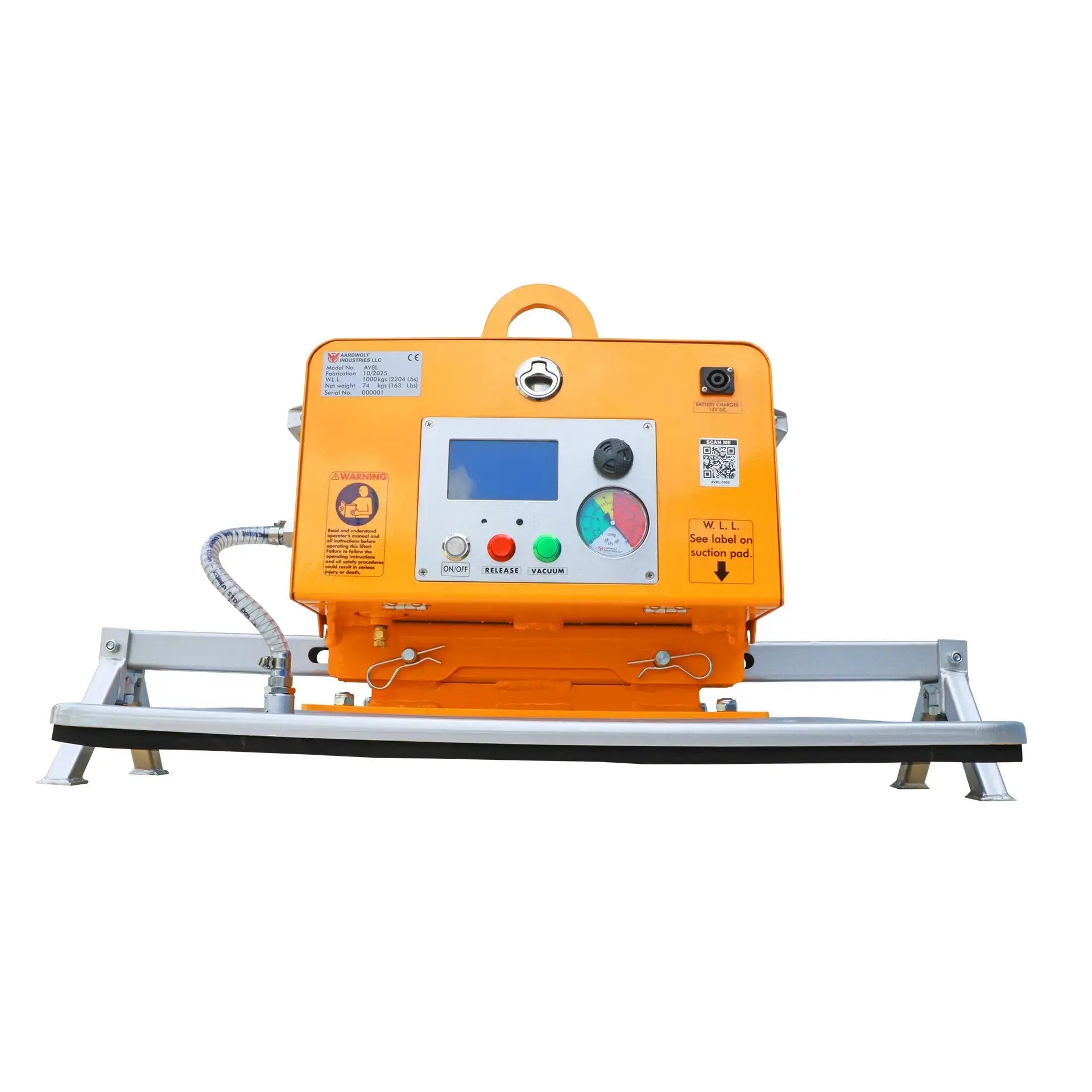

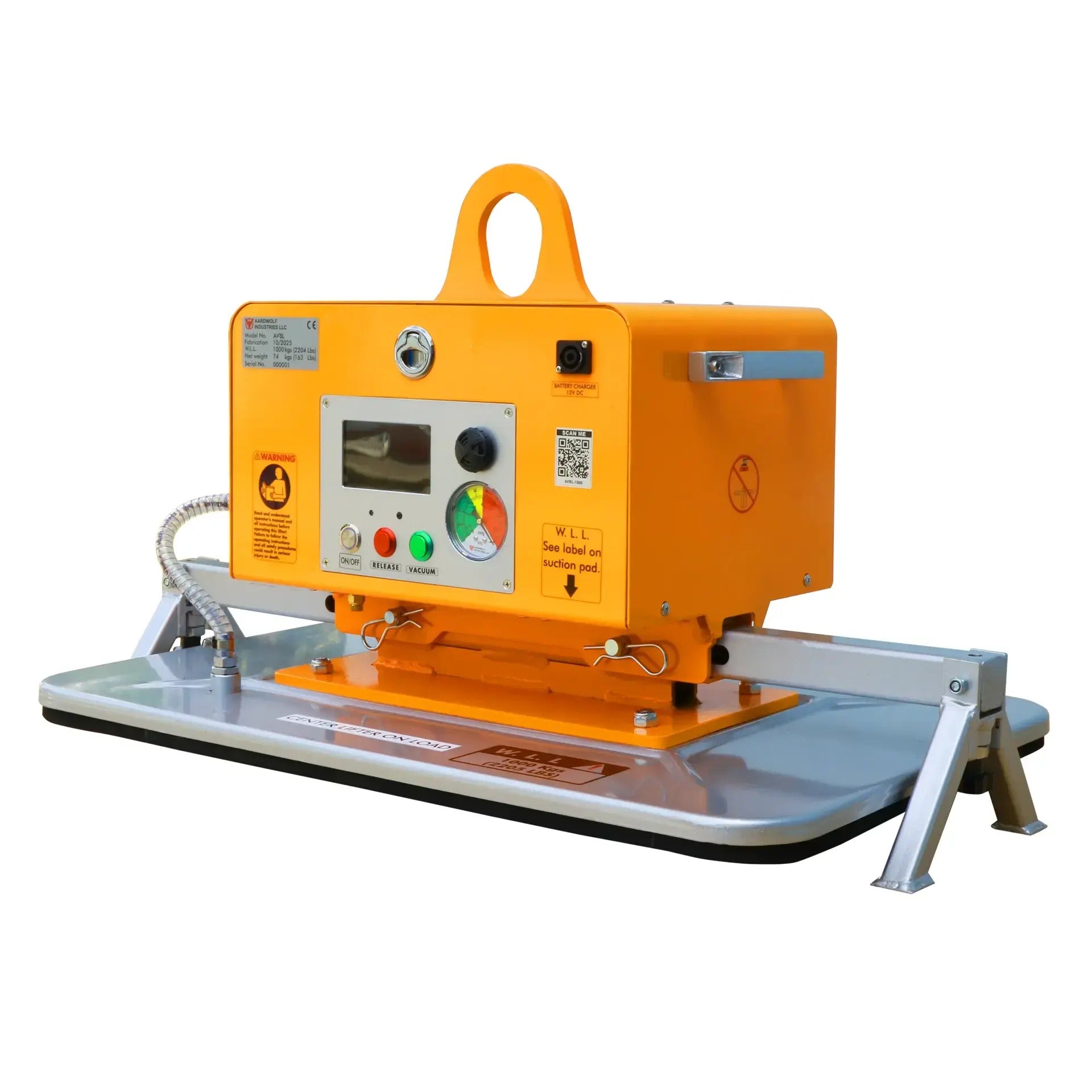

Aardwolf Vacuum Block Lifter
The Aardwolf AVBL1000 Vacuum Block Lifter is a vacuum lifter for handling smooth, non-porous material. It is rated at 2,204 lb (1,000 kg), a 19.7" x 31.5" (500 x 800 mm) pad. Power/actuation: 12V battery (12V-24A). Unit weight 209 lb (95 kg).
Features
- 2,204 lb (1,000 kg) working load limit
- 19.7" x 31.5" (500 x 800 mm) suction pad
- Power: 12V battery (12V-24A)
- Audio/visual alarm, vacuum gauge, storage tank
- Weighs 209 lb (95 kg)
| Property | Detail |
|---|---|
| Brand | Aardwolf |
| Working Load Limit | 2,204 lb (1,000 kg) |
| Vacuum Pumps | 2 (battery, selectable single/dual) |
| Suction Pad Size | 19.7" x 31.5" (500 x 800 mm) |
| Weight | 209 lb (95 kg) |
| Power | 12V battery (12V-24A) |
| Operating Time | 5 hr continuous |
| Vacuum Flow | 1.15 CFM (32.5 L/min) |
| Safety | Audio/visual alarm, vacuum gauge, storage tank |
| Country of Origin | Vietnam |
- Inspect the vacuum pad seal for cuts, grit, or compression set before each shift.
- Charge or connect the pump power supply and confirm it primes.
- Seat the pad flat on clean, sound, non-porous material with no chips or seams under the seal.
- Draw vacuum and wait for the gauge to reach the safe zone before taking any load.
- Lift slowly and keep the load low; never stand or pass under a suspended load. Never exceed the rated 2,204 lb (1,000 kg).
- Set the material down fully, then release vacuum and vent the pad.

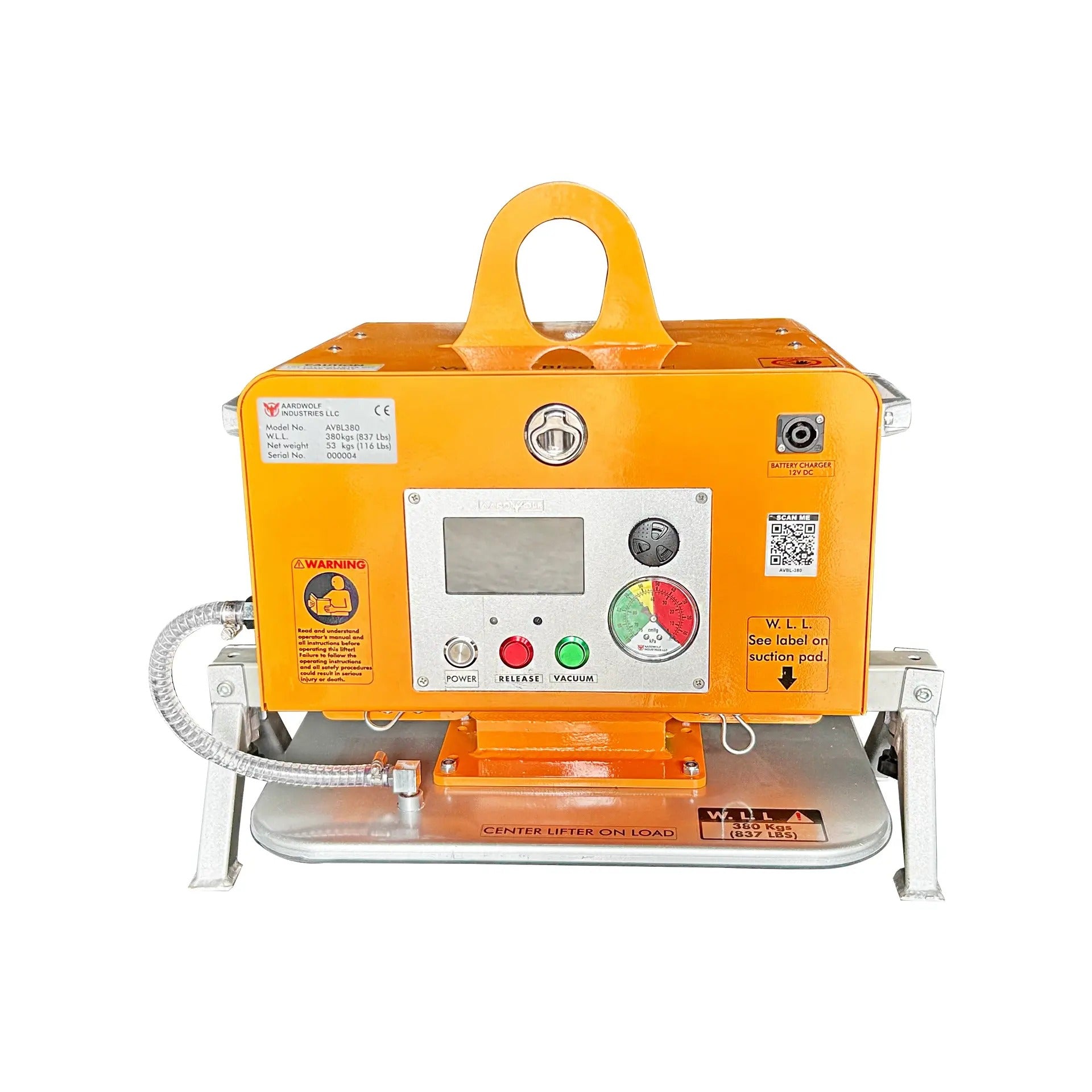

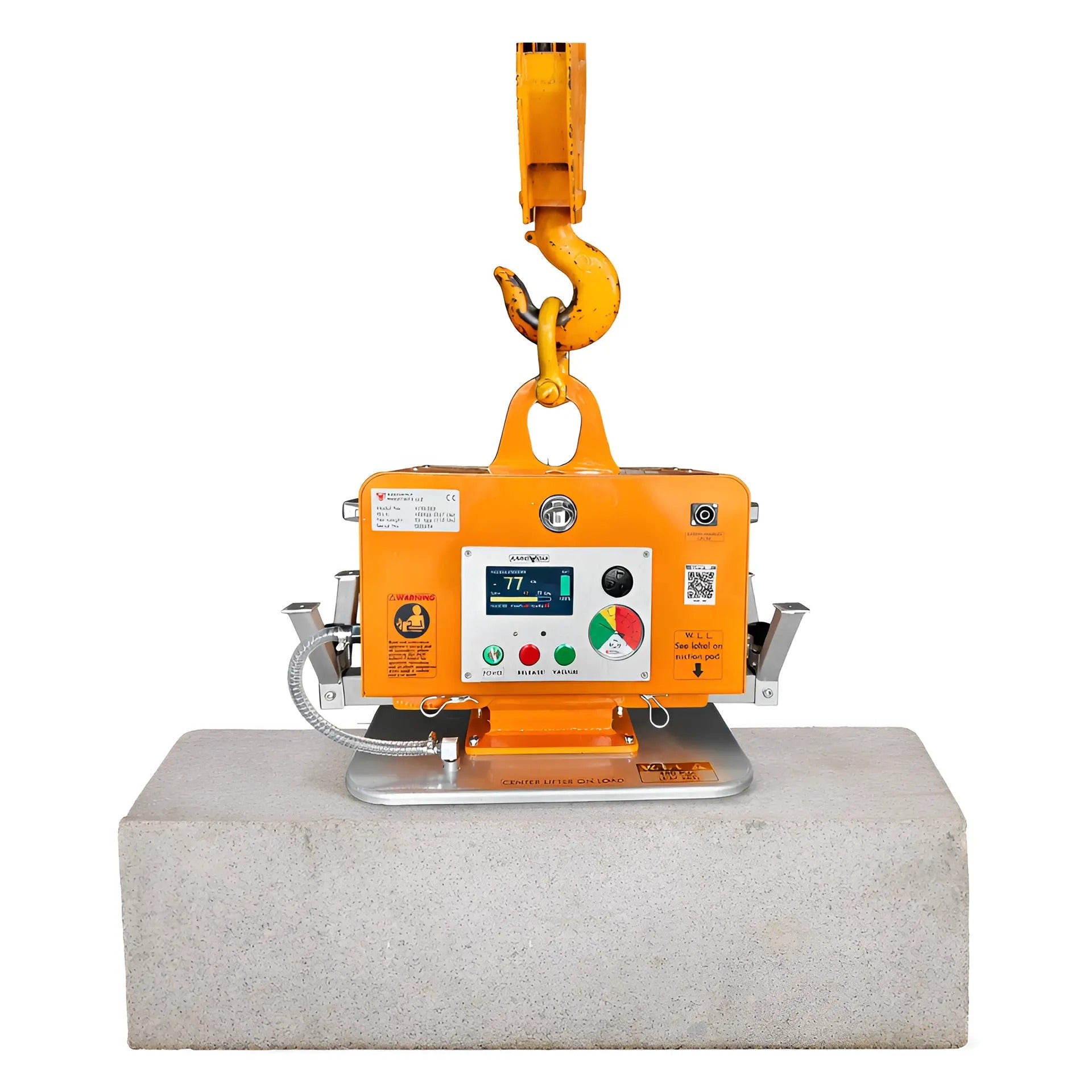

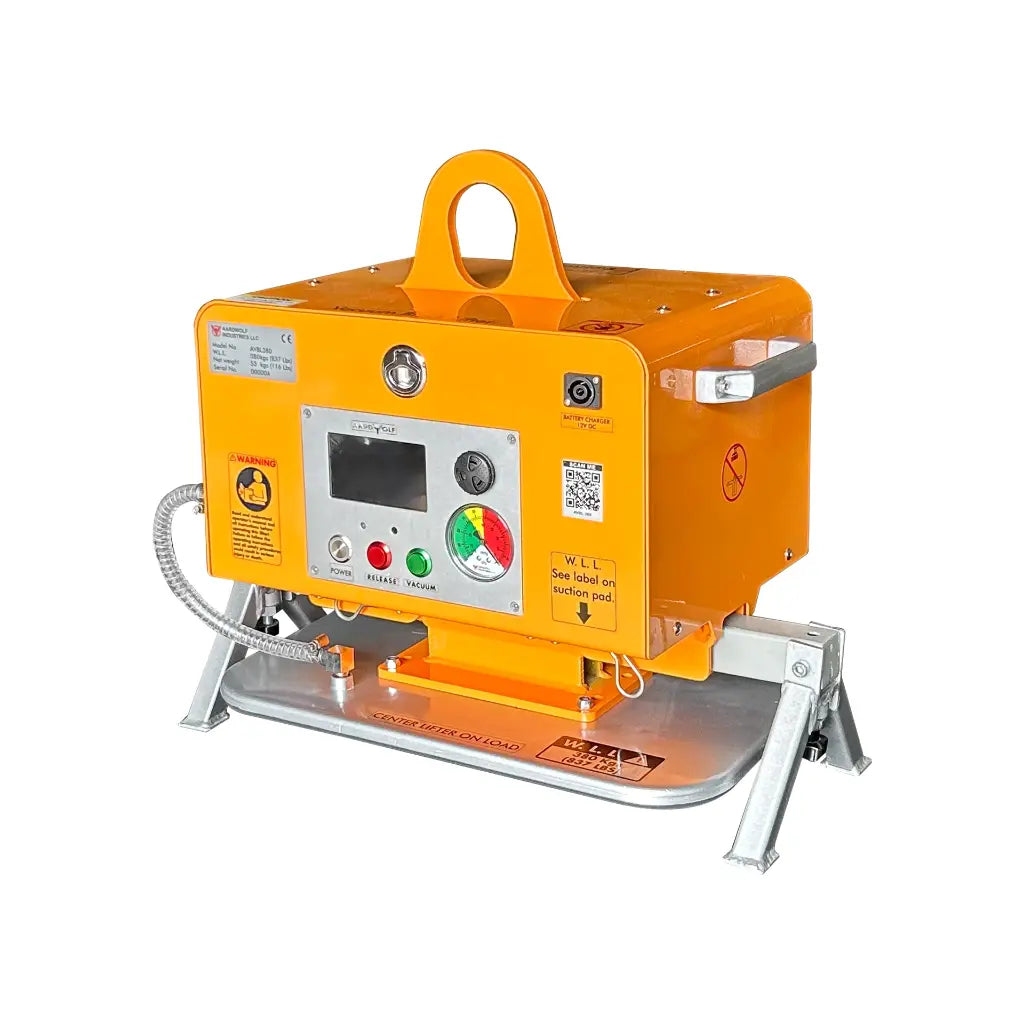

Manufacturer demonstration of the AVBL380 — same product family; features and operation are representative, ratings differ by model.
