Weha 16-Inch Marble Diamond Bridge Saw Blade: Cutting Guide

Marble is one of the most unforgiving materials a fabricator can put on a bridge saw. The calcite crystal structure that gives marble its characteristic veining and translucence is also the reason it chips, fractures, and tears at the cut edge far more easily than granite or engineered quartz. Choosing the right blade is the single most important variable in cut edge quality and the amount of polishing labor required afterward. The Weha 16-Inch 7mm Marble Diamond Bridge Saw Blade is engineered specifically for this challenge.

Why Marble Requires a Dedicated Diamond Blade

Granite, quartz, and marble are all cut with diamond-segment blades, but they are fundamentally different materials that do not respond to the same blade specification. Granite is a hard, interlocked crystalline rock that responds well to aggressive, high-segment blades with a medium bond. Engineered quartz contains resin binders that require a continuous rim or fine-segment blade to avoid tearing. Marble is a metamorphic rock composed predominantly of calcite or dolomite crystals, both of which are significantly softer than granite quartz and require a very different cutting approach.

The primary failure mode when cutting marble with the wrong blade is edge chipping along the top face of the cut. A blade that is too aggressive, with segment geometry designed for harder materials, will tear through the calcite crystals rather than slicing through them cleanly. Each tear point becomes a visible chip on the polished face that must be removed during subsequent edge profiling. In severe cases, chips extend deep enough into the material that they cannot be polished out and the piece must be recut entirely, wasting both material and time.

The secondary failure mode with inappropriate marble blades is subsurface microcracking along the cut path. These microscopic fractures in the stone along and adjacent to the saw kerf do not show as visible chips immediately but weaken the stone against future stress. A marble slab cut with a blade that generates excessive vibration may develop visible crack propagation along the cut edge weeks or months after installation, when thermal movement or physical load is applied. This type of callback is expensive, disruptive, and entirely preventable with the right blade selection.

Blade specification for marble cutting centers on a softer bond formulation that releases diamond particles more freely, continuously exposing fresh cutting surface before segments overheat. Marble's relative softness means the bond must be calibrated to wear at a rate matching the material's abrasiveness, not the abrasiveness of harder stone types. A hard bond designed for granite will glaze on marble because marble does not wear the bond quickly enough to expose fresh diamond, causing performance to drop off rapidly and generating excessive heat at the contact point.

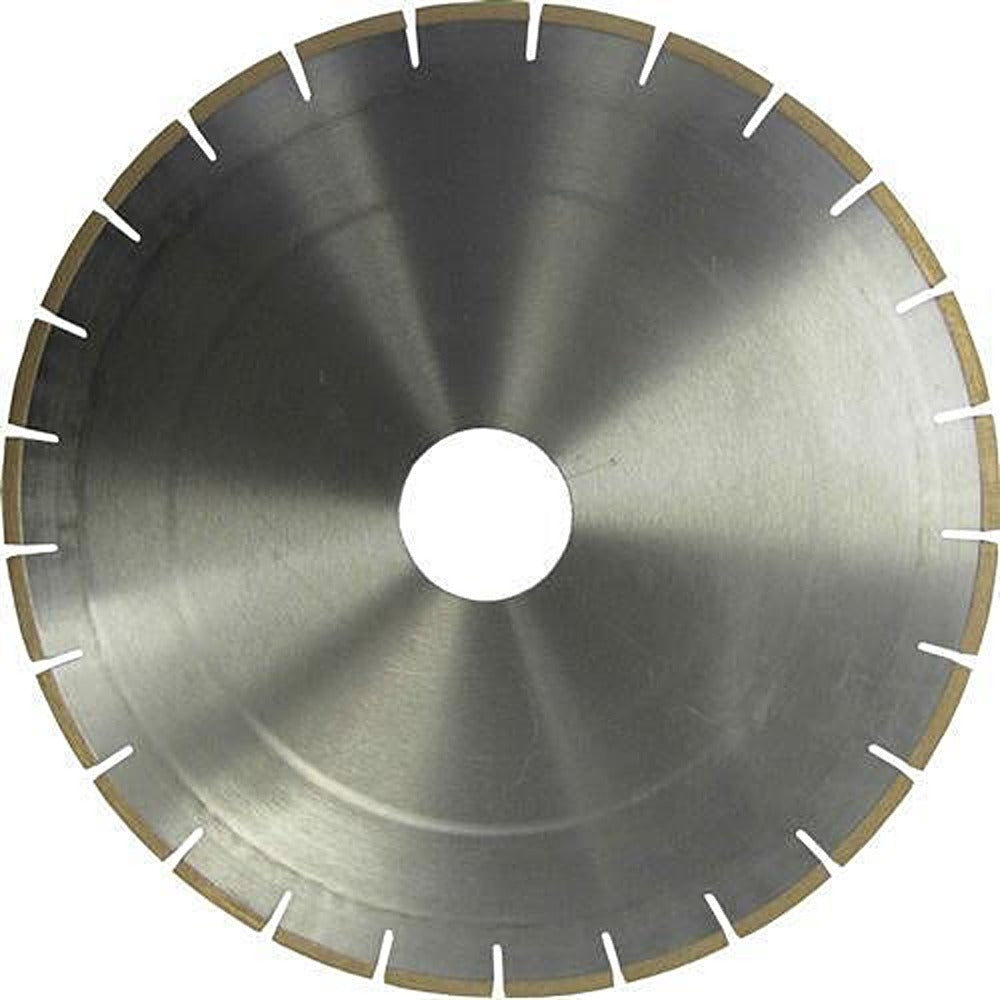

Weha 16-Inch 7mm Marble Blade: Full Specification

The 16-inch diameter positions this blade squarely in bridge saw territory, the standard cutting configuration for full-slab countertop fabrication. Bridge saws running 16-inch blades operate at RPM specifications that keep blade tip speed within the optimal range for marble. Running any marble blade at the wrong RPM, whether too high or too low, degrades cut quality and shortens segment life significantly.

The 7mm segment height is a deliberate engineering choice for marble applications. Shorter segments reduce the mass of carbide and bond material contacting the stone at any moment, which lowers lateral cutting pressure and the vibration transmitted into the slab along the cut line. This directly addresses the chipping and microcracking risk that defines the marble cutting challenge. Shorter segments also allow the blade to track more accurately through long rip cuts without deflecting from the intended line.

The bond formulation is the specification that most directly controls cut quality on marble. The Weha marble blade uses a bond calibrated to break down at the correct rate for marble's hardness and abrasiveness. Using this blade on harder materials such as quartzite, granite, or sintered stone would cause rapid bond wear because those materials are far more aggressive on the segment. Conversely, running a hard-bond blade on marble results in glazing, poor diamond exposure, and overheating at the cut line.

Bridge Saw Setup and Operating Conditions

Arbor Inspection and Blade Mounting

Before mounting any 16-inch blade, verify that the bridge saw arbor is clean and completely free of debris or dried slurry from previous blades. Check that the arbor flanges are tight, undamaged, and seated flat. The blade must contact both flanges across their full face with no gaps or tilt. A blade that is not perfectly flat against the flanges will wobble during rotation, creating a wider kerf than intended and generating lateral vibration that chips marble at the cut edge. After mounting, run the blade at operating speed without load for 10 to 15 seconds and observe for any vibration before beginning the first cut.

Water Flow and Cooling

Adequate water cooling is essential for marble cutting with any diamond blade. Marble's lower hardness compared to granite means it generates a fine calcite slurry during cutting that can accumulate on the blade face and reduce diamond exposure if water flow is insufficient to continuously flush it away. Maintain water flow at or above the blade manufacturer's recommendation. If you notice the cut generating more heat or steam than usual, increase water flow before continuing rather than pushing through the problem.

Feed Rate and Cutting Technique

Marble should be cut at a consistent, moderate feed rate. Cutting too slowly allows the blade to dwell in a fixed position relative to the stone, which generates localized heat and can cause the segment bond to glaze. Cutting too aggressively puts excessive lateral load on the blade, which causes the blade to deflect from the straight line and produce a cut with a slight bow or wave that is visible in the finished edge.

For long rip cuts across a full marble slab, establish a consistent feed rate at the very beginning of the cut and maintain it without interruption through the entire pass. Inconsistent feed rate, including starts and stops or speed changes mid-cut, is one of the most common and avoidable causes of visible surface irregularity in the polished edge. Train all shop operators on this point specifically when they are new to marble cutting, as the instinct to slow down when the cut feels wrong is the opposite of what the blade requires.

New Blade Break-In Procedure

A new Weha marble blade benefits from a brief break-in procedure before production use. Make two or three short cuts through a piece of soft limestone, travertine, or a concrete dressing block at a slower than normal feed rate. This exposes the initial diamond layer and allows the bond surface to seat properly at the flanges. This procedure is especially important if the bridge saw was previously running a hard-bond blade for granite, as micro-debris from that blade's bond may remain on the arbor surface and affect initial tracking of the new blade.

Blade Maintenance and Service Life

Cleaning and Storage

After each cutting session, clean the blade with water and a soft brush to remove marble slurry from the segment faces and the blade body. Marble slurry contains fine calcite dust that dries to a hard film on the blade body, which can gradually restrict the ventilation slots and reduce blade cooling efficiency over time. Rinse thoroughly and allow the blade to dry completely before storage. Store blades vertically on a blade rack or hanging on a peg, never flat in a stack where moisture can be trapped between blades.

Monitoring Segment Wear

Monitor segment height throughout the blade's service life. When segments wear below 3mm, the blade is approaching end of service and should be retired before the next major production session. Running a blade to the segment core creates a significant safety hazard: segment separation at bridge saw RPM can damage the arbor assembly and injure anyone nearby. Track approximate linear footage cut per blade and compare against previous blades of the same specification. A significant reduction in footage per blade is a leading indicator that water delivery, RPM setting, or stone hardness has changed in a way that is shortening blade life.

Recognizing and Correcting Glazing

If the Weha marble blade begins cutting more slowly than normal, or if the cut generates more heat than usual with adequate water flow in place, the blade may have developed minor glazing from a period of insufficient water or an unusually hard section of stone such as a heavily veined area with quartz inclusions. Dress the blade by making two or three passes through an abrasive dressing block or a piece of soft sandstone at normal feed rate. After dressing, the blade should return to its normal cutting speed and produce a clean edge again.

Real Cost Comparison: Marble-Specific Blade vs. General-Purpose Blade

Fabricators who cut primarily granite and quartz are sometimes tempted to use existing blade inventory on marble jobs rather than maintaining a separate marble-specific blade. The logic is understandable: blades are expensive, and a blade already on the saw is immediately available. But this is a false economy that produces real and measurable costs in finishing labor and rework.

A medium-bond granite blade applied to marble will typically produce visible chipping along the cut edge on most commercial marble varieties. The polishing labor required to remove those chips during edge profiling can add 20 to 40 minutes per countertop piece depending on the severity of the chipping and the profile complexity. On a job with six countertop pieces, that is potentially four hours of additional labor that was not estimated and not billed to the client.

There is also the risk of visible chipping that cannot be polished out at all. When chips extend beyond the depth that the edge profile will remove, the piece must be recut. A recut piece means a second pass through all material handling, saw setup, and edge processing steps. It also delays the installation schedule, which creates downstream problems with contractors and clients. The cost of a single recut piece on a premium marble job typically exceeds the cost of the dedicated marble blade several times over.

The Weha 16-inch marble blade amortizes its cost against the reduction in finishing labor on every marble cut it produces. Most shops that track this carefully find the blade pays for itself within the first two or three marble projects it is used on, and continues delivering savings for the remainder of its service life.
