Abaco FAGA078 A-Frame: Safe Stone Slab Storage & Transport Guide

Slab storage and handling is one of the highest-risk operations in any stone fabrication shop. A single dropped or tipped slab can result in tens of thousands of dollars in material loss, serious injury to workers, damage to equipment, and significant disruption to shop operations. The A-frame stand is the industry-standard solution for safe, organized slab storage, and among all A-frame systems available to professional fabricators, the Abaco FAGA078 Folding Adjustable Giant A-Frame stands out as a purpose-built tool engineered for the specific demands of professional stone fabrication operations.

What Is the Abaco FAGA078 Folding Adjustable Giant A-Frame?

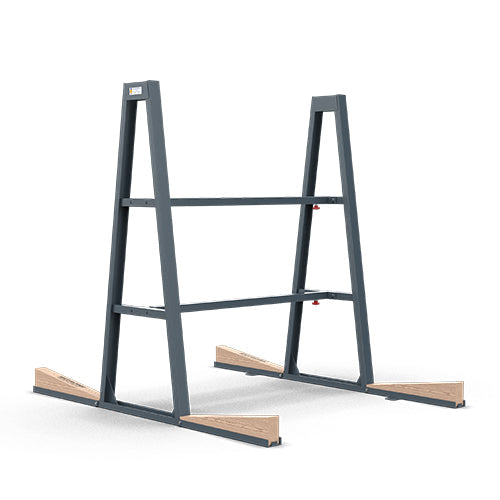

The Abaco FAGA078 is a heavy-duty, professional-grade A-frame stand designed specifically for storing, displaying, and handling natural stone slabs in fabrication shops, stone yards, and showroom environments. The FAGA078 designation indicates a Folding, Adjustable, Giant A-Frame—and all four descriptors are meaningful to the fabricator evaluating storage equipment. Folding design means the frame can be collapsed and stored compactly when not in use or when reorganizing shop layout. Adjustable geometry means the lean angle of the supporting legs can be set to accommodate different slab thicknesses, weights, and stability requirements. Giant capacity means the frame is rated for the full-size slabs that professional fabricators regularly handle, not the reduced-scale stones that consumer-grade storage solutions are built for.

The FAGA078's construction reflects its professional-grade specification. Heavy-gauge steel throughout the frame, welded joints at all critical stress points, and rubber-padded contact surfaces that protect slab edges and faces from scratch damage and impact. The adjustable leg angle allows fabricators to fine-tune the lean angle for each storage application, an important capability when storing mixed slab thicknesses or when the floor surface is not perfectly level. The folding mechanism uses a secure locking system that prevents accidental collapse during loading, unloading, or when slabs are stored for extended periods. These design details distinguish professional A-frame equipment from improvised storage solutions that create more risk than they resolve.

The Abaco brand has a long reputation in the professional stone fabrication market for equipment that combines thoughtful engineering with the rugged durability that working fabrication shops require. The FAGA078 specifically was developed in response to fabricator feedback about the limitations of earlier A-frame designs, incorporating the larger capacity, folding convenience, and adjustability that working shops consistently requested. The result is a frame that experienced fabricators describe as working the way they think rather than requiring adaptation of their workflow to fit the tool. View the complete product specifications and current availability at Dynamic Stone Tools.

Slab Storage Principles Every Fabricator Must Know

Before discussing the specific capabilities of the FAGA078, it is worth establishing the foundational principles of safe slab storage that govern how any A-frame should be used in a professional fabrication environment. Natural stone slabs are among the heaviest materials routinely handled in fabrication shops. A full-size granite slab of 3 centimeter thickness measuring 65 inches by 120 inches weighs approximately 400 to 450 pounds depending on density. Quartzite slabs of comparable dimension can exceed 500 pounds. Marble and limestone slabs are typically lighter but still represent significant weight in the range of 280 to 350 pounds for full-size pieces.

The physics of a standing slab create extreme leverage against any storage system. A slab leaning at 15 degrees from vertical generates a toppling moment at its base that exceeds the slab's own weight by a factor related to the height-to-base-width ratio. This is why even a modest nudge to a top-heavy standing slab can initiate a tip that becomes uncontrollable once started. A-frames mitigate this by supporting the slab from both sides at its lower section, constraining the potential for tipping in either direction and distributing the load across a wider base area than a single-sided rack can achieve. The geometry of the A-frame, with its bilateral symmetry and low center of mass, is specifically designed to counteract the toppling physics of standing slab storage.

Maximum load capacity and load distribution are critical parameters that must be respected in any A-frame application. Overloading an A-frame—whether by exceeding its rated total weight capacity or by creating an unbalanced load on one side—generates the exact risk condition the frame was designed to prevent. Fabricators must know the rated capacity of every A-frame in their shop and must train all personnel who interact with slab storage to observe those limits consistently. The FAGA078 provides rated capacity documentation that should be reviewed at installation and posted on or near the frame as a ready reference for all shop personnel.

Setting Up the FAGA078 in Your Shop

Proper setup of the Abaco FAGA078 begins with floor surface evaluation. The frame must be positioned on a level, solid floor surface capable of supporting the combined weight of the loaded frame. Cracked, heaved, or uneven concrete can create instability under loaded A-frames, particularly when the floor variation causes one leg to be higher than the other and tilts the frame laterally. For shops with imperfect floor surfaces, use rubber leveling pads under the frame legs to compensate for minor unevenness and ensure all four leg contact points are fully in contact with the floor before loading.

The FAGA078's adjustable leg angle should be set before loading slabs and should not be adjusted with slabs on the frame. Determine the appropriate lean angle based on the typical slab thickness you will be storing: thicker slabs require a more open angle to seat properly in the frame's lower support zone, while thinner slabs may be better secured at a slightly more vertical angle. Test the selected angle by loading a representative slab and checking that it seats securely against the frame's lower cross member without excessive forward or backward lean. When the frame is correctly adjusted for the slab thickness, the slab should rest at a stable equilibrium position without applying significant lateral force on the frame's support structure.

Positioning the FAGA078 in the shop layout requires thinking about both the daily workflow patterns and the emergency access requirements. A-frames loaded with slabs should not block primary egress paths from the shop floor. There should be adequate clearance on both loading sides of the frame for workers to maneuver slabs with suction cup handlers without colliding with adjacent equipment or other slabs. In shops using forklifts or pallet jacks for slab movement, the frame positioning must account for the turning radius and approach path requirements of the lifting equipment.

Safe Loading and Unloading Procedures

Loading slabs onto the FAGA078 safely requires a minimum of two trained workers for any slab that cannot be safely controlled by one person—which in practice means any slab heavier than approximately 150 pounds. One worker controls the upper section of the slab during positioning; the other guides the lower edge into the frame's base support and ensures it seats fully before the upper portion is leaned to the frame. Communication between workers throughout the loading process is essential. Establish clear verbal signals for when to move, when to hold, and when to stop, and use them consistently.

Suction cup lifters appropriate for the stone surface condition—polished, honed, or rough—should be used for all slab loading and unloading operations. Never attempt to manage a full-size stone slab by gripping its edges bare-handed, which provides inadequate control and creates serious laceration risk from sharp or fragile slab edges. Position suction cups in the upper third of the slab face during loading, where they provide the best leverage for controlling the slab's lean angle as it is guided onto the frame. Once the slab is seated in the frame's lower support, reposition the suction cups to their carrying positions and only release them after confirming that the slab is stable.

Organizing a Slab Yard with Multiple A-Frames

Stone yards and larger fabrication operations often manage dozens of A-frames in a coordinated slab inventory system. The FAGA078's folding capability is particularly valuable in this context because it allows empty frames to be collapsed and stored compactly, freeing floor space for active inventory without requiring permanent removal and reinstallation of frame structures. A well-organized slab yard uses A-frame positions that are labeled and mapped, with inventory records that track which slabs are stored at each frame position, eliminating the time wasted searching for specific material in a large inventory.

Grouping slabs by material type, color family, or project allocation on dedicated A-frames reduces handling frequency—each time a slab must be moved past other slabs to reach the one needed represents both lost time and elevated risk of damage or injury. Color-coded frame identification, slab tags with product information attached to each piece, and aisle markings on the floor that maintain clear access paths between frame rows are all low-cost organizational tools that significantly improve the safety and efficiency of slab yard operations. The FAGA078's heavy-gauge construction ensures that frame-to-frame contact in closely spaced storage configurations does not compromise the structural integrity of individual frames.

Transport and Shop Mobility with the FAGA078

The folding design of the FAGA078 makes it practical to transport between locations, enabling fabricators to use the same high-quality frame for multiple purposes: slab delivery staging at job sites, display at design events or showroom presentations, and temporary storage at renovation or installation project sites. When transporting the collapsed frame, secure it against shifting with appropriate tie-downs and pad the folded frame sections to prevent scratching of finished surfaces or damage to the locking mechanisms during transport.

Within the shop, the FAGA078's wheeled base options, where available, allow the frame to be repositioned without unloading slabs, a significant convenience during shop reorganization or when project requirements change the optimal storage location for specific material. Always apply wheel locks immediately after repositioning a loaded frame, and verify that the locks are engaged before resuming loading operations. A rolling loaded A-frame that begins moving unexpectedly because a wheel lock was missed represents exactly the kind of preventable incident that proper equipment protocols are designed to eliminate.

Maintenance and Long-Term Care for Your A-Frame

A-frames in active fabrication shop environments require regular inspection and maintenance to remain safe and functional. Inspect the FAGA078's welded joints, locking mechanisms, and rubber pad surfaces on a monthly basis for signs of wear, corrosion, or damage. Replace rubber contact pads when they show significant wear or compression that reduces their ability to protect slab surfaces. Lubricate the folding mechanism and any adjustment hardware annually with appropriate lubricant to prevent binding or corrosion that could compromise the frame's functionality or safety.

In shop environments with high humidity, concrete dust, or stone slurry exposure, corrosion protection is an ongoing maintenance concern. The FAGA078's steel construction benefits from annual inspection for rust or corrosion, particularly at the leg-to-floor contact zones and at any moisture-trapping joint areas. Touch up any corrosion with appropriate rust-inhibiting primer and paint before it progresses to structural deterioration. A-frames that are structurally compromised must be taken out of service immediately and either repaired by a qualified welder or replaced—there is no acceptable safety compromise for slab storage equipment in a working fabrication shop.

The Abaco FAGA078 Folding Adjustable Giant A-Frame represents the kind of professional-grade investment that pays for itself in prevented material losses, reduced handling injuries, and improved shop organization over the life of the equipment. View full specifications, current pricing, and ordering information at Dynamic Stone Tools, and explore the complete range of stone handling and shop equipment solutions at dynamicstonetools.com.
