Edge polishing is one of the most repetitive and physically demanding operations in a stone fabrication shop. Holding a 7-inch angle grinder at the correct angle against a slab edge for minutes at a time, while maintaining consistent pressure and keeping the profile wheel tracking perfectly, is tiring work that leads to inconsistent results as the operator fatigues. The Abaco EPS60AL Edge Polishing Stand solves this problem by converting what was a two-handed free-form operation into a guided, repeatable machine process that produces consistent edge profiles every time.
What is the Abaco EPS60AL Edge Polishing Stand?

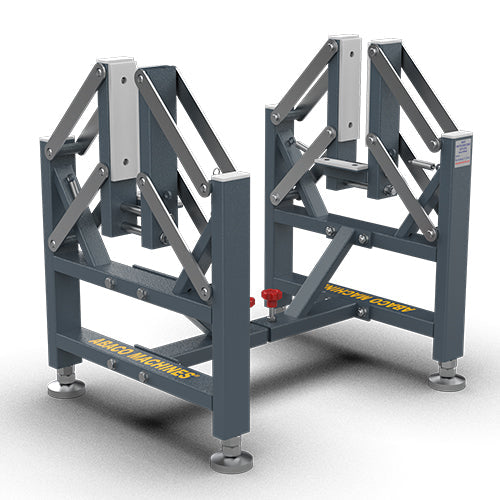

The Abaco EPS60AL is an adjustable edge polishing stand that holds a standard angle grinder in a fixed, angle-controlled mount while the operator feeds the slab edge past the spinning profile wheel. The stand constrains the grinder to the correct angle and height for the selected profile, allowing the operator to focus entirely on feeding the slab at a consistent rate rather than simultaneously managing tool angle, height, pressure, and feed speed. The result is a more consistent profile, lower operator fatigue, and significantly faster cycle times for edge polishing compared to fully freehand technique.
The EPS60AL is the Auto-Lock version of the Abaco edge polishing stand range, featuring a quick-release locking system that allows the grinder angle to be set and locked without tools in a matter of seconds. This makes it practical to switch between different profile angles during a single job when working on countertops with multiple profile transitions, such as a top edge with an eased profile transitioning to a bottom edge with a different treatment. The Auto-Lock mechanism is robust enough to hold its set position under the torque and vibration of an actively polishing grinder throughout an entire production shift.
For stone shops producing more than five to ten linear feet of profiled edge per day, the EPS60AL pays back its cost quickly in reduced labor time, improved consistency, and lower re-work rates from profiles that were off-angle or inconsistent. You can order the EPS60AL and explore full product specifications through the Abaco EPS60AL product page at Dynamic Stone Tools, with fast shipping to stone fabrication shops across the country.
Key Features of the EPS60AL Auto-Lock System
The Auto-Lock angle adjustment on the EPS60AL is the feature that separates it from earlier and lower-cost edge polishing stands. Traditional edge stand designs use a bolt-and-wing-nut angle lock that requires tools to change, making angle adjustment a two-minute task that discourages operators from adjusting between profiles. The Auto-Lock system uses a spring-loaded cam mechanism that clicks into a set angle and holds firmly under load. Releasing the lock, repositioning to the new angle, and re-locking takes under 15 seconds without any tools, making angle changes a practical mid-job operation rather than a shutdown event.
The grinder mounting bracket on the EPS60AL is designed to fit most standard 4-inch and 5-inch angle grinders from major brands with minor adjustments to the clamp position. The mounting geometry holds the grinder body securely while keeping the spindle at the correct angle relative to the slab edge and prevents rotational movement under the grinder's reaction torque during polishing. A secondary safety retention strap prevents the grinder from being ejected from the mount in the unlikely event of a mechanical failure or unexpected kickback event during edge profiling.
Height adjustment on the EPS60AL allows the grinder and profile wheel to be raised or lowered to align the profile wheel center with the slab edge midpoint. This adjustment is critical for achieving a profile that is centered on the slab edge thickness rather than high or low, which would cause the profile to appear to float above or below the top surface in the finished installation. The height adjustment range accommodates standard stone thicknesses from 2 centimeters through 4 centimeters without requiring additional adapter components, making the EPS60AL suitable for both standard and thick-format countertop work.
Setting Up the EPS60AL in Your Fabrication Shop
Position the EPS60AL stand at the end of your fabrication table or at a dedicated edge polishing station where the slab edge can be fed past the stand without obstruction. Adequate space behind and in front of the stand along the slab's direction of travel is essential — plan for at least 6 feet of clear runway in each direction to accommodate standard countertop lengths without the slab end hitting walls or equipment during the polishing pass. Install a water supply line or position a recirculating water pump near the stand so that water can be applied to the edge and wheel during polishing.
Mount the grinder in the EPS60AL bracket before selecting the profile wheel for the job. Install the profile wheel on the grinder while the grinder is in the stand mount, so you can visually confirm that the wheel tracks at the correct position relative to the slab edge support height. Set the stand height so the profile wheel center aligns with the slab edge midpoint, then lock the height adjustment. Set the angle lock to match the profile angle specified for the job — typically 90 degrees for a straight flat edge, or the appropriate angle for the profile type being applied — and confirm the lock is fully engaged before starting the grinder.
Before the first polishing pass, wet the slab edge and the profile wheel thoroughly with water. Running a diamond profile wheel dry, even for a few seconds, generates excessive heat that can damage the diamond segments and alter the polishing characteristics of the wheel. Maintain a continuous water flow throughout each polishing pass and allow the wheel to decelerate fully before moving to the next grit level. For the most efficient setup and the best edge results, pair the EPS60AL with quality diamond profile wheels matched to the specific stone type you are processing — find a full selection at polishing supplies at Dynamic Stone Tools.
Edge Profiling Workflow with the EPS60AL
The standard edge profiling workflow on the EPS60AL follows a grit progression from coarse grinding through fine polishing, with each pass removing the scratch pattern from the previous grit and replacing it with a progressively finer one. Begin with the coarsest grit profile wheel that will establish the correct profile geometry from the rough-cut edge — typically 50 or 100 grit for most natural stone, or 30 grit for very hard quartzite or dense granite. Feed the slab edge past the wheel at a speed that produces steady material removal without burning or loading the wheel. A consistent feed speed is more important than a specific speed value — inconsistency creates varying removal rates along the edge that show up as wavy or inconsistent profile depth.
Progress through intermediate grits at 200, 400, and 800 before moving to fine polishing grits at 1500 and 3000. At each grit level, inspect the edge under a light before proceeding to the next grit to confirm that the scratch pattern from the previous grit has been completely removed across the entire edge length. A single area where the previous grit pattern remains will telegraph through all subsequent grits as a visible dull patch in the final polished surface. It is faster to spend an extra minute on the current grit than to discover the problem after applying the 1500 grit wheel and having to go back three steps.
The final polishing step on marble and some granites uses a polishing compound or powder applied to the profile wheel to achieve the maximum gloss level the material can produce. Apply polishing compound sparingly to the wheel face, run a slow final pass along the entire edge length, then inspect under a direct light source and a raking light before pronouncing the edge complete. Any micro-scratches visible under raking light require an additional pass at the previous fine grit level before re-polishing. For a complete selection of profile wheels, polishing compounds, and related edge polishing supplies compatible with the EPS60AL, visit the EPS60AL product page at Dynamic Stone Tools.
Maintenance and Long-Term Care for the EPS60AL
Daily maintenance of the EPS60AL begins with rinsing the stand thoroughly with clean water at the end of each shift to remove stone dust, slurry, and polishing compound residue from the mounting bracket, adjustment mechanisms, and stand frame. Allow the stand to dry before storage or covering, as trapped moisture under accumulated slurry can accelerate corrosion of the steel components. A monthly application of a corrosion-inhibiting spray to exposed metal surfaces extends the service life of the stand in the wet environment of a stone polishing station.
Inspect the grinder mounting bracket for wear at the contact points quarterly. The bracket surfaces that contact the grinder body are subject to vibration-induced wear that can eventually allow unwanted movement of the grinder during polishing. If any bracket contact surface shows visible wear or the grinder can be shifted under hand pressure with the lock engaged, replace the bracket contact pads or the full bracket assembly before continuing production use. Operating with a worn or loose bracket mount undermines the accuracy advantage the EPS60AL provides and can produce inconsistent edge profiles indistinguishable from freehand work.
The Auto-Lock mechanism requires periodic inspection of the cam surfaces and the spring tension. A cam mechanism that clicks into position but does not hold firmly under load has either worn cam surfaces or a fatigued spring. Both conditions are repairable with manufacturer-supplied replacement parts. Never attempt to compensate for a worn lock mechanism by adding aftermarket hardware or welded stops — this creates an unsafe modification that voids the product warranty and may create new failure modes not anticipated in the original design. For genuine replacement parts and the full range of Abaco edge polishing equipment, visit Dynamic Stone Tools where the complete line is stocked and supported.
Comparing the EPS60AL to Other Edge Polishing Methods
Freehand edge polishing with an angle grinder is the baseline technique that the EPS60AL improves upon. An experienced operator using a premium profile wheel freehand can produce acceptable results on simple profiles like a straight eased edge or a basic flat polish. However, freehand technique becomes significantly more challenging on consistent radius profiles, laminated edges requiring the wheel to track precisely at the lamination joint, and any profile where visual consistency must be maintained across 10 or more linear feet without visible variation. The EPS60AL provides the mechanical guidance that makes these more demanding profiles repeatable.
CNC profile machines represent the high-production alternative to the EPS60AL for shops doing very high edge polishing volumes. A CNC profiler automates the grit progression, feed speed, and water application, producing finished edges with minimal operator attention per linear foot. However, CNC profilers carry capital costs 10 to 40 times greater than the EPS60AL and require dedicated programming knowledge for each new profile setup. For shops producing 50 to 200 linear feet of profiled edge per day, the EPS60AL often delivers a better return on investment than a CNC profiler that would be underutilized relative to its capital cost.
Router-based edge profiling systems use diamond-tipped router bits in place of profile wheels and produce excellent results on some profiles, particularly for creating pencil, bevel, and simple radius edges on porcelain and sintered stone panels where saw-cut edges need only light profiling. For natural stone countertop work with complex profiles requiring multiple sequential grit levels, the EPS60AL's profile wheel approach produces results that router systems cannot replicate without significantly more complex tooling. As a mid-range investment that meaningfully elevates edge quality and production efficiency, the EPS60AL stands as one of the most practical equipment upgrades available to a growing stone fabrication shop. Add it to your setup through the Abaco EPS60AL listing at Dynamic Stone Tools today.
