Drilling faucet holes in stone countertops by hand is one of the operations most prone to cracked slabs, off-center holes, and overheated core bits when done without proper guiding equipment. The Abaco DGM2 and DGM3 Drilling Guides solve this problem by giving the operator a stable, positioned drilling platform that keeps the core bit perpendicular to the stone surface, controls feed rate, and maintains water cooling around the bit throughout the cut — all of which are critical for drilling clean, accurate faucet holes in granite, quartz, marble, and other stone countertop materials.
Why Faucet Hole Drilling Is Harder Than It Looks
Drilling a 35 mm or 1-3/8 inch faucet hole through 3 cm of granite sounds straightforward until the first cracked slab or broken bit makes the difficulty clear. Several physical factors combine to make this operation genuinely challenging without the right equipment.
The core bit must enter the stone perfectly perpendicular to the surface. Even a 2 to 3 degree angle on entry causes the bit to cut unevenly, loading one side of the bit more than the other and creating a stress concentration in the stone around the hole. On materials like engineered quartz with consistent internal structure, this uneven loading often causes the material around the hole to crack radially outward, destroying the countertop piece. On natural granite, the uneven loading frequently causes the core bit to wander during the cut, producing an oval rather than round hole that will not accept standard faucet hardware properly.
Water cooling is mandatory for stone core bits. Diamond core bits used in stone generate significant heat during cutting, and without continuous water cooling the bit overheats, the diamond matrix loses its bond strength, and the bit fails rapidly — sometimes explosively, with segments releasing from the core at high speed. Maintaining water flow around a hand-held core bit operation requires either a suction cup water dam around the drill point or a guide system with an integrated water supply, which is exactly what the Abaco DGM2 and DGM3 provide.
Feed rate control is the third critical variable. Pushing the core bit too hard into the stone causes chipping at the entry surface and overloading of the diamond segments. Too light a feed and the bit glazes over, losing cutting efficiency and again generating excess heat. An experienced operator using a hand drill can develop feel for the correct feed rate, but this skill takes time to develop and is inconsistent under the physical fatigue of a full production day. A guide system with controlled feed removes this variability from the equation.
DGM2 vs DGM3: Understanding the Differences

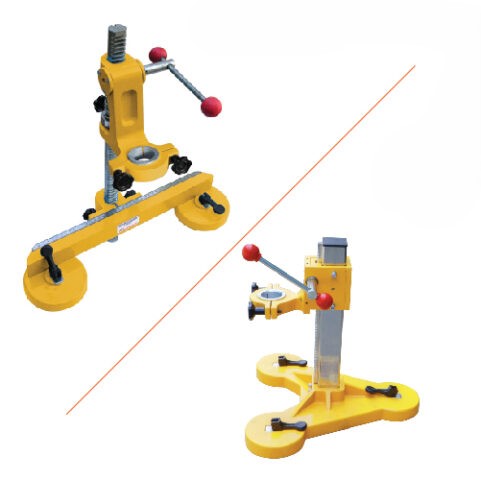

The Abaco DGM2 and DGM3 are both designed for the same core application — guided faucet hole drilling in stone countertops — but they differ in their configuration, capacity, and the drilling scenarios each handles best.
The DGM2 is the standard model, designed for the most common faucet hole drilling scenario: a single hole or a set of two to three holes in a relatively accessible countertop position. The DGM2 uses a suction base that attaches to the stone surface around the drill point, providing a stable platform for the drill guide column and the integrated water dam. The drill guide keeps the core bit perfectly vertical throughout the cut, and the water dam contains cooling water around the drill point without requiring a separate water supply connection in most applications. The DGM2 is compact and lightweight enough to be the standard tool in an installation crew's kit, used on site after the countertop is set.
The DGM3 addresses drilling requirements that go beyond the standard single-hole scenario. It is designed for situations requiring greater stability on non-flat surfaces, for drilling in confined spaces with limited overhead clearance, and for production environments where multiple holes per day must be drilled with consistent accuracy. The DGM3 provides an enhanced clamping and positioning system that compensates for minor surface variation, making it better suited to drilling on installed countertops where the surface may not be perfectly level, or on stone types with textured back surfaces that reduce suction cup engagement reliability.
Setting Up the Abaco Drilling Guide
Proper setup of either the DGM2 or DGM3 before the first cut is the step that determines whether the hole comes out correctly. Rushing setup to save a few minutes is false economy when a misplaced or cracked hole destroys a countertop worth thousands of dollars.
Begin by marking the exact center of the faucet hole on the stone surface using a center punch or a sharp marker. Measure from both the front edge and the relevant side edge to confirm the location matches the faucet template dimensions. Faucet manufacturers specify hole locations as distances from deck edge or from adjacent holes, and these dimensions must be transferred accurately to the stone before the guide is positioned.
Position the guide base over the marked center point and activate the suction base to secure it to the stone surface. Test the suction engagement by applying lateral force to the guide body — it should resist movement firmly without rocking. If the suction base does not engage firmly, the stone surface may be contaminated with dust, oil, or water. Clean and dry the surface in the contact area and re-engage before proceeding.
Fill the water dam with clean water and verify that the water level is sufficient to cover the full bit contact area when the bit enters the stone. The water provides cooling from the moment of first contact, preventing heat buildup during the critical entry phase where most thermal damage to the stone surface occurs. Top up water during the cut if the level drops, which is normal as water is consumed by evaporation and splash from the rotating bit.
Drilling Technique with the Abaco Guide System
With the guide set up correctly, the drilling operation itself is significantly less stressful than unguided hand drilling, but technique still matters for consistent results across the full depth of cut.
Begin with the drill running at the recommended RPM for the core bit and stone type before the bit contacts the stone. Starting a core bit against stationary stone causes higher impact loading than starting against a rotating bit, which can crack the stone surface at the entry point on harder materials. Lower the bit into contact with the stone smoothly while maintaining the correct rotational speed throughout.
Apply consistent downward pressure that keeps the bit cutting without chattering or stalling. The correct pressure varies with stone hardness, but a general rule is that the bit should advance at approximately 10 to 15 mm per minute in medium granite without significant effort from the operator. If advancing the bit requires significant force, the bit may be dull, the RPM may be too high, or the stone may be harder than the bit specification. If the bit advances too easily without cutting pressure, the feed rate is too slow and glazing may be occurring.
When the bit has penetrated approximately half the stone thickness, withdraw it from the hole, clear any accumulated slurry from the hole and the water dam, and check that the water cooling channel is clear. Stone slurry builds up in the hole and in the bit's water ports during deep cuts, and clearing this buildup at mid-depth prevents the slurry from binding the bit and causing it to stall or snap under the torque of the drill motor.
Engineered quartz and natural granite behave differently under core bit drilling, and the Abaco DGM2 and DGM3 guides accommodate both. Quartz is more uniform and predictable in cutting response but is highly sensitive to thermal shock — overheating the bit during quartz drilling causes micro-cracks in the resin matrix that can propagate days after installation when the countertop first experiences temperature variation. Maintain aggressive water cooling and moderate bit speed when drilling quartz. Granite is more variable — some granites cut easily and some are extremely hard — and the operator must be prepared to adjust feed pressure based on the actual cutting response rather than a fixed formula. In both materials, the guide system provides the perpendicularity and stability that prevents the most common drilling failures, letting the operator focus on the variables of water and feed rate rather than fighting to keep the bit straight.
Core Bit Selection for the Abaco Guide System
The Abaco DGM2 and DGM3 are designed to work with standard thread-mount diamond core bits. Selecting the correct core bit for your stone type and drill guide is as important as the guide setup itself. Faucet holes in residential countertops are typically 35 mm (1-3/8 inch) for standard single-hole faucets, with some configurations requiring 45 mm or larger for specific faucet designs.
For granite, use a segmented diamond core bit rated for hard stone. The segment height and diamond concentration must be appropriate for the granite hardness — bits specified for softer stone will load up quickly on hard granite and generate excess heat despite adequate water cooling. For engineered quartz, a continuous-rim or turbo-rim core bit provides a cleaner cut with less chipping at the entry and exit surfaces, which is important for the consistent, clean-looking holes that quartz fabrication demands.
Replace core bits before they are fully worn out. A worn bit that is still cutting will produce more heat, require more operator force, and produce a rougher hole wall than a fresh bit. In a production environment, track the number of holes each core bit drills and establish a replacement schedule based on observed cutting performance rather than waiting for the bit to fail entirely during a cut in valuable material.
Maintenance and Storage of the Drilling Guide
The Abaco DGM2 and DGM3 are precision tools that require basic maintenance to continue performing accurately over a long service life. The suction base assembly is the component most exposed to wear and contamination. After each use, clean the suction cup contact surface thoroughly and inspect it for cuts, tears, or deformation that would compromise suction engagement. A suction cup that no longer seals firmly against a flat, clean stone surface must be replaced before the guide is used again on production work.
The guide column and drill carriage should be wiped clean of stone slurry after each use. Stone slurry allowed to dry in the column bearing surfaces will cause the carriage to bind on the next use, which increases the force required to feed the drill and reduces the operator control that makes the guide valuable. A brief cleaning with a wet cloth and a light application of light machine oil on the bearing surfaces keeps the carriage moving smoothly and extends the precision life of the guide mechanism significantly.
Store the guide system in a dedicated case or designated storage location rather than loose in a tool bag with core bits and other equipment. The guide column is a precision component that must remain straight to function correctly. An impact that bends the column even slightly will cause the drill to track off-center during future cuts, producing holes that fail to meet the perpendicularity standard the guide is designed to achieve. Protecting the guide from impact during transport and storage protects the investment and maintains the accuracy that makes the Abaco system worth using.
Where to Get the Abaco DGM2 and DGM3
The Abaco DGM2 and DGM3 Drilling Guides are available from Dynamic Stone Tools. We stock Abaco drilling accessories because consistent, accurate faucet hole drilling is one of the operations where the right tool makes an immediate and measurable difference in production quality and material waste reduction.
At Dynamic Stone Tools, we carry Abaco diamond tooling, core bits, and drilling accessories alongside our full range of stone fabrication and handling equipment. If you have questions about which drilling guide model is right for your specific workflow, our team can help you choose.
